ZRE172L-DEFNK (2016)
Toyota Corolla

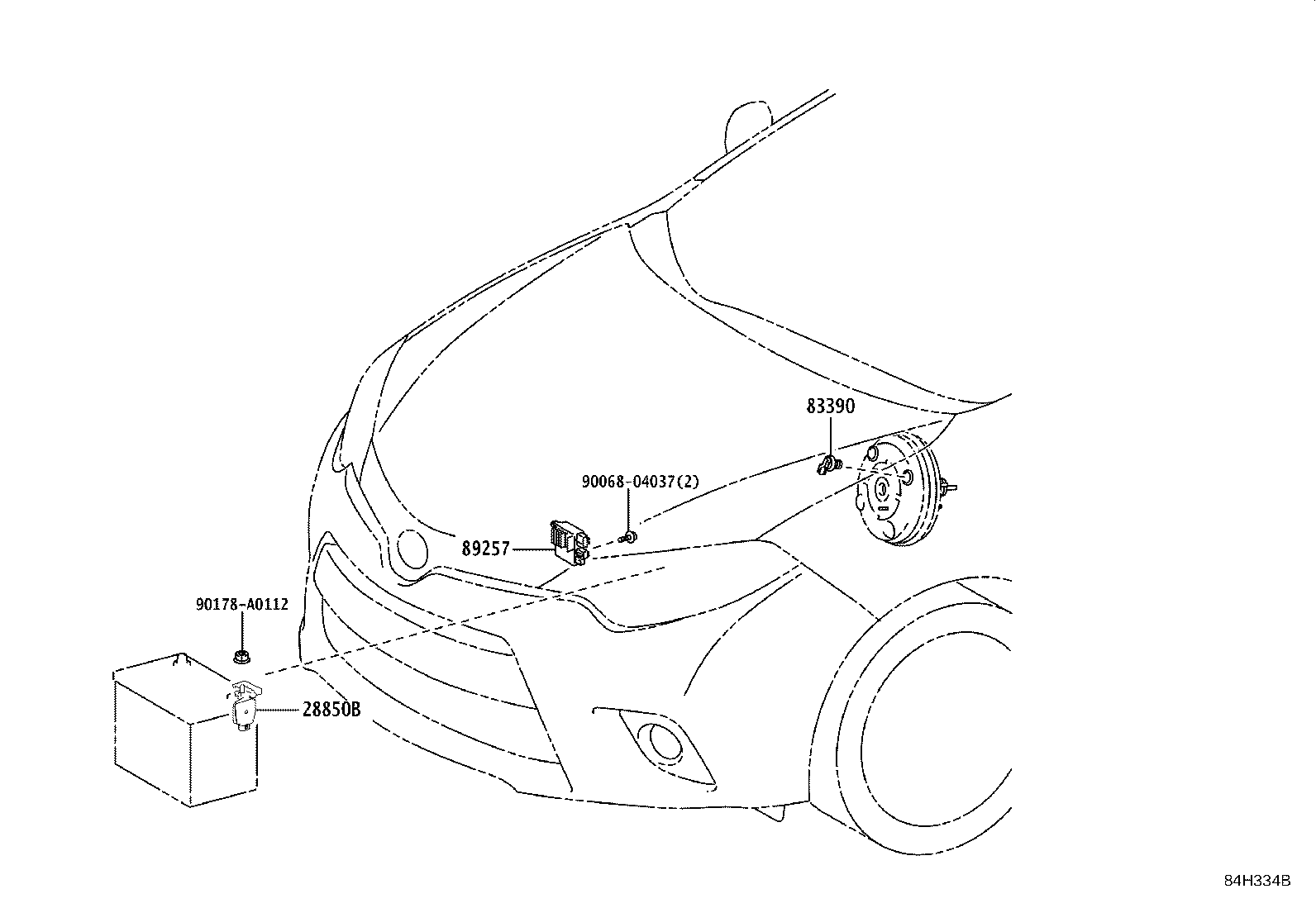

ILLUST NO. 2 OF 7(1608- )
ENGINE ROOM (1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
ZRE172 |
1 | ||
| 89257-12010 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90068-04037 | ||||
| 90178-A0112 | ||||

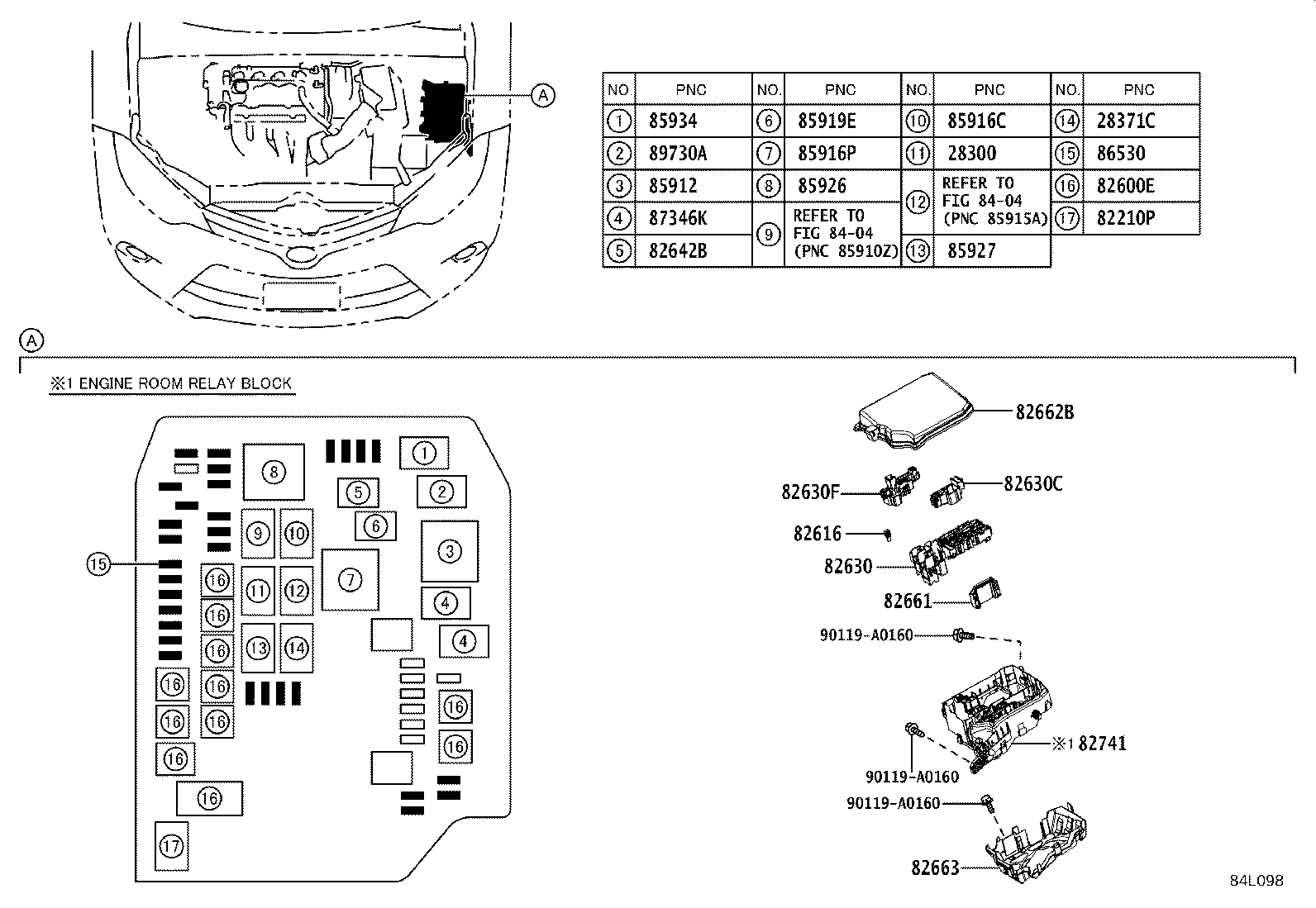

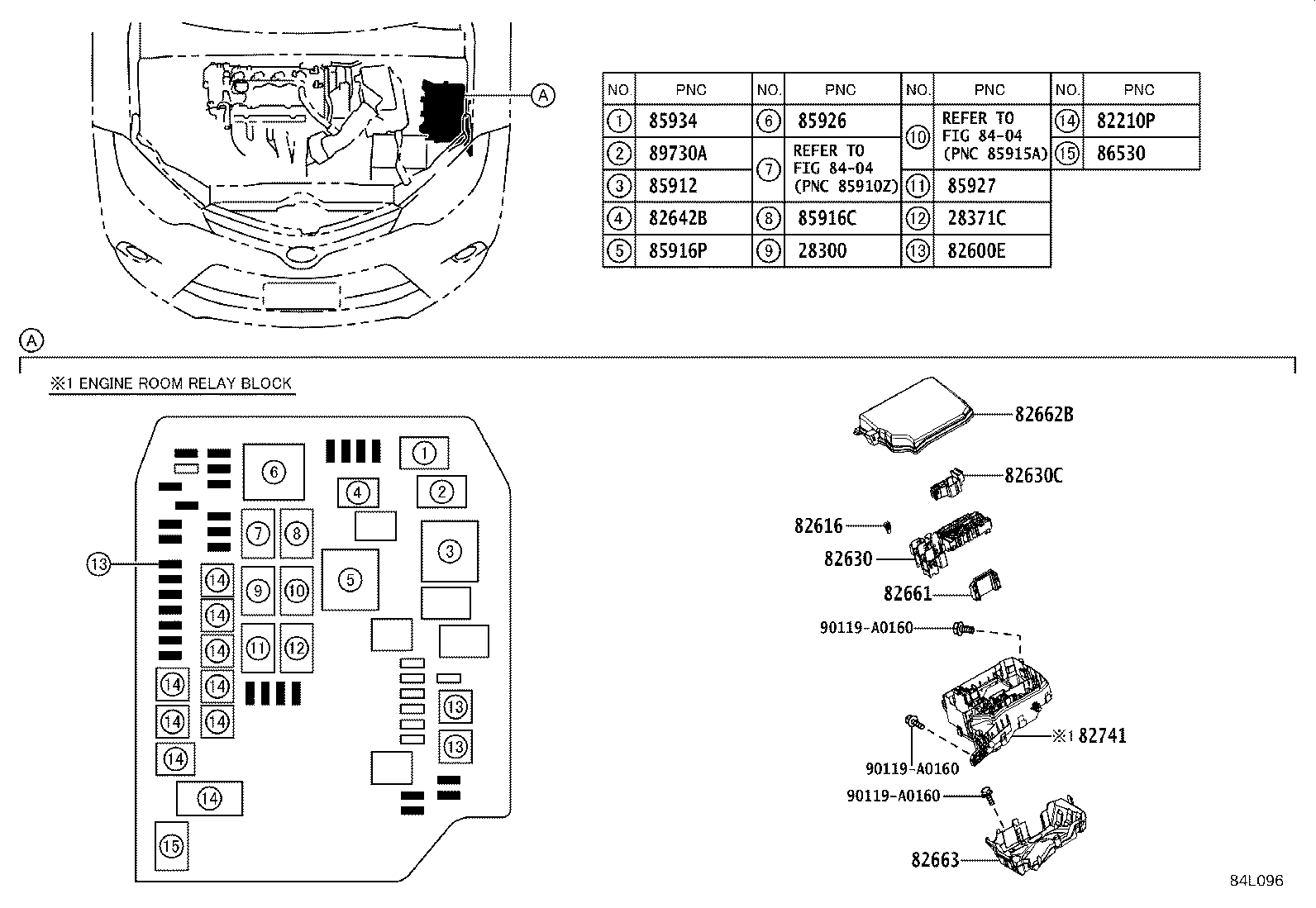

ILLUST NO. 3 OF 7(1608- )
ENGINE ROOM (2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A011 |
2ZR#..ZRE172 |
1 | ||
| 28300-0A010 |
2ZRFE..ZRE172..CVT,MTM |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87026 |
2ZRFE..ZRE172..CVT,MTM |
1 | ||
| 90080-87026 |
2ZR#..ZRE172 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
ZRE172 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08294 |
ZRE172 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ZRE172 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ZRE172 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
ZRE172 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
ZRE172..GEN 120A,TERM.:MALE,WHT,*VSC-WITH(CUT OFF SW) |
1 | ||
| 90982-08296 |
ZRE172..GEN 50A,TERM.:FEMALE,RED,*VSC-WITH(CUT OFF SW) |
3 | ||
| 90982-08295 |
ZRE172 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
ZRE172 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
ZRE172 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08305 |
ZRE172 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08294 |
ZRE172..GEN 40A,TERM.:FEMALE,GRN,*VSC-WITH(CUT OFF SW) |
1 | ||
| 90982-08295 |
ZRE172..GEN 30A,TERM.:FEMALE,PNK,*VSC-WITH(CUT OFF SW) |
5 | ||
| 90982-08305 |
ZRE172..GEN 80A,TERM.:FEMALE,BLK,*VSC-WITH(CUT OFF SW) |
1 | ||
| 90982-08305 |
ZRE172 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
ZRE172..CVT,MTM 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ZRE172..CVT,MTM 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZRE172..CVT,MTM 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZRE172 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ZRE172 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ZRE172..CVT,MTM 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZRE172..CVT,MTM 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
ZRE172 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZRE172..GEN 10A,MINI FUSE,RED,*VSC-WITH(CUT OFF SW) |
11 | ||
| 90982-09020 |
ZRE172..GEN 7.5A,MINI FUSE,BROWN,*VSC-WITH(CUT OFF SW) |
2 | ||
| 90982-09025 |
ZRE172..GEN 30A,MINI FUSE,GRN,*VSC-WITH(CUT OFF SW) |
2 | ||
| 90982-09025 |
ZRE172 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
ZRE172..GEN 5A,MINI FUSE,TAN,*VSC-WITH(CUT OFF SW) |
2 | ||
| 90982-09023 |
ZRE172 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ZRE172..GEN 15A,MINI FUSE,BLUE,*VSC-WITH(CUT OFF SW) |
3 | ||
| 90982-09023 |
ZRE172..GEN 20A,MINI FUSE,YELLOW,*VSC-WITH(CUT OFF SW) |
5 | ||
| 90982-09022 |
ZRE172 15A,MINI FUSE,BLUE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZRE172..CVT,MTM |
1 | ||
| 82616-58010 |
ZRE172 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12040 |
ZRE172..CVT,MTM |
1 | ||
| 82631-12040 |
ZRE172 |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-12060 |
ZRE172..CVT,MTM |
1 | ||
| 82631-12060 |
ZRE172 |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-02027 |
ZRE172..S DENSO JAPAN |
1 | ||
| 90080-87026 |
ZRE172..S DENSO USA |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12330 |
ZRE172 |
1 | ||
| 82661-12330 |
ZRE172..CVT,MTM |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02661 |
ZRE172 |
1 | ||
| 82662-02660 |
ZRE172..CVT,MTM |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12140 |
ZRE172 |
1 | ||
| 82663-12140 |
ZRE172..CVT,MTM |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12120 |
ZRE172..CVT,MTM |
1 | ||
| 82741-12120 |
ZRE172 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87025 |
ZRE172..(CVT,MTM)..LE;ZRE172..(CVT,MTM)..S..MXC AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 90080-87025 |
ZRE172..CVT,MTM |
1 | ||
| 90080-87025 |
ZRE172 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87024 |
ZRE172..CVT,MTM |
1 | ||
| 90080-87024 |
ZRE172 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87024 |
ZRE172..CVT,MTM |
1 | ||
| 90080-87024 |
ZRE172 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90080-87026 |
ZRE172 |
1 | ||
| 90080-87026 |
ZRE172..CVT,MTM |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
ZRE172..CVT,MTM |
1 | ||
| 90080-87026 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90119-A0160 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 2 OF 7(1608- )
ENGINE ROOM (1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-04037 | ||||
| 90178-A0112 | ||||

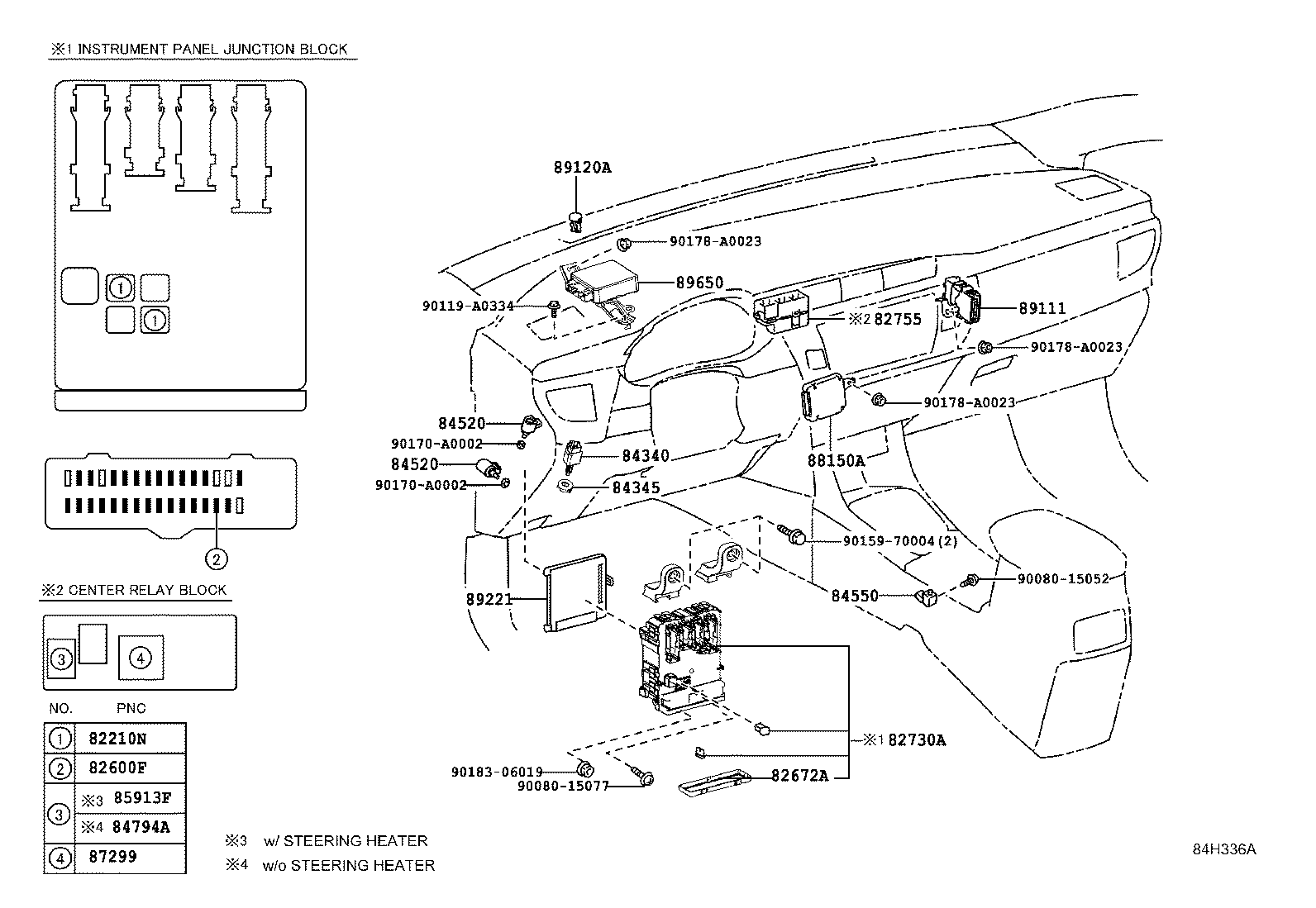

ILLUST NO. 4 OF 7(1608- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-15052 | ||||
| 90080-15077 | ||||
| 90119-A0334 | ||||
| 90159-70004 | ||||
| 90170-A0002 | ||||
| 90178-A0023 | ||||
| 90183-06019 | ||||
ILLUST NO. 3 OF 7(1608- )
ENGINE ROOM (2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-A0160 | ||||
| Linked diagrams | ||||
| 8404 | ||||
