ZRE172L-DEFDKK (2013)
Toyota Corolla
ILLUST NO. 1 OF 9(1308- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 90080-11545 | ||||
| 90119-A0160 | ||||
| 90178-A0023 | ||||
| 90467-A0024 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 9(1308- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0Z610 |
ZRE172..S |
1 | ||
| 82151-0Z541 |
ZRE172..STD..CND BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82151-0Z570 |
ZRE172..STD..CND |
1 | ||
| 82151-0Z540 |
ZRE172..STD..CND BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82151-0Z611 |
ZRE172..S |
1 | ||
| 82151-0Z620 |
ZRE172..S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82151-0Z571 |
ZRE172..STD..CND |
1 | ||
| 82151-0Z621 |
ZRE172..S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0Z450 |
ZRE172..S |
1 | ||
| 82152-0Z410 |
ZRE172..STD..CND |
1 | ||
| 82152-0Z460 |
ZRE172..S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82152-0Z411 |
ZRE172..STD..CND |
1 | ||
| 82152-0Z451 |
ZRE172..S |
1 | ||
| 82152-0Z381 |
ZRE172..STD..CND BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82152-0Z380 |
ZRE172..STD..CND BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82152-0Z461 |
ZRE172..S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02B50 |
ZRE172..ECO,ECOSW,LE,S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82153-02660 |
ZRE172 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02500 |
ZRE172 |
1 | ||
| 82154-02890 |
ZRE172..ECO,ECOSW,LE,S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02210 |
ZRE172 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-02D20 |
ZRE172 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-02D30 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
ILLUST NO. 5 OF 9(1308-1608)
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-11545 | ||||
| 90980-12373 | ||||
ILLUST NO. 7 OF 9(1308-1608)
CLAMP & BRACET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3F040 | ||||
| 82715-02620 | ||||
| 82715-02D40 | ||||
| 82715-02D50 | ||||
| 82715-02D60 | ||||
| 82715-02D70 | ||||
| 82715-02D80 | ||||
| 82715-02G50 | ||||
| 82715-02J50 | ||||
| 82715-02K10 | ||||
| 82715-12B20 | ||||
| 82715-12B50 | ||||
| 82715-3V530 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90119-06995 | ||||
| 90119-A0120 | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90119-A0260 | ||||
| 91621-B0816 | ||||
ILLUST NO. 3 OF 9(1308- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82118-0ZM80 |
ZRE172..6F..S..CND AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82118-0ZM70 |
ZRE172..6F..S..CND |
1 | ||
| 82118-0ZM60 |
ZRE172..6F..STD |
1 | ||
| 82118-0ZN00 |
ZRE172..6F..S..CND STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82118-0ZM70 |
ZRE172..6F..STD BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82118-0ZN10 |
ZRE172..6F..S..CND AIR CONDITIONER-AUTO(SINGLE MODE)&STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82118-0ZM71 |
ZRE172..6F..S..CND;ZRE172..6F..STD..USA |
1 | ||
| 82118-0ZM81 |
ZRE172..6F..S..CND AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82118-0ZM61 |
ZRE172..6F..STD..CND |
1 | ||
| 82118-0ZN11 |
ZRE172..6F..S..CND AIR CONDITIONER-AUTO(SINGLE MODE)&STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82118-0ZM71 |
ZRE172..6F..STD..CND BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02530 |
ZRE172..LE..USA;ZRE172..(LE,S)..CND LIGHT CONTROL SYS.-WITH(AUTO LIGHT CONTROL SYSTEM) |
1 | ||
| 82142-02540 |
ZRE172..LE..USA;ZRE172..(LE,S)..CND LIGHT CONTROL SYS.-WITH(AUTO LIGHT CONTROL SYSTEM)&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82142-02380 |
ZRE172..HTWC..CND;ZRE172..(LE,STD)..USA |
1 | ||
| 82142-02390 |
ZRE172..LE..USA;ZRE172..(LE,S)..CND AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02390 |
ZRE172 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02380 |
ZRE172 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02400 |
ZRE172 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02510 |
ZRE172 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02520 |
ZRE172 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02630 |
ZRE172 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-02330 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90159-A0055 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 9(1308- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-02140 |
ZRE172 *213 |
1 | ||
| 82191-0R040 |
ZRE172..(LE,S)..CND SEAT COVER MATERIAL-LEATHER,*348 |
1 | ||
| 82191-0R040 |
ZRE172..USA;ZRE172..STD..CND *348 |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-02160 |
ZRE172..(LE,S)..CND SEAT COVER MATERIAL-LEATHER,*213 |
1 | ||
| 82191-02160 |
ZRE172..(ECO,ECOSW,LE,S)..CND *213 |
2 | ||
| 82191-02160 |
ZRE172..(ECO,ECOSW,LE,S)..CND *213 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82191-02150 |
ZRE172..(LE,S)..CND SEAT COVER MATERIAL-LEATHER,*213 |
1 | ||
| 82192-02150 |
ZRE172..(LE,S)..CND SEAT COVER MATERIAL-LEATHER,*348 |
1 | ||
| 82191-02160 |
ZRE172..(ECO,ECOSW,LE,S)..CND *213 |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-02060 |
ZRE172..LE,S SEAT COVER MATERIAL-LEATHER,*348 |
1 | ||
| 82191-06520 |
ZRE172..LE,S SEAT COVER MATERIAL-LEATHER,*213 |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
ILLUST NO. 8 OF 9(1308- )

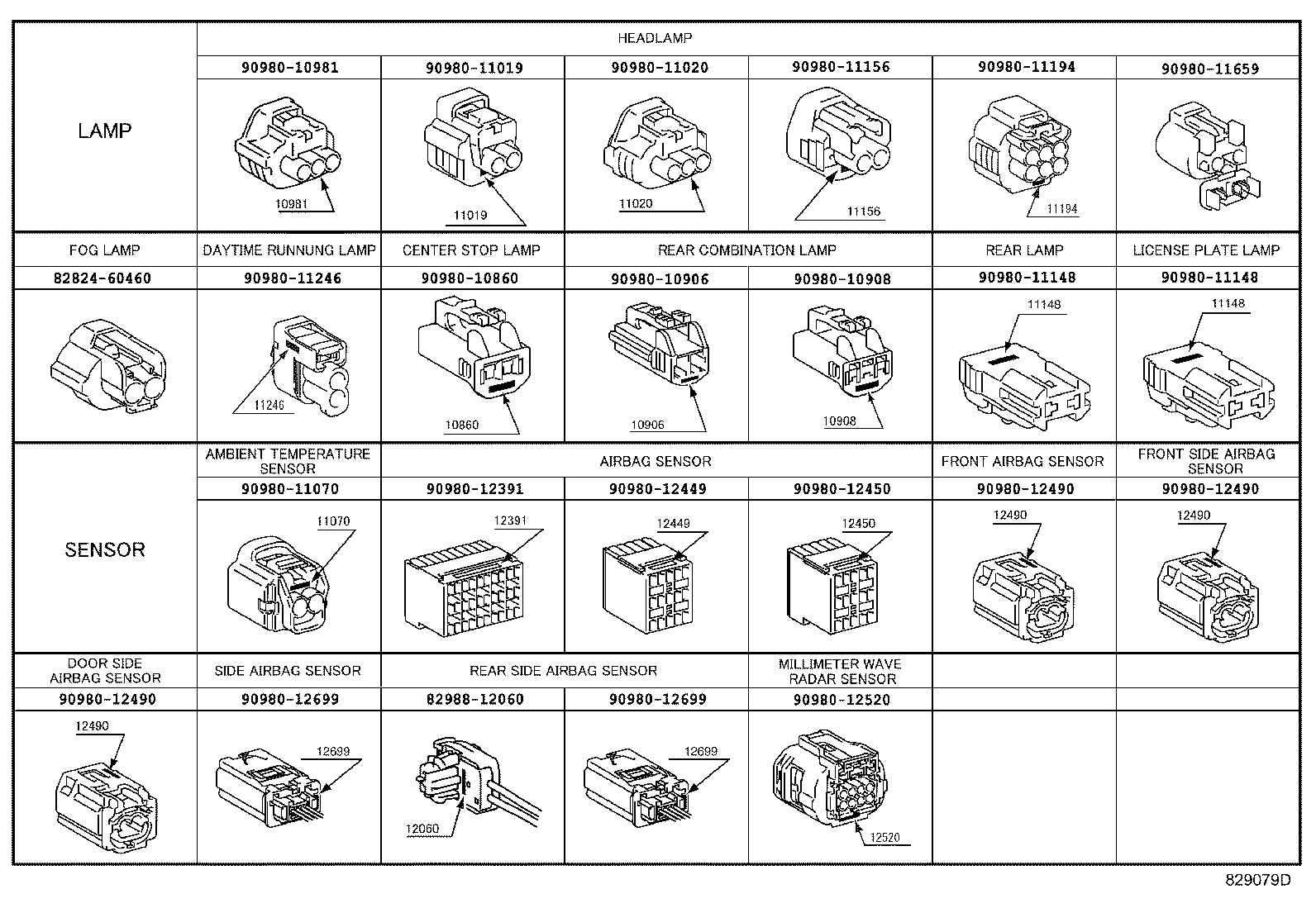

CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-10906 | ||||
| 90980-10908 | ||||
| 90980-10942 | ||||
| 90980-10981 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-11659 | ||||
| 90980-12520 | ||||
ILLUST NO. 9 OF 9(1308- )

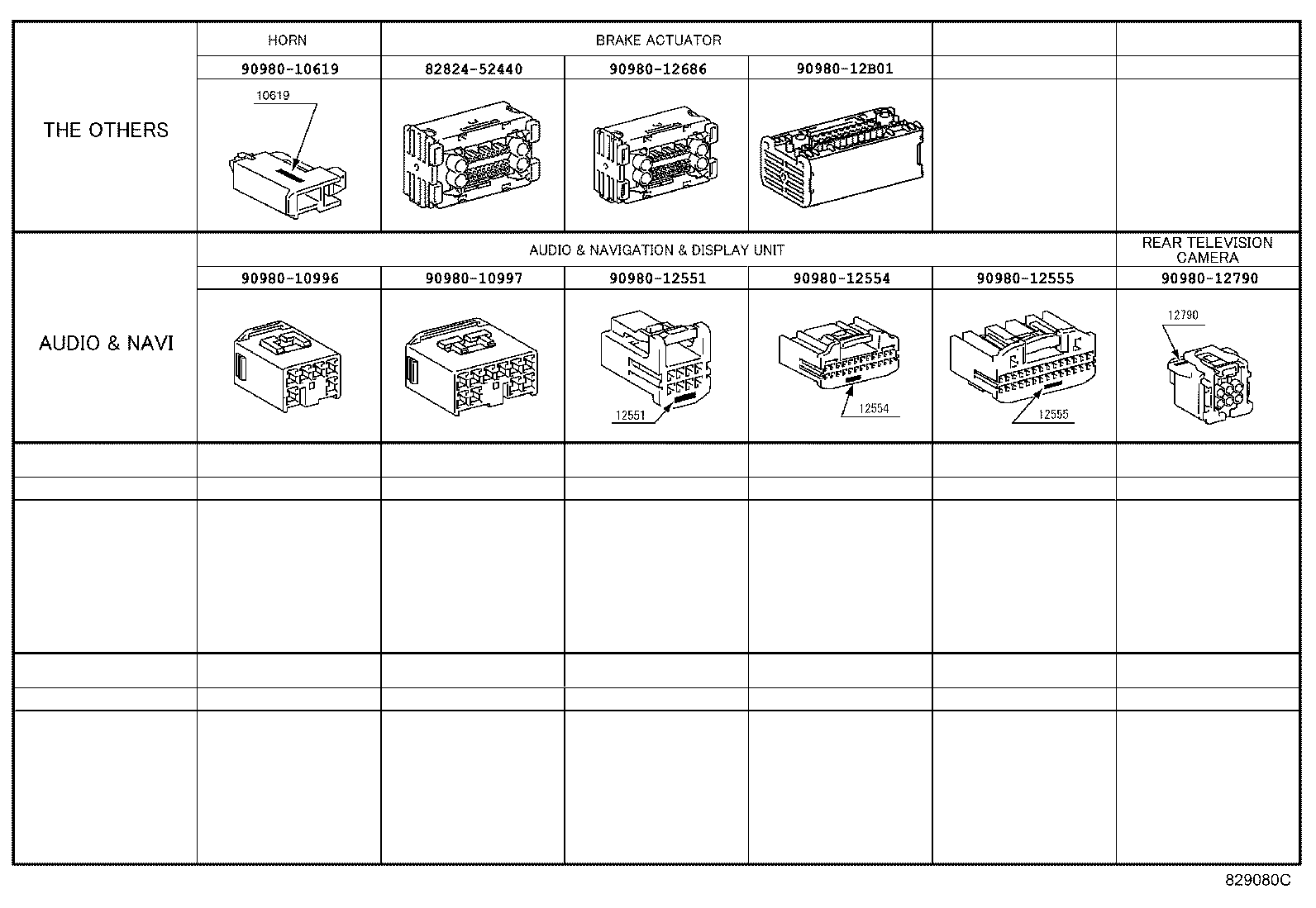

CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52440 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-12382 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12551 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12686 | ||||
| 90980-12699 | ||||
| 90980-12717 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B01 | ||||
ILLUST NO. 7 OF 9(1308- )
CLAMP & BRACET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02620 | ||||
| 82715-02D40 | ||||
| 82715-02D50 | ||||
| 82715-02D80 | ||||
| 82715-02G50 | ||||
| 82715-02J50 | ||||
| 82715-02K10 | ||||
| 82715-12B20 | ||||
| 82715-12B50 | ||||
| 82715-28L90 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90119-06995 | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90119-A0260 | ||||
| 91621-B0816 | ||||

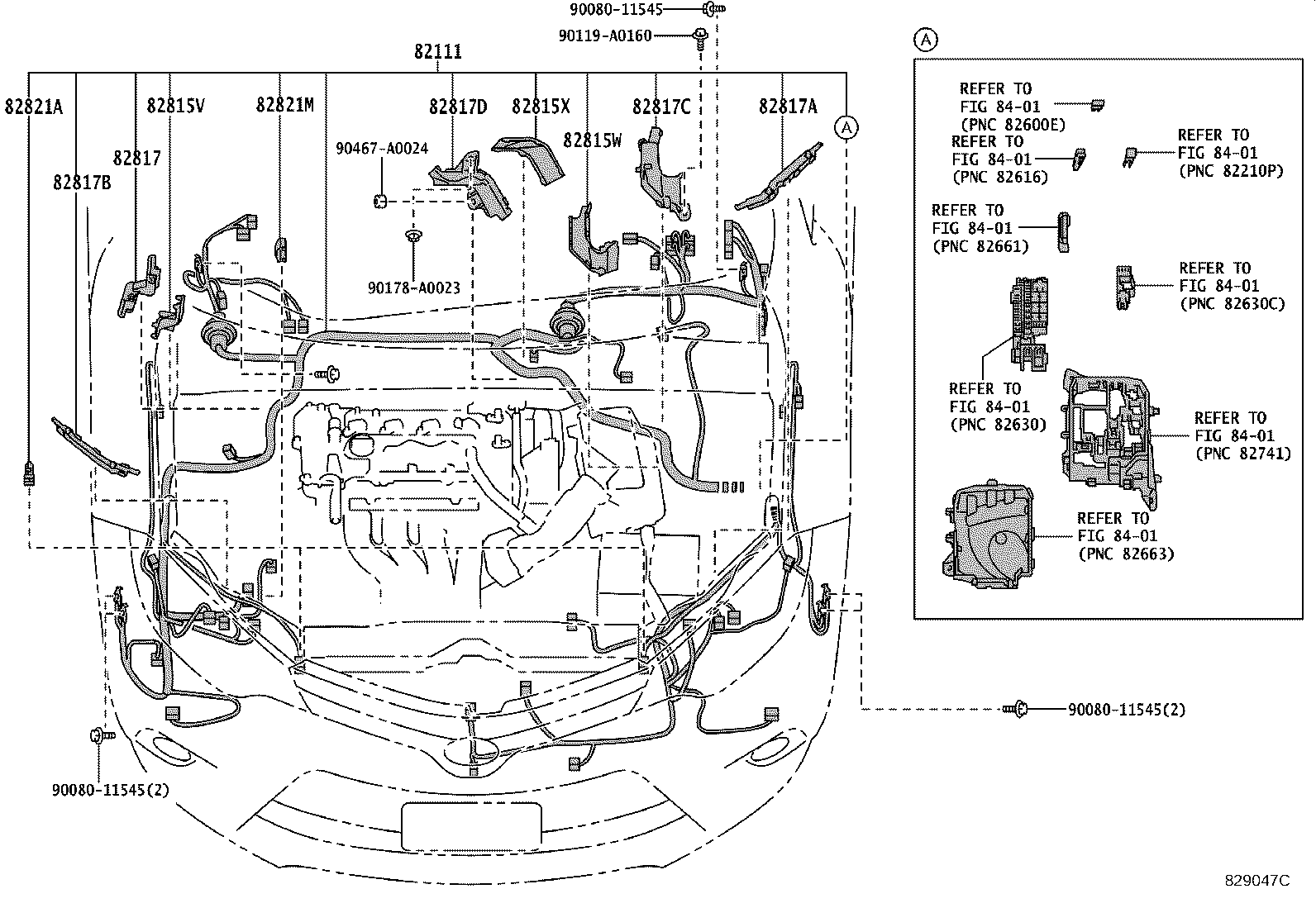

ILLUST NO. 1 OF 9(1308- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-0ZB70 |
ZRE172..6F |
1 | ||
| 82115-0ZB71 |
ZRE172..6F |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-02040 |
ZRE172 |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-12250 |
ZRE172 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-12270 |
ZRE172 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02100 |
ZRE172 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-02C40 |
ZRE172 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-02C50 |
ZRE172 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12D50 |
ZRE172 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12D70 |
ZRE172 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-42040 |
ZRE172 |
2 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-12570 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90119-A0160 | ||||
| 90178-A0023 | ||||
| 90467-A0024 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 9(1308- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0Z610 |
ZRE172..S |
1 | ||
| 82151-0Z541 |
ZRE172..STD..CND BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82151-0Z570 |
ZRE172..STD..CND |
1 | ||
| 82151-0Z540 |
ZRE172..STD..CND BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82151-0Z611 |
ZRE172..S |
1 | ||
| 82151-0Z620 |
ZRE172..S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82151-0Z571 |
ZRE172..STD..CND |
1 | ||
| 82151-0Z621 |
ZRE172..S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0Z450 |
ZRE172..S |
1 | ||
| 82152-0Z410 |
ZRE172..STD..CND |
1 | ||
| 82152-0Z460 |
ZRE172..S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82152-0Z411 |
ZRE172..STD..CND |
1 | ||
| 82152-0Z451 |
ZRE172..S |
1 | ||
| 82152-0Z381 |
ZRE172..STD..CND BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82152-0Z380 |
ZRE172..STD..CND BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82152-0Z461 |
ZRE172..S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02B50 |
ZRE172..ECO,ECOSW,LE,S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82153-02660 |
ZRE172 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02500 |
ZRE172 |
1 | ||
| 82154-02890 |
ZRE172..ECO,ECOSW,LE,S STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02210 |
ZRE172 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-02D20 |
ZRE172 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-02D30 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
ILLUST NO. 3 OF 9(1308- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82118-0ZM80 |
ZRE172..6F..S..CND AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82118-0ZM70 |
ZRE172..6F..S..CND |
1 | ||
| 82118-0ZM60 |
ZRE172..6F..STD |
1 | ||
| 82118-0ZN00 |
ZRE172..6F..S..CND STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82118-0ZM70 |
ZRE172..6F..STD BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82118-0ZN10 |
ZRE172..6F..S..CND AIR CONDITIONER-AUTO(SINGLE MODE)&STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82118-0ZM71 |
ZRE172..6F..S..CND;ZRE172..6F..STD..USA |
1 | ||
| 82118-0ZM81 |
ZRE172..6F..S..CND AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82118-0ZM61 |
ZRE172..6F..STD..CND |
1 | ||
| 82118-0ZN11 |
ZRE172..6F..S..CND AIR CONDITIONER-AUTO(SINGLE MODE)&STARTING SYSTEM-PUSH(WITH/SMART) |
1 | ||
| 82118-0ZM71 |
ZRE172..6F..STD..CND BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02530 |
ZRE172..LE..USA;ZRE172..(LE,S)..CND LIGHT CONTROL SYS.-WITH(AUTO LIGHT CONTROL SYSTEM) |
1 | ||
| 82142-02540 |
ZRE172..LE..USA;ZRE172..(LE,S)..CND LIGHT CONTROL SYS.-WITH(AUTO LIGHT CONTROL SYSTEM)&AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82142-02380 |
ZRE172..HTWC..CND;ZRE172..(LE,STD)..USA |
1 | ||
| 82142-02390 |
ZRE172..LE..USA;ZRE172..(LE,S)..CND AIR CONDITIONER-AUTO(SINGLE MODE) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02390 |
ZRE172 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02380 |
ZRE172 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02400 |
ZRE172 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02510 |
ZRE172 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02520 |
ZRE172 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02630 |
ZRE172 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-02330 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90159-A0055 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 9(1308-1608)
CLAMP & BRACET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02620 | ||||
| 82715-02D40 | ||||
| 82715-02D50 | ||||
| 82715-02D60 | ||||
| 82715-02D70 | ||||
| 82715-02D80 | ||||
| 82715-02G50 | ||||
| 82715-02J50 | ||||
| 82715-02K10 | ||||
| 82715-12B20 | ||||
| 82715-12B50 | ||||
| 82715-28L90 | ||||
| 82715-3V530 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 90119-06995 | ||||
| 90119-A0120 | ||||
| 90119-A0160 | ||||
| 90119-A0183 | ||||
| 90119-A0260 | ||||
| 91621-B0816 | ||||
ILLUST NO. 2 OF 9(1308-1608)
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0Z441 |
ZRE172..6F |
1 | ||
| 82121-0Z440 |
ZRE172..6F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02600 |
ZRE172..6F |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02070 |
ZRE172 |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12300 |
ZRE172 |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-12260 |
ZRE172 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-12180 |
ZRE172 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-12230 |
ZRE172 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-02D70 |
ZRE172 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12860 |
ZRE172..CVT,MTM |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12D30 |
ZRE172 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20410 |
ZRE172 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12110 |
ZRE172 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-A0183 | ||||
| 90119-A0260 | ||||
| 90119-A0290 | ||||
| 90178-A0023 | ||||
ILLUST NO. 5 OF 9(1308-1608)
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-0Z580 |
ZRE172..(LE,S)..CND SEAT COVER MATERIAL-LEATHER&TIRE INFLATION PRESSURE WARNING-WITHOUT,*213 |
1 | ||
| 82161-0Z590 |
ZRE172..(LE,S)..CND SEAT COVER MATERIAL-LEATHER&STARTING SYSTEM-PUSH(WITH/SMART)&TIRE INFLATION PRESSURE WARNING-WITHOUT,*213 |
1 | ||
| 82161-0Z570 |
ZRE172..(LE,S)..CND STARTING SYSTEM-PUSH(WITH/SMART)&TIRE INFLATION PRESSURE WARNING-WITHOUT,*213 |
1 | ||
| 82161-0ZL00 |
ZRE172..STD..CND;ZRE172..HTWC..USA *348 |
1 | ||
| 82161-0ZS20 |
ZRE172..LE,S SEAT COVER MATERIAL-LEATHER,*348 |
1 | ||
| 82161-0ZL20 |
ZRE172..STD..CND;ZRE172..HTWC..USA BACK MONITOR(REAR TELEVISION CAMERA)-WITH,*348 |
1 | ||
| 82161-0ZX60 |
ZRE172..STD..CND;ZRE172..HTWC..USA *213 |
1 | ||
| 82161-0ZL50 |
ZRE172..LE,S STARTING SYSTEM-PUSH(WITH/SMART),*348 |
1 | ||
| 82161-0ZS90 |
ZRE172..HTWC..CND TIRE INFLATION PRESSURE WARNING-WITHOUT,*213 |
1 | ||
| 82161-0ZX70 |
ZRE172..(LE,S)..CND *213 |
1 | ||
| 82161-0ZS90 |
ZRE172..STD..CND TIRE INFLATION PRESSURE WARNING-WITHOUT&BACK MONITOR(REAR TELEVISION CAMERA)-WITH,*213 |
1 | ||
| 82161-0ZS30 |
ZRE172..LE,S SEAT COVER MATERIAL-LEATHER&STARTING SYSTEM-PUSH(WITH/SMART),*348 |
1 | ||
| 82161-0ZL20 |
ZRE172..(LE,S)..CND *348 |
1 | ||
| 82161-0ZX70 |
ZRE172..STD..CND;ZRE172..HTWC..USA BACK MONITOR(REAR TELEVISION CAMERA)-WITH,*213 |
1 | ||
| 82161-0ZX80 |
ZRE172..LE,S STARTING SYSTEM-PUSH(WITH/SMART),*213 |
1 | ||
| 82161-0ZX90 |
ZRE172..LE,S SEAT COVER MATERIAL-LEATHER,*213 |
1 | ||
| 82161-0ZY00 |
ZRE172..LE,S SEAT COVER MATERIAL-LEATHER&STARTING SYSTEM-PUSH(WITH/SMART),*213 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0Z180 |
ZRE172..ECO,ECOSW,LE,S INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS |
1 | ||
| 82171-0Z060 |
ZRE172..ECO,ECOSW,LE,S MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82171-02K30 |
ZRE172 |
1 | ||
| 82171-0Z080 |
ZRE172..ECO,ECOSW,LE,S MOON ROOF-WITH(TILT & SLIDE)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-02490 |
ZRE172 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-02500 |
ZRE172 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-02C20 |
ZRE172 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-52710 |
ZRE172 |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90980-12373 | ||||
ILLUST NO. 8 OF 9(1308- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 82988-12060 | ||||
| 90980-10860 | ||||
| 90980-10906 | ||||
| 90980-10908 | ||||
| 90980-10981 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-11659 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
ILLUST NO. 9 OF 9(1308- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52440 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12551 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12686 | ||||
| 90980-12790 | ||||
| 90980-12B01 | ||||
ILLUST NO. 6 OF 9(1308- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-02140 |
ZRE172 *213 |
1 | ||
| 82191-0R040 |
ZRE172..(LE,S)..CND SEAT COVER MATERIAL-LEATHER,*348 |
1 | ||
| 82191-0R040 |
ZRE172..USA;ZRE172..STD..CND *348 |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 82191-02160 |
ZRE172..(LE,S)..CND SEAT COVER MATERIAL-LEATHER,*213 |
1 | ||
| 82191-02160 |
ZRE172..(ECO,ECOSW,LE,S)..CND *213 |
2 | ||
| 82191-02160 |
ZRE172..(ECO,ECOSW,LE,S)..CND *213 |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82191-02150 |
ZRE172..(LE,S)..CND SEAT COVER MATERIAL-LEATHER,*213 |
1 | ||
| 82192-02150 |
ZRE172..(LE,S)..CND SEAT COVER MATERIAL-LEATHER,*348 |
1 | ||
| 82191-02160 |
ZRE172..(ECO,ECOSW,LE,S)..CND *213 |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-02060 |
ZRE172..LE,S SEAT COVER MATERIAL-LEATHER,*348 |
1 | ||
| 82191-06520 |
ZRE172..LE,S SEAT COVER MATERIAL-LEATHER,*213 |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
