ZRE172L-DEFDKJ (2013)
Toyota Corolla
Production
Aug 2013
-
Aug 2016
Engine
2ZRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1308- )

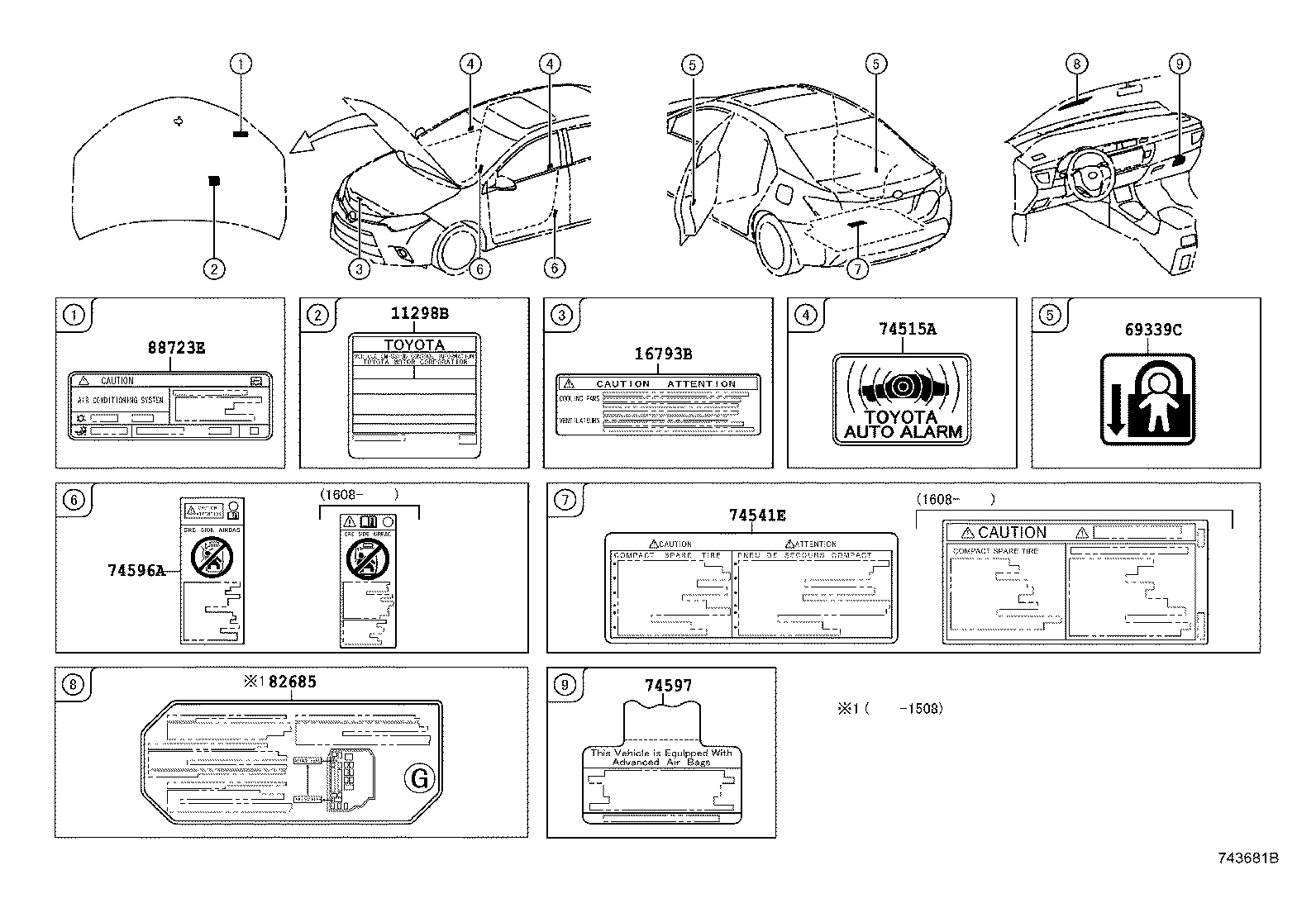

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11298B - LABEL, EMISSION CONTROL INFORMATION | ||||
| 11298-0T240 |
2ZRFE..ZRE172..MXC |
1 | ||
| 11298-0T170 |
2ZRFE..ZRE172..MXC |
1 | ||
| 11298-0T220 |
2ZRFE..ZRE172..MXC |
1 | ||
| 16793B - LABEL, COOLING FAN INFORMATION | ||||
| 16793-0T020 |
2ZRFE..ZRE172..CVT,MTM |
1 | ||
| 69339C - LABEL, CHILD PROTECTOR INFORMATION | ||||
| 69339-06040 |
ZRE172..CVT,MTM |
2 | ||
| 74515A - PLATE, THEFT WARNING | ||||
| 74515-06010 |
ZRE172..(CVT,MTM)..MXC |
2 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-06010 |
ZRE172..(CVT,MTM)..MXC |
1 | ||
| 74596A - LABEL, SIDE AIR BAG CAUTION | ||||
| 74596-02020 |
ZRE172..(CVT,MTM)..STD..MXC MEXICO DECONTENT |
2 | ||
| 74596-02020 |
ZRE172..(CVT,MTM)..(LE,S);ZRE172..(CVT,MTM)..STD..MXC |
2 | ||
| 74598A - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
ZRE172..6F..MXC |
1 | ||
| 74598-20010 |
ZRE172..STD..MXC MEXICO DECONTENT |
1 | ||
| 82685 - PLATE, CAUTION | ||||
| 82685-12110 |
ZRE172..CVT,MTM |
1 | ||
| 88723E - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-02340 |
ZRE172..CVT,MTM |
1 | ||
(1308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
