TE51L-LMQA (1976)
Toyota Corolla

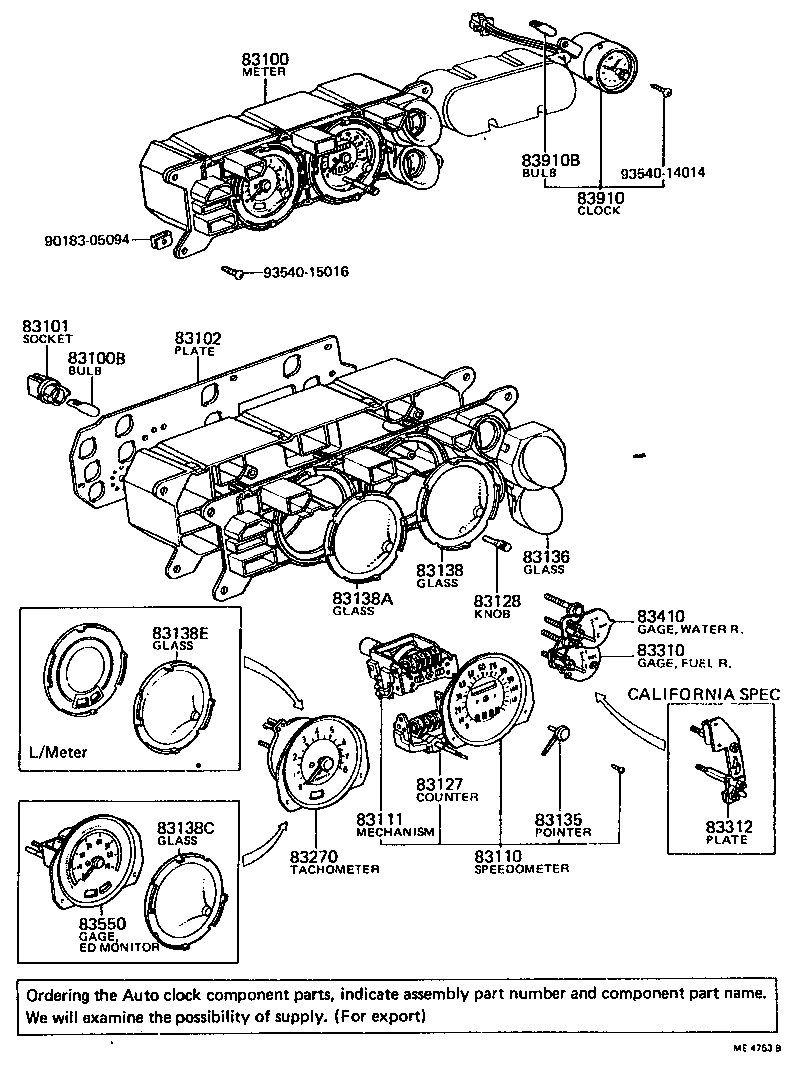

(7408-7701)TE51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83200-12470 |
TE51..SR5 |
1 | ||
| 83200-12490 |
TE51..SR5 CALIFORNIA SPEC. |
1 | ||
| 83200-12471 |
TE51..SR5 |
1 | ||
| 83200-12491 |
TE51..SR5 CAL.& H.A. |
1 | ||
| 83010-12060 |
TE51..SR5 |
1 | ||
| 83010-12300 |
TE51..SR5 CAL.& H.A. |
1 | ||
| 83010-12060 |
TE51..SR5..USA |
1 | ||
| 83010-12301 |
TE51..SR5..USA CAL.& H.A. |
1 | ||
| 83010-12660 |
TE51..SR5..USA |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KE3#,50,TE3#,51 12V 3.4W |
12 | ||
| 90981-11018 |
KE50,TE51 12V 1.2W W/O SOCKET |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12020 |
TE51 CAL.& H.A. |
1 | ||
| 83101-10010 |
KE3#,50,TE3#,51 |
12 | ||
| 83101-14030 |
KE30,50,TE3#,51 |
12 | ||
| 83101-12020 |
TE51 CALIFORNIA SPEC.(EXHAUST TEMP. |
1 | ||
| 83101-14040 |
KE50,TE51 |
3 | ||
| 83101-14010 |
KE50,TE51 |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-12200 |
TE51 CALIFORNIA SPEC. |
1 | ||
| 83247-12190 |
TE51 |
1 | ||
| 83247-12330 |
TE51 W/CLOCK OR TACHO.CAL.& H.A. |
1 | ||
| 83247-12200 |
TE51 CAL.& H.A. |
1 | ||
| 83247-12340 |
TE51..SR5..USA |
1 | ||
| 83247-12330 |
TE51..SR5..USA CAL.& H.A. |
1 | ||
| 83247-12340 |
TE51 W/TACHOMETER |
1 | ||
| 83247-12340 |
TE51..SR5 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12451 |
TE3#,51..DLX,SR5 CAL.& H.A. |
1 | ||
| 83241-12190 |
KE35,TE3#,51..DLX,SR5 |
1 | ||
| 83241-12261 |
TE51..USA CAL.& H.A. |
1 | ||
| 83241-12260 |
TE51 CAL.& H.A. |
1 | ||
| 83241-12270 |
KE50,TE51 |
1 | ||
| 83241-12262 |
TE51..USA CAL.& H.A |
1 | ||
| 83241-12271 |
TE51..USA |
1 | ||
| 83110-12630 |
TE51..USA |
1 | ||
| 83241-12272 |
TE51..USA |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83111-12520 |
TE3#,51..DLX,SR5 CAL.& H.A. |
1 | ||
| 83111-12560 |
TE51..USA |
1 | ||
| 83127 - COUNTER, TRIP | ||||
| 83127-12860 |
TE51..USA |
1 | ||
| 83127-12860 |
KE35,TE3#,51..DLX,SR5 |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12650 |
KE35,50,TE3#,51..DLX,SR5 |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-12230 |
KE50,TE51 |
1 | ||
| 83135-12220 |
KE3#,TE3#,51 |
1 | ||
| 83136 - GLASS, GAGE METER | ||||
| 83138-12750 |
TE51 |
1 | ||
| 83138-12340 |
KE50,TE51 |
2 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-12650 |
KE50,TE3#,51..DLX,SR5 |
1 | ||
| 83138-12650 |
KE35,50,TE3#,51..DLX,SR5 |
1 | ||
| 83138A - GLASS, TACHOMETER | ||||
| 83138-12640 |
TE37,51..CND,USA |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12190 |
TE51 |
1 | ||
| 83242-12101 |
TE51..SR5 |
1 | ||
| 83242-12191 |
TE51 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12090 |
KE50,TE51 |
1 | ||
| 83243-12030 |
TE51 |
1 | ||
| 83243-12050 |
TE51 CAL.& H.A. |
1 | ||
| 83243-12050 |
TE51 CALIFORNIA SPEC. |
1 | ||
| 83312 - PLATE SUB-ASSY, FUEL RECEIVER GAGE CIRCUIT | ||||
| 83247-12210 |
TE51 CAL.& H.A. |
1 | ||
| 83247-12210 |
TE51 CALIFORNIA SPEC. |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-12130 |
KE50,TE51 |
1 | ||
| 83244-12031 |
TE51 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12060 |
TE51 JECO |
1 | ||
| 83910-12170 |
TE51 SMALL TYPE,JECO |
1 | ||
| 83910-12190 |
TE51 SMALL TYPE,CITIZEN |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-11034 |
KE3#,50,TE3#,51 12V 3.4W |
1 | ||
| 99132-11034 |
KE30,TE3#,51 12V 3.4W |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 93540-14014 | ||||
| 93540-15016 | ||||

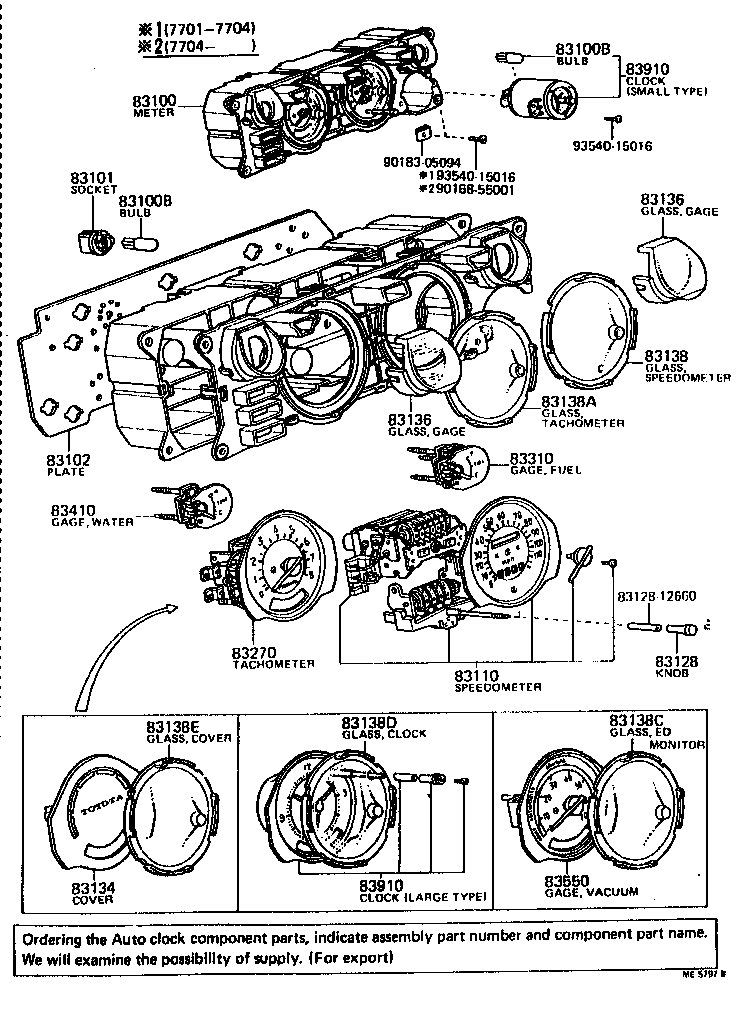

(7701-7908)KE50,TE51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83200-12470 |
TE51..SR5 |
1 | ||
| 83200-12490 |
TE51..SR5 CALIFORNIA SPEC. |
1 | ||
| 83200-12471 |
TE51..SR5 |
1 | ||
| 83200-12491 |
TE51..SR5 CAL.& H.A. |
1 | ||
| 83010-12060 |
TE51..SR5 |
1 | ||
| 83010-12300 |
TE51..SR5 CAL.& H.A. |
1 | ||
| 83010-12060 |
TE51..SR5..USA |
1 | ||
| 83010-12301 |
TE51..SR5..USA CAL.& H.A. |
1 | ||
| 83010-12660 |
TE51..SR5..USA |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KE3#,50,TE3#,51 12V 3.4W |
12 | ||
| 90981-11018 |
KE50,TE51 12V 1.2W W/O SOCKET |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KE3#,50,TE3#,51 12V 3.4W |
12 | ||
| 90981-11018 |
KE50,TE51 12V 1.2W W/O SOCKET |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-12020 |
TE51 CAL.& H.A. |
1 | ||
| 83101-10010 |
KE3#,50,TE3#,51 |
12 | ||
| 83101-14030 |
KE30,50,TE3#,51 |
12 | ||
| 83101-12020 |
TE51 CALIFORNIA SPEC.(EXHAUST TEMP. |
1 | ||
| 83101-14040 |
KE50,TE51 |
3 | ||
| 83101-14010 |
KE50,TE51 |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-12200 |
TE51 CALIFORNIA SPEC. |
1 | ||
| 83247-12190 |
TE51 |
1 | ||
| 83247-12330 |
TE51 W/CLOCK OR TACHO.CAL.& H.A. |
1 | ||
| 83247-12200 |
TE51 CAL.& H.A. |
1 | ||
| 83247-12340 |
TE51..SR5..USA |
1 | ||
| 83247-12330 |
TE51..SR5..USA CAL.& H.A. |
1 | ||
| 83247-12340 |
TE51 W/TACHOMETER |
1 | ||
| 83247-12340 |
TE51..SR5 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-12451 |
TE3#,51..DLX,SR5 CAL.& H.A. |
1 | ||
| 83241-12190 |
KE35,TE3#,51..DLX,SR5 |
1 | ||
| 83241-12261 |
TE51..USA CAL.& H.A. |
1 | ||
| 83241-12260 |
TE51 CAL.& H.A. |
1 | ||
| 83241-12270 |
KE50,TE51 |
1 | ||
| 83241-12262 |
TE51..USA CAL.& H.A |
1 | ||
| 83241-12271 |
TE51..USA |
1 | ||
| 83110-12630 |
TE51..USA |
1 | ||
| 83241-12272 |
TE51..USA |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-12650 |
KE35,50,TE3#,51..DLX,SR5 |
1 | ||
| 83136 - GLASS, GAGE METER | ||||
| 83138-12750 |
TE51 |
1 | ||
| 83138-12340 |
KE50,TE51 |
2 | ||
| 83136 - GLASS, GAGE METER | ||||
| 83138-12750 |
TE51 |
1 | ||
| 83138-12340 |
KE50,TE51 |
2 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-12650 |
KE50,TE3#,51..DLX,SR5 |
1 | ||
| 83138-12650 |
KE35,50,TE3#,51..DLX,SR5 |
1 | ||
| 83138A - GLASS, TACHOMETER | ||||
| 83138-12640 |
TE37,51..CND,USA |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-12190 |
TE51 |
1 | ||
| 83242-12101 |
TE51..SR5 |
1 | ||
| 83242-12191 |
TE51 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12090 |
KE50,TE51 |
1 | ||
| 83243-12030 |
TE51 |
1 | ||
| 83243-12050 |
TE51 CAL.& H.A. |
1 | ||
| 83243-12050 |
TE51 CALIFORNIA SPEC. |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-12130 |
KE50,TE51 |
1 | ||
| 83244-12031 |
TE51 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12060 |
TE51 JECO |
1 | ||
| 83910-12170 |
TE51 SMALL TYPE,JECO |
1 | ||
| 83910-12190 |
TE51 SMALL TYPE,CITIZEN |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12060 |
TE51 JECO |
1 | ||
| 83910-12170 |
TE51 SMALL TYPE,JECO |
1 | ||
| 83910-12190 |
TE51 SMALL TYPE,CITIZEN |
1 | ||
| Common parts | ||||
| 83128-12660 | ||||
| 90168-55001 | ||||
| 90183-05094 | ||||
| 93540-15016 | ||||

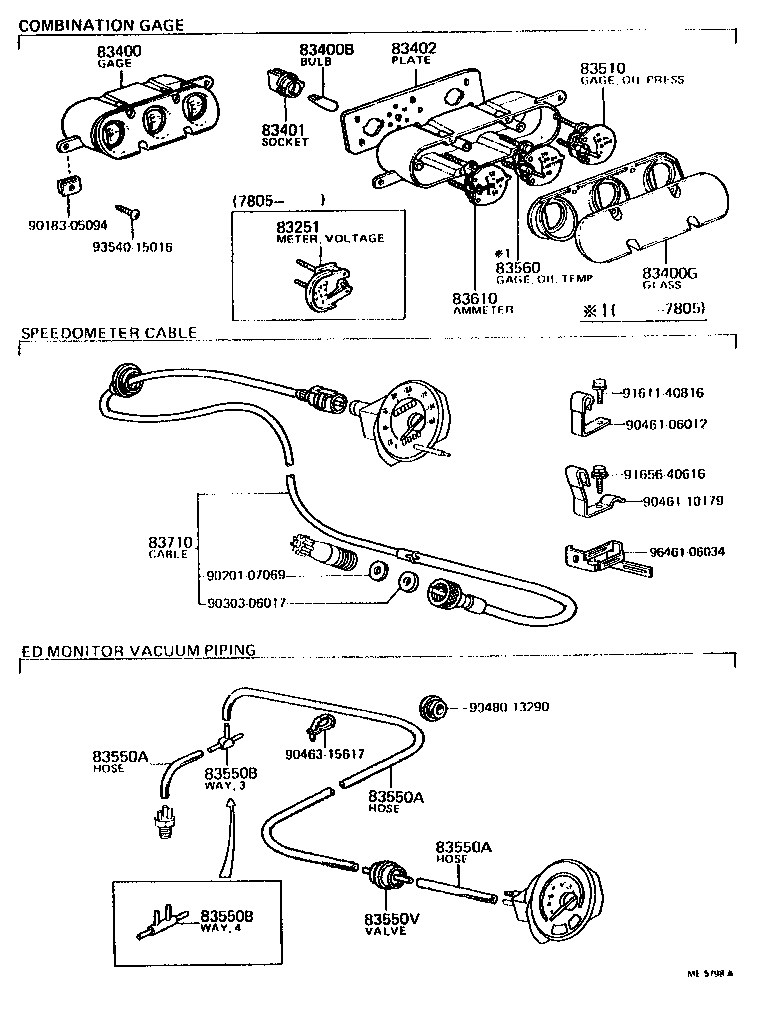

(7408-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83251 - METER, VOLTAGE | ||||
| 83251-12020 |
TE51..SR5 |
1 | ||
| 83400 - GAGE ASSY, COMBINATION | ||||
| 83400-12030 |
TE37,51..SR5 |
1 | ||
| 83400-12071 |
TE51..SR5 |
1 | ||
| 83400-12070 |
TE51..SR5 |
1 | ||
| 83400B - BULB, COMBINATION GAGE | ||||
| 99132-12034 |
TE37,51..SR5 12V 3.4W |
2 | ||
| 83400G - GLASS, COMBINATION GAGE | ||||
| 83138-12710 |
TE37,51..SR5 |
1 | ||
| 83138-12710 |
TE51..SR5 |
1 | ||
| 83401 - SOCKET SUB-ASSY, COMBINATION GAGE BULB | ||||
| 83101-10010 |
TE37,51..SR5 |
2 | ||
| 83101-14030 |
TE37,51..SR5 |
2 | ||
| 83402 - PLATE SUB-ASSY, COMBINATION GAGE CIRCUIT | ||||
| 83247-12050 |
TE37,51..SR5 |
1 | ||
| 83247-12360 |
TE51..SR5 |
1 | ||
| 83247-12361 |
TE51..SR5 |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-12020 |
TE37,51..SR5 |
1 | ||
| 83246-12090 |
TE51..SR5 |
1 | ||
| 83560 - GAGE ASSY, OIL TEMPERATURE RECEIVER | ||||
| 83244-12050 |
TE37,51..SR5 |
1 | ||
| 83244-12170 |
TE51..SR5 |
1 | ||
| 83610 - AMMETER ASSY | ||||
| 83245-12020 |
TE37,51..SR5 |
1 | ||
| 83245-12050 |
TE51..SR5 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-19235 |
TE3#,51 L=1900 |
1 | ||
| 83710-19215 |
KE3#,50 L=1850 |
1 | ||
| 83710-19236 |
TE3#,51 L=1900 |
1 | ||
| 83710-19216 |
KE30,50 L=1850 |
1 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 90201-07069 | ||||
| 90303-06017 | ||||
| 90461-06012 | ||||
| 90461-10179 | ||||
| 90463-15617 | ||||
| 90480-13290 | ||||
| 91611-40816 | ||||
| 91656-40616 | ||||
| 93540-15016 | ||||
| 96461-06034 | ||||
