TE51L-LMDA (1976)
Toyota Corolla
Production
Mar 1976
-
Aug 1979
Engine
2TC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)

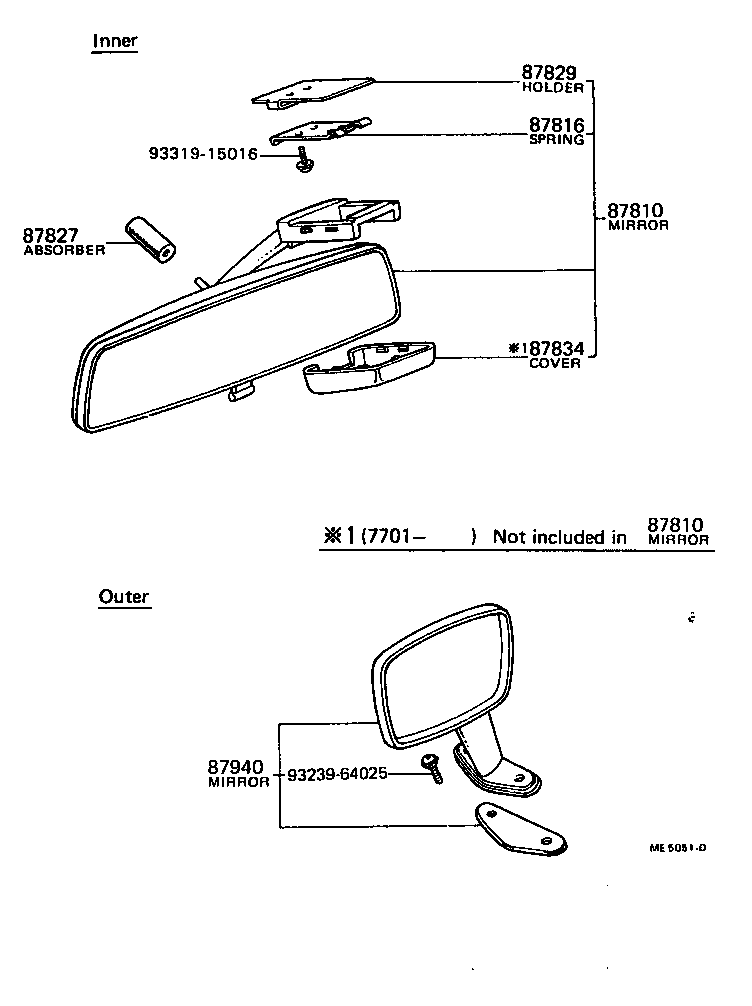

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-12051 |
KE3#,50,TE31,37,51..HT,LB,SED |
1 | ||
| 87810-1205021 |
TE51..LB BLACK,COVER=BEIGE,BLACK |
1 | ||
| 87810-1205011 |
TE51..LB BLACK,COVER=GRAY,BLACK |
1 | ||
| 87810-12061 |
KE50,TE31,37,51..(HT,LB,SED)..(DLX,SPL,SR5) NON GLARE |
1 | ||
| 87816 - SPRING, INNER REAR VIEW MIRROR | ||||
| 74372-30020 |
KE3#,50,TE3#,51 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-14020 |
KE30,50,TE3#,51..DLX,SPL,SR5 L=40 |
1 | ||
| 87828-12010 |
KE30,TE3#,51..USA L=35 |
1 | ||
| 87828-12010 |
KE30,50,TE3#,51..DLX,SPL,SR5 L=35 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-1201003 |
TE51..LB GRAY,GRAY |
1 | ||
| 87834-1201005 |
TE51..LB BEIGE,BEIGE |
1 | ||
| 87834-1201015 |
KE3#,50,TE3#,51..HT,LB,SED,WG BEIGE,BEIGE |
1 | ||
| 87834-1201004 |
KE3#,50,TE3#,51..HT,LB,SED,WG BLUE,BLUE |
1 | ||
| 87834-1201013 |
KE3#,50,TE3#,51..HT,LB,SED,WG GRAY,GRAY |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-12110 |
KE50,TE51 |
1 | ||
| 87940-12230 |
KE50,TE51..DLX |
1 | ||
| Common parts | ||||
| 93239-64025 | ||||
| 93319-15016 | ||||
