TE51L-LMDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7701)

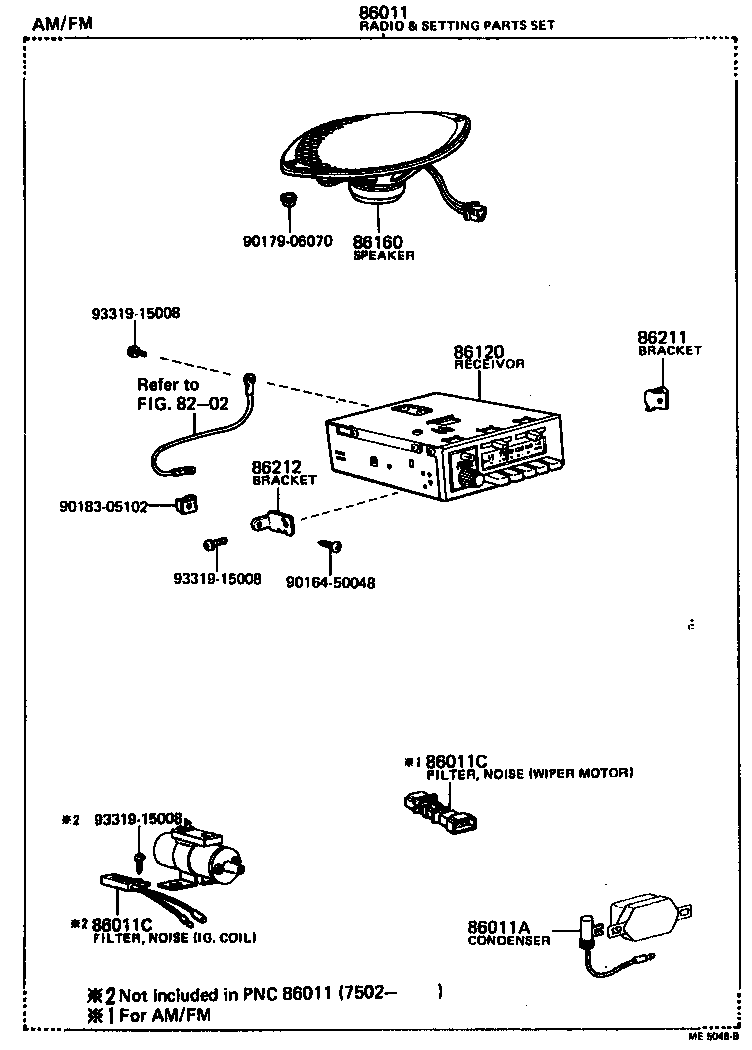

Click highlighted areas on diagram

diagram 8202 86011 86011A 86011C 86011C 86120 86160 86211 86212 9016450048 9017906070 9018305102 9331915006 9331915008 9331915008
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-19045

KE3#,TE3#,51

AM/FM

 1
86011-19046

KE3#,TE3#,51

AM/FM

 1
86011-19155

KE50,TE51

AM/FM MULTIPLEX

 1
86011-19135

KE3#,50,TE3#,51

AM/FM

 1
86011A - CONDENSER, RADIO SETTING
90980-04010

KE3#,50,TE3#,51

 1
86011C - FILTER, NOISE
90980-05019

KE3#,TE3#,51

AM/FM,WIPER MOTOR

 1
90980-05019

KE3#,50,TE3#

AM/FM,WIPER MOTOR

 1
90980-05028

KE3#,50,TE3#,51

FOR IGNITION COIL

 1
86011C - FILTER, NOISE
90980-05019

KE3#,TE3#,51

AM/FM,WIPER MOTOR

 1
90980-05019

KE3#,50,TE3#

AM/FM,WIPER MOTOR

 1
90980-05028

KE3#,50,TE3#,51

FOR IGNITION COIL

 1
86120 - RECEIVER ASSY, RADIO
86120-12190

KE50,TE37,51..USA

AM/FM

 1
86120-12120

KE3#,TE3#,51

AM/FM

 1
86120-12121

KE3#,TE3#,51

AM/FM

 1
86120-12090

KE3#,TE3#,51

AM

 1
86120-12220

KE50,TE51

AM/FM MULTIPLEX

 1
86120-12191

KE50,TE37,51..CND,USA

AM/FM

 1
86120-12191

KE30,TE3#,51

AM/FM

 1
86120-12200

KE3#,50,TE3#,51

AM

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-12050

KE50,TE51

AM/FM,MULTIPLEX

 2
86211 - BRACKET, RADIO, NO.1
86201-12010

KE50,TE51

 1
Common parts
90164-50048
90179-06070
90183-05102
93319-15006
93319-15008
Linked diagrams
8202

(7701-7908)

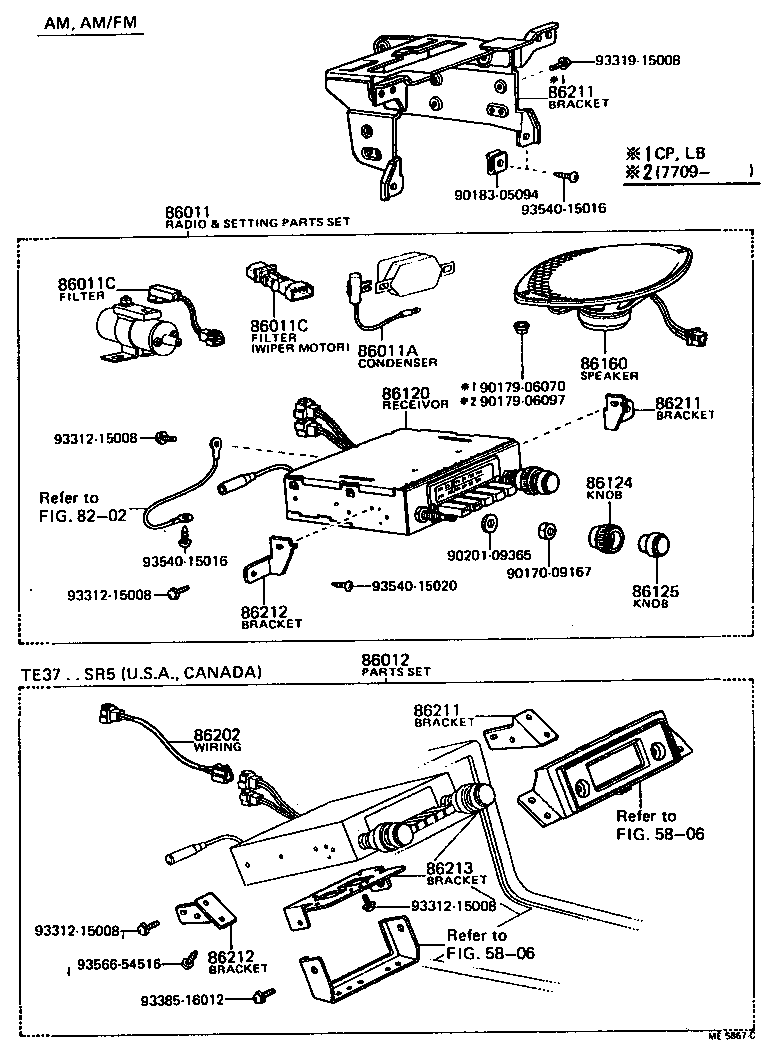

Click highlighted areas on diagram

diagram 5806 5806 8202 86011 86011A 86011C 86011C 86012 86120 86124 86125 86160 86202 86211 86211 86211 86212 86212 86213 9017009167 9017906070 9017906097 9018305094 9020109365 9331215008 9331215008 9331215008 9331215008 9331915008 9338516012 9354015016 9354015016 9354015020 9356654516
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-19045

KE3#,TE3#,51

AM/FM

 1
86011-19046

KE3#,TE3#,51

AM/FM

 1
86011-19155

KE50,TE51

AM/FM MULTIPLEX

 1
86011-19135

KE3#,50,TE3#,51

AM/FM

 1
86011A - CONDENSER, RADIO SETTING
90980-04010

KE3#,50,TE3#,51

 1
86011C - FILTER, NOISE
90980-05019

KE3#,TE3#,51

AM/FM,WIPER MOTOR

 1
90980-05019

KE3#,50,TE3#

AM/FM,WIPER MOTOR

 1
90980-05028

KE3#,50,TE3#,51

FOR IGNITION COIL

 1
86011C - FILTER, NOISE
90980-05019

KE3#,TE3#,51

AM/FM,WIPER MOTOR

 1
90980-05019

KE3#,50,TE3#

AM/FM,WIPER MOTOR

 1
90980-05028

KE3#,50,TE3#,51

FOR IGNITION COIL

 1
86120 - RECEIVER ASSY, RADIO
86120-12190

KE50,TE37,51..USA

AM/FM

 1
86120-12120

KE3#,TE3#,51

AM/FM

 1
86120-12121

KE3#,TE3#,51

AM/FM

 1
86120-12090

KE3#,TE3#,51

AM

 1
86120-12220

KE50,TE51

AM/FM MULTIPLEX

 1
86120-12191

KE50,TE37,51..CND,USA

AM/FM

 1
86120-12191

KE30,TE3#,51

AM/FM

 1
86120-12200

KE3#,50,TE3#,51

AM

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-14040

KE50,TE51

AM/FM MULTIPLEX

 1
86124-12010

KE3#,50,TE3#,51

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-12011

KE3#,50,TE3#,51

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-12050

KE50,TE51

AM/FM,MULTIPLEX

 2
86202 - WIRE, SPEAKER, NO.1
86202-12020

KE50,TE51..LB

AM/FM,MULTIPLEX

 1
86211 - BRACKET, RADIO, NO.1
86201-12010

KE50,TE51

 1
86211 - BRACKET, RADIO, NO.1
86201-12010

KE50,TE51

 1
86211 - BRACKET, RADIO, NO.1
86201-12010

KE50,TE51

 1
86213 - BRACKET, RADIO, NO.3
86214-12050

TE51

 1
Common parts
90170-09167
90179-06070
90179-06097
90183-05094
90201-09365
93312-15008
93319-15008
93385-16012
93540-15016
93540-15020
93566-54516
Linked diagrams
5806
8202
