TE51L-LMDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7608-7908)

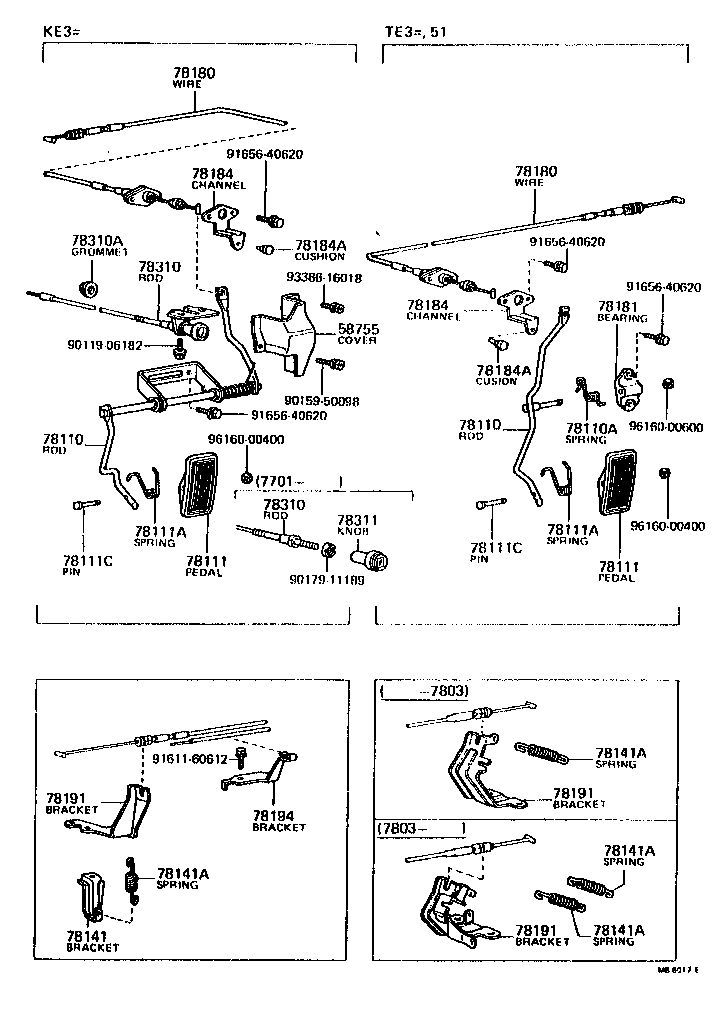

Click highlighted areas on diagram

diagram 58755 78110 78110 78110A 78111 78111 78111A 78111A 78111C 78111C 78141 78141A 78141A 78141A 78141A 78180 78180 78181 78184 78184 78184A 78184A 78191 78191 78191 78194 78310 78310 78310A 78311 9011906182 9015950098 9017911189 9161160612 9165640620 9165640620 9165640620 9165640620 9338616018 9616000400 9616000400 9616000600
Part # Description Qty Price
58755 - COVER, ACCELERATOR PEDAL SHAFT
78109-12020

KE3#,50

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78102-12081

TE3#,51

 1
78102-12080

TE3#,51

 1
78102-12091

KE3#,50

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78102-12081

TE3#,51

 1
78102-12080

TE3#,51

 1
78102-12091

KE3#,50

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-20402

TE3#,51

 1
78111 - PEDAL, ACCELERATOR
78111-12100

KE3#,50,TE3#,51

 1
78111-12080

KE3#,TE3#,51

 1
78111 - PEDAL, ACCELERATOR
78111-12100

KE3#,50,TE3#,51

 1
78111-12080

KE3#,TE3#,51

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

KE3#,50,TE3#,51

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

KE3#,50,TE3#,51

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

KE3#,50,TE3#,51

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

KE3#,50,TE3#,51

 1
78141 - BRACKET, ACCELERATOR WIRE RETURN SPRING
78141-12011

KE30,50

 1
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90507-10002

TE3#,51

 1
90507-12021

KE30,50

 1
90507-08002

TE3#,51

 2
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90507-10002

TE3#,51

 1
90507-12021

KE30,50

 1
90507-08002

TE3#,51

 2
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90507-10002

TE3#,51

 1
90507-12021

KE30,50

 1
90507-08002

TE3#,51

 2
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90507-10002

TE3#,51

 1
90507-12021

KE30,50

 1
90507-08002

TE3#,51

 2
78180 - WIRE ASSY, ACCELERATOR
78180-12212

TE3#,51

 1
78180-12213

TE3#,51

 1
78180-12223

KE30,50

 1
78180-12222

KE3#,50

 1
78180 - WIRE ASSY, ACCELERATOR
78180-12212

TE3#,51

 1
78180-12213

TE3#,51

 1
78180-12223

KE30,50

 1
78180-12222

KE3#,50

 1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78124-12050

TE3#,51

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

KE3#,50,TE3#,51

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

KE3#,50,TE3#,51

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-12090

TE3#,51

 1
78024-12010

TE3#,51

 1
78184-12040

KE3#,50

 1
78184-12091

TE3#,51

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-12090

TE3#,51

 1
78024-12010

TE3#,51

 1
78184-12040

KE3#,50

 1
78184-12091

TE3#,51

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-12090

TE3#,51

 1
78024-12010

TE3#,51

 1
78184-12040

KE3#,50

 1
78184-12091

TE3#,51

 1
78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2
78186-12041

KE3#,50

 1
78310A - GROMMET, CHOKE CABLE
90480-13055

KE3#,50..DLX,STD;KE30..K40..2D..USA

CANADA SPEC.

 1
Common parts
90119-06182
90159-50098
90179-11189
91611-60612
91656-40620
93386-16018
96160-00400
96160-00600

(7408-7608)

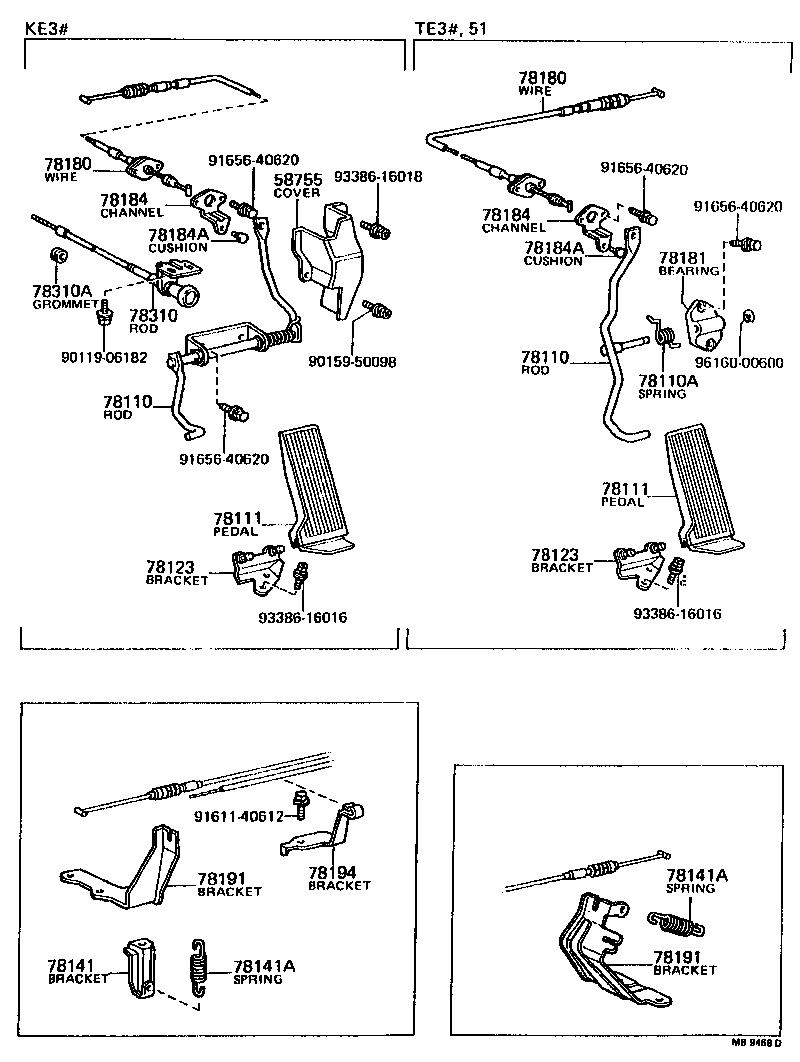

Click highlighted areas on diagram

diagram 58755 78110 78110 78110A 78111 78111 78123 78123 78141 78141A 78141A 78180 78180 78181 78184 78184 78184A 78184A 78191 78191 78194 78310 78310A 9011906182 9015950098 9161140612 9165640620 9165640620 9165640620 9165640620 9338616016 9338616016 9338616018 9616000600
Part # Description Qty Price
58755 - COVER, ACCELERATOR PEDAL SHAFT
78109-12020

KE3#,50

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78102-12081

TE3#,51

 1
78102-12080

TE3#,51

 1
78102-12091

KE3#,50

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78102-12081

TE3#,51

 1
78102-12080

TE3#,51

 1
78102-12091

KE3#,50

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-20402

TE3#,51

 1
78111 - PEDAL, ACCELERATOR
78111-12100

KE3#,50,TE3#,51

 1
78111-12080

KE3#,TE3#,51

 1
78111 - PEDAL, ACCELERATOR
78111-12100

KE3#,50,TE3#,51

 1
78111-12080

KE3#,TE3#,51

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-12080

KE3#,TE3#,51

 1
78123 - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-12080

KE3#,TE3#,51

 1
78141 - BRACKET, ACCELERATOR WIRE RETURN SPRING
78141-12011

KE30,50

 1
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90507-10002

TE3#,51

 1
90507-12021

KE30,50

 1
90507-08002

TE3#,51

 2
78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
90507-10002

TE3#,51

 1
90507-12021

KE30,50

 1
90507-08002

TE3#,51

 2
78180 - WIRE ASSY, ACCELERATOR
78180-12212

TE3#,51

 1
78180-12213

TE3#,51

 1
78180-12223

KE30,50

 1
78180-12222

KE3#,50

 1
78180 - WIRE ASSY, ACCELERATOR
78180-12212

TE3#,51

 1
78180-12213

TE3#,51

 1
78180-12223

KE30,50

 1
78180-12222

KE3#,50

 1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78124-12050

TE3#,51

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

KE3#,50,TE3#,51

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

KE3#,50,TE3#,51

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-12090

TE3#,51

 1
78024-12010

TE3#,51

 1
78184-12040

KE3#,50

 1
78184-12091

TE3#,51

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-12090

TE3#,51

 1
78024-12010

TE3#,51

 1
78184-12040

KE3#,50

 1
78184-12091

TE3#,51

 1
78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2
78186-12041

KE3#,50

 1
78310A - GROMMET, CHOKE CABLE
90480-13055

KE3#,50..DLX,STD;KE30..K40..2D..USA

CANADA SPEC.

 1
Common parts
90119-06182
90159-50098
91611-40612
91656-40620
93386-16016
93386-16018
96160-00600
