TE51L-LMDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)2TC

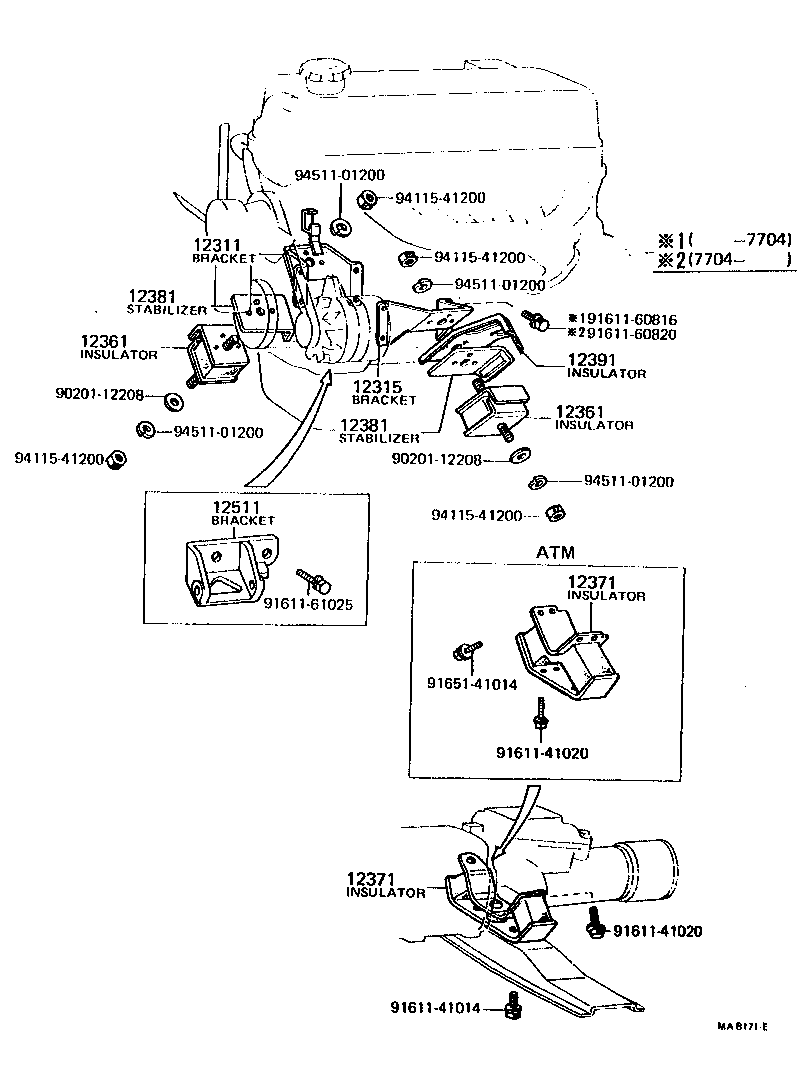

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12381 12391 12511 9020112208 9020112208 9161141014 9161141020 9161141020 9161160816 9161160820 9161161025 9165141014 9411541200 9411541200 9411541200 9411541200 9451101200 9451101200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-25011

2TC..TE3#,51

 1
12311-25012

2TC..TE3#,51

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-25011

2TC..TE3#,51

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-28020

2TC..TE3#,51

 2
12361-25013

2TC..TE3#,51

 2
12361-25012

2TC..TE3#,51

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-28020

2TC..TE3#,51

 2
12361-25013

2TC..TE3#,51

 2
12361-25012

2TC..TE3#,51

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-33010

2TC..TE3#,51..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-33010

2TC..TE3#,51..MTM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-25010

2TC..TE3#,51

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-25010

2TC..TE3#,51

 2
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-26020

2TC..TE3#,51

LH

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-25010

2TC..TE3#,51

 1
Common parts
90201-12208
91611-41014
91611-41020
91611-60816
91611-60820
91611-61025
91651-41014
94115-41200
94511-01200
