TE51L-LKDK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)TE3#,51..MTM

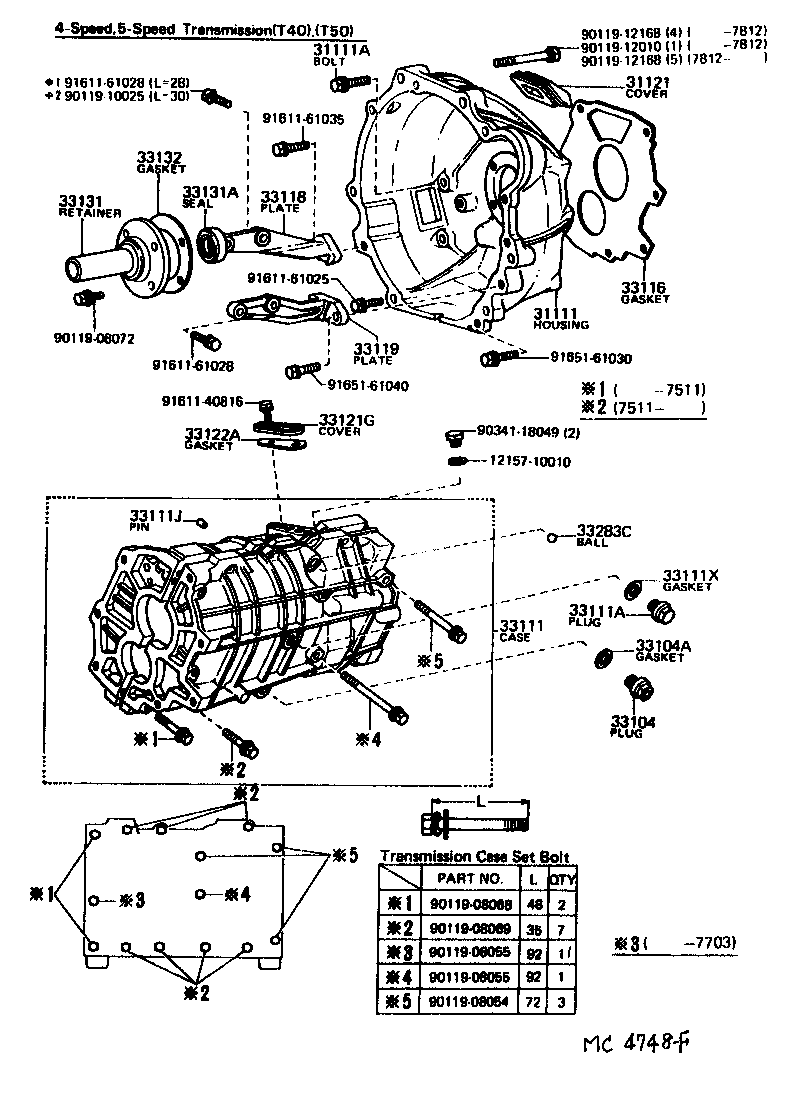

Click highlighted areas on diagram

diagram 1215710010 31111 31111A 31121 33104 33104A 33111 33111A 33111J 33111X 33116 33118 33119 33121G 33122A 33131 33131A 33132 33283C 9011908054 9011908055 9011908055 9011908068 9011908069 9011908072 9011910025 9011912010 9011912168 9011912168 9034118049 9161140816 9161161025 9161161028 9161161028 9161161035 9165161030 9165161040
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-12020

TE3#,51..MTM

 1
31111-14050

TE3#,51..MTM

 1
31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
90119-10067

TE3#,51..MTM

10-1.25PX42-30

 7
90119-10052

TE3#,51..MTM

10-1.25PX39-30

 7
31121 - COVER, CLUTCH HOUSING, NO.1
31121-14010

TE3#,51..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18081

TE3#,51..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

KE3#,50,TE3#,51..MTM

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

KE3#,50,TE3#,51..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08030

TE3#,51..MTM

L=16,OD=8

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

KE3#,50,TE3#,51..MTM

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33116-14010

TE3#,51..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-12020

TE3#,51..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-12010

TE3#,51..MTM

 1
33121G - COVER, MANUAL TRANSMISSION CASE
33121-14010

TE3#,51..MTM

 1
33122A - GASKET, MANUAL TRANSMISSION CASE COVER
33122-14010

TE3#,51..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-14010

TE3#,51..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-25003

KE30,50,TE3#,51..MTM

 1
90311-25141

KE3#,50,TE3#,51..MTM

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-14010

TE3#,51..MTM

 1
33283C - BALL, REVERSE RESTRICT
90360-10003

TE3#,51..MTM

 1
Common parts
12157-10010
90119-08054
90119-08055
90119-08068
90119-08069
90119-08072
90119-10025
90119-12010
90119-12168
90341-18049
91611-40816
91611-61025
91611-61028
91611-61035
91651-61030
91651-61040
