Toyota Corolla TE51 INDICATOR - JDM Part Detective

TE51L-LKDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979

Engine 2TC

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

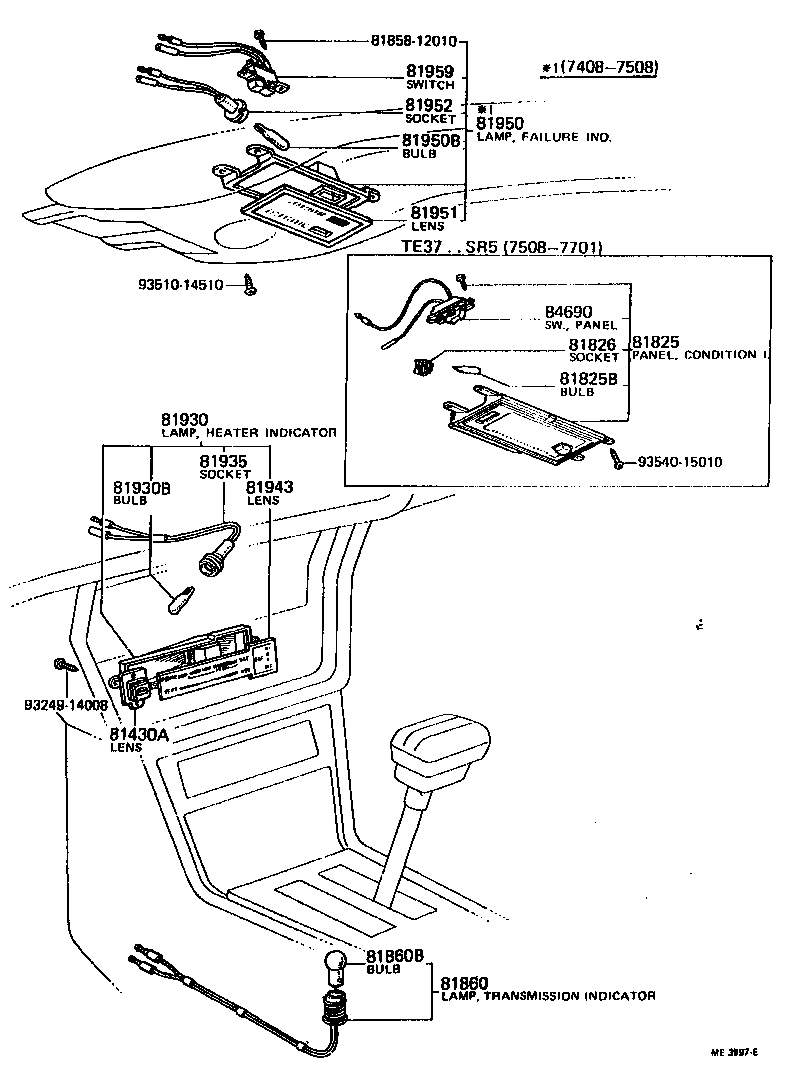

Click highlighted areas on diagram

Part #	Description	Period	Qty
81430A - LENS, REAR WINDOW DEFOGGER INDICATOR LAMP
55488-12010	KE3#,TE3#,51	08/1974 - 01/1977	1
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-12140	TE3#,51 W/COOLER	08/1976 - 01/1977	1
81930-12120	TE51 W/COOLER	01/1977 - 08/1977	1
81930-12100	KE50,TE51	01/1977 - 02/1978	1
81930-12130	KE3#,TE3#,51	08/1976 - 01/1977	1
81930-12101	KE50,TE51	02/1978 - 08/1979	1
81930-12120	TE51..USA W/COOLER	08/1977 - 02/1978	1
81930-12121	TE51..USA W/COOLER	02/1978 - 08/1979	1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018	KE3#,50,TE3#,51 12V 1.2W W/O SOCKET,12V 1.4W	08/1974 - 08/1979	1
81935 - SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP
81935-12020	KE3#,TE3#,51	08/1974 - 01/1977	1
81943 - LENS, HEATER CONTROL INDICATOR
81931-12042	KE3#,50,TE3#,51	01/1977 - 02/1978	1
81943-12020	TE3#,51 W/COOLER	08/1974 - 01/1977	1
81943-12030	TE3#,51..DLX,SR5 W/COOLER	01/1977 - 08/1977	1
81943-12030	TE3#,51..USA W/COOLER	08/1977 - 02/1978	1
Common parts
81858-12010
93249-14008
93510-14510
93540-15010

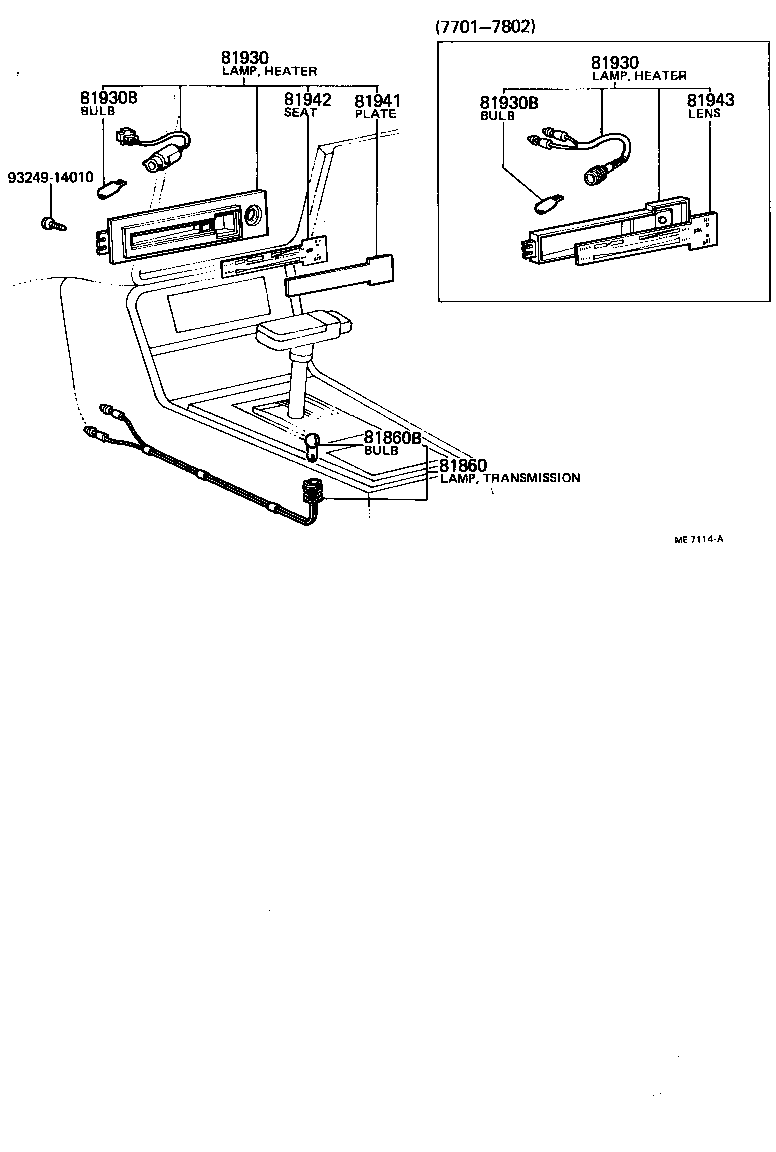

Click highlighted areas on diagram

Part #	Description	Period	Qty
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-12140	TE3#,51 W/COOLER	08/1976 - 01/1977	1
81930-12120	TE51 W/COOLER	01/1977 - 08/1977	1
81930-12100	KE50,TE51	01/1977 - 02/1978	1
81930-12130	KE3#,TE3#,51	08/1976 - 01/1977	1
81930-12101	KE50,TE51	02/1978 - 08/1979	1
81930-12120	TE51..USA W/COOLER	08/1977 - 02/1978	1
81930-12121	TE51..USA W/COOLER	02/1978 - 08/1979	1
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-12140	TE3#,51 W/COOLER	08/1976 - 01/1977	1
81930-12120	TE51 W/COOLER	01/1977 - 08/1977	1
81930-12100	KE50,TE51	01/1977 - 02/1978	1
81930-12130	KE3#,TE3#,51	08/1976 - 01/1977	1
81930-12101	KE50,TE51	02/1978 - 08/1979	1
81930-12120	TE51..USA W/COOLER	08/1977 - 02/1978	1
81930-12121	TE51..USA W/COOLER	02/1978 - 08/1979	1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018	KE3#,50,TE3#,51 12V 1.2W W/O SOCKET,12V 1.4W	08/1974 - 08/1979	1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018	KE3#,50,TE3#,51 12V 1.2W W/O SOCKET,12V 1.4W	08/1974 - 08/1979	1
81941 - PLATE, HEATER CONTROL NAME
81941-12010	KE30,50,TE3#,51	02/1978 - 08/1979	1
81942 - SHEET, HEATER CONTROL NAME
81931-12043	KE30,50,TE3#,51	02/1978 - 08/1979	1
81942-12020	KE30,TE3#,51..USA W/COOLER	02/1978 - 08/1979	1
81943 - LENS, HEATER CONTROL INDICATOR
81931-12042	KE3#,50,TE3#,51	01/1977 - 02/1978	1
81943-12020	TE3#,51 W/COOLER	08/1974 - 01/1977	1
81943-12030	TE3#,51..DLX,SR5 W/COOLER	01/1977 - 08/1977	1
81943-12030	TE3#,51..USA W/COOLER	08/1977 - 02/1978	1
Common parts
93249-14010
