TE51L-LKDA (1976)
Toyota Corolla
Production
Mar 1976
-
Aug 1979
Engine
2TC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)

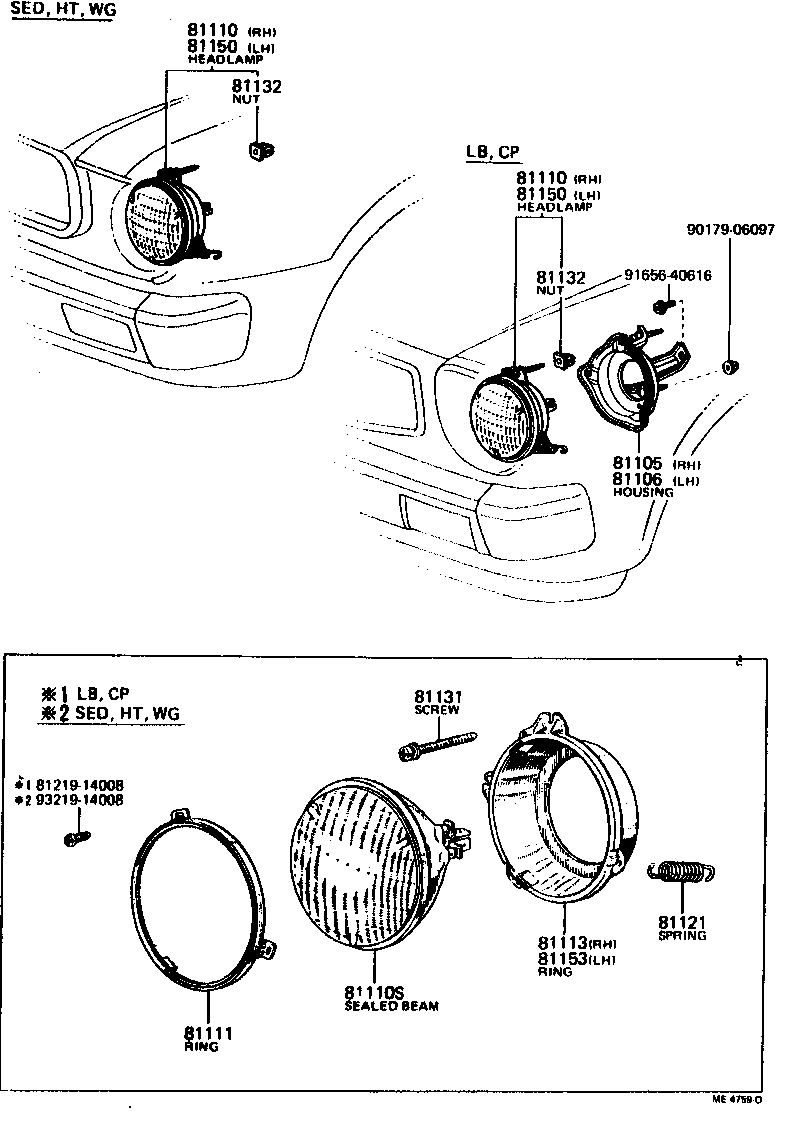

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 53037-12010 |
KE50,TE51 |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 53038-12010 |
KE50,TE51 |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-19505 |
KE50,TE51 KOITO |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-19505 |
KE50,TE51 KOITO |
1 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-01016 |
KE3#,50,TE3#,51 12V 50/40W,KOITO |
2 | ||
| 81111 - RING, SEALED BEAM RETAINING | ||||
| 81111-10120 |
KE3#,50,TE3#,51 KOITO |
2 | ||
| 81111-10120 |
KE50,TE51 KOITO |
2 | ||
| 81113 - RING, SEALED BEAM MOUNTING, NO.1 RH | ||||
| 81113-10050 |
KE50,TE51 KOITO |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-62010 |
KE50,TE51 KOITO |
2 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-10031 |
KE50,TE51 KOITO |
4 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 90189-05013 |
KE3#,50,TE3#,51 |
4 | ||
| 81132 - NUT, HEADLAMP SELF LOCKING | ||||
| 90189-05013 |
KE3#,50,TE3#,51 |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-19455 |
KE50,TE51 KOITO |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-19455 |
KE50,TE51 KOITO |
1 | ||
| 81153 - RING, SEALED BEAM MOUNTING, NO.1 LH | ||||
| 81153-10010 |
KE50,TE51 KOITO |
1 | ||
| Common parts | ||||
| 81219-14008 | ||||
| 90179-06097 | ||||
| 91656-40616 | ||||
| 93219-14008 | ||||
