TE51L-LKDA (1976)
Toyota Corolla
Production
Mar 1976
-
Aug 1979
Engine
2TC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)

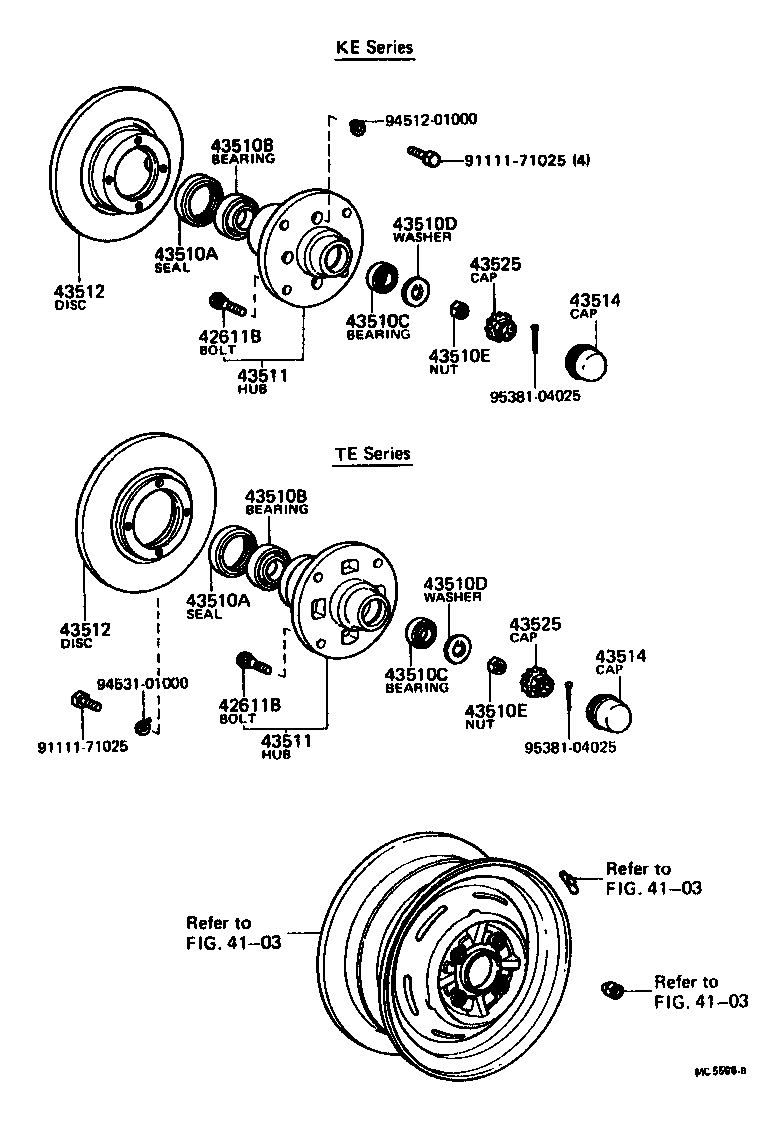

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02036 |
KE3#,50,TE3#,51 12-1.5PX33-20.5 |
8 | ||
| 90942-02032 |
KE3#,50,TE3#,51 12-1.5PX38-25.5 |
8 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02036 |
KE3#,50,TE3#,51 12-1.5PX33-20.5 |
8 | ||
| 90942-02032 |
KE3#,50,TE3#,51 12-1.5PX38-25.5 |
8 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-41123 |
KE3#,50,TE3#,51 |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-41123 |
KE3#,50,TE3#,51 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-29068 |
KE3#,50,TE3#,51 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-29068 |
KE3#,50,TE3#,51 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-17017 |
KE3#,50,TE3#,51 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-17017 |
KE3#,50,TE3#,51 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-16010 |
KE3#,50,TE3#,51 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-16010 |
KE3#,50,TE3#,51 |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-16137 |
KE3#,50,TE3#,51 |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-16137 |
KE3#,50,TE3#,51 |
2 | ||
| 43511 - HUB, FRONT AXLE | ||||
| 43502-12030 |
TE3#,51 |
2 | ||
| 43511 - HUB, FRONT AXLE | ||||
| 43502-12030 |
TE3#,51 |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-20032 |
TE3#,51 |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-20032 |
TE3#,51 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-20010 |
KE3#,50,TE3#,51 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-20010 |
KE3#,50,TE3#,51 |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-20011 |
KE3#,50,TE3#,51 |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-20011 |
KE3#,50,TE3#,51 |
2 | ||
| Common parts | ||||
| 91111-71025 | ||||
| 94512-01000 | ||||
| 94531-01000 | ||||
| 95381-04025 | ||||
| Linked diagrams | ||||
| 4103 | ||||
