TE51L-LKDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)2TC

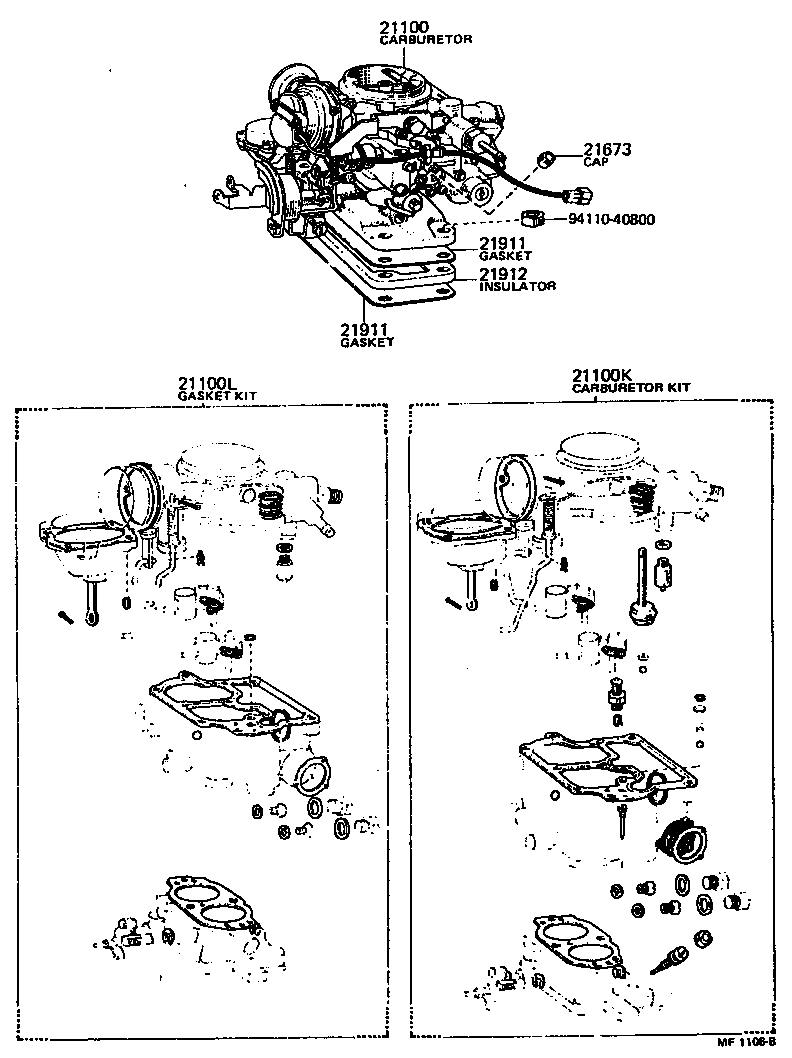

Click highlighted areas on diagram

diagram 21100 21100K 21100L 21673 21911 21911 21912 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-26510

2TC..TE3#,51..MTM

 1
21100-26354

2TC..TE3#,51..MTM

CANADA SPEC.

 1
21100-26393

2TC..TE3#,51

CALIFORNIA SPEC.

 1
21100-26600

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
21100-26601

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
21100-26511

2TC..TE3#,51..MTM

 1
21100-26394

2TC..TE3#,51

CALIFORNIA SPEC.

 1
21100-26396

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
21100-26395

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
21100-26800

2TC..TE3#,51..USA

 1
21100-26801

2TC..TE3#,51..USA

 1
21100-26397

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
21100-26802

2TC..TE3#,51..USA

 1
21100K - CARBURETOR KIT
04211-26082

2TC..TE3#,51

CANADA SPEC.

 1
04211-26190

2TC..TE3#,51..USA

 1
04211-26170

2TC..TE3#,51

 1
21100L - GASKET KIT, CARBURETOR
04212-26060

2TC..TE3#,51..USA

 1
21673 - CAP, IDLE LIMIT
21673-38020

2TC..TE3#,51

 1
21911 - GASKET, CARBURETOR
21911-26010

2TC..TE3#,51

 2
21911 - GASKET, CARBURETOR
21911-26010

2TC..TE3#,51

 2
21912 - INSULATOR, CARBURETOR HEAT
21912-26020

2TC..TE3#,51

 1
21912-26030

2TC..TE3#,51..USA

 1
Common parts
94110-40800
