TE51L-LKDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

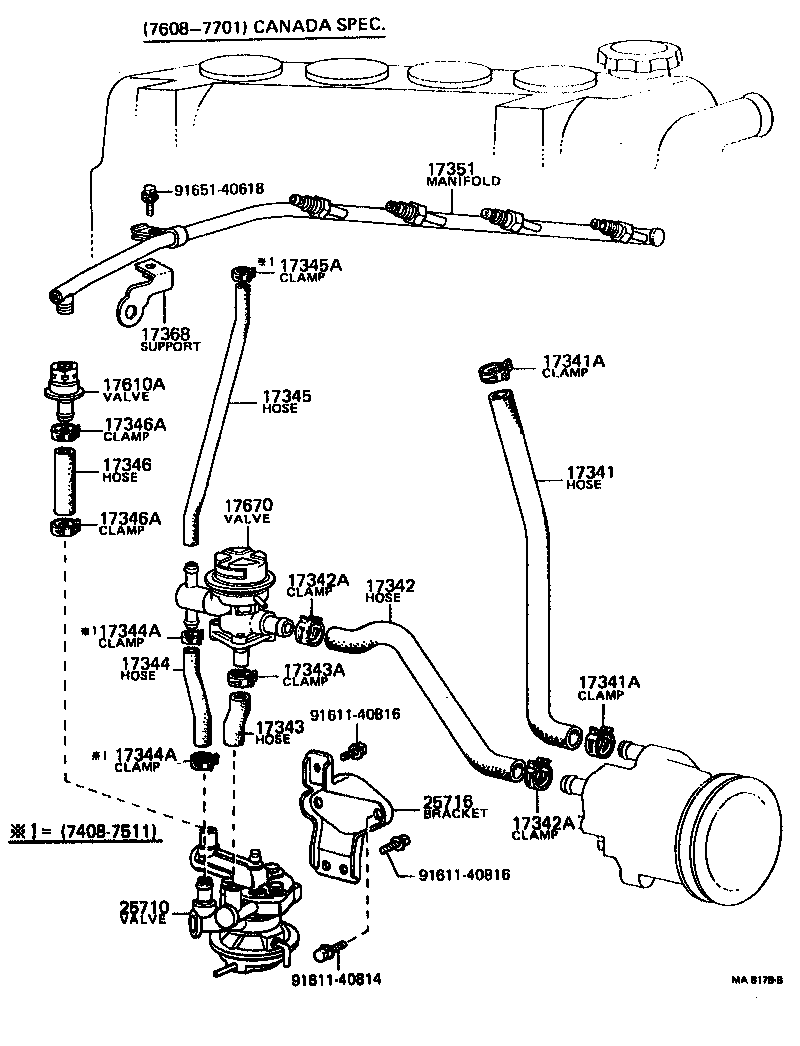

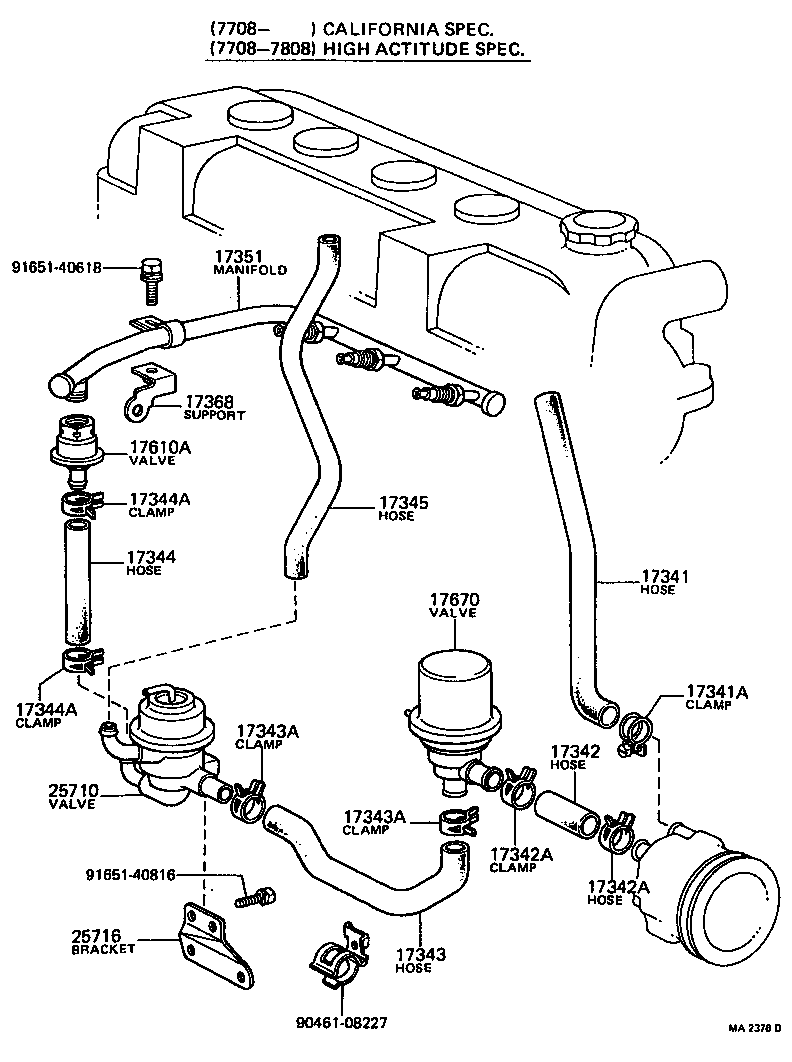

(7608-7908)2TC

Click highlighted areas on diagram

diagram 17341 17341A 17342 17342A 17342A 17343 17343A 17343A 17344 17344A 17344A 17345 17351 17368 17610A 17670 25710 25716 9046108227 9165140618 9165140816
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-26040

2TC..TE3#,51

W/COOLER

 1
17341-26050

2TC..TE3#,51

 1
17341-26050

2TC..TE3#,51..USA

CAL.& H.A.

 1
17341-26050

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17341-26040

2TC..TE3#,51..USA

CAL.& H.A.,W/COOLER

 1
17341-26040

2TC..TE3#,51..USA

CALIFORNIA SPEC.,W/COOLER

 1
90445-27011

2TC..TE3#,51..USA

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26001

2TC..TE3#,51

 2
96111-10300

2TC..TE3#,51..USA

CAL.& H.A.

 1
90467-21001

2TC..TE3#,51..USA

 2
96111-10300

2TC..TE3#,51

 1
96111-10300

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-26030

2TC..TE3#,51

CANADA SPEC.

 1
17342-26040

2TC..TE3#,51

CANADA SPEC. W/COOLER

 1
90445-31008

2TC..TE3#,51..USA

CAL.& H.A.

 1
90445-31008

2TC..TE3#,51

 1
90445-31008

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17342-26030

2TC..TE3#,51

 1
90445-27011

2TC..TE3#,51..USA

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-26001

2TC..TE3#,51..USA

CAL.& H.A.

 2
90467-22001

2TC..TE3#,51..USA

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-26001

2TC..TE3#,51..USA

CAL.& H.A.

 2
90467-22001

2TC..TE3#,51..USA

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-26010

2TC..TE3#,51

CANADA SPEC.

 1
17343-26010

2TC..TE3#,51

 1
17342-26041

2TC..TE3#,51

W/COOLER

 1
17342-26031

2TC..TE3#,51

 1
17342-26031

2TC..TE3#,51..USA

CAL.& H.A.

 1
17342-26031

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90445-31012

2TC..TE3#,51..USA

 1
17342-26041

2TC..TE3#,51..USA

CALIFORNIA SPEC.,W/COOLER

 1
17342-26041

2TC..TE3#,51..USA

CAL.& H.A.,W/COOLER

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51..USA

CAL.& H.A.

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51..USA

CAL.& H.A.

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
90445-27005

2TC..TE3#,51

 1
90445-27005

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90445-27005

2TC..TE3#,51..USA

CAL.& H.A.

 1
90445-27007

2TC..TE3#,51

CANADA SPEC.

 1
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-23001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-23001

2TC..TE3#,51..USA

CAL.& H.A.

 2
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-23001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-23001

2TC..TE3#,51..USA

CAL.& H.A.

 2
17345 - HOSE, NO.5(FOR AIR INJECTION SYSTEM)
90445-27003

2TC..TE3#,51

 1
90445-27003

2TC..TE3#,51

CANADA SPEC.

 1
90445-27013

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90445-27013

2TC..TE3#,51..USA

CAL.& H.A.

 1
17345-26010

2TC..TE3#,51

 1
17351 - MANIFOLD, AIR INJECTION
17351-26060

2TC..TE3#,51

 1
17351-26061

2TC..TE3#,51..USA

CAL.& H.A.

 1
17351-26062

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17351-26021

2TC..TE3#,51

 1
17351-26021

2TC..TE3#,51

CANADA SPEC.

 1
17351-27010

2TC..TE3#,51..USA

 1
17368 - SUPPORT, AIR TUBE
17368-26020

2TC..TE3#,51

 1
17368-26020

2TC..TE3#,51..USA

 1
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10024

2TC..TE3#,51

 1
90917-10045

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90917-10045

2TC..TE3#,51

 1
90917-10024

2TC..TE3#,51

CANADA SPEC.

 1
90917-10045

2TC..TE3#,51..USA

CAL.& H.A.

 1
17670 - VALVE ASSY, AIR BY-PASS
17670-26020

2TC..TE3#,51

CANADA SPEC.

 1
17670-26030

2TC..TE3#,51

 1
17670-26020

2TC..TE3#,51

 1
17670-26030

2TC..TE3#,51..USA

CAL.& H.A.

 1
17670-26030

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-26010

2TC..TE3#,51

 1
25710-26020

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25710-26010

2TC..TE3#,51

CANADA SPEC.

 1
25710-26020

2TC..TE3#,51

 1
25710-26020

2TC..TE3#,51..USA

CAL.& H.A.

 1
25716 - BRACKET, AIR SWITCHING VALVE
25716-26010

2TC..TE3#,51

 1
25716-25010

2TC..TE3#,51

 1
25716-25010

2TC..TE3#,51..USA

CAL.& H.A.

 1
25716-26010

2TC..TE3#,51

CANADA SPEC.

 1
25716-25010

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
Common parts
90461-08227
91651-40618
91651-40816

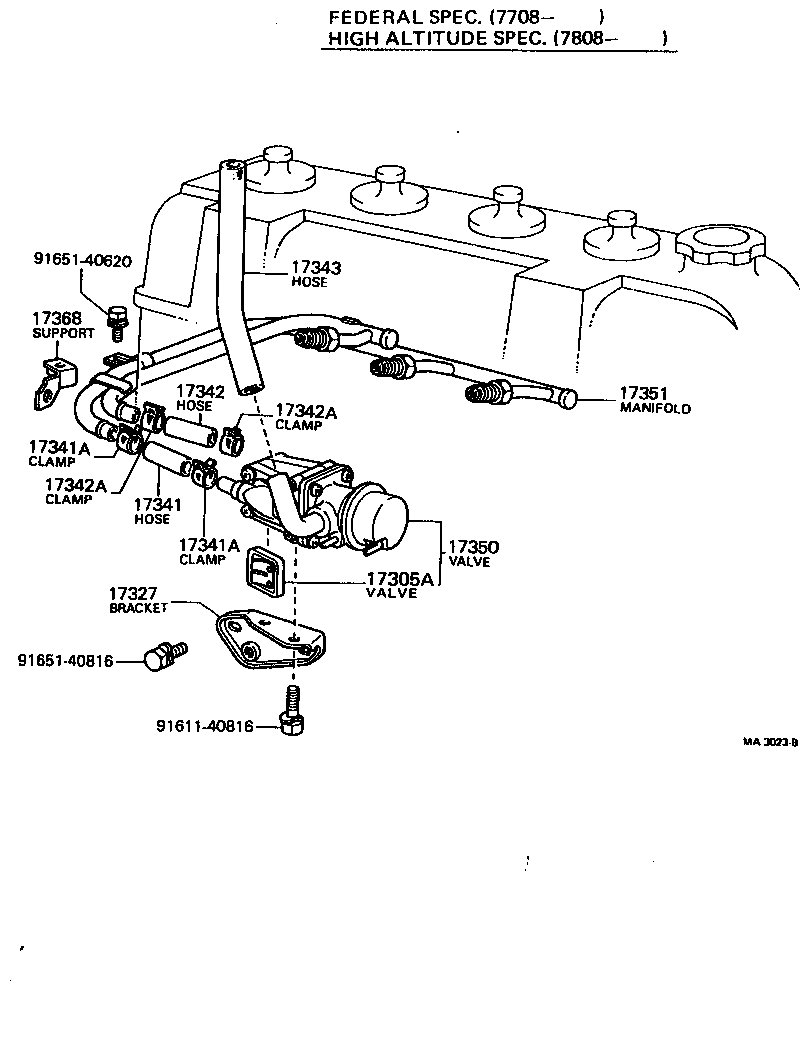

(7708-7908)2TC

Click highlighted areas on diagram

diagram 17305A 17327 17341 17341A 17341A 17342 17342A 17342A 17343 17350 17351 17368 9161140816 9165140620 9165140816
Part # Description Qty Price
17305A - VALVE SUB-ASSY, REED
17305-27010

2TC..TE3#,51..USA

FEDERAL SPEC.

 2
17327 - BRACKET, REED VALVE
17327-26010

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-26040

2TC..TE3#,51

W/COOLER

 1
17341-26050

2TC..TE3#,51

 1
17341-26050

2TC..TE3#,51..USA

CAL.& H.A.

 1
17341-26050

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17341-26040

2TC..TE3#,51..USA

CAL.& H.A.,W/COOLER

 1
17341-26040

2TC..TE3#,51..USA

CALIFORNIA SPEC.,W/COOLER

 1
90445-27011

2TC..TE3#,51..USA

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26001

2TC..TE3#,51

 2
96111-10300

2TC..TE3#,51..USA

CAL.& H.A.

 1
90467-21001

2TC..TE3#,51..USA

 2
96111-10300

2TC..TE3#,51

 1
96111-10300

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26001

2TC..TE3#,51

 2
96111-10300

2TC..TE3#,51..USA

CAL.& H.A.

 1
90467-21001

2TC..TE3#,51..USA

 2
96111-10300

2TC..TE3#,51

 1
96111-10300

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-26030

2TC..TE3#,51

CANADA SPEC.

 1
17342-26040

2TC..TE3#,51

CANADA SPEC. W/COOLER

 1
90445-31008

2TC..TE3#,51..USA

CAL.& H.A.

 1
90445-31008

2TC..TE3#,51

 1
90445-31008

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17342-26030

2TC..TE3#,51

 1
90445-27011

2TC..TE3#,51..USA

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-26001

2TC..TE3#,51..USA

CAL.& H.A.

 2
90467-22001

2TC..TE3#,51..USA

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-26001

2TC..TE3#,51..USA

CAL.& H.A.

 2
90467-22001

2TC..TE3#,51..USA

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-26010

2TC..TE3#,51

CANADA SPEC.

 1
17343-26010

2TC..TE3#,51

 1
17342-26041

2TC..TE3#,51

W/COOLER

 1
17342-26031

2TC..TE3#,51

 1
17342-26031

2TC..TE3#,51..USA

CAL.& H.A.

 1
17342-26031

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90445-31012

2TC..TE3#,51..USA

 1
17342-26041

2TC..TE3#,51..USA

CALIFORNIA SPEC.,W/COOLER

 1
17342-26041

2TC..TE3#,51..USA

CAL.& H.A.,W/COOLER

 1
17350 - VALVE ASSY, REED
17350-27020

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
17351 - MANIFOLD, AIR INJECTION
17351-26060

2TC..TE3#,51

 1
17351-26061

2TC..TE3#,51..USA

CAL.& H.A.

 1
17351-26062

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17351-26021

2TC..TE3#,51

 1
17351-26021

2TC..TE3#,51

CANADA SPEC.

 1
17351-27010

2TC..TE3#,51..USA

 1
17368 - SUPPORT, AIR TUBE
17368-26020

2TC..TE3#,51

 1
17368-26020

2TC..TE3#,51..USA

 1
Common parts
91611-40816
91651-40620
91651-40816

(7408-7701)2TC

Click highlighted areas on diagram

diagram 17341 17341A 17341A 17342 17342A 17342A 17343 17343A 17344 17344A 17344A 17345 17345A 17346 17346A 17346A 17351 17368 17610A 17670 25710 25716 9161140814 9161140816 9161140816 9165140618
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-26040

2TC..TE3#,51

W/COOLER

 1
17341-26050

2TC..TE3#,51

 1
17341-26050

2TC..TE3#,51..USA

CAL.& H.A.

 1
17341-26050

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17341-26040

2TC..TE3#,51..USA

CAL.& H.A.,W/COOLER

 1
17341-26040

2TC..TE3#,51..USA

CALIFORNIA SPEC.,W/COOLER

 1
90445-27011

2TC..TE3#,51..USA

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26001

2TC..TE3#,51

 2
96111-10300

2TC..TE3#,51..USA

CAL.& H.A.

 1
90467-21001

2TC..TE3#,51..USA

 2
96111-10300

2TC..TE3#,51

 1
96111-10300

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26001

2TC..TE3#,51

 2
96111-10300

2TC..TE3#,51..USA

CAL.& H.A.

 1
90467-21001

2TC..TE3#,51..USA

 2
96111-10300

2TC..TE3#,51

 1
96111-10300

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-26030

2TC..TE3#,51

CANADA SPEC.

 1
17342-26040

2TC..TE3#,51

CANADA SPEC. W/COOLER

 1
90445-31008

2TC..TE3#,51..USA

CAL.& H.A.

 1
90445-31008

2TC..TE3#,51

 1
90445-31008

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17342-26030

2TC..TE3#,51

 1
90445-27011

2TC..TE3#,51..USA

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-26001

2TC..TE3#,51..USA

CAL.& H.A.

 2
90467-22001

2TC..TE3#,51..USA

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-26001

2TC..TE3#,51..USA

CAL.& H.A.

 2
90467-22001

2TC..TE3#,51..USA

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-26010

2TC..TE3#,51

CANADA SPEC.

 1
17343-26010

2TC..TE3#,51

 1
17342-26041

2TC..TE3#,51

W/COOLER

 1
17342-26031

2TC..TE3#,51

 1
17342-26031

2TC..TE3#,51..USA

CAL.& H.A.

 1
17342-26031

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90445-31012

2TC..TE3#,51..USA

 1
17342-26041

2TC..TE3#,51..USA

CALIFORNIA SPEC.,W/COOLER

 1
17342-26041

2TC..TE3#,51..USA

CAL.& H.A.,W/COOLER

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51..USA

CAL.& H.A.

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
90445-27005

2TC..TE3#,51

 1
90445-27005

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90445-27005

2TC..TE3#,51..USA

CAL.& H.A.

 1
90445-27007

2TC..TE3#,51

CANADA SPEC.

 1
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-23001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-23001

2TC..TE3#,51..USA

CAL.& H.A.

 2
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-23001

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 2
90467-23001

2TC..TE3#,51..USA

CAL.& H.A.

 2
17345 - HOSE, NO.5(FOR AIR INJECTION SYSTEM)
90445-27003

2TC..TE3#,51

 1
90445-27003

2TC..TE3#,51

CANADA SPEC.

 1
90445-27013

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90445-27013

2TC..TE3#,51..USA

CAL.& H.A.

 1
17345-26010

2TC..TE3#,51

 1
17346 - HOSE, NO.6(FOR AIR INJECTION SYSTEM)
90445-31001

2TC..TE3#,51

 1
90445-31001

2TC..TE3#,51

CANADA SPEC.

 1
17346A - CLAMP OR CLIP, NO.6(FOR AIR INJECTION SYSTEM HOSE, NO.6
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51

CANADA SPEC.

 2
17346A - CLAMP OR CLIP, NO.6(FOR AIR INJECTION SYSTEM HOSE, NO.6
90467-26001

2TC..TE3#,51

 2
90467-26001

2TC..TE3#,51

CANADA SPEC.

 2
17351 - MANIFOLD, AIR INJECTION
17351-26060

2TC..TE3#,51

 1
17351-26061

2TC..TE3#,51..USA

CAL.& H.A.

 1
17351-26062

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17351-26021

2TC..TE3#,51

 1
17351-26021

2TC..TE3#,51

CANADA SPEC.

 1
17351-27010

2TC..TE3#,51..USA

 1
17368 - SUPPORT, AIR TUBE
17368-26020

2TC..TE3#,51

 1
17368-26020

2TC..TE3#,51..USA

 1
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10024

2TC..TE3#,51

 1
90917-10045

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90917-10045

2TC..TE3#,51

 1
90917-10024

2TC..TE3#,51

CANADA SPEC.

 1
90917-10045

2TC..TE3#,51..USA

CAL.& H.A.

 1
17670 - VALVE ASSY, AIR BY-PASS
17670-26020

2TC..TE3#,51

CANADA SPEC.

 1
17670-26030

2TC..TE3#,51

 1
17670-26020

2TC..TE3#,51

 1
17670-26030

2TC..TE3#,51..USA

CAL.& H.A.

 1
17670-26030

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-26010

2TC..TE3#,51

 1
25710-26020

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
25710-26010

2TC..TE3#,51

CANADA SPEC.

 1
25710-26020

2TC..TE3#,51

 1
25710-26020

2TC..TE3#,51..USA

CAL.& H.A.

 1
25716 - BRACKET, AIR SWITCHING VALVE
25716-26010

2TC..TE3#,51

 1
25716-25010

2TC..TE3#,51

 1
25716-25010

2TC..TE3#,51..USA

CAL.& H.A.

 1
25716-26010

2TC..TE3#,51

CANADA SPEC.

 1
25716-25010

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
Common parts
91611-40814
91611-40816
91651-40618
