TE51L-LKDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

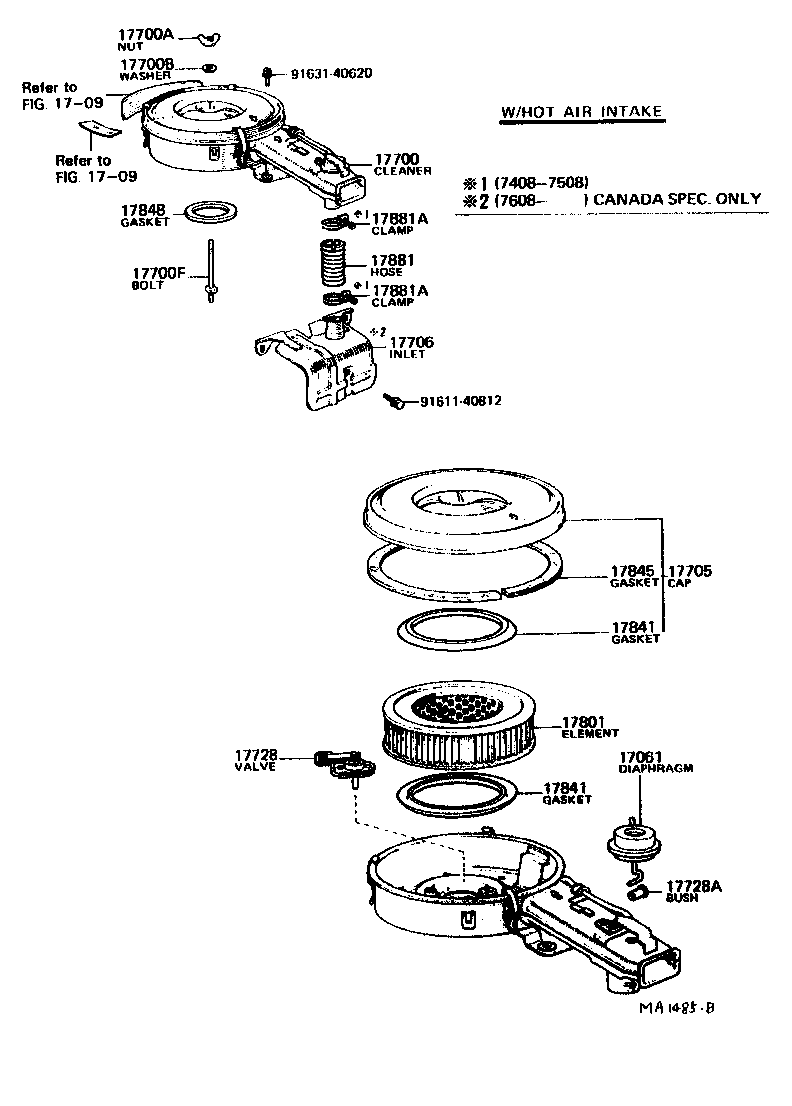

(7408-7708)2TC

Click highlighted areas on diagram

diagram 17061 1709 1709 17700 17700A 17700B 17700F 17705 17706 17728 17728A 17801 17841 17841 17845 17848 17881 17881A 17881A 9161140812 9163140620
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-26010

2TC..TE3#,51

 1
17700 - CLEANER ASSY, AIR
17700-26090

2TC..TE3#,51

L/HOT AIR INTAKE

 1
17700-26150

2TC..TE3#,51

CANADA SPEC

 1
17700-26080

2TC..TE3#,51

 1
17700-26081

2TC..TE3#,51..USA

CAL.& H.A.

 1
17700-26082

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17700-26231

2TC..TE3#,51..USA

 1
17700-26230

2TC..TE3#,51..USA

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2TC..TE3#,51

 1
90175-06003

2TC..TE3#,51

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06023

2TC..TE3#,51

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-25031

2TC..TE3#,51

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17752-26021

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17752-26021

2TC..TE3#,51

CANADA SPEC.

 1
17752-26021

2TC..TE3#,51

 1
17902-27030

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
17902-27031

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
17728 - VALVE, THERMOSTATIC
17728-26020

2TC..TE3#,51..USA

 1
17728A - BUSH
90386-03001

2TC..TE3#,51

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25010

2TC..TE3#,51

 1
17801-31010

2TC..TE3#,51

 1
17841 - GASKET, FILTER ELEMENT
17841-31020

2TC..TE3#,51

 2
17841-25010

2TC..TE3#,51

 2
17841 - GASKET, FILTER ELEMENT
17841-31020

2TC..TE3#,51

 2
17841-25010

2TC..TE3#,51

 2
17845 - GASKET, AIR CLEANER CAP
17845-25010

2TC..TE3#,51

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

2TC..TE3#,51

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-26010

2TC..TE3#,51

 1
Common parts
91611-40812
91631-40620
Linked diagrams
1709

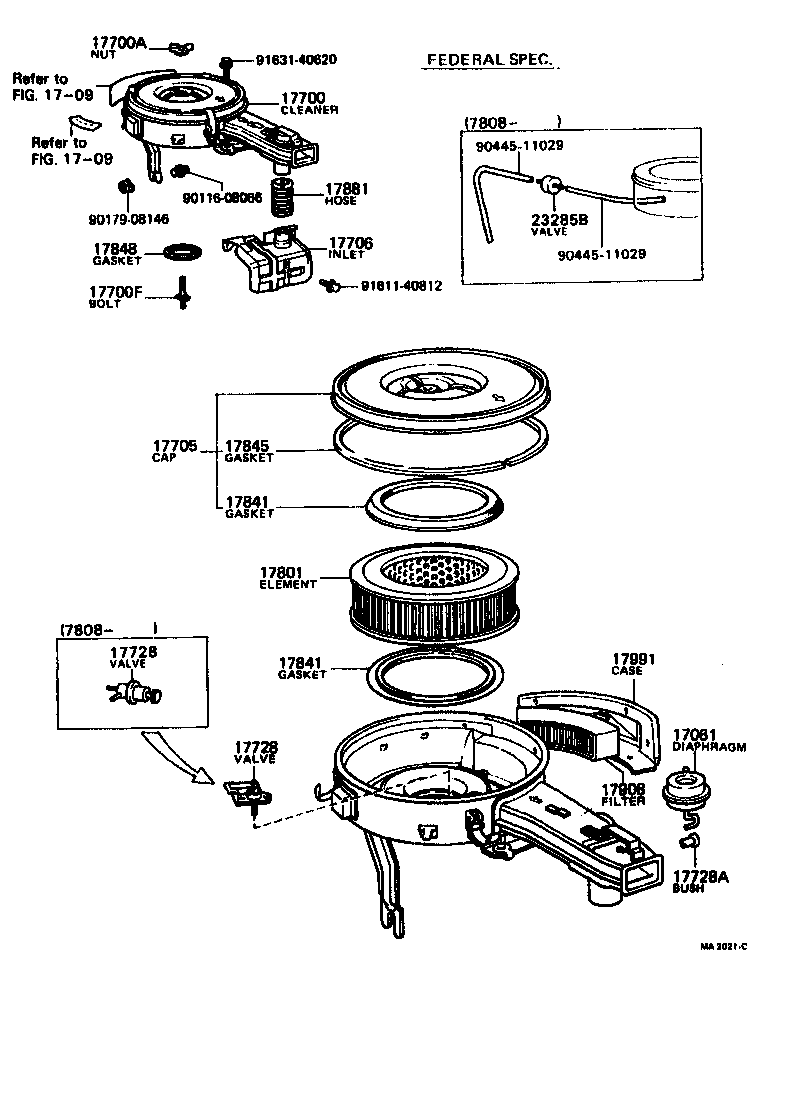

(7708-7908)2TC

Click highlighted areas on diagram

diagram 17061 1709 1709 17700 17700A 17700F 17705 17706 17728 17728 17728A 17801 17841 17841 17845 17848 17881 17908 17991 23285B 9011608066 9017908146 9044511029 9044511029 9161140812 9163140620
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-26010

2TC..TE3#,51

 1
17700 - CLEANER ASSY, AIR
17700-26090

2TC..TE3#,51

L/HOT AIR INTAKE

 1
17700-26150

2TC..TE3#,51

CANADA SPEC

 1
17700-26080

2TC..TE3#,51

 1
17700-26081

2TC..TE3#,51..USA

CAL.& H.A.

 1
17700-26082

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17700-26231

2TC..TE3#,51..USA

 1
17700-26230

2TC..TE3#,51..USA

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2TC..TE3#,51

 1
90175-06003

2TC..TE3#,51

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-25031

2TC..TE3#,51

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17752-26021

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17752-26021

2TC..TE3#,51

CANADA SPEC.

 1
17752-26021

2TC..TE3#,51

 1
17902-27030

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
17902-27031

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
17728 - VALVE, THERMOSTATIC
17728-26020

2TC..TE3#,51..USA

 1
17728 - VALVE, THERMOSTATIC
17728-26020

2TC..TE3#,51..USA

 1
17728A - BUSH
90386-03001

2TC..TE3#,51

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25010

2TC..TE3#,51

 1
17801-31010

2TC..TE3#,51

 1
17841 - GASKET, FILTER ELEMENT
17841-31020

2TC..TE3#,51

 2
17841-25010

2TC..TE3#,51

 2
17841 - GASKET, FILTER ELEMENT
17841-31020

2TC..TE3#,51

 2
17841-25010

2TC..TE3#,51

 2
17845 - GASKET, AIR CLEANER CAP
17845-25010

2TC..TE3#,51

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

2TC..TE3#,51

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-26010

2TC..TE3#,51

 1
17908 - FILTER SUB-ASSY, AIR SUCTION
17908-27010

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
17991 - CASE, AIR SUCTION FILTER
17991-27020

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
23285B - VALVE, CHECK, NO.1
90917-10053

2TC..TE3#,51..USA

 1
Common parts
90116-08066
90179-08146
90445-11029
91611-40812
91631-40620
Linked diagrams
1709

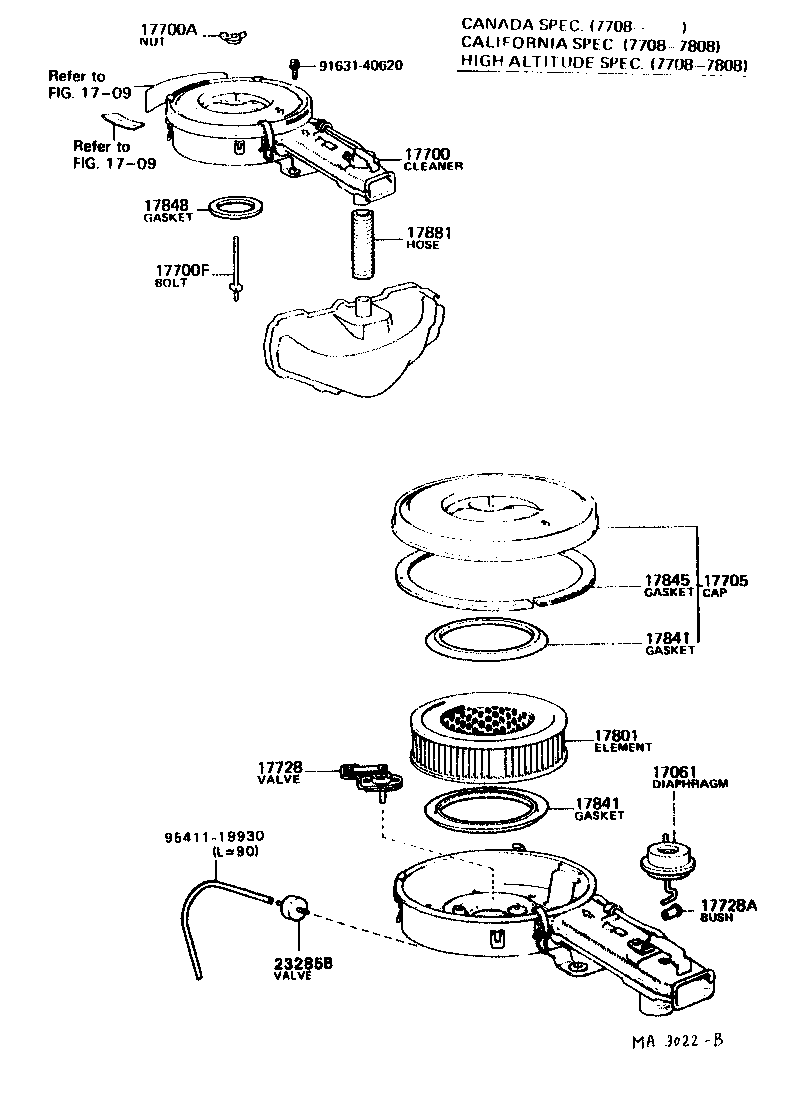

(7708-7908)2TC

Click highlighted areas on diagram

diagram 17061 1709 1709 17700 17700A 17700F 17705 17728 17728A 17801 17841 17841 17845 17848 17881 23285B 9163140620 9541119930
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-26010

2TC..TE3#,51

 1
17700 - CLEANER ASSY, AIR
17700-26090

2TC..TE3#,51

L/HOT AIR INTAKE

 1
17700-26150

2TC..TE3#,51

CANADA SPEC

 1
17700-26080

2TC..TE3#,51

 1
17700-26081

2TC..TE3#,51..USA

CAL.& H.A.

 1
17700-26082

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17700-26231

2TC..TE3#,51..USA

 1
17700-26230

2TC..TE3#,51..USA

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2TC..TE3#,51

 1
90175-06003

2TC..TE3#,51

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-25031

2TC..TE3#,51

 1
17728 - VALVE, THERMOSTATIC
17728-26020

2TC..TE3#,51..USA

 1
17728A - BUSH
90386-03001

2TC..TE3#,51

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25010

2TC..TE3#,51

 1
17801-31010

2TC..TE3#,51

 1
17841 - GASKET, FILTER ELEMENT
17841-31020

2TC..TE3#,51

 2
17841-25010

2TC..TE3#,51

 2
17841 - GASKET, FILTER ELEMENT
17841-31020

2TC..TE3#,51

 2
17841-25010

2TC..TE3#,51

 2
17845 - GASKET, AIR CLEANER CAP
17845-25010

2TC..TE3#,51

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

2TC..TE3#,51

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-26010

2TC..TE3#,51

 1
23285B - VALVE, CHECK, NO.1
90917-10053

2TC..TE3#,51..USA

 1
Common parts
91631-40620
95411-19930
Linked diagrams
1709

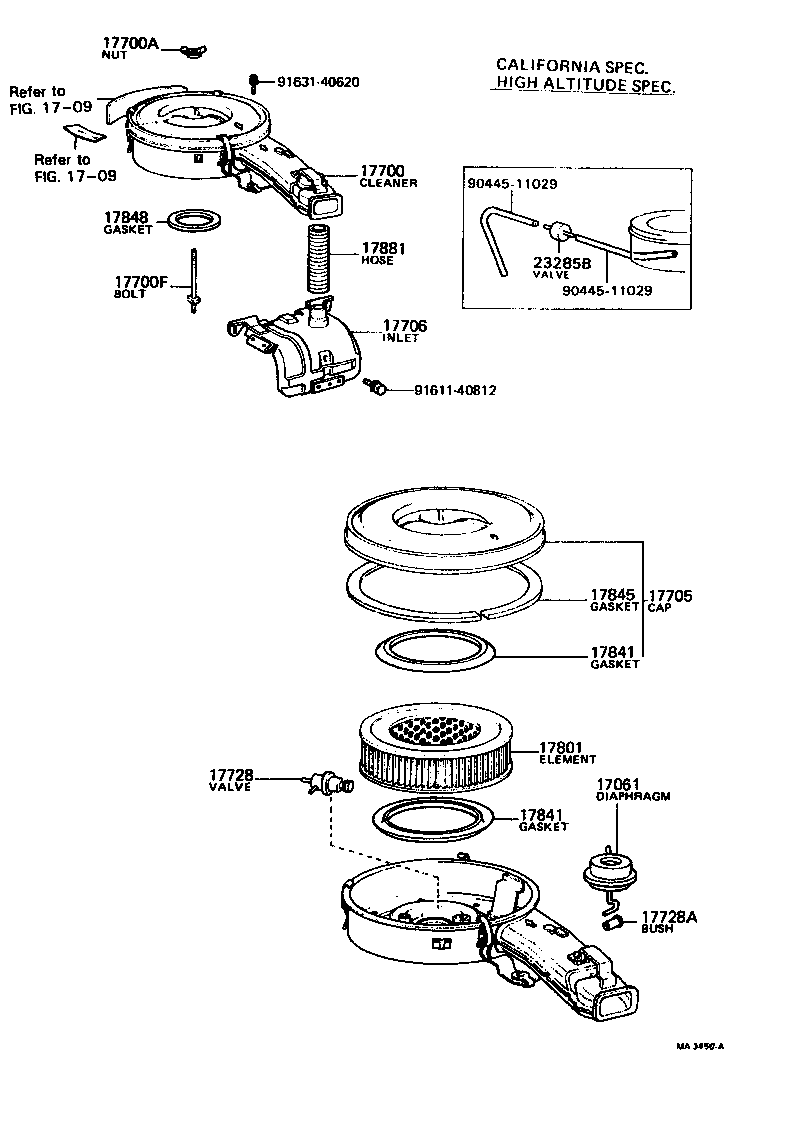

(7808-7908)2TC

Click highlighted areas on diagram

diagram 17061 1709 1709 17700 17700A 17700F 17705 17706 17728 17728A 17801 17841 17841 17845 17848 17881 23285B 9044511029 9044511029 9161140812 9163140620
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-26010

2TC..TE3#,51

 1
17700 - CLEANER ASSY, AIR
17700-26090

2TC..TE3#,51

L/HOT AIR INTAKE

 1
17700-26150

2TC..TE3#,51

CANADA SPEC

 1
17700-26080

2TC..TE3#,51

 1
17700-26081

2TC..TE3#,51..USA

CAL.& H.A.

 1
17700-26082

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17700-26231

2TC..TE3#,51..USA

 1
17700-26230

2TC..TE3#,51..USA

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2TC..TE3#,51

 1
90175-06003

2TC..TE3#,51

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-25031

2TC..TE3#,51

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17752-26021

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17752-26021

2TC..TE3#,51

CANADA SPEC.

 1
17752-26021

2TC..TE3#,51

 1
17902-27030

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
17902-27031

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
17728 - VALVE, THERMOSTATIC
17728-26020

2TC..TE3#,51..USA

 1
17728A - BUSH
90386-03001

2TC..TE3#,51

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25010

2TC..TE3#,51

 1
17801-31010

2TC..TE3#,51

 1
17841 - GASKET, FILTER ELEMENT
17841-31020

2TC..TE3#,51

 2
17841-25010

2TC..TE3#,51

 2
17841 - GASKET, FILTER ELEMENT
17841-31020

2TC..TE3#,51

 2
17841-25010

2TC..TE3#,51

 2
17845 - GASKET, AIR CLEANER CAP
17845-25010

2TC..TE3#,51

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

2TC..TE3#,51

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-26010

2TC..TE3#,51

 1
23285B - VALVE, CHECK, NO.1
90917-10053

2TC..TE3#,51..USA

 1
Common parts
90445-11029
91611-40812
91631-40620
Linked diagrams
1709

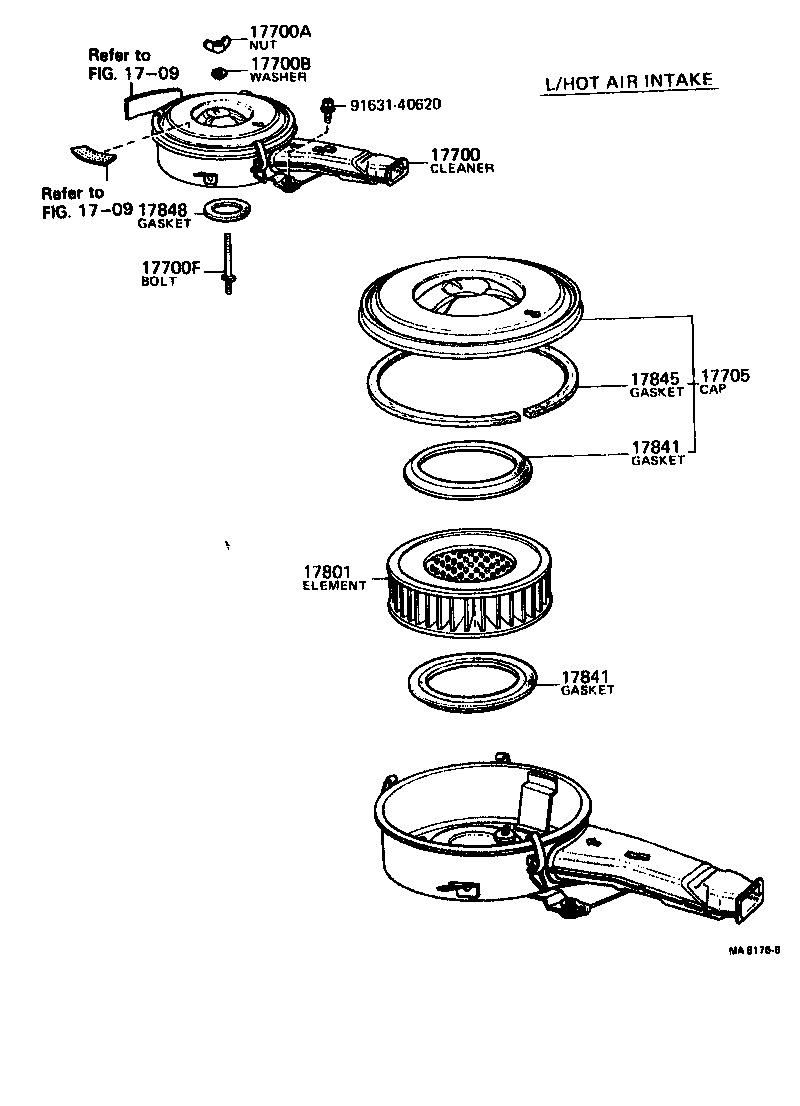

(7408-7701)2TC

Click highlighted areas on diagram

diagram 1709 1709 17700 17700A 17700B 17700F 17705 17801 17841 17841 17845 17848 9163140620
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-26090

2TC..TE3#,51

L/HOT AIR INTAKE

 1
17700-26150

2TC..TE3#,51

CANADA SPEC

 1
17700-26080

2TC..TE3#,51

 1
17700-26081

2TC..TE3#,51..USA

CAL.& H.A.

 1
17700-26082

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17700-26231

2TC..TE3#,51..USA

 1
17700-26230

2TC..TE3#,51..USA

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2TC..TE3#,51

 1
90175-06003

2TC..TE3#,51

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06023

2TC..TE3#,51

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-25031

2TC..TE3#,51

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25010

2TC..TE3#,51

 1
17801-31010

2TC..TE3#,51

 1
17841 - GASKET, FILTER ELEMENT
17841-31020

2TC..TE3#,51

 2
17841-25010

2TC..TE3#,51

 2
17841 - GASKET, FILTER ELEMENT
17841-31020

2TC..TE3#,51

 2
17841-25010

2TC..TE3#,51

 2
17845 - GASKET, AIR CLEANER CAP
17845-25010

2TC..TE3#,51

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

2TC..TE3#,51

 1
Common parts
91631-40620
Linked diagrams
1709
