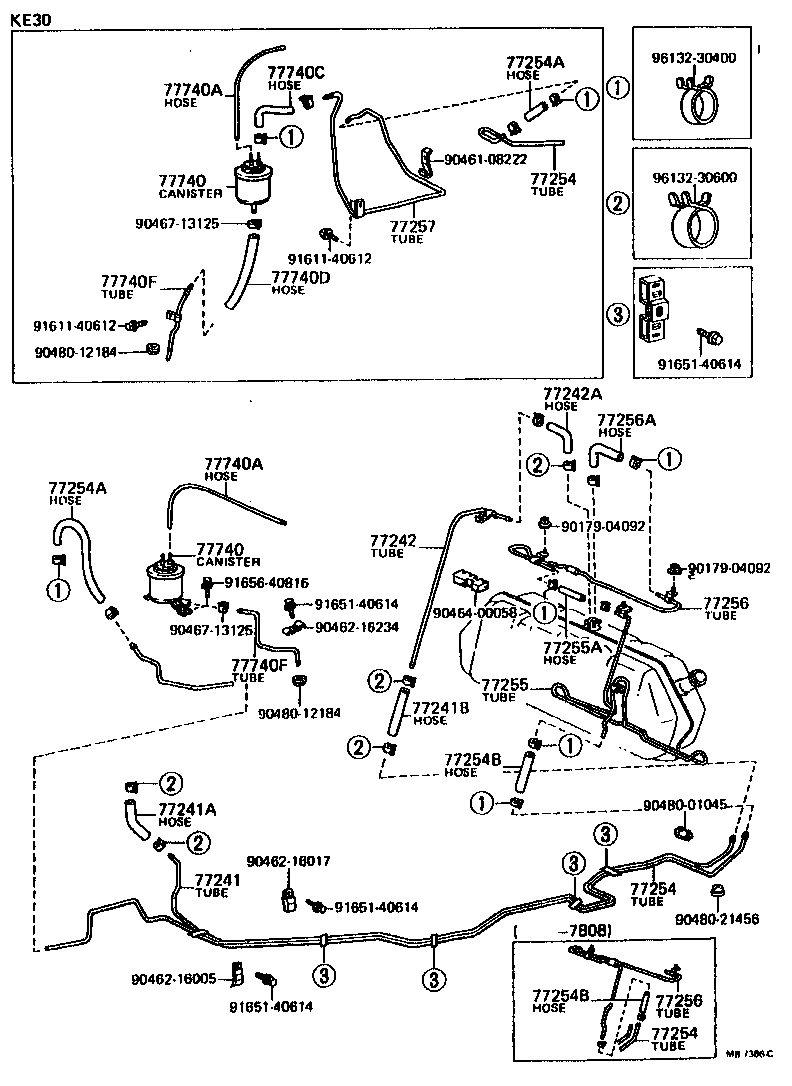

TE51L-CMQK (1977)
Toyota Corolla
(7408-7908)CP,HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
KE30,50,TE3#,51 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12080 |
KE30,50,TE3#,51..CND L/KEY |
1 | ||
| 77310-12080 |
KE30,50,TE3#,51 L/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12031 |
KE3#,TE3#,51 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-12901 |
KE30,TE31,37,51..(CP,HT,SED)..CND |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
KE3#,TE3#,51 |
1 | ||
| 90105-12018 |
KE30,50,TE31,37,51 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
KE30,50,TE31,37,51 |
1 | ||
| 77100C - GASKET, FUEL SUCTION TUBE, SET | ||||
| 77169-12010 |
TE3#,51 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12120 |
TE51..CP..CND |
1 | ||
| 77201-12181 |
TE51..CP |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-18002 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 77212 - SUPPORT KIT, FUEL TANK INLET | ||||
| 04772-12020 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 77214 - PIPE, FUEL TANK FILLER | ||||
| 04772-12010 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 77215 - PLATE, FUEL TANK FILLER PIPE FLANGE | ||||
| 04772-12020 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 77215 - PLATE, FUEL TANK FILLER PIPE FLANGE | ||||
| 04772-12020 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 77324 - SPRING, FUEL TANK CAP | ||||
| 77324-12011 |
KE3#,TE3#,51 |
1 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77276-12010 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12030 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 77653 - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-12010 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| Common parts | ||||
| 90159-40013 | ||||
| 90159-60077 | ||||
| 90183-06090 | ||||
| 90460-20052 | ||||
| 90460-63001 | ||||
| 90463-06029 | ||||
| 91666-40820 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 2301 | ||||
| 8401 | ||||
(7708-7908)CP,HT,SED..CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-12090 |
KE30,50,TE31,37,51 |
1 | ||
| 77251-12033 |
KE30..USA;TE31,37,51 |
1 | ||
| 77251-12021 |
KE30,50..CND |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77279-12020 |
KE30,50,TE3#,51 |
1 | ||
| 77279-12020 |
TE3#,51;KE30..USA |
1 | ||
| 77279-12010 |
KE30,50..CND |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
KE30,50,TE3#,51 *H,L=160 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77025-12011 |
KE30,TE31,37,51..(CP,HT,SED)..CND |
1 | ||
| 77025-12090 |
KE30,TE31,37,51..(CP,HT,SED)..CND |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-12012 |
KE30,50..CND |
1 | ||
| 77261-12024 |
TE31,37,51..CND |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-12012 |
KE30,50..CND |
1 | ||
| 77261-12024 |
TE31,37,51..CND |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-12012 |
KE30,50..CND |
1 | ||
| 77261-12024 |
TE31,37,51..CND |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-04034 |
TE3#,51..CND *H,L=340 |
1 | ||
| 95332-04040 |
TE3#,51..CND *H,L=340 |
1 | ||
| 95332-04009 |
KE30,50..CND *H,L=90 |
1 | ||
| 95332-04010 |
KE30,50..CND *H,L=90 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-04034 |
TE3#,51..CND *H,L=340 |
1 | ||
| 95332-04040 |
TE3#,51..CND *H,L=340 |
1 | ||
| 95332-04009 |
KE30,50..CND *H,L=90 |
1 | ||
| 95332-04010 |
KE30,50..CND *H,L=90 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95331-04012 |
KE3#,TE31,37,51 *H,L=120 |
1 | ||
| 95332-04020 |
KE30,50,TE31,37,51 *H,L=130 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95331-04012 |
KE3#,TE31,37,51 *H,L=120 |
1 | ||
| 95332-04020 |
KE30,50,TE31,37,51 *H,L=130 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-12021 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-04013 |
KE30,TE31,37,51..CP,HT,SED *H,L=130 |
1 | ||
| 95332-04020 |
KE30,TE31,37,51..CP,HT,SED *H,L=130 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77028-12010 |
TE31,37,51..CP,HT,SED |
1 | ||
| 77028-12010 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 77028-12031 |
KE30,TE31,37,51..(CP,HT,SED)..CND |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77028-12010 |
TE31,37,51..CP,HT,SED |
1 | ||
| 77028-12010 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 77028-12031 |
KE30,TE31,37,51..(CP,HT,SED)..CND |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95331-04020 |
KE3#,TE31,37,51..CP,HT,SED *H,L=200 |
1 | ||
| 95332-04020 |
KE30,TE31,37,51..(CP,HT,SED)..CND *H,L=200 |
1 | ||
| 95332-04030 |
KE30,TE31,37,51..CP,HT,SED *H,L=240 |
1 | ||
| 95332-04024 |
KE30,TE31,37,51..CP,HT,SED *H,L=240 |
1 | ||
| 77257 - TUBE, FUEL EMISSION, NO.4 | ||||
| 77268-12022 |
KE30,50..CND |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12081 |
TE3#,51..CND |
1 | ||
| 77740-12101 |
KE30,50..CND |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12081 |
TE3#,51..CND |
1 | ||
| 77740-12101 |
KE30,50..CND |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19995 |
TE3#,51..CND *H,L=650,MARK=#* |
1 | ||
| 95411-19960 |
KE30,50..CND *H,L=420,MARK=#* |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19995 |
TE3#,51..CND *H,L=650,MARK=#* |
1 | ||
| 95411-19960 |
KE30,50..CND *H,L=420,MARK=#* |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95332-04020 |
KE30,50..CND *H,L=130 |
1 | ||
| 95332-04013 |
KE30,50..CND *H,L=130 |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 90445-14031 |
KE30,50..CND |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-12010 |
TE3#,51 |
1 | ||
| 77264-12010 |
TE3#,51..CND |
1 | ||
| 77264-12050 |
KE30,50..CND |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-12010 |
TE3#,51 |
1 | ||
| 77264-12010 |
TE3#,51..CND |
1 | ||
| 77264-12050 |
KE30,50..CND |
1 | ||
| Common parts | ||||
| 90179-04092 | ||||
| 90461-08222 | ||||
| 90462-16005 | ||||
| 90462-16017 | ||||
| 90462-16234 | ||||
| 90464-00058 | ||||
| 90467-13125 | ||||
| 90480-01045 | ||||
| 90480-12184 | ||||
| 90480-21456 | ||||
| 91611-40612 | ||||
| 91651-40614 | ||||
| 91656-40816 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
