TE51L-CMQK (1977)
Toyota Corolla
Production
Aug 1977
-
Aug 1979
Engine
2TC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)KE3#,50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12111 |
TE3#,51..MTM |
1 | ||
| 31301-12100 |
KE3#,50 |
1 | ||
| 31301-12110 |
TE3#,51..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
KE3#,50,TE3#,51..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KE3#,50,TE3#,51..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KE3#,50,TE3#,51..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10085 |
KE3#,50,TE3#,51..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12030 |
KE3#,50,TE3#,51..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
KE3#,50,TE3#,51..MTM |
1 | ||
| 31340 - CABLE ASSY, CLUTCH RELEASE | ||||
| 31340-19155 |
KE3#,50 |
1 | ||
| 31340A - RING, E(FOR CLUTCH RELEASE CABLE) | ||||
| 96160-01200 |
KE3#,50 |
1 | ||
| 31342 - HOLDER, CLUTCH CABLE, INNER | ||||
| 31342-12901 |
KE3#,50 |
1 | ||
| 31384 - SUPPORT ASSY, CLUTCH RELEASE SECTOR | ||||
| 31030-12030 |
KE3#,50 |
1 | ||
| 31387 - SECTOR, CLUTCH RELEASE | ||||
| 31387-10010 |
KE3#,50 |
2 | ||
| 31387 - SECTOR, CLUTCH RELEASE | ||||
| 31387-10010 |
KE3#,50 |
2 | ||
| 31387B - RING, E(FOR CLUTCH RELEASE SECTOR) | ||||
| 96160-00800 |
KE3#,50 |
2 | ||
| 31387B - RING, E(FOR CLUTCH RELEASE SECTOR) | ||||
| 96160-00800 |
KE3#,50 |
2 | ||
| 31387C - CLIP(FOR CLUTCH RELEASE SECTOR) | ||||
| 90468-06008 |
KE3#,50 |
2 | ||
| 31387C - CLIP(FOR CLUTCH RELEASE SECTOR) | ||||
| 90468-06008 |
KE3#,50 |
2 | ||
| 31392 - CLEVIS, CLUTCH CABLE | ||||
| 31392-10010 |
KE3#,50 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| 95381-01620 | ||||

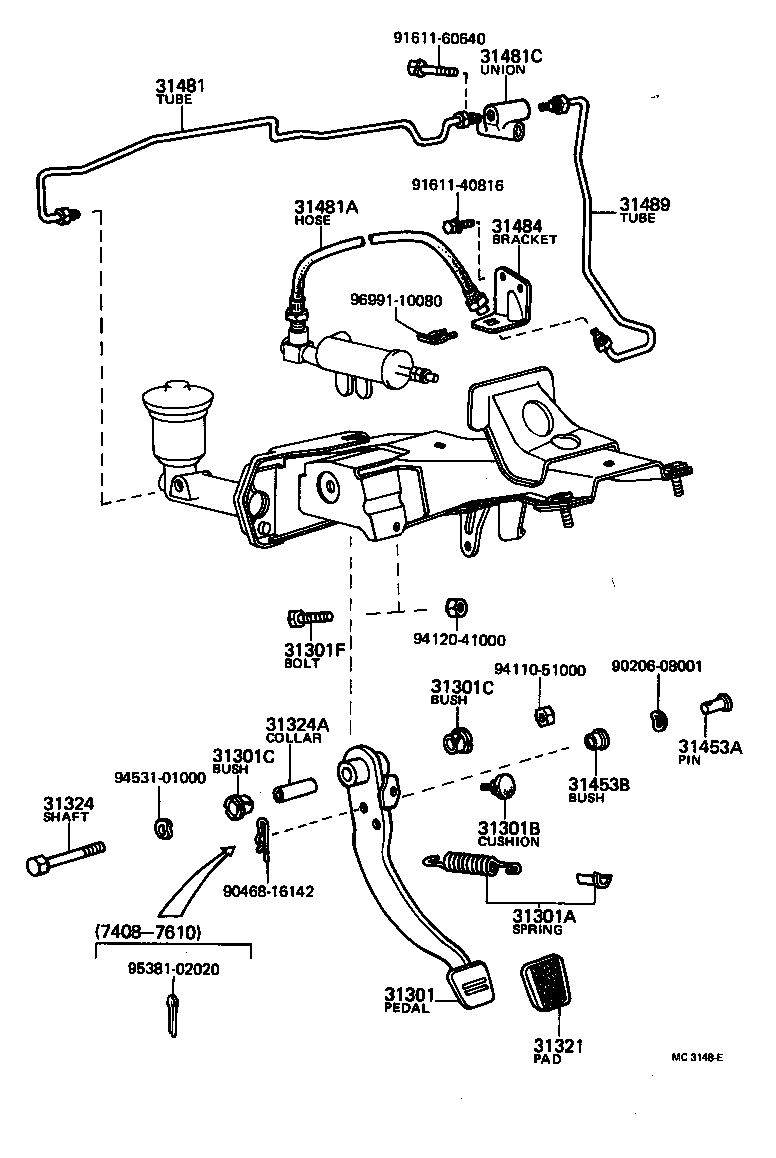

(7408-7908)TE3#,51..MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-12111 |
TE3#,51..MTM |
1 | ||
| 31301-12100 |
KE3#,50 |
1 | ||
| 31301-12110 |
TE3#,51..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
KE3#,50,TE3#,51..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KE3#,50,TE3#,51..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KE3#,50,TE3#,51..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10085 |
KE3#,50,TE3#,51..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12030 |
KE3#,50,TE3#,51..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
KE3#,50,TE3#,51..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
TE3#,51..MTM L=23.5 |
1 | ||
| 90240-08040 |
TE3#,51..MTM |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
TE3#,51..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-12040 |
TE3#,51..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-32505 |
TE3#,51..MTM |
1 | ||
| 31481C - UNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE) | ||||
| 90412-10086 |
TE3#,51..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-12010 |
TE3#,51..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-12010 |
TE3#,51..MTM |
1 | ||
| 31489-12011 |
TE3#,51..MTM |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91611-40816 | ||||
| 91611-60640 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| 95381-02020 | ||||
| 96991-10080 | ||||
