TE51L-CMQK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

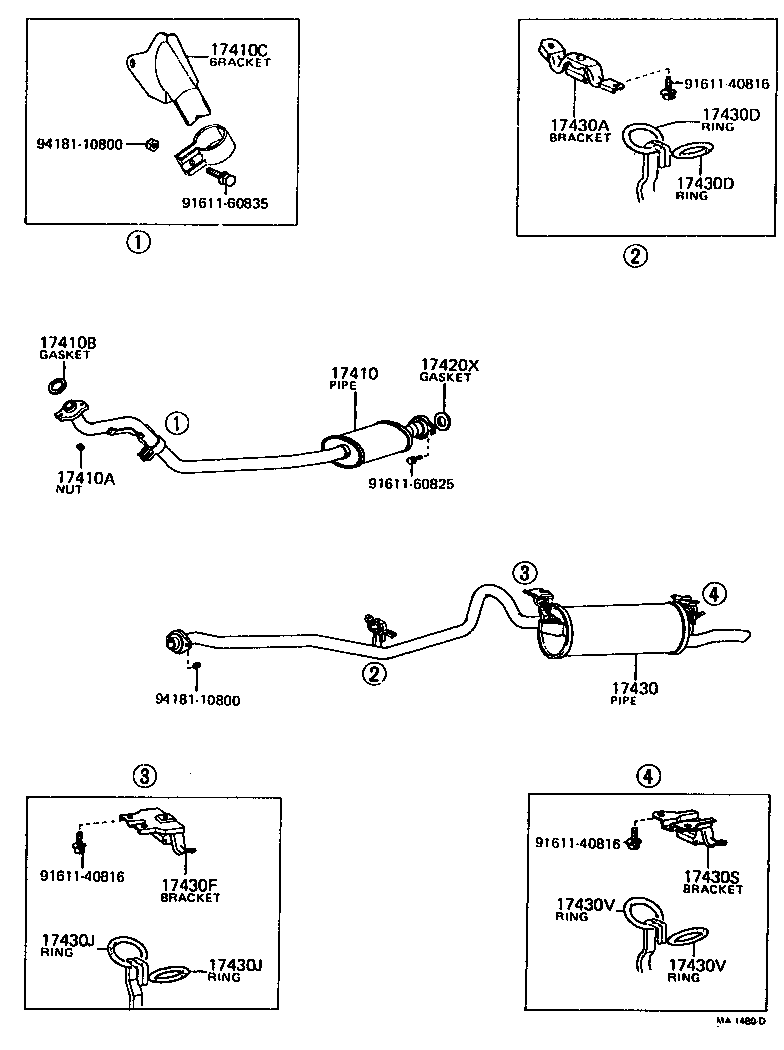

(7408-7908)2TC..TE31,37,51..CP,HT,SED

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420X 17430 17430A 17430D 17430D 17430F 17430J 17430J 17430S 17430V 17430V 9161140816 9161140816 9161140816 9161160825 9161160835 9418110800 9418110800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-26083

2TC..TE3#,51..CND

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

2TC..TE3#,51

 1
90917-06004

2TC..TE3#,51..CND

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-26060

2TC..TE3#,51

 1
17571-26150

2TC..TE3#,51..CND

 1
17571-26060

2TC..TE3#,51..CND

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

2TC..TE3#,51

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-26153

2TC..TE31,37,51..(CP,HT,SED)..CND

 1
17430-26154

2TC..TE31,37,51..(CP,HT,SED)..CND

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-24010

3KC,2TC..KE3#,TE31,37,51..CP,HT,SED

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 2
90301-34172

2TC..TE3#,51..CP,HT,SED,WG

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 2
90301-34172

2TC..TE3#,51..CP,HT,SED,WG

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-24010

3KC,2TC..KE3#,TE31,37,51..CP,HT,SED

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 1
90301-34172

2TC..TE31,37,51..CP,HT,SED

 2
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 1
90301-34172

2TC..TE31,37,51..CP,HT,SED

 2
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-26030

2TC..TE31,37,51..CP,HT,SED

CALIFORNIA SPEC.

 1
17508-24030

2TC..TE31,37,51..CP,HT,SED

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34172

2TC..TE3#,51..CP,HT,SED,WG

 2
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34172

2TC..TE3#,51..CP,HT,SED,WG

 2
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 2
Common parts
91611-40816
91611-60825
91611-60835
94181-10800

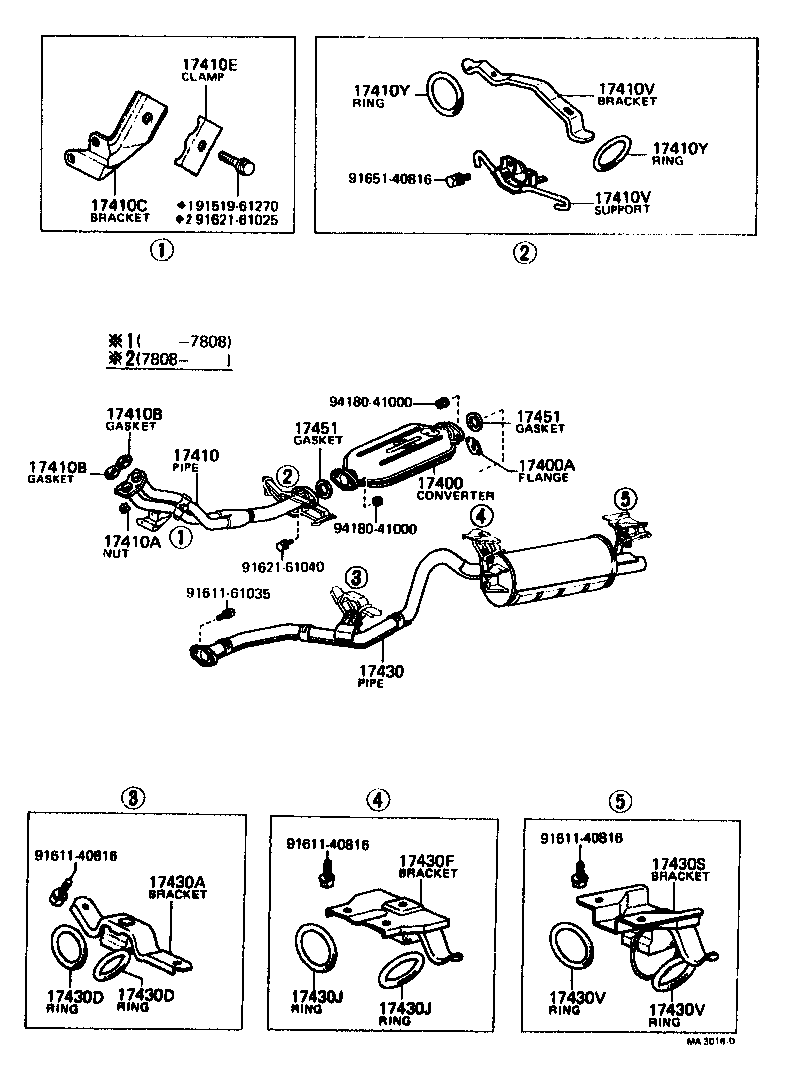

(7708-7908)2TC..TE31,37,51..CP,HT,SED

Click highlighted areas on diagram

diagram 17400 17400A 17410 17410A 17410B 17410B 17410C 17410E 17410V 17410V 17410Y 17410Y 17430 17430A 17430D 17430D 17430F 17430J 17430J 17430S 17430V 17430V 17451 17451 9151961270 9161140816 9161140816 9161140816 9161161035 9162161025 9162161040 9165140816 9418041000 9418041000
Part # Description Qty Price
17400A - FLANGE, THERMOSENSER INLET
18491-38020

2TC..TE3#,51

CALIFORNIA SPEC.

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-26083

2TC..TE3#,51..CND

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

2TC..TE3#,51

 1
90917-06004

2TC..TE3#,51..CND

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

2TC..TE3#,51

 1
90917-06004

2TC..TE3#,51..CND

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-26060

2TC..TE3#,51

 1
17571-26150

2TC..TE3#,51..CND

 1
17571-26060

2TC..TE3#,51..CND

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-34207

2TC..TE3#,51

CALIFORNIA SPEC.

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-34207

2TC..TE3#,51

CALIFORNIA SPEC.

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-26153

2TC..TE31,37,51..(CP,HT,SED)..CND

 1
17430-26154

2TC..TE31,37,51..(CP,HT,SED)..CND

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-24010

3KC,2TC..KE3#,TE31,37,51..CP,HT,SED

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 2
90301-34172

2TC..TE3#,51..CP,HT,SED,WG

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 2
90301-34172

2TC..TE3#,51..CP,HT,SED,WG

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-24010

3KC,2TC..KE3#,TE31,37,51..CP,HT,SED

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 1
90301-34172

2TC..TE31,37,51..CP,HT,SED

 2
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 1
90301-34172

2TC..TE31,37,51..CP,HT,SED

 2
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-26030

2TC..TE31,37,51..CP,HT,SED

CALIFORNIA SPEC.

 1
17508-24030

2TC..TE31,37,51..CP,HT,SED

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34172

2TC..TE3#,51..CP,HT,SED,WG

 2
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34172

2TC..TE3#,51..CP,HT,SED,WG

 2
90301-34172

2TC..TE3#,51..(CP,HT,SED,WG)..CND

 2
90301-34207

2TC..TE3#,51..CP,HT,SED,WG

CALIFORNIA SPEC.

 2
Common parts
91519-61270
91611-40816
91611-61035
91621-61025
91621-61040
91651-40816
94180-41000
