TE51L-CMQA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)

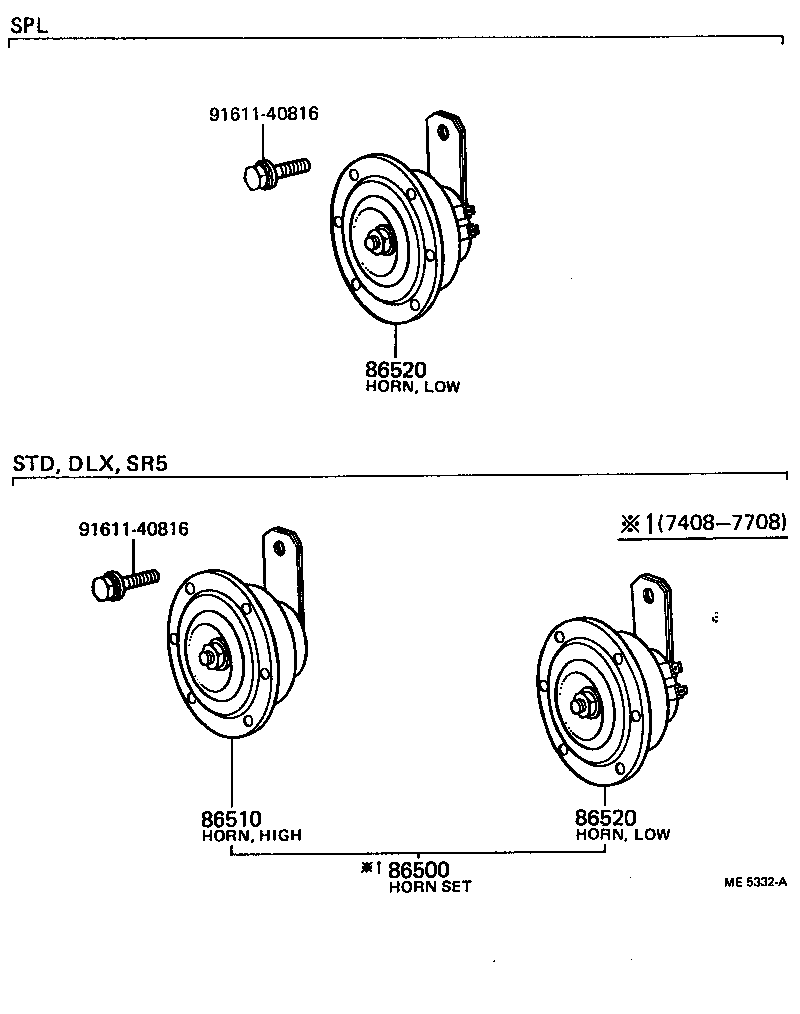

Click highlighted areas on diagram

diagram 86500 86510 86520 86520 9161140816 9161140816
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-12161

KE30,50,TE3#,51..DLX,SR5,STD

 1
86520 - HORN ASSY, LOW PITCHED
86520-12141

KE30,50,TE3#,51

 1
86520 - HORN ASSY, LOW PITCHED
86520-12141

KE30,50,TE3#,51

 1
Common parts
91611-40816
