TE51L-CMQA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)CP,HT,SED,WG

Click highlighted areas on diagram

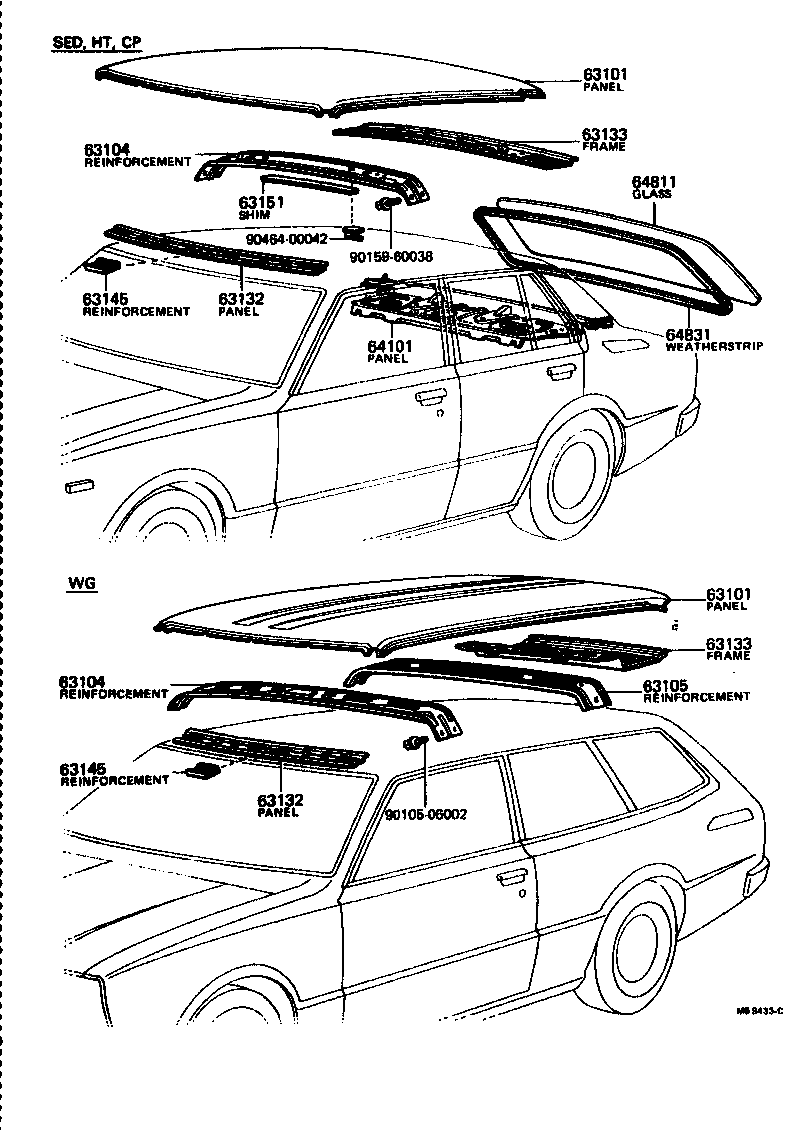

diagram 63101 63101 63104 63104 63105 63132 63132 63133 63133 63145 63145 63151 64101 64811 64831 9010506002 9015960038 9046400042
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-12090

TE51..CP

 1
63101 - PANEL SUB-ASSY, ROOF
63111-12090

TE51..CP

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63103-12040

TE51..CP

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63103-12040

TE51..CP

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-12060

KE50,TE51

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-12060

KE50,TE51

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-12070

TE51..CP

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-12070

TE51..CP

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-12010

KE3#,50,TE3#,51

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-12010

KE3#,50,TE3#,51

 1
63151 - SHIM, ROOF REINFORCEMENT
63153-12010

KE3#,TE31,37,51

 1
63153-12010

KE3#,TE31,37,51..CP,HT,SED

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-12150

TE51..CP

 1
64101-12151

TE51..CP

 1
64101-12110

TE51..CP

 1
64811 - GLASS, BACK WINDOW
64801-12160

TE51..CP

ELECT.TN.TP.T=4.0 200W

 1
64801-12080

TE51..CP

ELECT.TN.TP.T=4.0 100W

 1
64811-12250

TE51..CP

TN.TP.T=4.0

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-12140

TE51..CP

 1
Common parts
90105-06002
90159-60038
90464-00042
