TE51L-CMQA (1976)
Toyota Corolla
Production
Mar 1976
-
Aug 1979
Engine
2TC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7603-7908)CP,WG

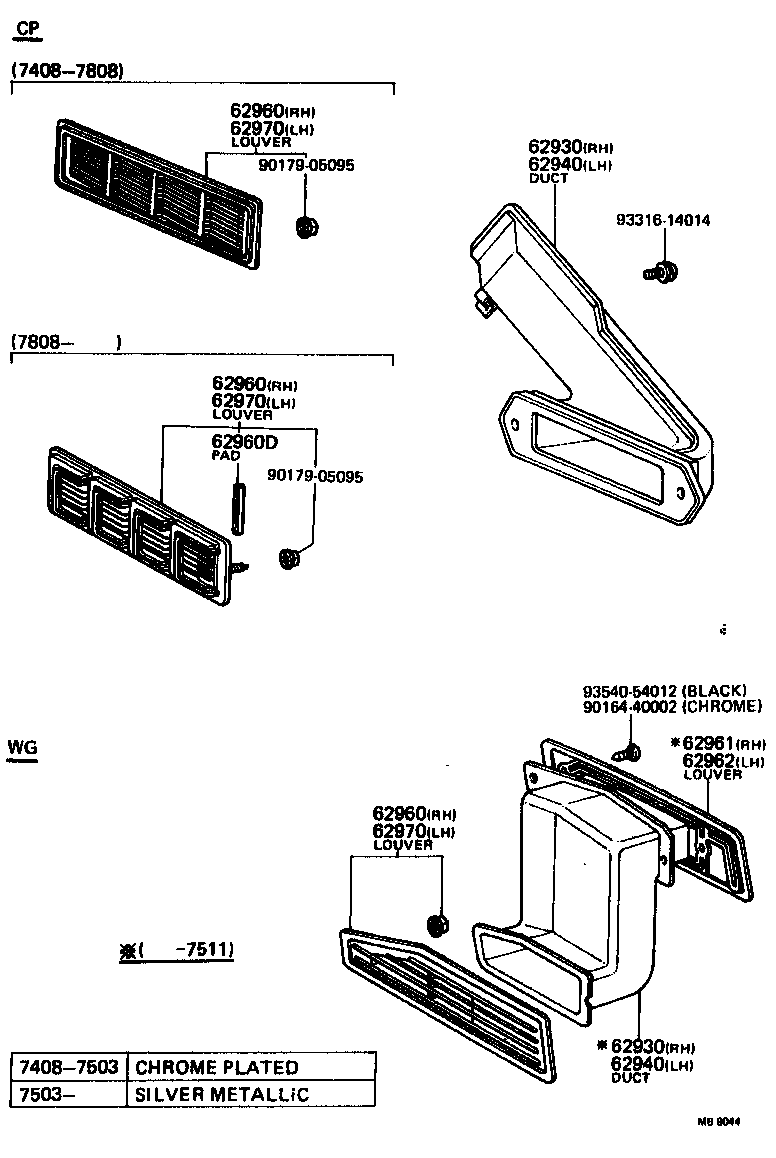

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62930 - DUCT ASSY, ROOF SIDE VENT, RH | ||||
| 62930-12020 |
TE51..CP |
1 | ||
| 62930 - DUCT ASSY, ROOF SIDE VENT, RH | ||||
| 62930-12020 |
TE51..CP |
1 | ||
| 62940 - DUCT ASSY, ROOF SIDE VENT, LH | ||||
| 62940-12020 |
TE51..CP |
1 | ||
| 62940 - DUCT ASSY, ROOF SIDE VENT, LH | ||||
| 62940-12020 |
TE51..CP |
1 | ||
| 62960 - LOUVER ASSY, ROOF SIDE VENT, RH | ||||
| 62951-19255 |
TE51..CP |
1 | ||
| 62951-19135 |
TE51..CP |
1 | ||
| 62951-19136 |
TE51..CP |
1 | ||
| 62960 - LOUVER ASSY, ROOF SIDE VENT, RH | ||||
| 62951-19255 |
TE51..CP |
1 | ||
| 62951-19135 |
TE51..CP |
1 | ||
| 62951-19136 |
TE51..CP |
1 | ||
| 62960 - LOUVER ASSY, ROOF SIDE VENT, RH | ||||
| 62951-19255 |
TE51..CP |
1 | ||
| 62951-19135 |
TE51..CP |
1 | ||
| 62951-19136 |
TE51..CP |
1 | ||
| 62960D - PAD, NO.1(FOR ROOF SIDE VENT LOUVER) | ||||
| 62991-12010 |
TE51..CP |
2 | ||
| 62970 - LOUVER ASSY, ROOF SIDE VENT, LH | ||||
| 62951-19135 |
TE51..CP |
1 | ||
| 62951-19136 |
TE51..CP |
1 | ||
| 62951-19255 |
TE51..CP |
1 | ||
| 62970 - LOUVER ASSY, ROOF SIDE VENT, LH | ||||
| 62951-19135 |
TE51..CP |
1 | ||
| 62951-19136 |
TE51..CP |
1 | ||
| 62951-19255 |
TE51..CP |
1 | ||
| 62970 - LOUVER ASSY, ROOF SIDE VENT, LH | ||||
| 62951-19135 |
TE51..CP |
1 | ||
| 62951-19136 |
TE51..CP |
1 | ||
| 62951-19255 |
TE51..CP |
1 | ||
| Common parts | ||||
| 90164-40002 | ||||
| 90179-05095 | ||||
| 93316-14014 | ||||
| 93540-54012 | ||||
