TE51L-CMQA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)

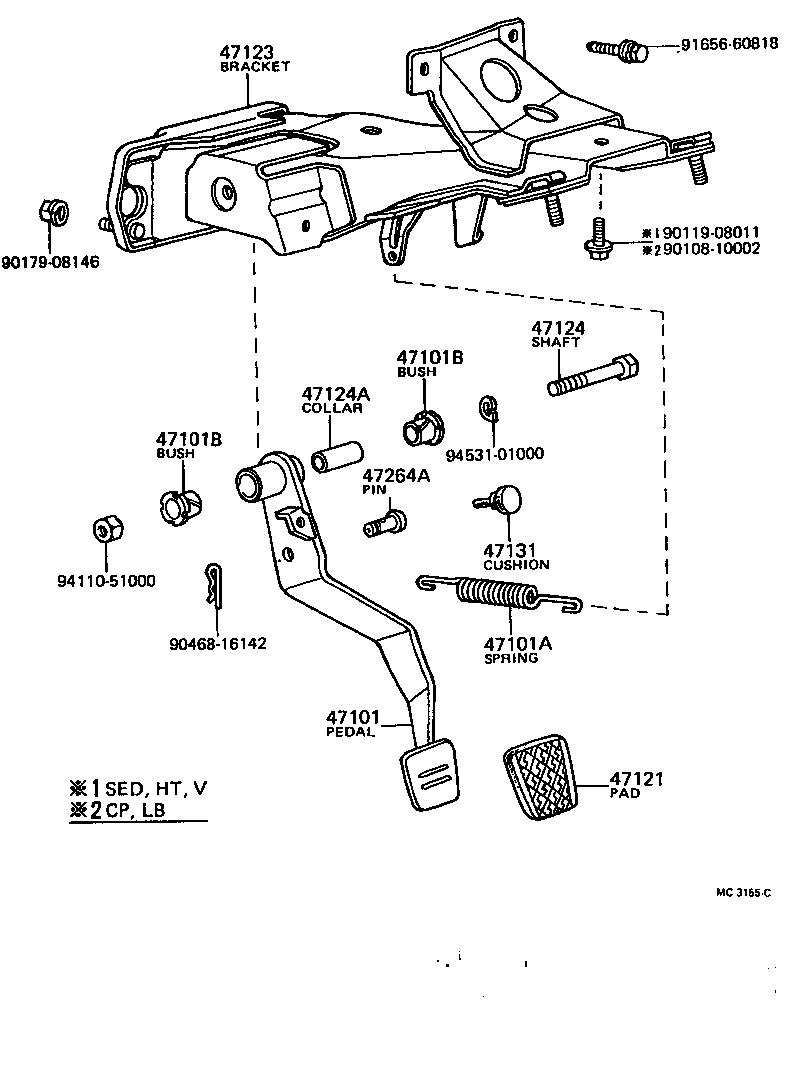

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9010810002 9011908011 9017908146 9046816142 9165660818 9411051000 9453101000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-12180

KE3#,50

 1
47101-12200

TE3#,51..MTM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-16455

KE3#,50,TE3#,51

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

KE3#,50,TE3#,51

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

KE3#,50,TE3#,51

 2
47121 - PAD, BRAKE PEDAL
31321-12030

KE3#,50,TE3#,51..MTM

 1
47123 - BRACKET, BRAKE PEDAL
55106-12190

TE51..MTM

 1
55106-12191

TE51..MTM

 1
47124 - SHAFT, BRAKE PEDAL
90101-10043

KE3#,50

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

TE3#,51

 1
90387-10002

KE3#,50

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

KE3#,50,TE3#,51

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

KE3#,50,TE3#,51

 1
Common parts
90108-10002
90119-08011
90179-08146
90468-16142
91656-60818
94110-51000
94531-01000
