TE51L-CMDA (1976)
Toyota Corolla
Production
Mar 1976
-
Aug 1979
Engine
2TC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7603-7701)CP

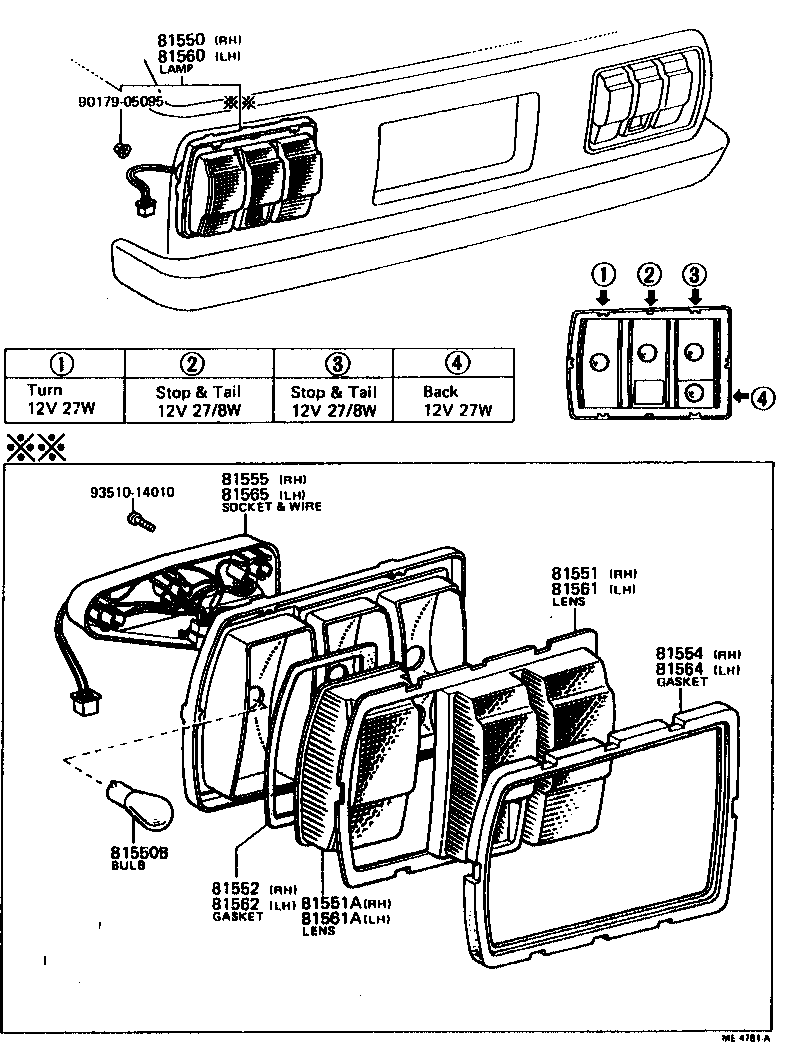

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-19855 |
TE51..CP AMBER-RED-CLEAR |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
KE3#,50,TE3#,51 12V 27W,12V 27W |
4 | ||
| 99132-21270 |
KE3#,50,TE3#,51 12V 27/8W,12V 27/8W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-12350 |
TE51..CP RED-CLEAR |
1 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81557-12350 |
TE51..CP AMBER |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81554-12350 |
TE51..CP |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-12350 |
TE51..CP |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-12460 |
TE51..CP |
1 | ||
| 81555-12461 |
TE51..CP |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-19835 |
TE51..CP AMBER-RED-CLEAR |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-12350 |
TE51..CP RED-CLEAR |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81567-12350 |
TE51..CP AMBER |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81554-12350 |
TE51..CP |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81562-12350 |
TE51..CP |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-12460 |
TE51..CP |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 93510-14010 | ||||
(7701-7908)CP

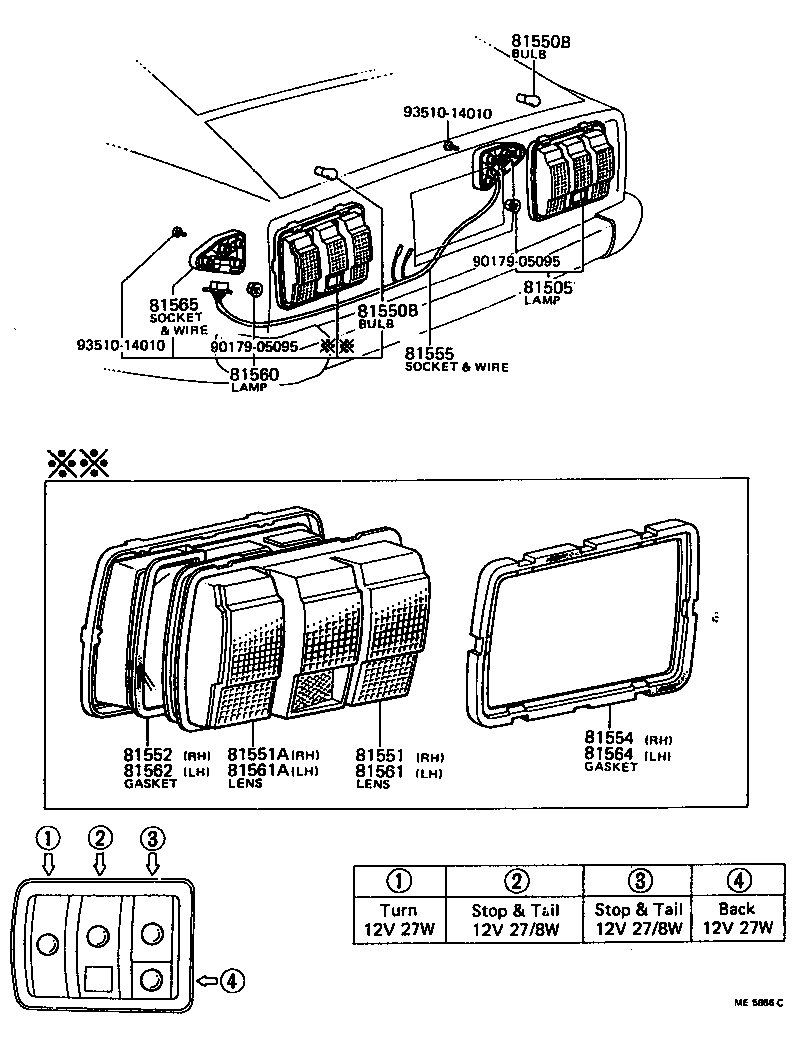

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81505 - LAMP SUB-ASSY, REAR COMBINATION, RH | ||||
| 81505-19165 |
TE51..CP AMBER-RED-CLEAR |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
KE3#,50,TE3#,51 12V 27W,12V 27W |
4 | ||
| 99132-21270 |
KE3#,50,TE3#,51 12V 27/8W,12V 27/8W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
KE3#,50,TE3#,51 12V 27W,12V 27W |
4 | ||
| 99132-21270 |
KE3#,50,TE3#,51 12V 27/8W,12V 27/8W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-12350 |
TE51..CP RED-CLEAR |
1 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81557-12350 |
TE51..CP AMBER |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81554-12350 |
TE51..CP |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81552-12350 |
TE51..CP |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-12460 |
TE51..CP |
1 | ||
| 81555-12461 |
TE51..CP |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-19835 |
TE51..CP AMBER-RED-CLEAR |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-12350 |
TE51..CP RED-CLEAR |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81567-12350 |
TE51..CP AMBER |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81554-12350 |
TE51..CP |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81562-12350 |
TE51..CP |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-12460 |
TE51..CP |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 93510-14010 | ||||
