TE51L-CMDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

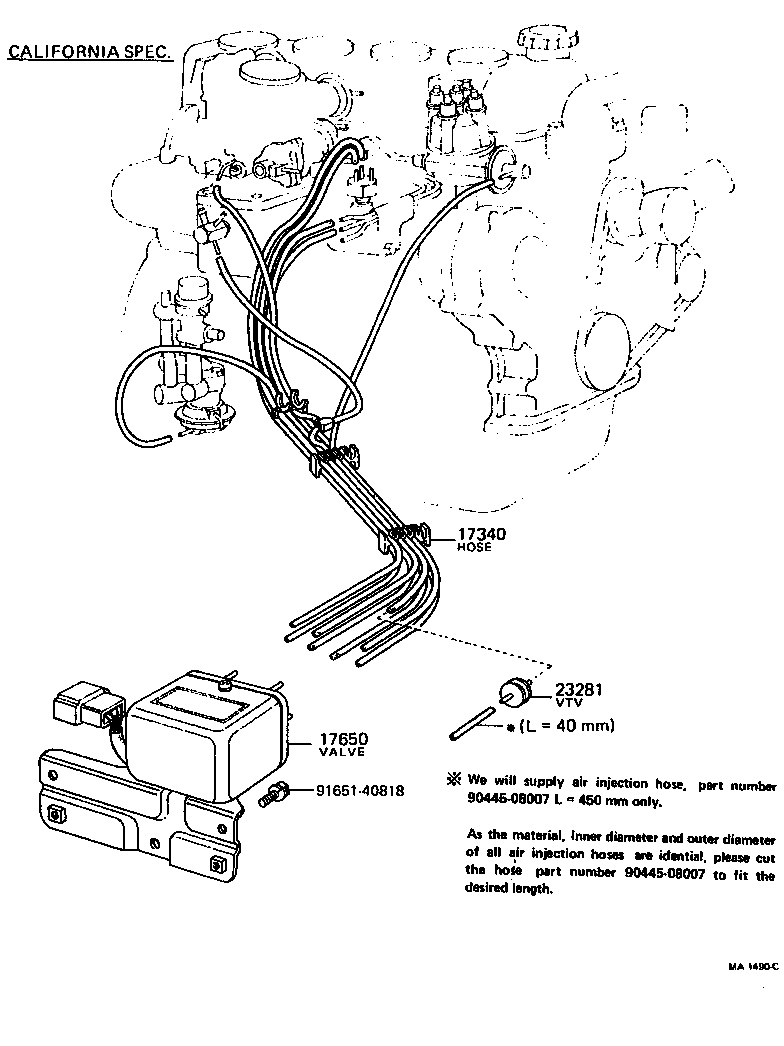

(7408-7608)2TC

Click highlighted areas on diagram

diagram 17340 17650 23281 9044508007 9165140818
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
17650-26090

2TC..TE3#,51

CAL.& H.A.

 1
89570-12080

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
89570-12050

2TC..TE3#,51..USA

CAL.& H.A.

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01009

2TC..TE3#,51

 1
90925-01019

2TC..TE3#,51

 1
90925-01029

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01019

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01027

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01021

2TC..TE3#,51..USA

 1
90925-01029

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
Common parts
90445-08007
91651-40818

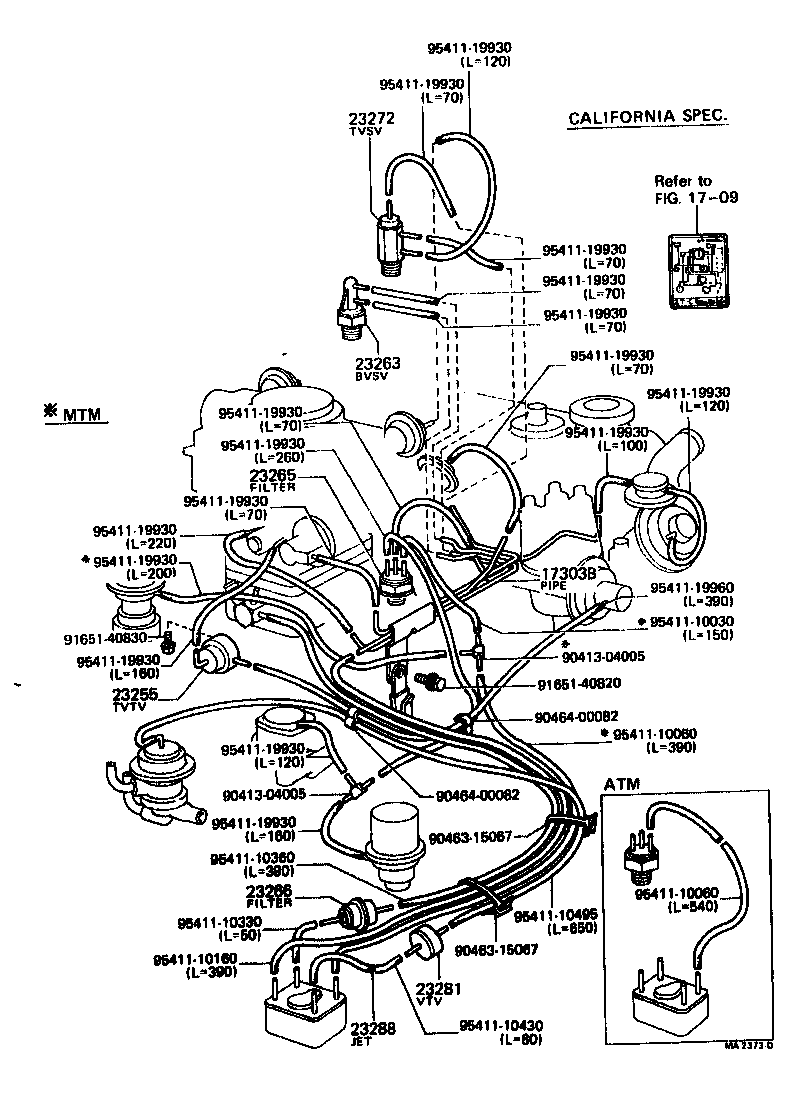

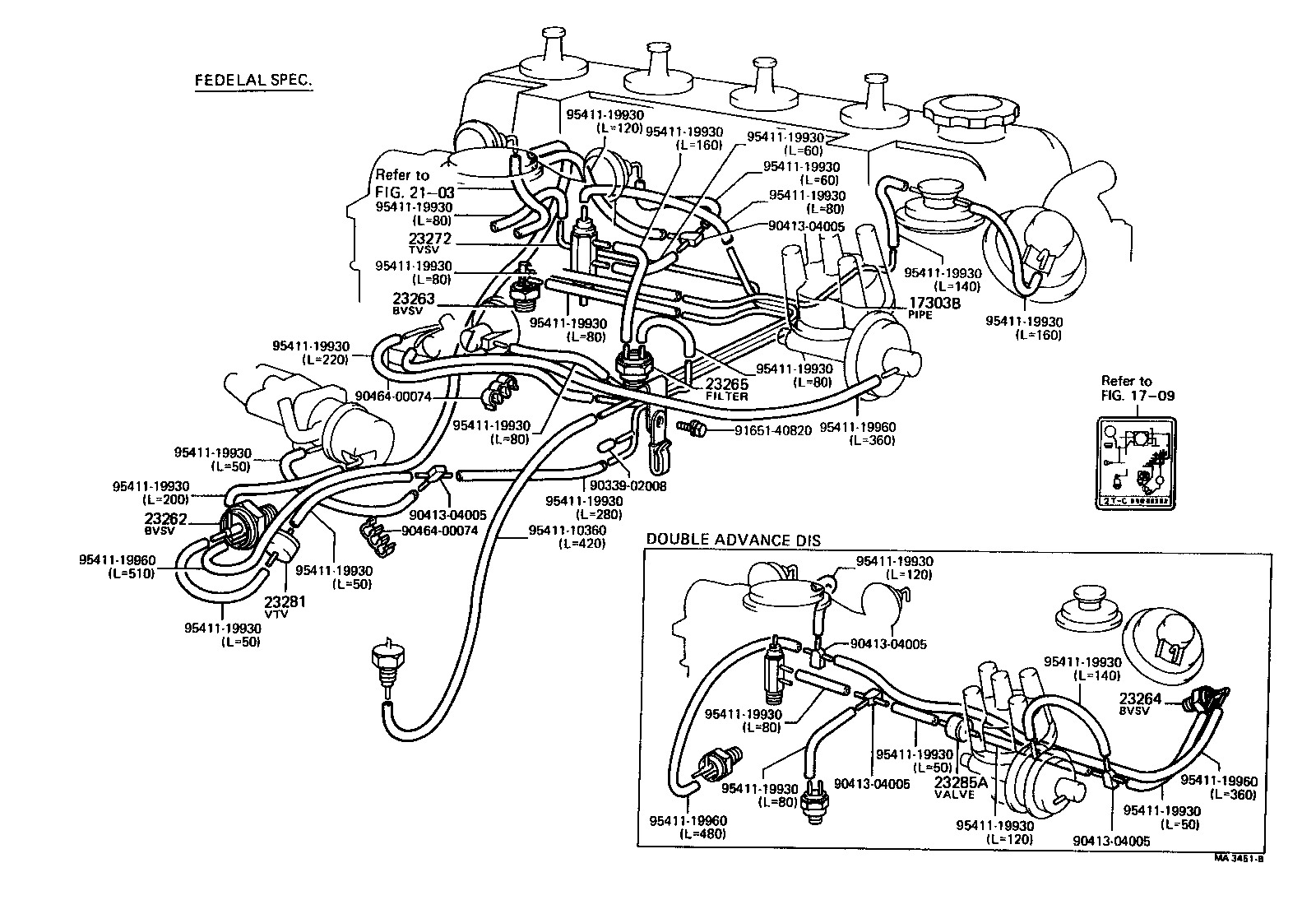

(7608-7708)2TC

Click highlighted areas on diagram

diagram 1709 17303B 17303B 23255 23262 23263 23264 23265 23275 23278 23279 23281 23283 23285A 9033902008 9041304004 9041304005 9046400082 9046400082 9165140820 9165140830 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-26010

2TC..TE3#,51

 1
17303-26060

2TC..TE3#,51

 1
17303-26070

2TC..TE3#,51

DOUBL ADVANCE DIS.

 1
17303-26023

2TC..TE3#,51..USA

 1
17303-26022

2TC..TE3#,51

CAL.& H.A.

 1
17303-26010

2TC..TE3#,51

CANADA SPEC.

 1
17303-26090

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17303-26024

2TC..TE3#,51..USA

HIGH ACTITUDE SPEC.

 1
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-26010

2TC..TE3#,51

 1
17303-26060

2TC..TE3#,51

 1
17303-26070

2TC..TE3#,51

DOUBL ADVANCE DIS.

 1
17303-26023

2TC..TE3#,51..USA

 1
17303-26022

2TC..TE3#,51

CAL.& H.A.

 1
17303-26010

2TC..TE3#,51

CANADA SPEC.

 1
17303-26090

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17303-26024

2TC..TE3#,51..USA

HIGH ACTITUDE SPEC.

 1
23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1
90925-01039

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01044

2TC..TE3#,51

CALIFORNIA SPEC.

 1
90925-01039

2TC..TE3#,51

CANADA SPEC.

 1
90925-01030

2TC..TE3#,51

 1
90925-01050

2TC..TE3#,51..USA

CAL.& H.A.

 1
90925-01050

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05016

2TC..TE3#,51

 1
90925-05040

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05017

2TC..TE3#,51

CAL.& H.A.

 1
90925-05015

2TC..TE3#,51

 1
90925-05017

2TC..TE3#,51..USA

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
90925-05009

2TC..TE3#,51

DOUBLE ADVANCE DIS.

 1
23265 - FILTER, GAS, NO.1
90917-11003

2TC..TE3#,51

 1
90917-11024

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90917-11023

2TC..TE3#,51..USA

FEDELAL SPEC.

 1
90917-11012

2TC..TE3#,51..USA

 1
90917-11003

2TC..TE3#,51..USA

CAL.& H.A.

 1
90917-11015

2TC..TE3#,51

CANADA SPEC.

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03074

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01009

2TC..TE3#,51

 1
90925-01019

2TC..TE3#,51

 1
90925-01029

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01019

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01027

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01021

2TC..TE3#,51..USA

 1
90925-01029

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01026

2TC..TE3#,51

DOUBLE ADVANCE DIS.

 1
90925-01023

2TC..TE3#,51..MTM

CANADA SPEC.

 1
Common parts
90339-02008
90413-04004
90413-04005
90464-00082
91651-40820
91651-40830
95411-19930
95411-19960
Linked diagrams
1709

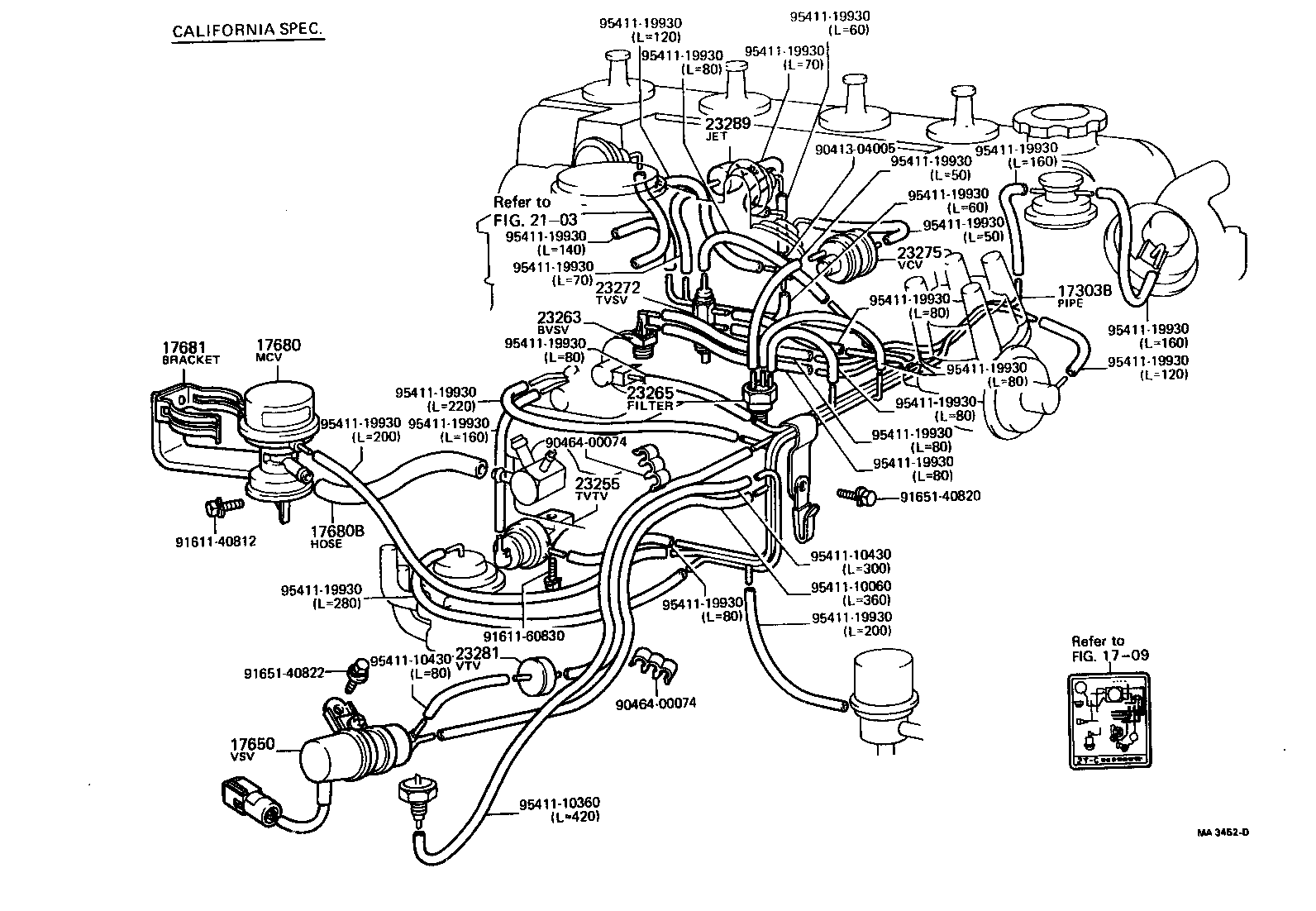

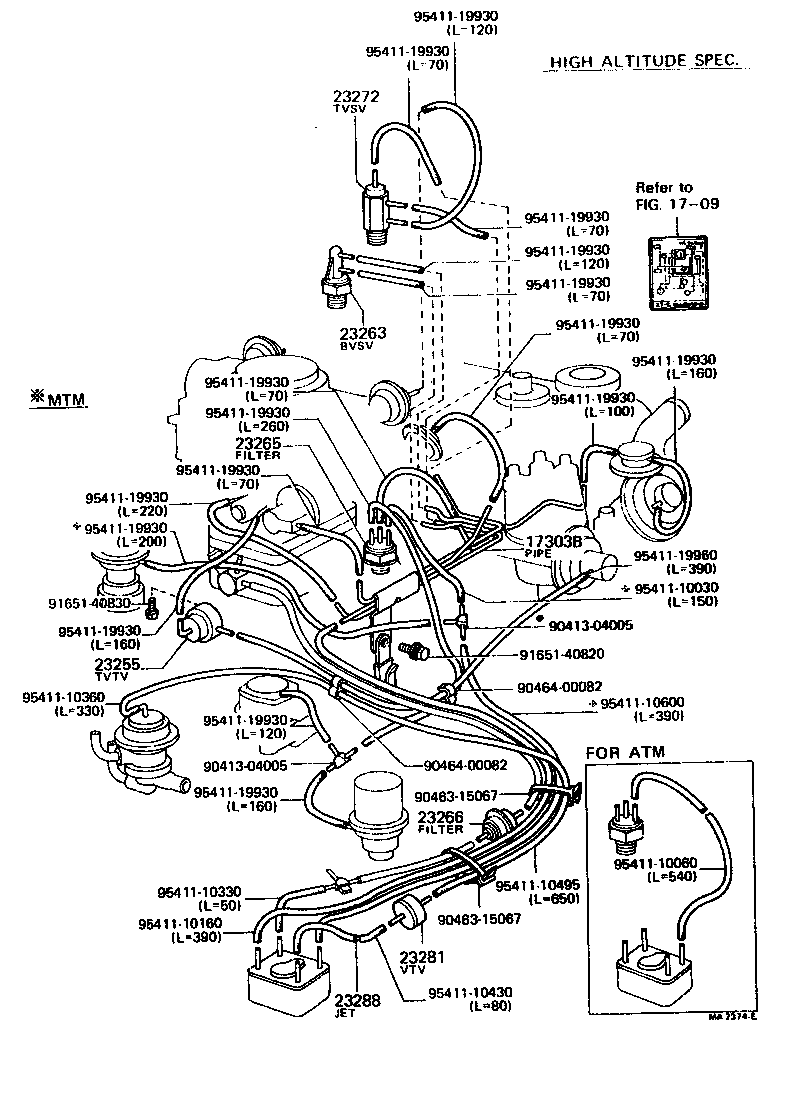

(7608-7808)2TC

Click highlighted areas on diagram

diagram 1709 17303B 23255 23263 23265 23266 23272 23281 23288 9041304005 9041304005 9046315067 9046315067 9046400082 9046400082 9165140820 9165140830 9541110030 9541110060 9541110060 9541110160 9541110330 9541110360 9541110430 9541110495 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-26010

2TC..TE3#,51

 1
17303-26060

2TC..TE3#,51

 1
17303-26070

2TC..TE3#,51

DOUBL ADVANCE DIS.

 1
17303-26023

2TC..TE3#,51..USA

 1
17303-26022

2TC..TE3#,51

CAL.& H.A.

 1
17303-26010

2TC..TE3#,51

CANADA SPEC.

 1
17303-26090

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17303-26024

2TC..TE3#,51..USA

HIGH ACTITUDE SPEC.

 1
23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1
90925-01039

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01044

2TC..TE3#,51

CALIFORNIA SPEC.

 1
90925-01039

2TC..TE3#,51

CANADA SPEC.

 1
90925-01030

2TC..TE3#,51

 1
90925-01050

2TC..TE3#,51..USA

CAL.& H.A.

 1
90925-01050

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05017

2TC..TE3#,51

CAL.& H.A.

 1
90925-05015

2TC..TE3#,51

 1
90925-05017

2TC..TE3#,51..USA

 1
23265 - FILTER, GAS, NO.1
90917-11003

2TC..TE3#,51

 1
90917-11024

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90917-11023

2TC..TE3#,51..USA

FEDELAL SPEC.

 1
90917-11012

2TC..TE3#,51..USA

 1
90917-11003

2TC..TE3#,51..USA

CAL.& H.A.

 1
90917-11015

2TC..TE3#,51

CANADA SPEC.

 1
23266 - FILTER, GAS, NO.2
90917-11007

2TC..TE3#,51

CAL.& H.A.

 1
90917-11007

2TC..TE3#,51..USA

CAL.& H.A.

 1
23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2
90925-02020

2TC..TE3#,51

CAL.& H.A.

 1
90925-02002

2TC..TE3#,51

CANADA SPEC.

 1
90925-02048

2TC..TE3#,51..USA

 1
90925-02002

2TC..TE3#,51

 1
90925-02055

2TC..TE3#,51..USA

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01009

2TC..TE3#,51

 1
90925-01019

2TC..TE3#,51

 1
90925-01029

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01019

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01027

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01021

2TC..TE3#,51..USA

 1
90925-01029

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
23288 - JET, NO.1
90925-04001

2TC..TE3#,51

CAL.& H.A.

 1
Common parts
90413-04005
90463-15067
90464-00082
91651-40820
91651-40830
95411-10030
95411-10060
95411-10160
95411-10330
95411-10360
95411-10430
95411-10495
95411-19930
95411-19960
Linked diagrams
1709

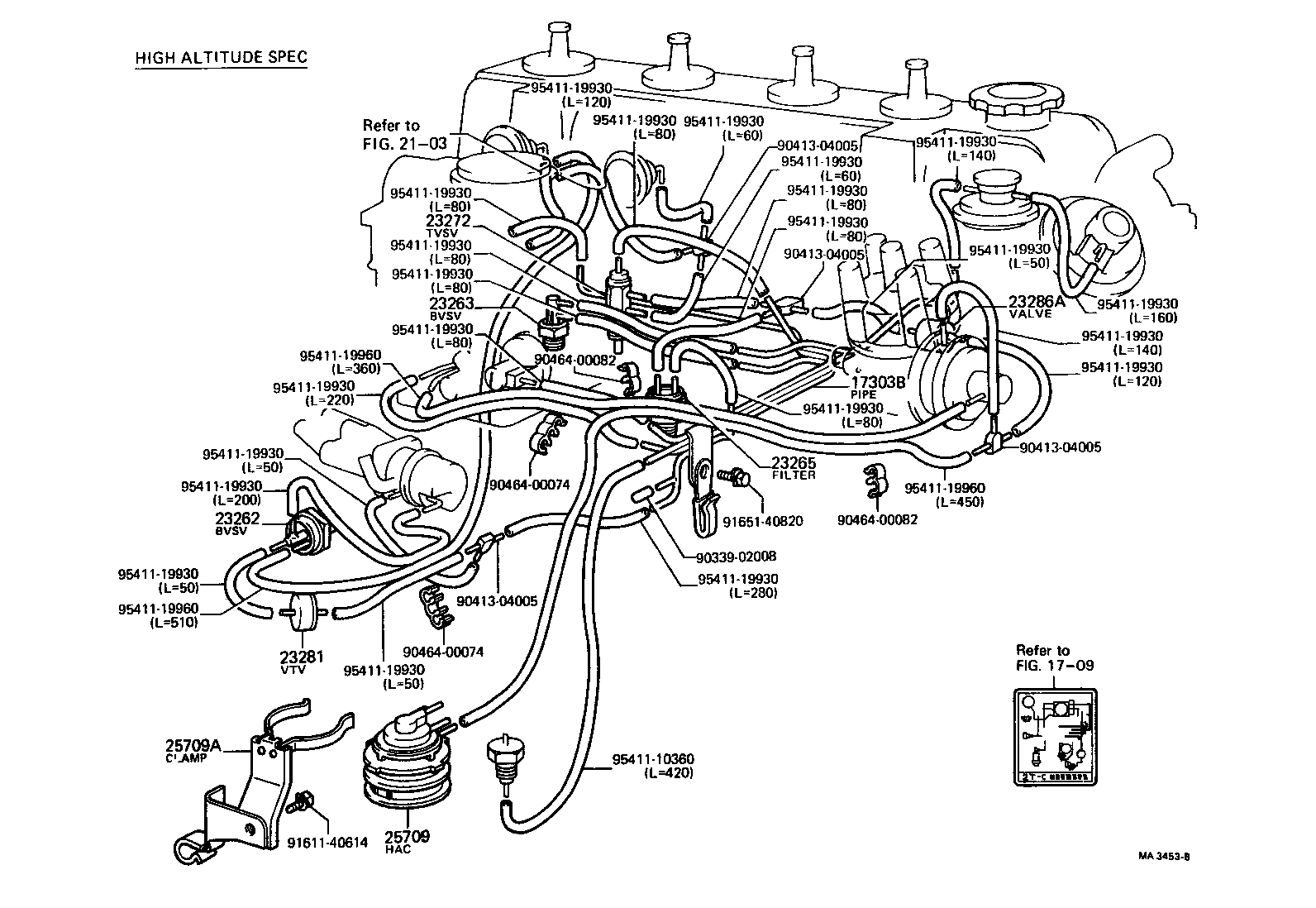

(7608-7808)2TC

Click highlighted areas on diagram

diagram 1709 17303B 23255 23263 23265 23266 23272 23281 23288 9041304005 9041304005 9046315067 9046315067 9046400082 9046400082 9165140820 9165140830 9541110030 9541110060 9541110160 9541110330 9541110360 9541110430 9541110495 9541110600 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-26010

2TC..TE3#,51

 1
17303-26060

2TC..TE3#,51

 1
17303-26070

2TC..TE3#,51

DOUBL ADVANCE DIS.

 1
17303-26023

2TC..TE3#,51..USA

 1
17303-26022

2TC..TE3#,51

CAL.& H.A.

 1
17303-26010

2TC..TE3#,51

CANADA SPEC.

 1
17303-26090

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17303-26024

2TC..TE3#,51..USA

HIGH ACTITUDE SPEC.

 1
23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1
90925-01039

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01044

2TC..TE3#,51

CALIFORNIA SPEC.

 1
90925-01039

2TC..TE3#,51

CANADA SPEC.

 1
90925-01030

2TC..TE3#,51

 1
90925-01050

2TC..TE3#,51..USA

CAL.& H.A.

 1
90925-01050

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05017

2TC..TE3#,51

CAL.& H.A.

 1
90925-05015

2TC..TE3#,51

 1
90925-05017

2TC..TE3#,51..USA

 1
23265 - FILTER, GAS, NO.1
90917-11003

2TC..TE3#,51

 1
90917-11024

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90917-11023

2TC..TE3#,51..USA

FEDELAL SPEC.

 1
90917-11012

2TC..TE3#,51..USA

 1
90917-11003

2TC..TE3#,51..USA

CAL.& H.A.

 1
90917-11015

2TC..TE3#,51

CANADA SPEC.

 1
23266 - FILTER, GAS, NO.2
90917-11007

2TC..TE3#,51

CAL.& H.A.

 1
90917-11007

2TC..TE3#,51..USA

CAL.& H.A.

 1
23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2
90925-02020

2TC..TE3#,51

CAL.& H.A.

 1
90925-02002

2TC..TE3#,51

CANADA SPEC.

 1
90925-02048

2TC..TE3#,51..USA

 1
90925-02002

2TC..TE3#,51

 1
90925-02055

2TC..TE3#,51..USA

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01009

2TC..TE3#,51

 1
90925-01019

2TC..TE3#,51

 1
90925-01029

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01019

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01027

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01021

2TC..TE3#,51..USA

 1
90925-01029

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
23288 - JET, NO.1
90925-04001

2TC..TE3#,51

CAL.& H.A.

 1
Common parts
90413-04005
90463-15067
90464-00082
91651-40820
91651-40830
95411-10030
95411-10060
95411-10160
95411-10330
95411-10360
95411-10430
95411-10495
95411-10600
95411-19930
95411-19960
Linked diagrams
1709

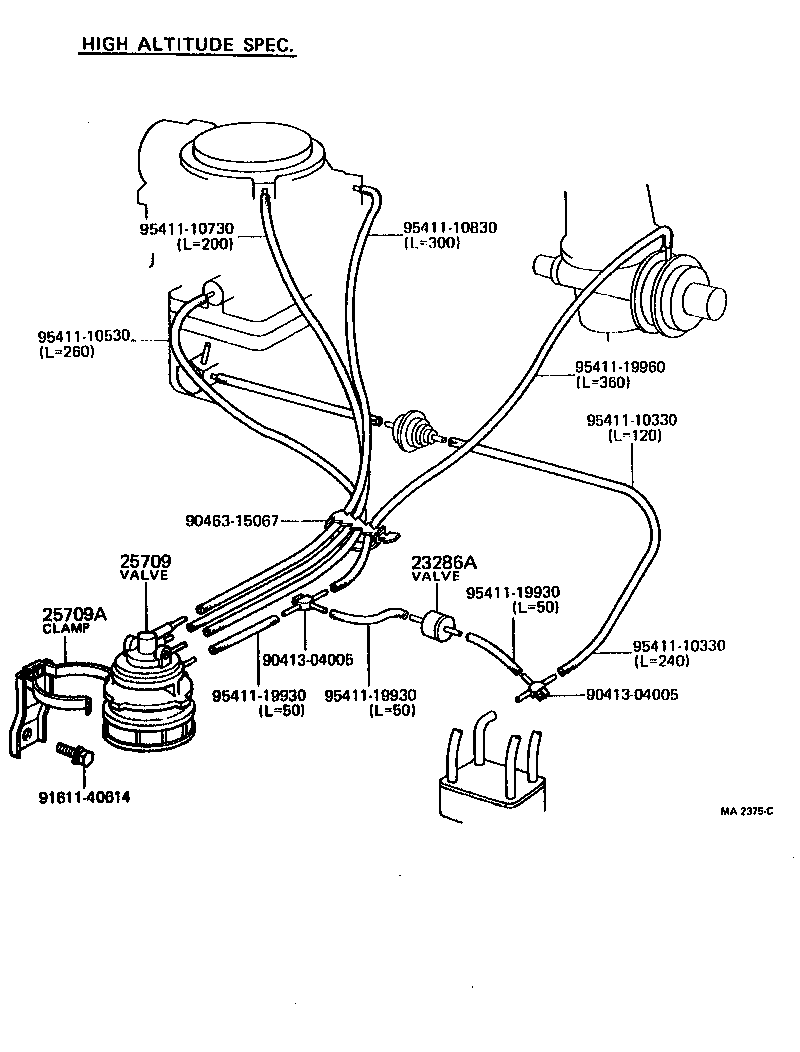

(7608-7808)2TC

Click highlighted areas on diagram

diagram 23286A 25709 25709A 9041304005 9041304005 9046315067 9161140614 9541110330 9541110330 9541110530 9541110730 9541110830 9541119930 9541119930 9541119930 9541119960
Part # Description Qty Price
23286A - VALVE, CHECK, NO.2
90917-10038

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90917-10038

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-38010

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
25709-38010

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE)
90461-10189

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
90461-10189

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
Common parts
90413-04005
90463-15067
91611-40614
95411-10330
95411-10530
95411-10730
95411-10830
95411-19930
95411-19960

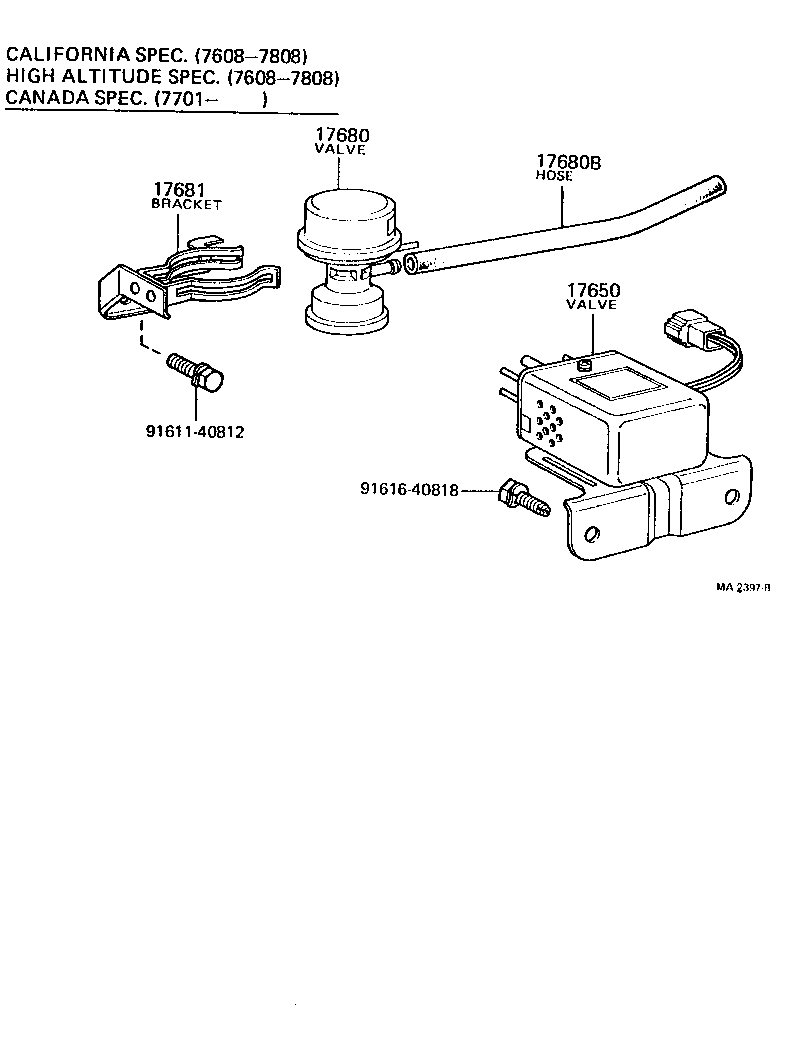

(7608-7908)2TC..MTM

Click highlighted areas on diagram

diagram 17650 17680 17680B 17681 9161140812 9161640818
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
17650-26090

2TC..TE3#,51

CAL.& H.A.

 1
89570-12080

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
89570-12050

2TC..TE3#,51..USA

CAL.& H.A.

 1
17680 - VALVE ASSY, MIXTURE CONTROL
17680-26020

2TC..TE3#,51..MTM

CANADA SPEC.

 1
17680-26020

2TC..TE3#,51..MTM

CAL.& H.A.

 1
17680-26020

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
17680-26020

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17680B - HOSE(FOR MIXTURE CONTROL VALVE)
90445-16003

2TC..TE3#,51..MTM

CAL.& H.A.

 1
90445-16005

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90445-17030

2TC..TE3#,51..MTM

CAL.& H.A.;CANADA SPEC.

 1
90445-16005

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
17681 - BRACKET, MIXTURE CONTROL VALVE
17681-26010

2TC..TE3#,51..MTM

CAL.& H.A.

 1
17681-26011

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
17681-26011

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17681-26010

2TC..TE3#,51..MTM

CANADA SPEC.

 1
Common parts
91611-40812
91616-40818

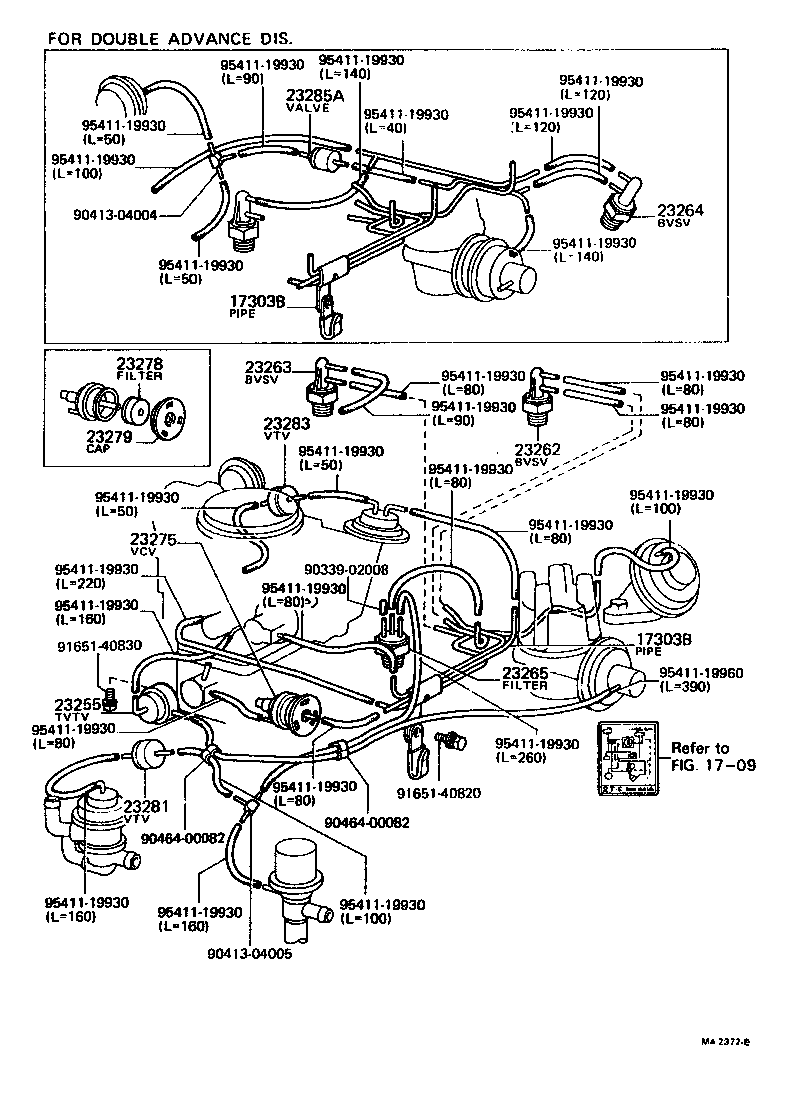

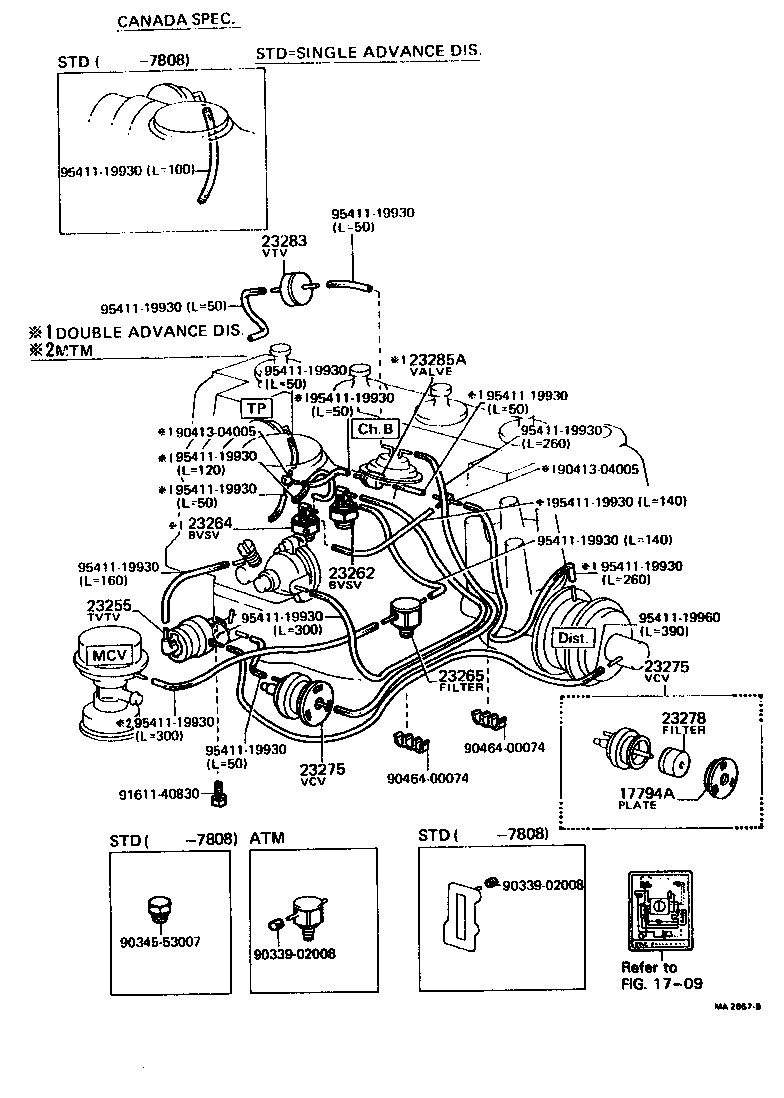

(7701-7908)2TC

Click highlighted areas on diagram

diagram 1709 17794A 23255 23262 23264 23265 23275 23275 23278 23283 23285A 9033902008 9033902008 9034553007 9041304005 9041304005 9046400074 9046400074 9161140830 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960
Part # Description Qty Price
17794A - PLATE, NAME
17794-26010

2TC..TE3#,51

 1
23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1
90925-01039

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01044

2TC..TE3#,51

CALIFORNIA SPEC.

 1
90925-01039

2TC..TE3#,51

CANADA SPEC.

 1
90925-01030

2TC..TE3#,51

 1
90925-01050

2TC..TE3#,51..USA

CAL.& H.A.

 1
90925-01050

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05016

2TC..TE3#,51

 1
90925-05040

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
90925-05009

2TC..TE3#,51

DOUBLE ADVANCE DIS.

 1
23265 - FILTER, GAS, NO.1
90917-11003

2TC..TE3#,51

 1
90917-11024

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90917-11023

2TC..TE3#,51..USA

FEDELAL SPEC.

 1
90917-11012

2TC..TE3#,51..USA

 1
90917-11003

2TC..TE3#,51..USA

CAL.& H.A.

 1
90917-11015

2TC..TE3#,51

CANADA SPEC.

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03074

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03074

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
23283 - VALVE, VACUUM TRANSMITTING, NO.3
90925-01026

2TC..TE3#,51

DOUBLE ADVANCE DIS.

 1
90925-01023

2TC..TE3#,51..MTM

CANADA SPEC.

 1
Common parts
90339-02008
90345-53007
90413-04005
90464-00074
91611-40830
95411-19930
95411-19960
Linked diagrams
1709

(7708-7808)2TC

Click highlighted areas on diagram

diagram 1709 17303B 2103 23262 23263 23264 23265 23272 23281 23285A 9011608066 9017908146 9033902008 9041304005 9041304005 9041304005 9041304005 9041304005 9046400074 9046400074 9541110360 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541119960 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-26010

2TC..TE3#,51

 1
17303-26060

2TC..TE3#,51

 1
17303-26070

2TC..TE3#,51

DOUBL ADVANCE DIS.

 1
17303-26023

2TC..TE3#,51..USA

 1
17303-26022

2TC..TE3#,51

CAL.& H.A.

 1
17303-26010

2TC..TE3#,51

CANADA SPEC.

 1
17303-26090

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17303-26024

2TC..TE3#,51..USA

HIGH ACTITUDE SPEC.

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05016

2TC..TE3#,51

 1
90925-05040

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05017

2TC..TE3#,51

CAL.& H.A.

 1
90925-05015

2TC..TE3#,51

 1
90925-05017

2TC..TE3#,51..USA

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
90925-05009

2TC..TE3#,51

DOUBLE ADVANCE DIS.

 1
23265 - FILTER, GAS, NO.1
90917-11003

2TC..TE3#,51

 1
90917-11024

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90917-11023

2TC..TE3#,51..USA

FEDELAL SPEC.

 1
90917-11012

2TC..TE3#,51..USA

 1
90917-11003

2TC..TE3#,51..USA

CAL.& H.A.

 1
90917-11015

2TC..TE3#,51

CANADA SPEC.

 1
23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2
90925-02020

2TC..TE3#,51

CAL.& H.A.

 1
90925-02002

2TC..TE3#,51

CANADA SPEC.

 1
90925-02048

2TC..TE3#,51..USA

 1
90925-02002

2TC..TE3#,51

 1
90925-02055

2TC..TE3#,51..USA

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01009

2TC..TE3#,51

 1
90925-01019

2TC..TE3#,51

 1
90925-01029

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01019

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01027

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01021

2TC..TE3#,51..USA

 1
90925-01029

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
Common parts
90116-08066
90179-08146
90339-02008
90413-04005
90464-00074
95411-10360
95411-19930
95411-19960
Linked diagrams
1709
2103

(7808-7908)2TC

Click highlighted areas on diagram

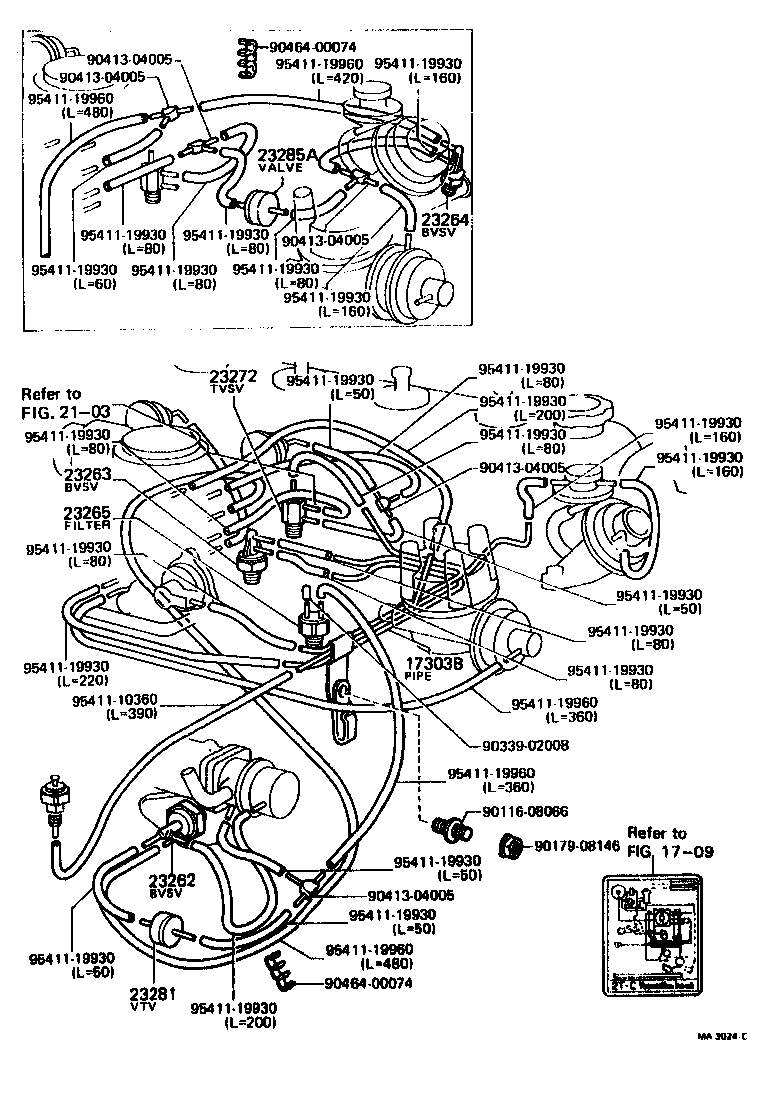

diagram 1709 17303B 2103 23262 23263 23264 23265 23272 23281 23285A 9033902008 9041304005 9041304005 9041304005 9041304005 9041304005 9046400074 9046400074 9165140820 9541110360 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-26010

2TC..TE3#,51

 1
17303-26060

2TC..TE3#,51

 1
17303-26070

2TC..TE3#,51

DOUBL ADVANCE DIS.

 1
17303-26023

2TC..TE3#,51..USA

 1
17303-26022

2TC..TE3#,51

CAL.& H.A.

 1
17303-26010

2TC..TE3#,51

CANADA SPEC.

 1
17303-26090

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17303-26024

2TC..TE3#,51..USA

HIGH ACTITUDE SPEC.

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05016

2TC..TE3#,51

 1
90925-05040

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05017

2TC..TE3#,51

CAL.& H.A.

 1
90925-05015

2TC..TE3#,51

 1
90925-05017

2TC..TE3#,51..USA

 1
23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3
90925-05009

2TC..TE3#,51

DOUBLE ADVANCE DIS.

 1
23265 - FILTER, GAS, NO.1
90917-11003

2TC..TE3#,51

 1
90917-11024

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90917-11023

2TC..TE3#,51..USA

FEDELAL SPEC.

 1
90917-11012

2TC..TE3#,51..USA

 1
90917-11003

2TC..TE3#,51..USA

CAL.& H.A.

 1
90917-11015

2TC..TE3#,51

CANADA SPEC.

 1
23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2
90925-02020

2TC..TE3#,51

CAL.& H.A.

 1
90925-02002

2TC..TE3#,51

CANADA SPEC.

 1
90925-02048

2TC..TE3#,51..USA

 1
90925-02002

2TC..TE3#,51

 1
90925-02055

2TC..TE3#,51..USA

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01009

2TC..TE3#,51

 1
90925-01019

2TC..TE3#,51

 1
90925-01029

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01019

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01027

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01021

2TC..TE3#,51..USA

 1
90925-01029

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
Common parts
90339-02008
90413-04005
90464-00074
91651-40820
95411-10360
95411-19930
95411-19960
Linked diagrams
1709
2103

(7808-7908)2TC

Click highlighted areas on diagram

diagram 1709 17303B 17650 17680 17680B 17681 2103 23255 23263 23265 23272 23275 23281 23289 9041304005 9046400074 9046400074 9161140812 9161160830 9165140820 9165140822 9541110060 9541110360 9541110430 9541110430 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-26010

2TC..TE3#,51

 1
17303-26060

2TC..TE3#,51

 1
17303-26070

2TC..TE3#,51

DOUBL ADVANCE DIS.

 1
17303-26023

2TC..TE3#,51..USA

 1
17303-26022

2TC..TE3#,51

CAL.& H.A.

 1
17303-26010

2TC..TE3#,51

CANADA SPEC.

 1
17303-26090

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17303-26024

2TC..TE3#,51..USA

HIGH ACTITUDE SPEC.

 1
17650 - VALVE ASSY, VACUUM SWITCHING
17650-26090

2TC..TE3#,51

CAL.& H.A.

 1
89570-12080

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
89570-12050

2TC..TE3#,51..USA

CAL.& H.A.

 1
17680 - VALVE ASSY, MIXTURE CONTROL
17680-26020

2TC..TE3#,51..MTM

CANADA SPEC.

 1
17680-26020

2TC..TE3#,51..MTM

CAL.& H.A.

 1
17680-26020

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
17680-26020

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17680B - HOSE(FOR MIXTURE CONTROL VALVE)
90445-16003

2TC..TE3#,51..MTM

CAL.& H.A.

 1
90445-16005

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90445-17030

2TC..TE3#,51..MTM

CAL.& H.A.;CANADA SPEC.

 1
90445-16005

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
17681 - BRACKET, MIXTURE CONTROL VALVE
17681-26010

2TC..TE3#,51..MTM

CAL.& H.A.

 1
17681-26011

2TC..TE3#,51..MTM..USA

CAL.& H.A.

 1
17681-26011

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17681-26010

2TC..TE3#,51..MTM

CANADA SPEC.

 1
23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1
90925-01039

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01044

2TC..TE3#,51

CALIFORNIA SPEC.

 1
90925-01039

2TC..TE3#,51

CANADA SPEC.

 1
90925-01030

2TC..TE3#,51

 1
90925-01050

2TC..TE3#,51..USA

CAL.& H.A.

 1
90925-01050

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05017

2TC..TE3#,51

CAL.& H.A.

 1
90925-05015

2TC..TE3#,51

 1
90925-05017

2TC..TE3#,51..USA

 1
23265 - FILTER, GAS, NO.1
90917-11003

2TC..TE3#,51

 1
90917-11024

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90917-11023

2TC..TE3#,51..USA

FEDELAL SPEC.

 1
90917-11012

2TC..TE3#,51..USA

 1
90917-11003

2TC..TE3#,51..USA

CAL.& H.A.

 1
90917-11015

2TC..TE3#,51

CANADA SPEC.

 1
23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2
90925-02020

2TC..TE3#,51

CAL.& H.A.

 1
90925-02002

2TC..TE3#,51

CANADA SPEC.

 1
90925-02048

2TC..TE3#,51..USA

 1
90925-02002

2TC..TE3#,51

 1
90925-02055

2TC..TE3#,51..USA

 1
23275 - VALVE, VACUUM CONTROL, NO.1
90925-03074

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01009

2TC..TE3#,51

 1
90925-01019

2TC..TE3#,51

 1
90925-01029

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01019

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01027

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01021

2TC..TE3#,51..USA

 1
90925-01029

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
23289 - JET, NO.2
90925-04007

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
Common parts
90413-04005
90464-00074
91611-40812
91611-60830
91651-40820
91651-40822
95411-10060
95411-10360
95411-10430
95411-19930
Linked diagrams
1709
2103

(7808-7908)2TC

Click highlighted areas on diagram

diagram 1709 17303B 2103 23262 23263 23265 23272 23281 23286A 25709 25709A 9033902008 9041304005 9041304005 9041304005 9041304005 9046400074 9046400074 9046400082 9046400082 9161140614 9165140820 9541110360 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119930 9541119960 9541119960 9541119960
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-26010

2TC..TE3#,51

 1
17303-26060

2TC..TE3#,51

 1
17303-26070

2TC..TE3#,51

DOUBL ADVANCE DIS.

 1
17303-26023

2TC..TE3#,51..USA

 1
17303-26022

2TC..TE3#,51

CAL.& H.A.

 1
17303-26010

2TC..TE3#,51

CANADA SPEC.

 1
17303-26090

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
17303-26024

2TC..TE3#,51..USA

HIGH ACTITUDE SPEC.

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05016

2TC..TE3#,51

 1
90925-05040

2TC..TE3#,51..USA

FEDERAL SPEC.

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
90925-05017

2TC..TE3#,51

CAL.& H.A.

 1
90925-05015

2TC..TE3#,51

 1
90925-05017

2TC..TE3#,51..USA

 1
23265 - FILTER, GAS, NO.1
90917-11003

2TC..TE3#,51

 1
90917-11024

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90917-11023

2TC..TE3#,51..USA

FEDELAL SPEC.

 1
90917-11012

2TC..TE3#,51..USA

 1
90917-11003

2TC..TE3#,51..USA

CAL.& H.A.

 1
90917-11015

2TC..TE3#,51

CANADA SPEC.

 1
23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2
90925-02002

2TC..TE3#,51

 1
90925-02020

2TC..TE3#,51

CAL.& H.A.

 1
90925-02002

2TC..TE3#,51

CANADA SPEC.

 1
90925-02048

2TC..TE3#,51..USA

 1
90925-02055

2TC..TE3#,51..USA

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01009

2TC..TE3#,51

 1
90925-01019

2TC..TE3#,51

 1
90925-01029

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90925-01019

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01027

2TC..TE3#,51..USA

CALIFORNIA SPEC.

 1
90925-01021

2TC..TE3#,51..USA

 1
90925-01029

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
23286A - VALVE, CHECK, NO.2
90917-10038

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
90917-10038

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-38010

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
25709-38010

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
25709A - CLAMP(FOR HIGH ALTITUDE COMPENSATOR VALVE)
90461-10189

2TC..TE3#,51..USA

HIGH ALTITUDE SPEC.

 1
90461-10189

2TC..TE3#,51

HIGH ALTITUDE SPEC.

 1
Common parts
90339-02008
90413-04005
90464-00074
90464-00082
91611-40614
91651-40820
95411-10360
95411-19930
95411-19960
Linked diagrams
1709
2103

(7408-7908)2TC

Click highlighted areas on diagram

diagram 9041304005 9041404001 9041404002 9046400074 9046400081 9046400082 9092501005 9092501006 9092501009 9092501015 9092501019 9092501021 9092501023 9092501024 9092501026 9092501027 9092501029 9092501031 9092501032 9092501041 9092501042
Part # Description Qty Price
Common parts
90413-04005
90414-04001
90414-04002
90464-00074
90464-00081
90464-00082
90925-01005
90925-01006
90925-01009
90925-01015
90925-01019
90925-01021
90925-01023
90925-01024
90925-01026
90925-01027
90925-01029
90925-01031
90925-01032
90925-01041
90925-01042
