TE51L-CKDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7603-7908)TE3#,51..CP,HT,SED,WG

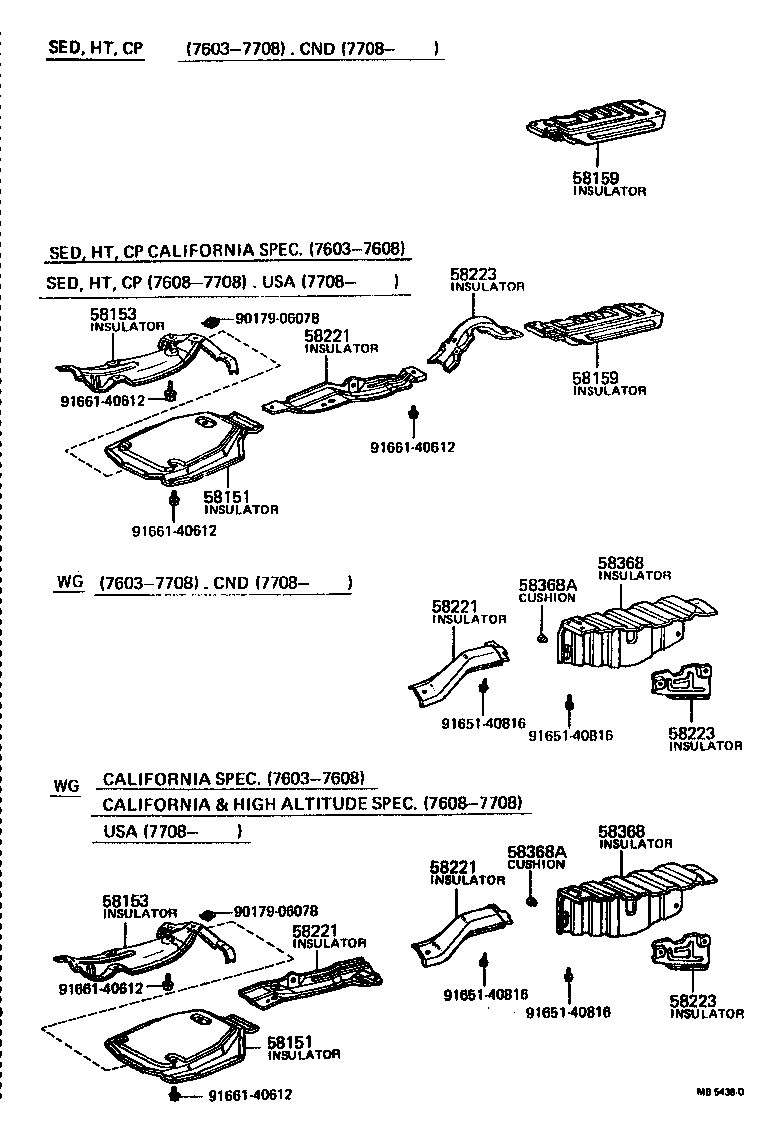

Click highlighted areas on diagram

diagram 58151 58151 58153 58153 58159 58159 58221 58221 58221 58221 58223 58223 58223 58368 58368 58368A 58368A 9017906078 9017906078 9165140816 9165140816 9165140816 9165140816 9166140612 9166140612 9166140612 9166140612 9166140612
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-12040

TE37,38,51;TE31..MTM..USA;TE31..A40..DLX

CAL.& H.A.

 1
58041-12050

TE31..A40..SPL..USA;TE3#,51..(DLX,SR5)..USA

 1
58041-12060

TE37,38,51;TE31..MTM..USA;TE31..A40..DLX;TE31..A40..4D..SPL

CAL.& H.A.

 1
58041-12060

TE38,51..USA;TE31,37..MTM..USA;TE31..A40..DLX..USA

CAL.& H.A.

 1
58041-12070

TE3#,51..USA

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-12040

TE37,38,51;TE31..MTM..USA;TE31..A40..DLX

CAL.& H.A.

 1
58041-12050

TE31..A40..SPL..USA;TE3#,51..(DLX,SR5)..USA

 1
58041-12060

TE37,38,51;TE31..MTM..USA;TE31..A40..DLX;TE31..A40..4D..SPL

CAL.& H.A.

 1
58041-12060

TE38,51..USA;TE31,37..MTM..USA;TE31..A40..DLX..USA

CAL.& H.A.

 1
58041-12070

TE3#,51..USA

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-12010

TE38,51..USA

FEDERAL SPEC.

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-12010

TE38,51..USA

FEDERAL SPEC.

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-12020

TE31,37,51

CAL.& H.A.

 1
58221-12060

TE31,37,51..DLX,SR5

CAL.& H.A.

 1
58221-12060

TE31,37,51..(DLX,SR5)..USA

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-12020

TE31,37,51

CAL.& H.A.

 1
58221-12060

TE31,37,51..DLX,SR5

CAL.& H.A.

 1
58221-12060

TE31,37,51..(DLX,SR5)..USA

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-12020

TE31,37,51

CAL.& H.A.

 1
58221-12060

TE31,37,51..DLX,SR5

CAL.& H.A.

 1
58221-12060

TE31,37,51..(DLX,SR5)..USA

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-12020

TE31,37,51

CAL.& H.A.

 1
58221-12060

TE31,37,51..DLX,SR5

CAL.& H.A.

 1
58221-12060

TE31,37,51..(DLX,SR5)..USA

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-12020

TE31,37,51..CP,HT,SED

CAL.& H.A.

 1
58223-12020

TE31,37,51..USA

 1
58223-12020

TE31,37,51..CP,HT,SED

FOR CALIFORNIA SPEC.

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-12020

TE31,37,51..CP,HT,SED

CAL.& H.A.

 1
58223-12020

TE31,37,51..USA

 1
58223-12020

TE31,37,51..CP,HT,SED

FOR CALIFORNIA SPEC.

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-12020

TE31,37,51..CP,HT,SED

CAL.& H.A.

 1
58223-12020

TE31,37,51..USA

 1
58223-12020

TE31,37,51..CP,HT,SED

FOR CALIFORNIA SPEC.

 1
Common parts
90179-06078
91651-40816
91661-40612
