TE51L-CKDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7701) ; (7701-7708)KE3#,50..DLX,STD ; (7701-7908)TE3#,51 ; (7708-7908)KE30,50

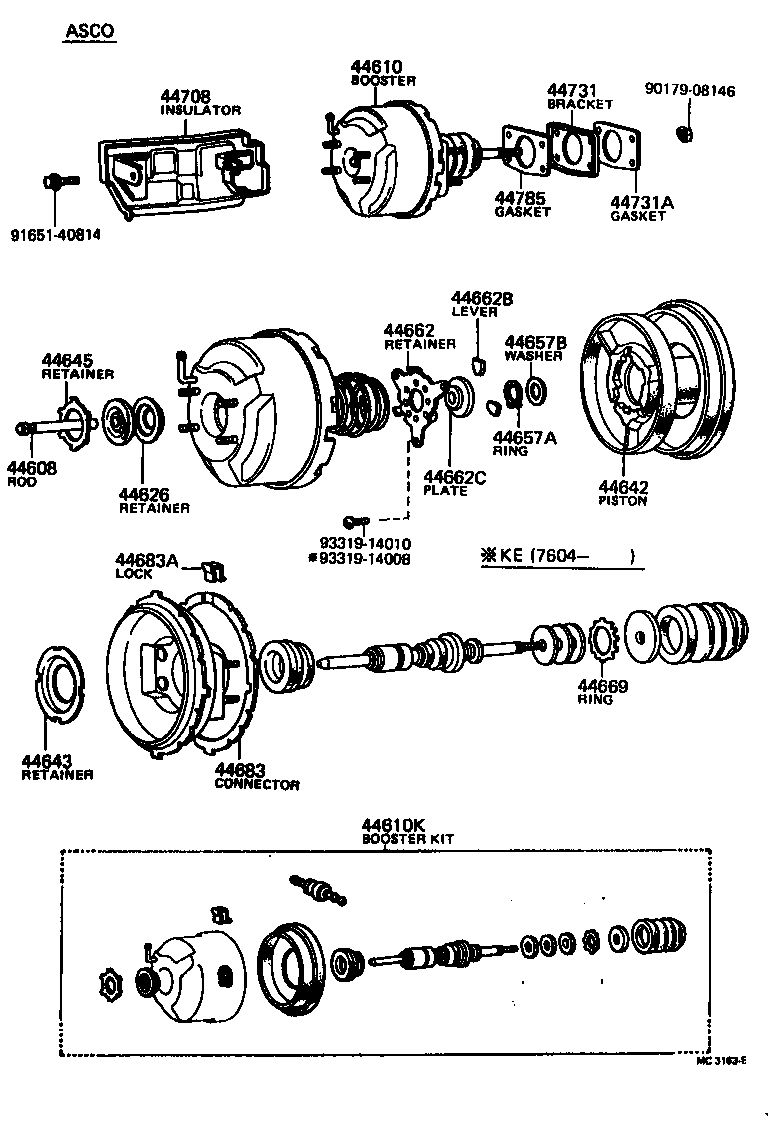

Click highlighted areas on diagram

diagram 44608 44610 44610K 44626 44642 44643 44645 44657A 44657B 44662 44662B 44662C 44669 44683 44683A 44708 44731 44731A 44785 9017908146 9165140814 9331914008 9331914010
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-14040

TE3#,51

JKK

 1
44606-30050

TE3#,51

ASCO

 1
44610K - BOOSTER KIT, BRAKE
04443-14130

TE3#,51

ASCO

 1
04443-14140

TE3#,51

JKK

 1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010

KE3#,TE3#,51

ASCO

 1
44626-60010

TE3#,51

ASCO

 1
44642 - PISTON, BRAKE BOOSTER
44642-12120

TE3#,51

JKK

 1
44642-14170

TE3#,51

ASCO

 1
44643 - RETAINER, DIAPHRAGM
44643-60010

TE3#,51

ASCO

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

KE3#,50,TE3#,51

JKK

 1
44628-60010

KE3#,TE3#,51

ASCO

 1
44628-60010

TE3#,51

ASCO

 1
44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
96150-01600

KE3#,TE3#,51

ASCO

 1
96150-01600

TE3#,51

ASCO

 1
44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)
44645-20100

KE3#,TE3#,51

ASCO

 1
44645-20100

TE3#,51

ASCO

 1
44662 - RETAINER, REACTION, NO.1
44662-20100

TE3#,51

ASCO

 1
44662-20100

KE3#,TE3#,51

ASCO

 1
44662B - LEVER, REACTION
44661-60010

KE3#,TE3#,51

ASCO

 3
44661-60010

TE3#,51

ASCO

 3
44662C - PLATE, REACTION, NO.1
44653-20150

TE3#,51

ASCO

 1
44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER
44669-60010

TE3#,51

ASCO

 1
44669-60010

KE3#,TE3#,51

ASCO

 1
44683 - CONNECTOR, BOOSTER BODY
44682-20150

TE3#,51

ASCO

 1
44683A - LOCK, CONNECTOR
44683-20100

KE3#,TE3#,51

ASCO

 1
44683-20100

TE3#,51

ASCO

 1
44708 - INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT
44708-12040

TE3#,51

 1
44708-12040

TE3#,51

CANADA SPEC.

 1
44708-12040

TE3#,51

EX/CAL. & H.A.

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-14020

TE3#,51

 1
Common parts
90179-08146
91651-40814
93319-14008
93319-14010

(7408-7908)

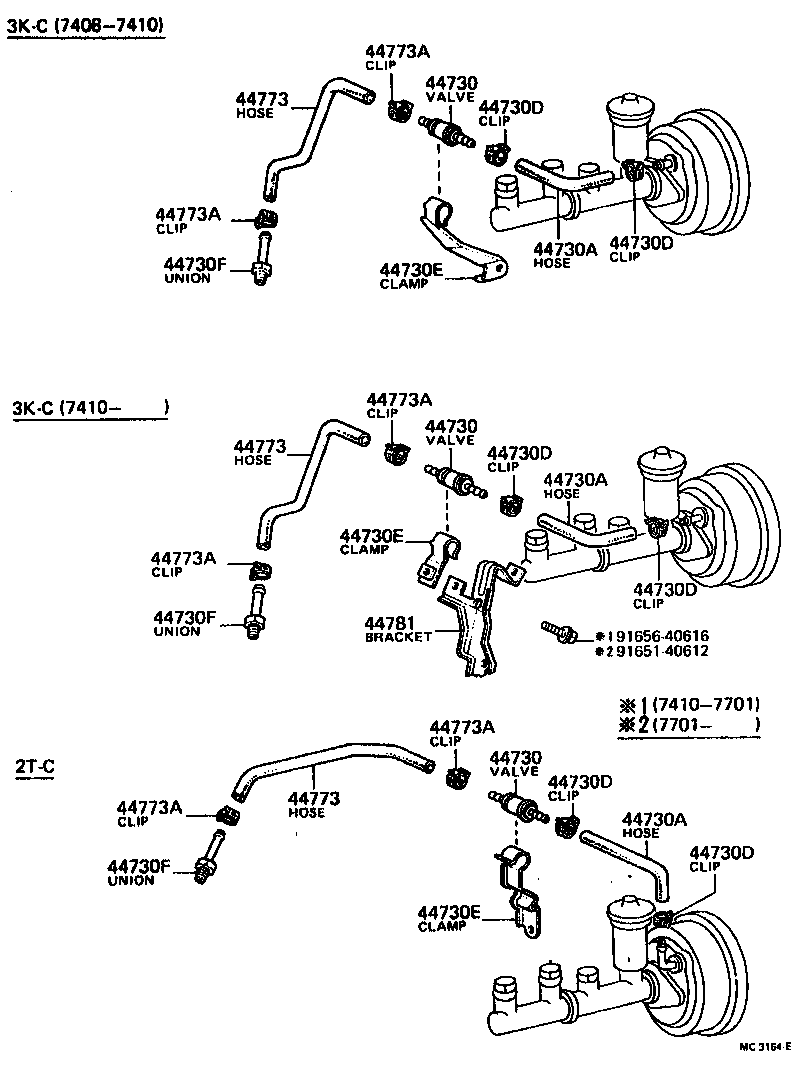

Click highlighted areas on diagram

diagram 44730 44730 44730 44730A 44730A 44730A 44730D 44730D 44730D 44730D 44730D 44730D 44730E 44730E 44730E 44730F 44730F 44730F 44773 44773 44773 44773A 44773A 44773A 44773A 44773A 44773A 44781 9165140612 9165640616
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

KE3#,50,TE3#,51

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

KE3#,50,TE3#,51

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

KE3#,50,TE3#,51

 1
44730A - HOSE, VACUUM, NO.1
44772-12040

TE3#,51

 1
44730A - HOSE, VACUUM, NO.1
44772-12040

TE3#,51

 1
44730A - HOSE, VACUUM, NO.1
44772-12040

TE3#,51

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE3#,50,TE3#,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE3#,50,TE3#,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE3#,50,TE3#,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE3#,50,TE3#,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE3#,50,TE3#,51

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16141

KE3#,50,TE3#,51

 2
44730E - CLAMP, VACUUM CHECK VALVE
44758-12050

TE3#,51

 1
44730E - CLAMP, VACUUM CHECK VALVE
44758-12050

TE3#,51

 1
44730E - CLAMP, VACUUM CHECK VALVE
44758-12050

TE3#,51

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE3#,50,TE3#,51

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE3#,50,TE3#,51

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

KE3#,50,TE3#,51

 1
44773 - HOSE, VACUUM, NO.2
44773-12080

TE3#,51

 1
44773-12081

TE3#,51

 1
44773 - HOSE, VACUUM, NO.2
44773-12080

TE3#,51

 1
44773-12081

TE3#,51

 1
44773 - HOSE, VACUUM, NO.2
44773-12080

TE3#,51

 1
44773-12081

TE3#,51

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

KE3#,50,TE3#,51

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

KE3#,50,TE3#,51

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

KE3#,50,TE3#,51

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

KE3#,50,TE3#,51

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

KE3#,50,TE3#,51

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16141

KE3#,50,TE3#,51

 2
Common parts
91651-40612
91656-40616

(7408-7908)

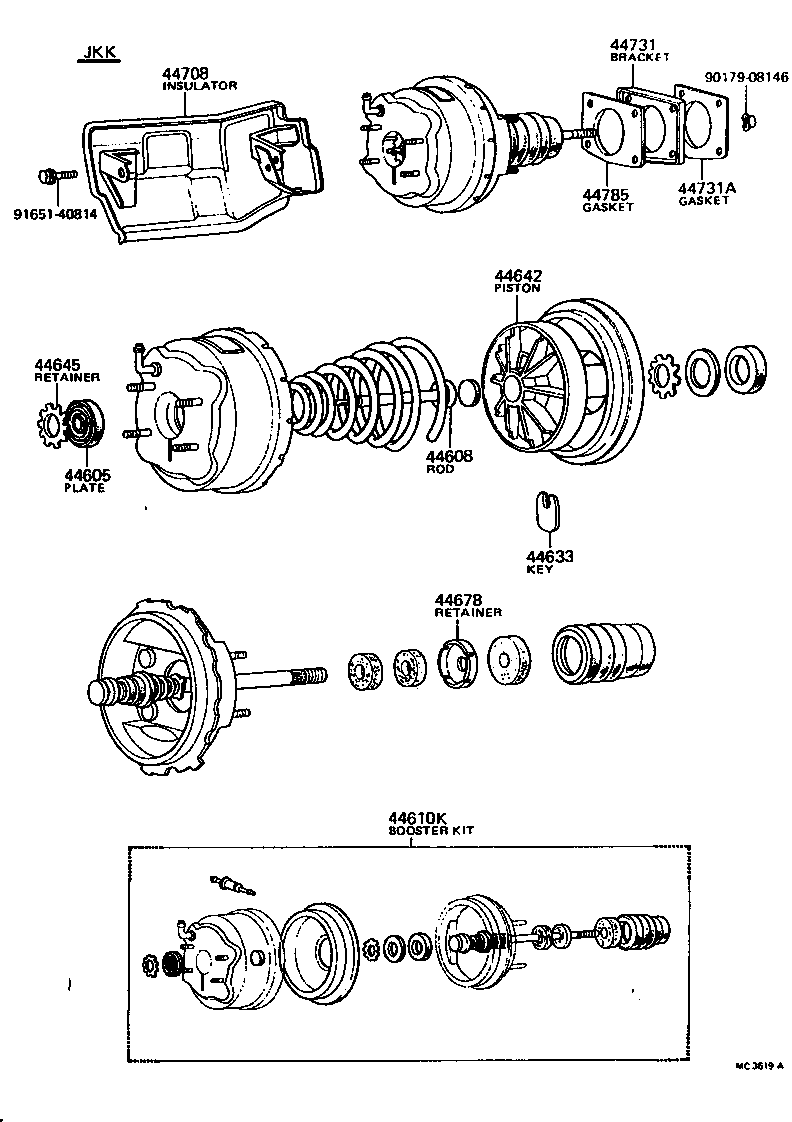

Click highlighted areas on diagram

diagram 44605 44608 44610K 44633 44642 44645 44678 44708 44731 44731A 44785 9017908146 9165140814
Part # Description Qty Price
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-22021

KE3#,50,TE3#,51

JKK

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-14040

TE3#,51

JKK

 1
44606-30050

TE3#,51

ASCO

 1
44610K - BOOSTER KIT, BRAKE
04443-14130

TE3#,51

ASCO

 1
04443-14140

TE3#,51

JKK

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-22020

KE3#,50,TE3#,51

JKK

 1
44642 - PISTON, BRAKE BOOSTER
44642-12120

TE3#,51

JKK

 1
44642-14170

TE3#,51

ASCO

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-22020

KE3#,50,TE3#,51

JKK

 1
44628-60010

KE3#,TE3#,51

ASCO

 1
44628-60010

TE3#,51

ASCO

 1
44678 - RETAINER, BOOSTER AIR CLEANER
44678-22020

KE3#,50,TE3#,51

JKK

 1
44708 - INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT
44708-12040

TE3#,51

 1
44708-12040

TE3#,51

CANADA SPEC.

 1
44708-12040

TE3#,51

EX/CAL. & H.A.

 1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-14020

TE3#,51

 1
Common parts
90179-08146
91651-40814
