TE51L-CHDA (1976)
Toyota Corolla

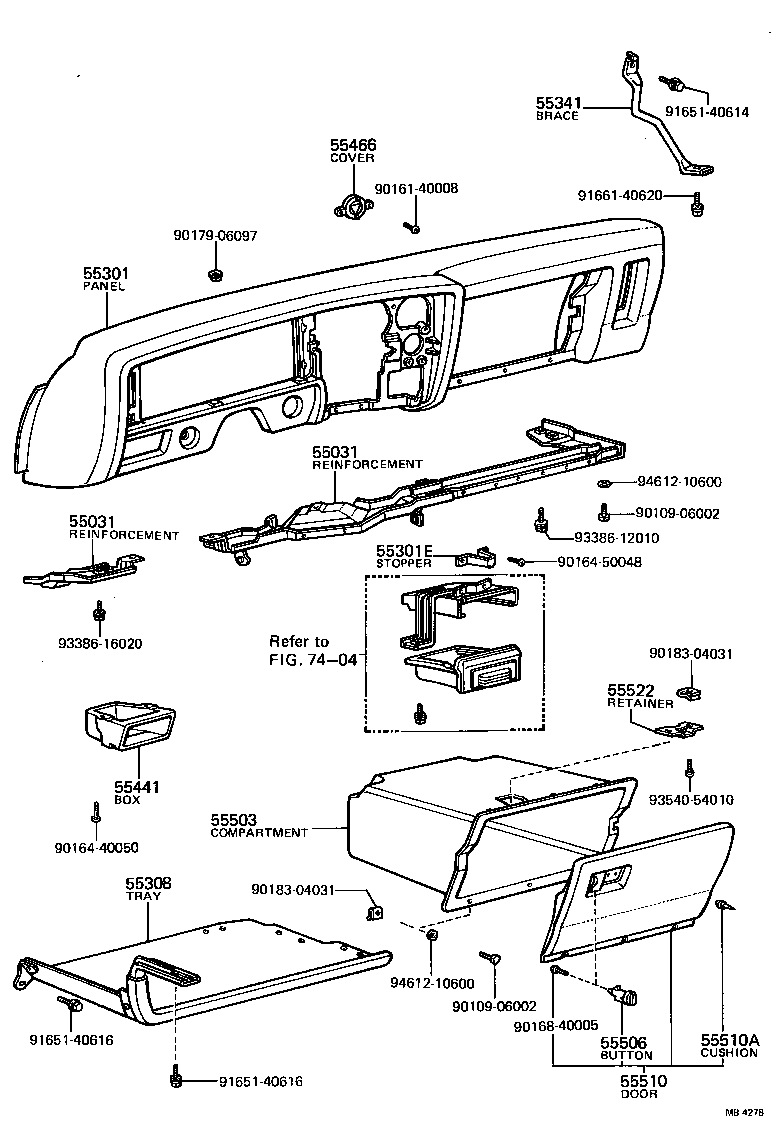

(7603-7701)TE51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55332-12050 |
TE51 LH. |
1 | ||
| 55305-12040 |
KE50,TE51 |
1 | ||
| 55330-12050 |
TE51 RH. |
1 | ||
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55332-12050 |
TE51 LH. |
1 | ||
| 55305-12040 |
KE50,TE51 |
1 | ||
| 55330-12050 |
TE51 RH. |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1205006 |
TE51 BROWN,BROWN |
1 | ||
| 55301-1207006 |
TE51 BROWN,FOR SIDE DEFROSTER,BROWN |
1 | ||
| 55301-1207001 |
TE51 BLACK,FOR SIDE DEFROSTER,BLACK |
1 | ||
| 55301-1205001 |
TE51 BLACK,BLACK |
1 | ||
| 55311-1212001 |
KE50,TE51 BLACK,BLACK |
1 | ||
| 55311-1212004 |
KE50,TE51 BLUE,BLUE |
1 | ||
| 55311-1212006 |
KE50,TE51 L.BROWN,BROWN |
1 | ||
| 55301E - STOPPER, INSTRUMENT CLUSTER FINISH PANEL, CENTER | ||||
| 55418-12020 |
TE51 |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12070 |
KE50,TE51 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-12050 |
TE51 |
1 | ||
| 55466 - COVER, CLOCK HOLE | ||||
| 55533-12030 |
TE51..DLX |
1 | ||
| 55533-12050 |
TE51..DLX |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-12060 |
TE51 |
1 | ||
| 55581-12100 |
KE50,TE51 |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12020 |
KE3#,50,TE3#,51 |
1 | ||
| 55560-12010 |
KE3#,TE3#,51 |
1 | ||
| 55520-14011 |
KE3#,TE3#,51 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1210001 |
TE51 BLACK,BLACK |
1 | ||
| 55550-1214004 |
KE50,TE51 BLUE,BLUE |
1 | ||
| 55550-1214001 |
KE50,TE51 BLACK,BLACK |
1 | ||
| 55550-1210006 |
TE51 BROWN,BROWN |
1 | ||
| 55550-1214006 |
KE50,TE51 L.BROWN,BROWN |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
KE3#,50,TE3#,51 |
2 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 55521-14010 |
KE3#,TE3#,51 |
1 | ||
| Common parts | ||||
| 90109-06002 | ||||
| 90161-40008 | ||||
| 90164-40050 | ||||
| 90164-50048 | ||||
| 90168-40005 | ||||
| 90179-06097 | ||||
| 90183-04031 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91661-40620 | ||||
| 93386-12010 | ||||
| 93386-16020 | ||||
| 93540-54010 | ||||
| 94612-10600 | ||||
| Linked diagrams | ||||
| 7404 | ||||

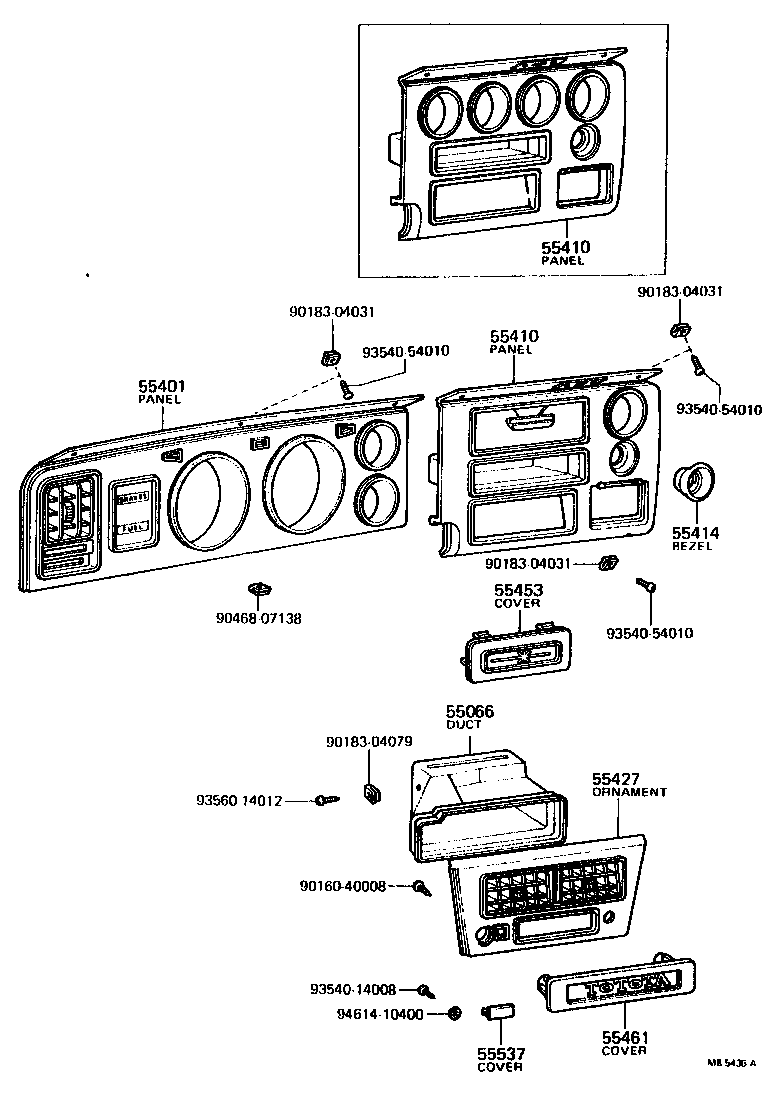

(7603-7701)TE51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55066 - DUCT SUB-ASSY, AIR OUTLET, CENTER | ||||
| 55835-12040 |
TE51 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12330 |
TE51..DLX CALIFORNIA SPEC. |
1 | ||
| 55404-12300 |
TE51..DLX |
1 | ||
| 55410-12440 |
TE51..DLX CAL.& H.A. |
1 | ||
| 55404-12330 |
TE51..DLX CAL.& H.A. |
1 | ||
| 55410-12430 |
KE50,TE51..DLX |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55405-12101 |
TE51..DLX |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55405-12101 |
TE51..DLX |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12030 |
KE3#,50,TE3#,51 |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55406-12110 |
TE51..DLX |
1 | ||
| 55406-12050 |
TE51..DLX W/RR.WINDOW DEFOGGER |
1 | ||
| 55406-12260 |
KE50,TE51..DLX |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12020 |
TE51 |
1 | ||
| 55522-12050 |
KE50,TE51 |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55523-12040 |
TE51 |
1 | ||
| 55523-12010 |
TE51..DLX |
1 | ||
| 55523-12040 |
TE51..USA |
1 | ||
| 55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE | ||||
| 55537-12010 |
TE3#,51 |
1 | ||
| 55537-12010 |
KE30,TE3#,51..DLX,SPL,SR5 |
1 | ||
| 55385-20011 |
TE51..USA |
1 | ||
| 55385-20011 |
TE51 |
1 | ||
| Common parts | ||||
| 90160-40008 | ||||
| 90183-04031 | ||||
| 90183-04079 | ||||
| 90468-07138 | ||||
| 93540-14008 | ||||
| 93540-54010 | ||||
| 93560-14012 | ||||
| 94614-10400 | ||||

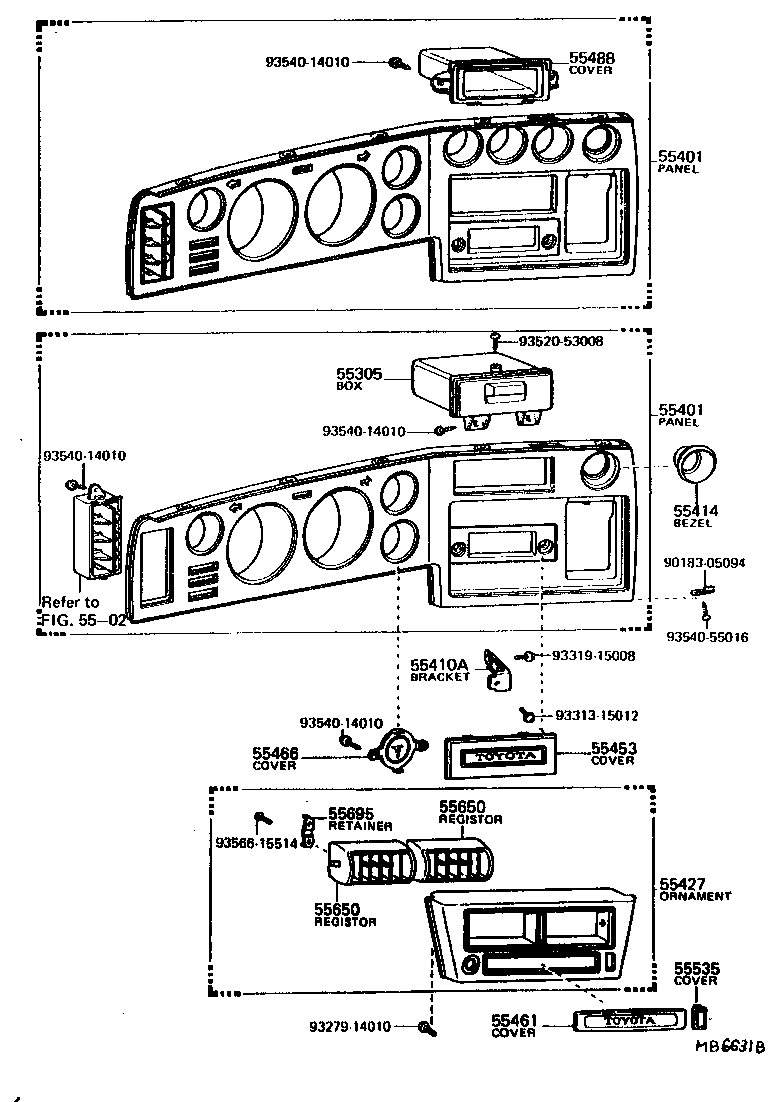

(7701-7908)KE50,TE51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55305 - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12070 |
KE50,TE51..DLX |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12330 |
TE51..DLX CALIFORNIA SPEC. |
1 | ||
| 55404-12300 |
TE51..DLX |
1 | ||
| 55410-12440 |
TE51..DLX CAL.& H.A. |
1 | ||
| 55404-12330 |
TE51..DLX CAL.& H.A. |
1 | ||
| 55410-12430 |
KE50,TE51..DLX |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12330 |
TE51..DLX CALIFORNIA SPEC. |
1 | ||
| 55404-12300 |
TE51..DLX |
1 | ||
| 55410-12440 |
TE51..DLX CAL.& H.A. |
1 | ||
| 55404-12330 |
TE51..DLX CAL.& H.A. |
1 | ||
| 55410-12430 |
KE50,TE51..DLX |
1 | ||
| 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55427-12040 |
KE50,TE51 |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12030 |
KE3#,50,TE3#,51 |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55406-12110 |
TE51..DLX |
1 | ||
| 55406-12050 |
TE51..DLX W/RR.WINDOW DEFOGGER |
1 | ||
| 55406-12260 |
KE50,TE51..DLX |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12020 |
TE51 |
1 | ||
| 55522-12050 |
KE50,TE51 |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55523-12040 |
TE51 |
1 | ||
| 55523-12010 |
TE51..DLX |
1 | ||
| 55523-12040 |
TE51..USA |
1 | ||
| 55466 - COVER, CLOCK HOLE | ||||
| 55533-12030 |
TE51..DLX |
1 | ||
| 55533-12050 |
TE51..DLX |
1 | ||
| 55535 - COVER, WARNING LAMP HOLE | ||||
| 55534-12060 |
KE50,TE51 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55670-12010 |
KE3#,50,TE3#,51 |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55670-12010 |
KE3#,50,TE3#,51 |
2 | ||
| Common parts | ||||
| 90183-05094 | ||||
| 93279-14010 | ||||
| 93313-15012 | ||||
| 93319-15008 | ||||
| 93520-53008 | ||||
| 93540-14010 | ||||
| 93540-55016 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 5502 | ||||

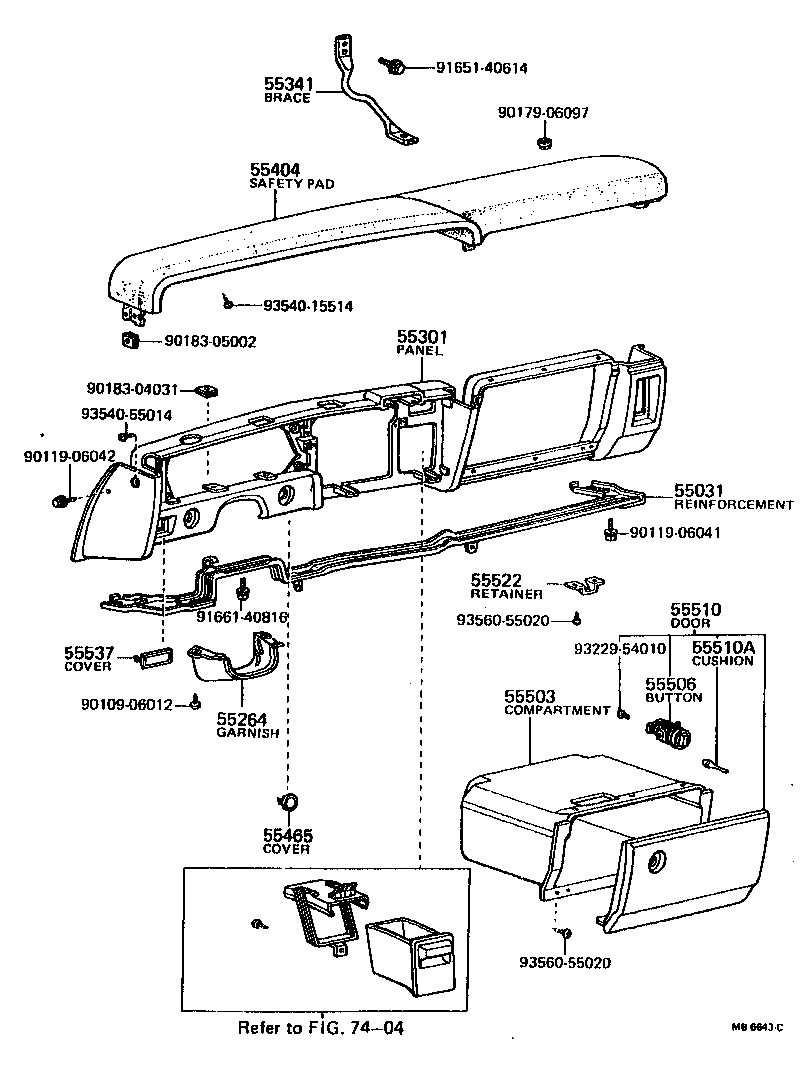

(7701-7908)KE50,TE51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55332-12050 |
TE51 LH. |
1 | ||
| 55305-12040 |
KE50,TE51 |
1 | ||
| 55330-12050 |
TE51 RH. |
1 | ||
| 55264 - GARNISH, STEERING COLUMN | ||||
| 55432-1204006 |
KE50,TE51 L.BROWN,BROWN |
1 | ||
| 55432-1204004 |
KE50,TE51 BLUE,BLUE |
1 | ||
| 55432-1204001 |
KE50,TE51 BLACK,BLACK |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1205006 |
TE51 BROWN,BROWN |
1 | ||
| 55301-1207006 |
TE51 BROWN,FOR SIDE DEFROSTER,BROWN |
1 | ||
| 55301-1207001 |
TE51 BLACK,FOR SIDE DEFROSTER,BLACK |
1 | ||
| 55301-1205001 |
TE51 BLACK,BLACK |
1 | ||
| 55311-1212001 |
KE50,TE51 BLACK,BLACK |
1 | ||
| 55311-1212004 |
KE50,TE51 BLUE,BLUE |
1 | ||
| 55311-1212006 |
KE50,TE51 L.BROWN,BROWN |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12070 |
KE50,TE51 |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1207001 |
KE50,TE51 BLACK,FOR SIDE DEFROSTER,BLACK |
1 | ||
| 55401-1208004 |
TE51 BLUE,BLUE |
1 | ||
| 55401-1208006 |
TE51 L.BROWN,BROWN |
1 | ||
| 55401-1207004 |
KE50,TE51 BLUE,FOR SIDE DEFROSTER,BLUE |
1 | ||
| 55401-1208001 |
TE51 BLACK,BLACK |
1 | ||
| 55401-1207006 |
KE50,TE51 L.BROWN,W/SIDE DEFROSTER,BROWN |
1 | ||
| 55465 - COVER, INSTRUMENT HOLE | ||||
| 55464-1401006 |
KE50,TE3#,51 L.BROWN,BROWN |
1 | ||
| 55464-1401001 |
KE50,TE3#,51 BLACK,BLACK |
1 | ||
| 55464-1401004 |
KE50,TE3#,51 BLUE,BLUE |
1 | ||
| 55464-1401004 |
KE50,TE3#,51..DLX,SR5 BLUE,BLUE |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-12060 |
TE51 |
1 | ||
| 55581-12100 |
KE50,TE51 |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12020 |
KE3#,50,TE3#,51 |
1 | ||
| 55560-12010 |
KE3#,TE3#,51 |
1 | ||
| 55520-14011 |
KE3#,TE3#,51 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1210001 |
TE51 BLACK,BLACK |
1 | ||
| 55550-1214004 |
KE50,TE51 BLUE,BLUE |
1 | ||
| 55550-1214001 |
KE50,TE51 BLACK,BLACK |
1 | ||
| 55550-1210006 |
TE51 BROWN,BROWN |
1 | ||
| 55550-1214006 |
KE50,TE51 L.BROWN,BROWN |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
KE3#,50,TE3#,51 |
2 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 55521-14010 |
KE3#,TE3#,51 |
1 | ||
| 55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE | ||||
| 55537-12010 |
TE3#,51 |
1 | ||
| 55537-12010 |
KE30,TE3#,51..DLX,SPL,SR5 |
1 | ||
| 55385-20011 |
TE51..USA |
1 | ||
| 55385-20011 |
TE51 |
1 | ||
| Common parts | ||||
| 90109-06012 | ||||
| 90119-06041 | ||||
| 90119-06042 | ||||
| 90179-06097 | ||||
| 90183-04031 | ||||
| 90183-05002 | ||||
| 91651-40614 | ||||
| 91661-40816 | ||||
| 93229-54010 | ||||
| 93540-15514 | ||||
| 93540-55014 | ||||
| 93560-55020 | ||||
| Linked diagrams | ||||
| 7404 | ||||
