TE51L-CHDA (1976)

Toyota Corolla

Production Mar 1976 - Aug 1979
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)A40

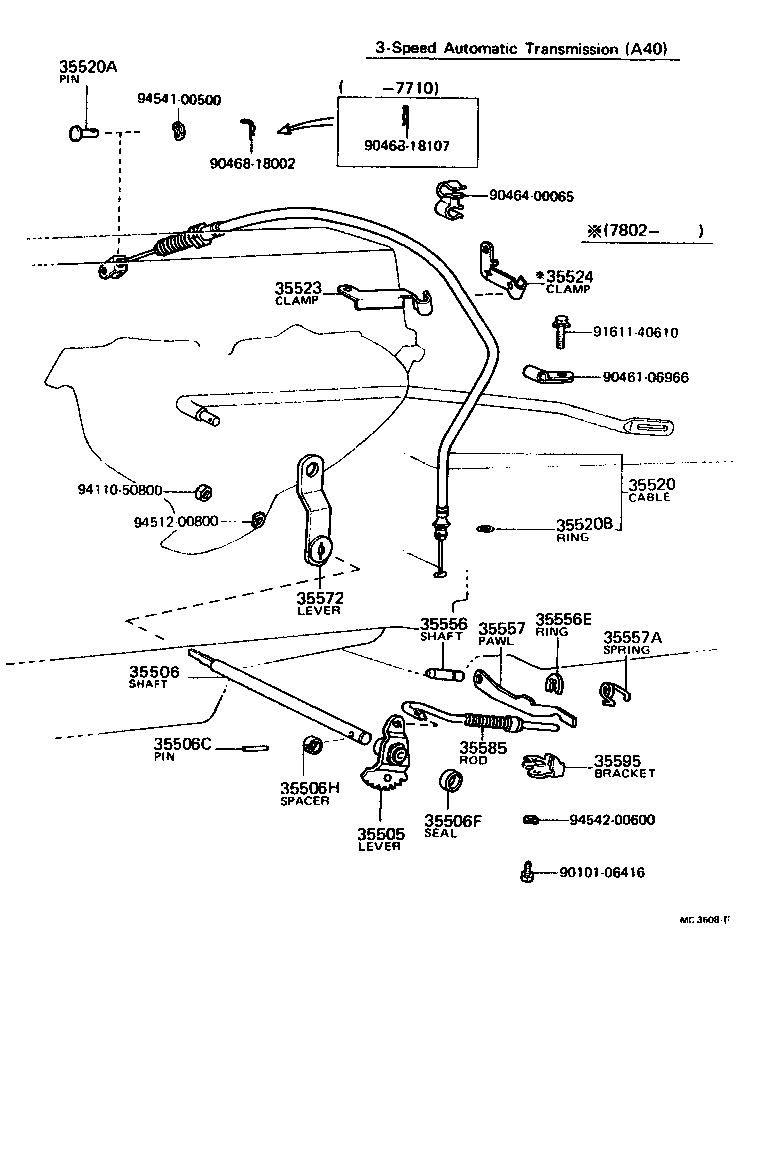

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506H 35520 35520A 35520B 35523 35524 35556 35556E 35557 35557A 35572 35585 35595 9010106416 9046106966 9046400065 9046818002 9046818107 9161140610 9411050800 9451200800 9454100500 9454200600
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22010

TE3#,51..A40

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-20021

TE3#,51..A40

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-03044

TE3#,51..A40

 1
90254-03004

TE31,38,51..A40

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

TE3#,51..A40

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

TE31,38,51..A40

 1
35520 - CABLE ASSY, THROTTLE
35520-12050

TE31,38,51..A40

 1
35520-12032

TE3#,51..A40

 1
35520A - PIN, THROTTLE CABLE
90240-05139

TE3#,51..A40

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

TE3#,51..A40

 1
35523 - CLAMP, THROTTLE CABLE
35523-12022

TE31,38,51..A40

 1
35524 - CLAMP, THROTTLE CABLE, NO.2
35524-12010

TE31,38,51..A40..USA

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-22010

TE3#,51..A40

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

TE3#,51..A40

 1
35557 - PAWL, PARKING LOCK
35557-22010

TE3#,51..A40

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-25329

TE3#,51..A40

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-12020

TE3#,51..A40

 1
35585 - ROD, PARKING LOCK
35501-22010

TE3#,51..A40

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-22010

TE3#,51..A40

 1
Common parts
90101-06416
90461-06966
90464-00065
90468-18002
90468-18107
91611-40610
94110-50800
94512-00800
94541-00500
94542-00600
