TE38LV-MDFA (1974)
Toyota Corolla
Production
Nov 1974
-
Aug 1979
Engine
2TC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7701)TE3#,51

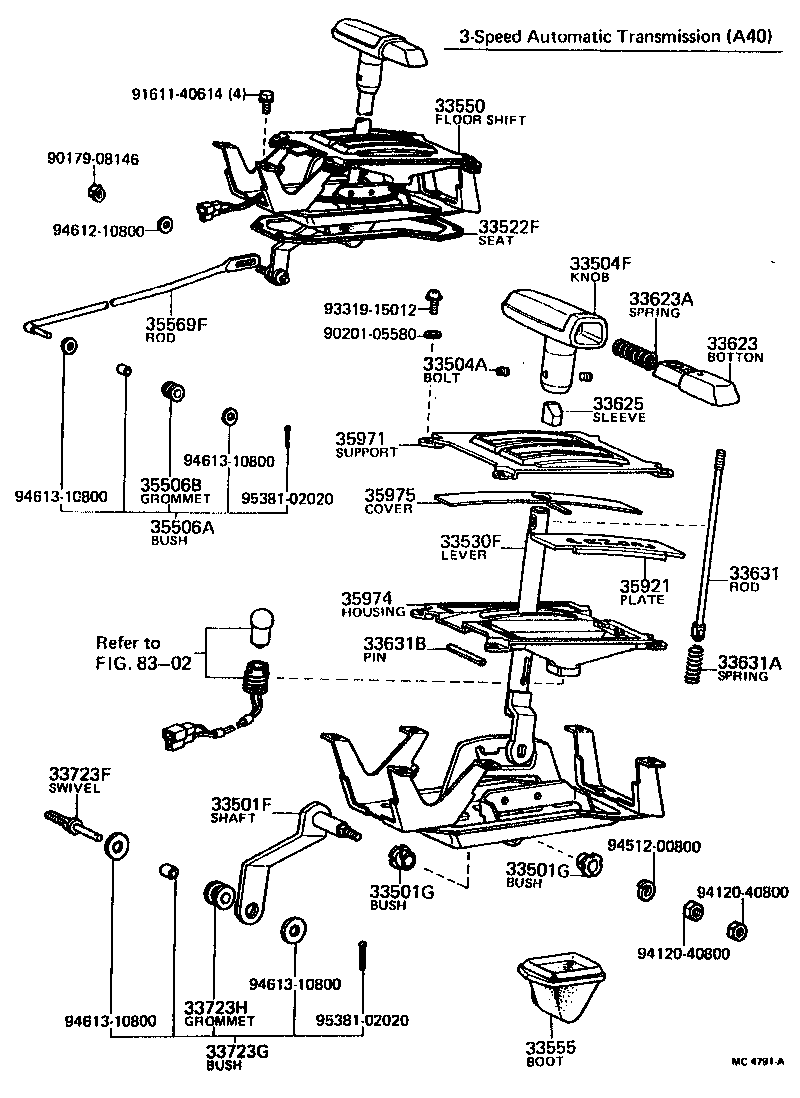

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12110 |
TE37,38,51..T50..DLX WOODEN GRAIN |
1 | ||
| 33504-12100 |
TE3#..T50 BLACK |
1 | ||
| 33504-12100 |
TE31,38..T50 BLACK |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12151 |
TE3#..T50 |
1 | ||
| 33530-12152 |
TE3#,51..T50 |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14010 |
TE3#,51..MTM |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90201-05580 | ||||
| 91611-40614 | ||||
| 93319-15012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
(7408-7908)TE3#,51
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33255 - PLATE, SELECT RETURN | ||||
| 33255-14011 |
TE3#,51..MTM |
1 | ||
| 33255A - BOLT, SELECT RETURN PLATE SET | ||||
| 33267-14010 |
TE3#,51..MTM |
1 | ||
| 33255B - BALL, SELECT RETURN PLATE | ||||
| 90360-10003 |
TE3#,51..MTM |
1 | ||
| 33255C - SPRING, SELECT RETURN PLATE BALL | ||||
| 90501-16041 |
TE3#,51..MTM |
1 | ||
| 33258 - SEAT, SELECT RETURN SPRING | ||||
| 33258-14010 |
TE3#,51..MTM |
2 | ||
| 33258 - SEAT, SELECT RETURN SPRING | ||||
| 33258-14010 |
TE3#,51..MTM |
2 | ||
| 33258A - SPRING, SELECT RETURN | ||||
| 90501-14583 |
TE3#,51..MTM |
1 | ||
| 33262 - SHAFT, SELECT RETURN | ||||
| 33262-14010 |
TE3#,51..MTM |
1 | ||
| 33262A - BUSH, SELECT RETURN | ||||
| 33256-14010 |
TE3#,51..MTM |
1 | ||
| 33262B - GASKET (FOR SELECT RETURN SHAFT) | ||||
| 90430-13201 |
TE3#,51..MTM |
2 | ||
| 33262B - GASKET (FOR SELECT RETURN SHAFT) | ||||
| 90430-13201 |
TE3#,51..MTM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12110 |
TE37,38,51..T50..DLX WOODEN GRAIN |
1 | ||
| 33504-12100 |
TE3#..T50 BLACK |
1 | ||
| 33504-12100 |
TE31,38..T50 BLACK |
1 | ||
| 33506C - PIN, SHIFT LEVER RETAINER RING | ||||
| 90253-11001 |
TE3#,51..MTM |
2 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-14011 |
TE3#,51..MTM |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12151 |
TE3#..T50 |
1 | ||
| 33530-12152 |
TE3#,51..T50 |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14010 |
TE3#,51..MTM |
1 | ||
| 33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT) | ||||
| 33584-14010 |
TE3#,51..MTM |
1 | ||
| 33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2 | ||||
| 33599-14010 |
TE3#,51..MTM |
1 | ||
| Common parts | ||||
| 90159-60212 | ||||
| 91611-40832 | ||||
(7701-7908)TE3#,51
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12110 |
TE37,38,51..T50..DLX WOODEN GRAIN |
1 | ||
| 33504-12100 |
TE3#..T50 BLACK |
1 | ||
| 33504-12100 |
TE31,38..T50 BLACK |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12151 |
TE3#..T50 |
1 | ||
| 33530-12152 |
TE3#,51..T50 |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-14010 |
TE3#,51..MTM |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90201-05580 | ||||
| 91611-40614 | ||||
| 93319-15012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| Linked diagrams | ||||
| 8302 | ||||
