TE38LV-KDFK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)TE38

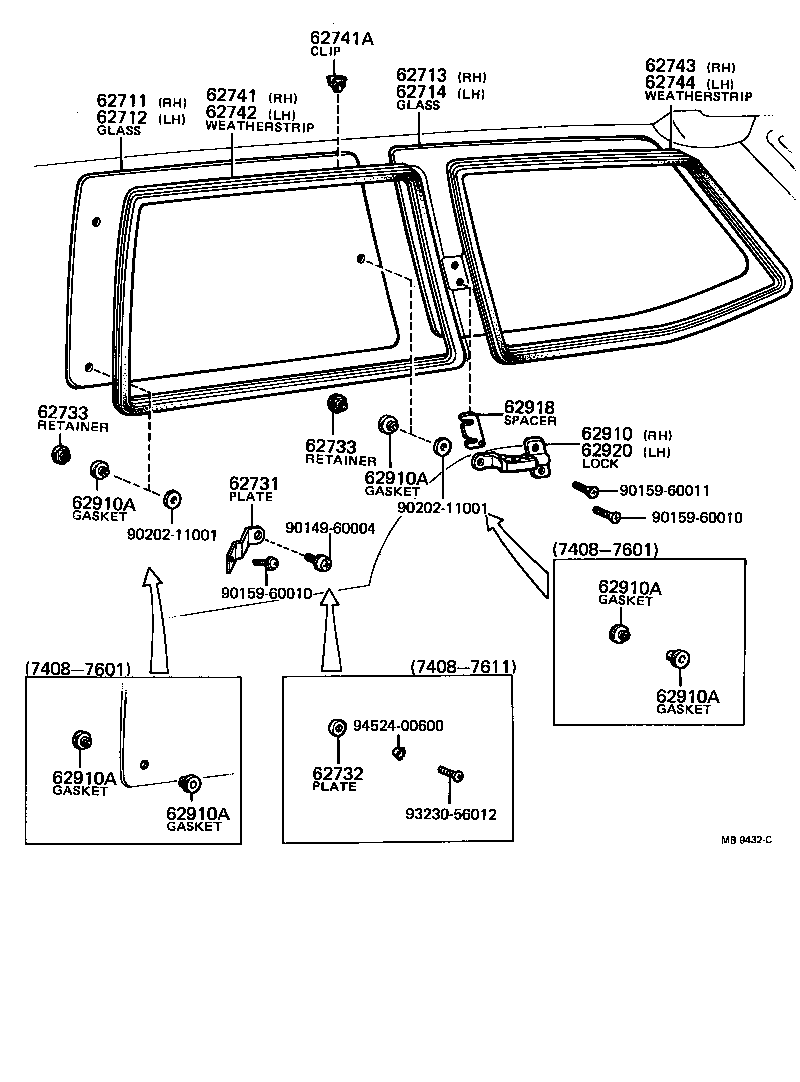

Click highlighted areas on diagram

diagram 62711 62712 62713 62714 62731 62732 62733 62733 62741 62741A 62742 62743 62744 62910 62910A 62910A 62910A 62910A 62910A 62910A 62918 62920 9014960004 9015960010 9015960010 9015960011 9020211001 9020211001 9323056012 9452400600
Part # Description Qty Price
62713 - GLASS, QUARTER WINDOW, REAR RH
62713-13060

TE38

TP.T=4.0

 1
62714 - GLASS, QUARTER WINDOW, REAR LH
62714-13060

TE38

TP.T=4.0

 1
62743 - WEATHERSTRIP, QUARTER WINDOW, REAR RH
62743-13040

TE38

 1
62744 - WEATHERSTRIP, QUARTER WINDOW, REAR LH
62744-13040

TE38

 1
Common parts
90149-60004
90159-60010
90159-60011
90202-11001
93230-56012
94524-00600
