TE38LV-KDFK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)TE3#,51..MTM

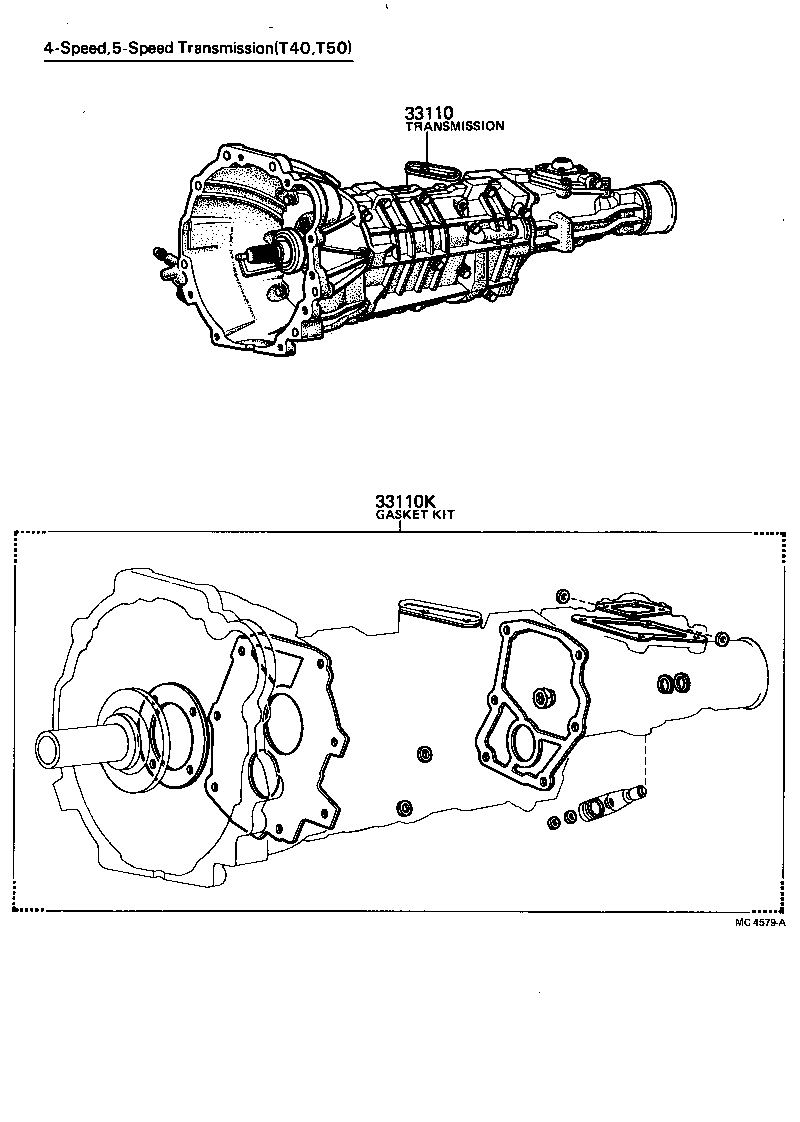

Click highlighted areas on diagram

diagram 33110 33110K
Part # Description Qty Price
33110 - TRANSMISSION ASSY, MANUAL
33020-12170

TE3#..T40

SMG.R=21:6

 1
33030-14141

TE31,38,51..T40

SMG.=6,DIFF.R=43:11

 1
33110K - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-14011

TE3#,51..MTM

 1
