TE38LV-KDFK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7908)2TC

Click highlighted areas on diagram

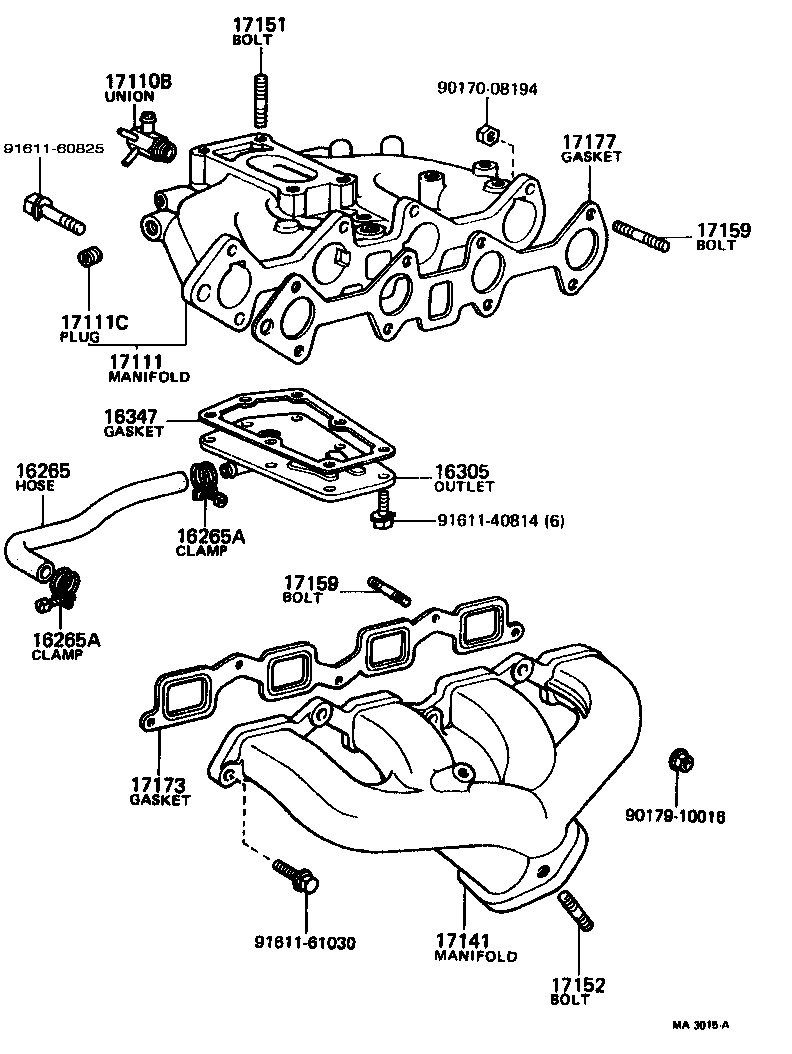

diagram 16265 16265A 16265A 16305 16347 17110B 17111 17111C 17141 17151 17152 17159 17159 17173 17177 9017008194 9017910016 9161140814 9161160825 9161161030
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
90445-21611

2TC..TE3#,51..CND

 1
16261-26010

2TC..TE3#,51

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
96111-10220

2TC..TE3#,51

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
96111-10220

2TC..TE3#,51

 2
16305 - OUTLET SUB-ASSY, WATER BY-PASS
16305-25011

2TC..TE3#,51

 1
16347 - GASKET, WATER BY-PASS
16347-25011

2TC..TE3#,51

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-10327

2TC..TE3#

L/HOT AIR INTAKE

 1
90404-10330

2TC..TE3#

 1
90404-53013

2TC..TE3#,51..MTM..CND

 1
17111 - MANIFOLD, INTAKE
17111-26020

2TC..TE3#,51

 1
17111-26051

2TC..TE3#,51..CND

 1
17141 - MANIFOLD, EXHAUST
17141-26061

2TC..TE3#,51..CND

 1
17141-26040

2TC..TE3#,51

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

2TC..TE3#

L=39,S=13&13

 8
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
92122-41022

2TC..TE3#

L=37,S=15

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08015

2TC..TE3#,51

L=37,S=13.5&13.5

 12
90116-08296

2TC..TE3#

L=34.5,S=12&9

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08015

2TC..TE3#,51

L=37,S=13.5&13.5

 12
90116-08296

2TC..TE3#

L=34.5,S=12&9

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-25010

2TC..TE3#,51

 1
17173-26010

2TC..TE3#,51..CND

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-25030

2TC..TE3#,51

 1
17177-25010

2TC..TE3#,51

 1
Common parts
90170-08194
90179-10016
91611-40814
91611-60825
91611-61030

(7708-7908)2TC

Click highlighted areas on diagram

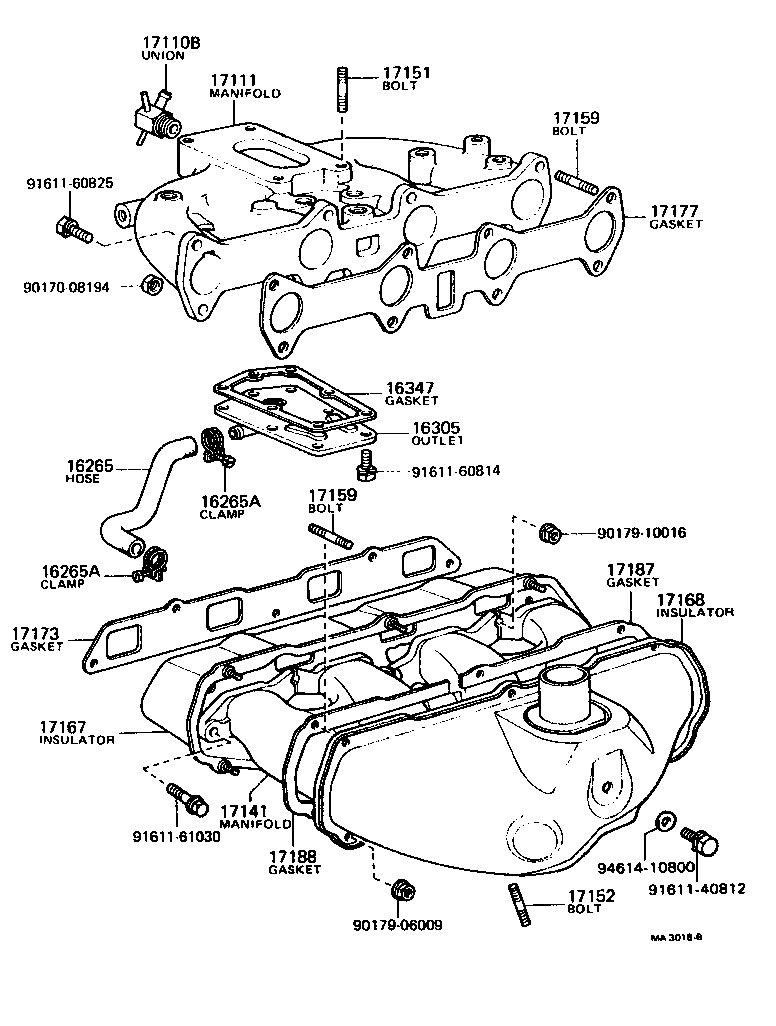

diagram 16265 16265A 16265A 16305 16347 17110B 17111 17141 17151 17152 17159 17159 17167 17168 17173 17177 17187 17188 9017008194 9017906009 9017910016 9161140812 9161160814 9161160825 9161161030 9461410800
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
90445-21611

2TC..TE3#,51..CND

 1
16261-26010

2TC..TE3#,51

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
96111-10220

2TC..TE3#,51

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
96111-10220

2TC..TE3#,51

 2
16305 - OUTLET SUB-ASSY, WATER BY-PASS
16305-25011

2TC..TE3#,51

 1
16347 - GASKET, WATER BY-PASS
16347-25011

2TC..TE3#,51

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-10327

2TC..TE3#

L/HOT AIR INTAKE

 1
90404-10330

2TC..TE3#

 1
90404-53013

2TC..TE3#,51..MTM..CND

 1
17111 - MANIFOLD, INTAKE
17111-26020

2TC..TE3#,51

 1
17111-26051

2TC..TE3#,51..CND

 1
17141 - MANIFOLD, EXHAUST
17141-26061

2TC..TE3#,51..CND

 1
17141-26040

2TC..TE3#,51

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

2TC..TE3#

L=39,S=13&13

 8
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
92122-41022

2TC..TE3#

L=37,S=15

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08015

2TC..TE3#,51

L=37,S=13.5&13.5

 12
90116-08296

2TC..TE3#

L=34.5,S=12&9

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08015

2TC..TE3#,51

L=37,S=13.5&13.5

 12
90116-08296

2TC..TE3#

L=34.5,S=12&9

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-26010

2TC..TE3#,51..CND

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17902-26011

2TC..TE3#,51..CND

 1
17902-26010

2TC..TE3#,51..CND

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-25010

2TC..TE3#,51

 1
17173-26010

2TC..TE3#,51..CND

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-25030

2TC..TE3#,51

 1
17177-25010

2TC..TE3#,51

 1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-26010

2TC..TE3#,51..CND

 1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-26010

2TC..TE3#,51..CND

 1
Common parts
90170-08194
90179-06009
90179-10016
91611-40812
91611-60814
91611-60825
91611-61030
94614-10800

(7708-7808)2TC

Click highlighted areas on diagram

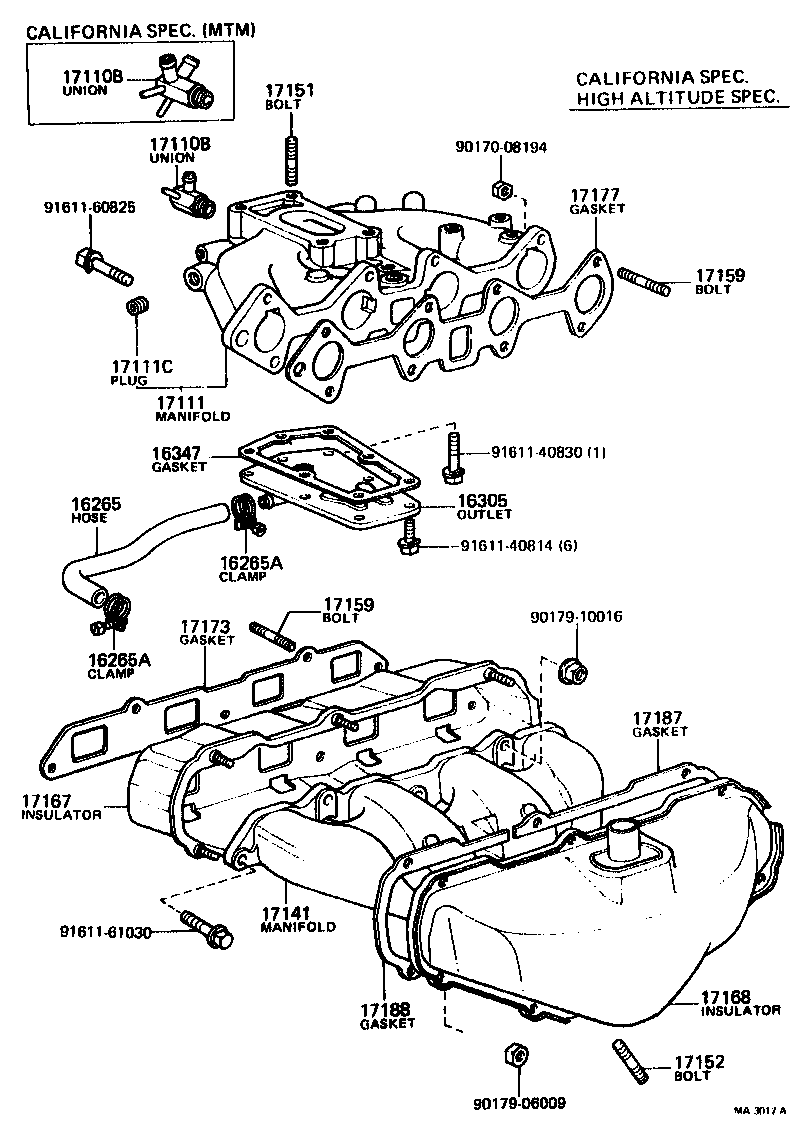

diagram 16265 16265A 16265A 16305 16347 17110B 17110B 17111 17111C 17141 17151 17152 17159 17159 17167 17168 17173 17177 17187 17188 9017008194 9017906009 9017910016 9161140814 9161140830 9161160825 9161161030
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
90445-21611

2TC..TE3#,51..CND

 1
16261-26010

2TC..TE3#,51

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
96111-10220

2TC..TE3#,51

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
96111-10220

2TC..TE3#,51

 2
16305 - OUTLET SUB-ASSY, WATER BY-PASS
16305-25011

2TC..TE3#,51

 1
16347 - GASKET, WATER BY-PASS
16347-25011

2TC..TE3#,51

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-10330

2TC..TE3#

 1
90404-10327

2TC..TE3#

L/HOT AIR INTAKE

 1
90404-53013

2TC..TE3#,51..MTM..CND

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-10327

2TC..TE3#

L/HOT AIR INTAKE

 1
90404-10330

2TC..TE3#

 1
90404-53013

2TC..TE3#,51..MTM..CND

 1
17111 - MANIFOLD, INTAKE
17111-26020

2TC..TE3#,51

 1
17111-26051

2TC..TE3#,51..CND

 1
17141 - MANIFOLD, EXHAUST
17141-26061

2TC..TE3#,51..CND

 1
17141-26040

2TC..TE3#,51

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

2TC..TE3#

L=39,S=13&13

 8
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
92122-41022

2TC..TE3#

L=37,S=15

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08015

2TC..TE3#,51

L=37,S=13.5&13.5

 12
90116-08296

2TC..TE3#

L=34.5,S=12&9

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08015

2TC..TE3#,51

L=37,S=13.5&13.5

 12
90116-08296

2TC..TE3#

L=34.5,S=12&9

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-26010

2TC..TE3#,51..CND

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17902-26011

2TC..TE3#,51..CND

 1
17902-26010

2TC..TE3#,51..CND

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-25010

2TC..TE3#,51

 1
17173-26010

2TC..TE3#,51..CND

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-25030

2TC..TE3#,51

 1
17177-25010

2TC..TE3#,51

 1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-26010

2TC..TE3#,51..CND

 1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-26010

2TC..TE3#,51..CND

 1
Common parts
90170-08194
90179-06009
90179-10016
91611-40814
91611-40830
91611-60825
91611-61030
