TE38LV-KDFA (1974)
Toyota Corolla

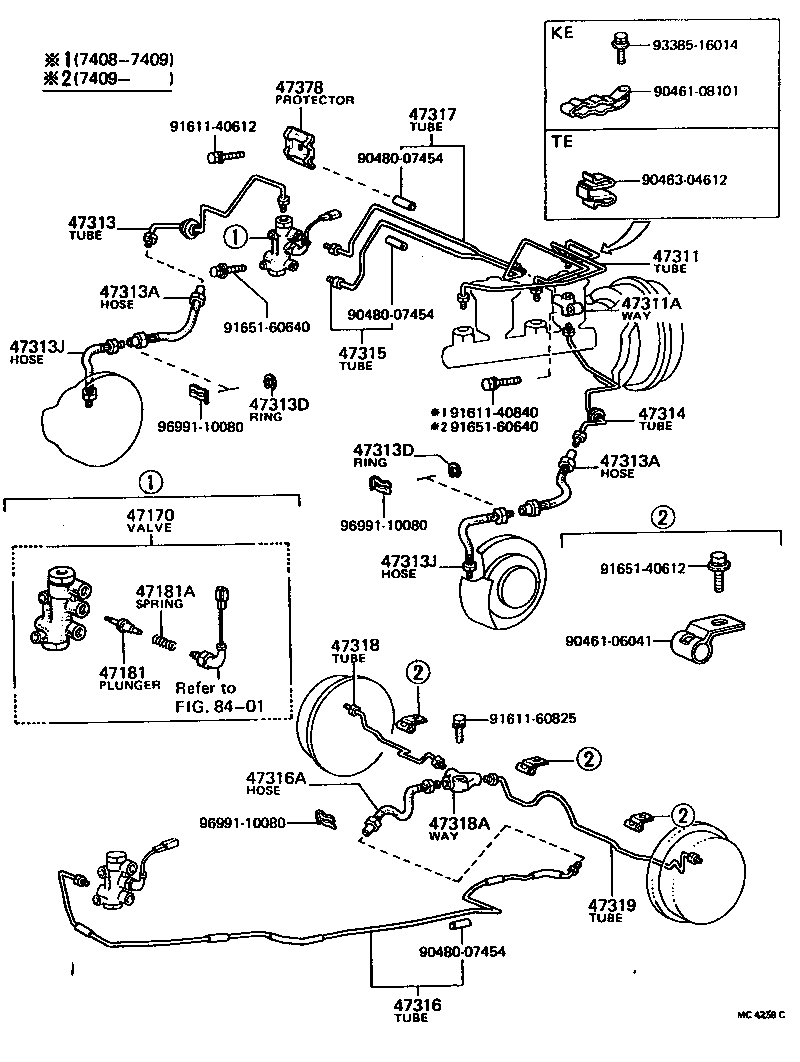

(7601-7908)TE3#,51 ; (7608-7708)KE30..USA ; (7708-7908)KE30..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47170 - VALVE ASSY, BRAKE COMBINATION | ||||
| 47170-12021 |
TE3#,51;KE30..USA |
1 | ||
| 47170-12010 |
TE3#,51 |
1 | ||
| 47170-14030 |
TE31;KE30,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 47181 - PLUNGER, DIFFERENTIAL SWITCH | ||||
| 47181-12010 |
TE31;KE30,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 47181-12010 |
TE3#,51;KE30..USA |
1 | ||
| 47181A - SPRING, COMPRESSION(FOR DIFFERENTIAL VALVE SWITCH) | ||||
| 90501-05002 |
TE31;KE30,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 90501-05002 |
TE3#,51;KE30..USA |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12290 |
TE3#,51 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10148 |
KE3#,50,TE3#,51 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12101 |
TE3#,51;KE30..USA |
1 | ||
| 47313-12080 |
KE3#,TE3# |
1 | ||
| 47313-12100 |
TE31;KE30,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 47313-12100 |
KE3#,TE3#,51 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02259 |
KE3#,50,TE3#,51 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02259 |
KE3#,50,TE3#,51 |
2 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KE3#,50,TE3#,51 |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KE3#,50,TE3#,51 |
4 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02260 |
KE3#,50,TE3#,51 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02260 |
KE3#,50,TE3#,51 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12090 |
KE3#,50,TE3#,51 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12210 |
TE3#,51 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-13130 |
TE38 |
1 | ||
| 47316-13131 |
TE38 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33005 |
KE30,50,TE3#,51 |
1 | ||
| 96940-31305 |
KE3#,TE3# |
1 | ||
| 96940-30305 |
KE3#,50,TE3#,51 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47312-12010 |
TE31;KE30,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 47312-12010 |
KE3#,TE3#,51 |
1 | ||
| 47312-12010 |
TE3#,51;KE30..USA |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12100 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 47318-12101 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10139 |
KE3#,TE3#,51 |
1 | ||
| 90413-10029 |
KE3#,50,TE3#,51 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-12100 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 47319-12101 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-12020 |
KE3#,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90461-06041 | ||||
| 90461-08101 | ||||
| 90463-04612 | ||||
| 90480-07454 | ||||
| 91611-40612 | ||||
| 91611-40840 | ||||
| 91611-60825 | ||||
| 91651-40612 | ||||
| 91651-60640 | ||||
| 93385-16014 | ||||
| 96991-10080 | ||||
| Linked diagrams | ||||
| 8401 | ||||

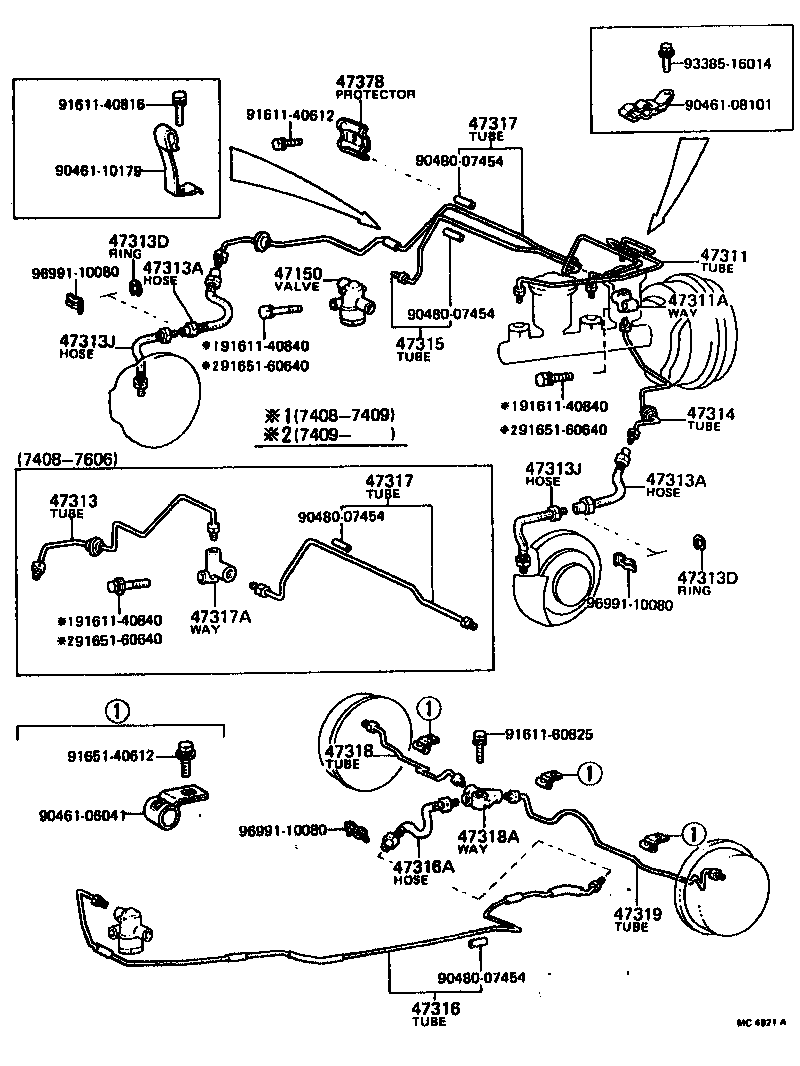

(7408-7601) ; (7601-7708)KE3#,50..DLX,STD ; (7708-7908)KE30,50..CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12030 |
KE3#,TE3# |
1 | ||
| 47150-12031 |
KE3#,TE3# |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12290 |
TE3#,51 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10148 |
KE3#,50,TE3#,51 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12101 |
TE3#,51;KE30..USA |
1 | ||
| 47313-12080 |
KE3#,TE3# |
1 | ||
| 47313-12100 |
TE31;KE30,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 47313-12100 |
KE3#,TE3#,51 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02259 |
KE3#,50,TE3#,51 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02259 |
KE3#,50,TE3#,51 |
2 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KE3#,50,TE3#,51 |
4 | ||
| 47313D - RING, E(FOR FRONT FLEXIBLE HOSE SETTING) | ||||
| 96160-01200 |
KE3#,50,TE3#,51 |
4 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02260 |
KE3#,50,TE3#,51 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02260 |
KE3#,50,TE3#,51 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12090 |
KE3#,50,TE3#,51 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12210 |
TE3#,51 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-13130 |
TE38 |
1 | ||
| 47316-13131 |
TE38 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33005 |
KE30,50,TE3#,51 |
1 | ||
| 96940-31305 |
KE3#,TE3# |
1 | ||
| 96940-30305 |
KE3#,50,TE3#,51 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47312-12010 |
TE31;KE30,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 47312-12010 |
KE3#,TE3#,51 |
1 | ||
| 47312-12010 |
TE3#,51;KE30..USA |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47312-12010 |
TE31;KE30,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 47312-12010 |
KE3#,TE3#,51 |
1 | ||
| 47312-12010 |
TE3#,51;KE30..USA |
1 | ||
| 47317A - WAY(FOR BRAKE TUBE) | ||||
| 90412-10082 |
KE3#,TE3# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12100 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 47318-12101 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10139 |
KE3#,TE3#,51 |
1 | ||
| 90413-10029 |
KE3#,50,TE3#,51 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-12100 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 47319-12101 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-12020 |
KE3#,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90461-06041 | ||||
| 90461-08101 | ||||
| 90461-10179 | ||||
| 90480-07454 | ||||
| 91611-40612 | ||||
| 91611-40816 | ||||
| 91611-40840 | ||||
| 91611-60825 | ||||
| 91651-40612 | ||||
| 91651-60640 | ||||
| 93385-16014 | ||||
| 96991-10080 | ||||
