TE38LV-KDA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1976
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)

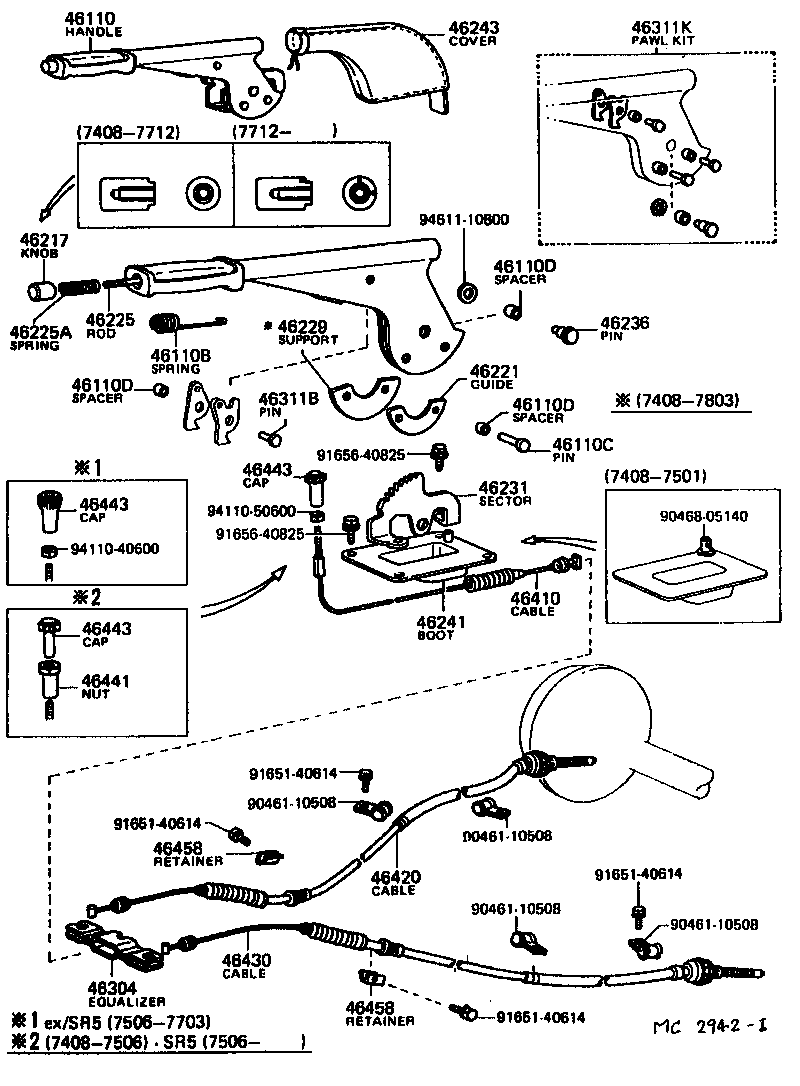

Click highlighted areas on diagram

diagram 46110 46110B 46110C 46110D 46110D 46110D 46217 46221 46225 46225A 46229 46231 46236 46241 46243 46304 46311B 46311K 46410 46420 46430 46441 46443 46443 46443 46458 46458 9046110508 9046110508 9046110508 9046110508 9046805140 9165140614 9165140614 9165140614 9165140614 9165640825 9165640825 9411040600 9411050600 9461110800
Part # Description Qty Price
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46201-1202001

KE3#,50,TE3#,51

BLACK,BLACK

 1
46110B - SPRING, TENSION(FOR PARKING BRAKE HANDLE)
90507-08001

KE3#,50,TE3#,51

 1
46110C - PIN(FOR PARKING BRAKE HANDLE SET)
90243-06018

KE3#,50,TE3#,51

 2
46110D - SPACER(FOR PARKING BRAKE HANDLE)
90560-06201

KE3#,50,TE3#,51

L=6,ID=6.7

 2
90560-10200

KE3#,50,TE3#,51

L=6.2,ID=10

 1
90560-06195

KE3#,50,TE3#,51

L=6,ID=6

 1
46110D - SPACER(FOR PARKING BRAKE HANDLE)
90560-06201

KE3#,50,TE3#,51

L=6,ID=6.7

 2
90560-10200

KE3#,50,TE3#,51

L=6.2,ID=10

 1
90560-06195

KE3#,50,TE3#,51

L=6,ID=6

 1
46110D - SPACER(FOR PARKING BRAKE HANDLE)
90560-06201

KE3#,50,TE3#,51

L=6,ID=6.7

 2
90560-10200

KE3#,50,TE3#,51

L=6.2,ID=10

 1
90560-06195

KE3#,50,TE3#,51

L=6,ID=6

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-10013

KE3#,50,TE3#,51

 1
46221 - GUIDE, PARKING BRAKE CABLE
46221-12010

KE3#,50,TE3#,51

 1
46225 - ROD, PARKING BRAKE PAWL RELEASE
46225-12012

KE3#,50,TE3#,51

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-12160

KE3#,50,TE3#,51

 1
46229 - SUPPORT, PARKING BRAKE CABLE GUIDE
46229-12010

KE3#,50,TE3#,51

 1
46231 - SECTOR, PARKING BRAKE LEVER
46231-12020

KE3#,50,TE3#,51

 1
46236 - PIN, LEVER PIVOT
46236-12010

KE3#,50,TE3#,51

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-12020

KE3#,50,TE3#,51

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-12010

KE3#,50,TE3#,51

 1
46311B - PIN, PARKING BRAKE PAWL PIVOT
90243-06017

KE3#,50,TE3#,51

 1
46311K - PAWL KIT, PARKING BRAKE
04461-12010

KE3#,50,TE3#,51

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-14020

KE3#,50,TE3#,51

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12140

TE3#..DLX,STD

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12060

TE51..CP..T40;TE3#..DLX,SPL,STD;TE51..(A40,T50)..DLX

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-14010

KE3#,TE3#

 1
46443 - CAP, CABLE ADJUSTING
46443-14010

KE3#,TE3#

 1
46443 - CAP, CABLE ADJUSTING
46443-14010

KE3#,TE3#

 1
46443 - CAP, CABLE ADJUSTING
46443-14010

KE3#,TE3#

 1
46458 - RETAINER, CABLE
46458-20020

KE3#,50,TE3#,51

 2
46458 - RETAINER, CABLE
46458-20020

KE3#,50,TE3#,51

 2
Common parts
90461-10508
90468-05140
91651-40614
91656-40825
94110-40600
94110-50600
94611-10800
