TE38LV-KDA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1976
Engine 2TC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7508)2TC

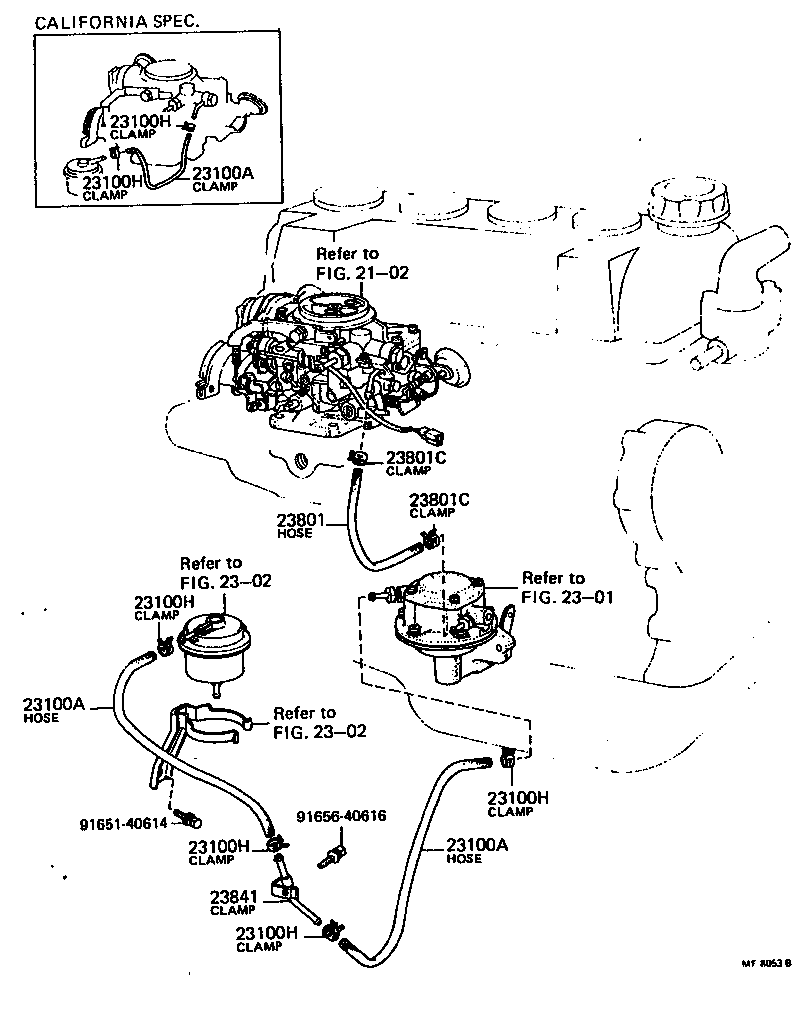

Click highlighted areas on diagram

diagram 2102 2301 2302 2302 23100A 23100A 23100A 23100H 23100H 23100H 23100H 23100H 23100H 23801 23801C 23801C 23841 9165140614 9165640616
Part # Description Qty Price
23100A - HOSE, FUEL
90445-12034

2TC..TE3#

CALIFORNIA SPEC.

 1
95331-06019

2TC..TE3#

L=190,FOR CLAMP TO PUMP

 1
95331-06026

2TC..TE3#

L=260,FOR CLAMP TO PUMP

 1
95331-06034

2TC..TE3#

L=340,FOR FILTER TO CLAMP

 1
23100A - HOSE, FUEL
90445-12034

2TC..TE3#

CALIFORNIA SPEC.

 1
95331-06019

2TC..TE3#

L=190,FOR CLAMP TO PUMP

 1
95331-06026

2TC..TE3#

L=260,FOR CLAMP TO PUMP

 1
95331-06034

2TC..TE3#

L=340,FOR FILTER TO CLAMP

 1
23100A - HOSE, FUEL
90445-12034

2TC..TE3#

CALIFORNIA SPEC.

 1
95331-06019

2TC..TE3#

L=190,FOR CLAMP TO PUMP

 1
95331-06026

2TC..TE3#

L=260,FOR CLAMP TO PUMP

 1
95331-06034

2TC..TE3#

L=340,FOR FILTER TO CLAMP

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2TC..TE3#,51

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2TC..TE3#,51

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2TC..TE3#,51

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2TC..TE3#,51

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2TC..TE3#,51

 4
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2TC..TE3#,51

 4
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95331-06026

2TC..TE3#,51

*H,L=260

 1
95332-06032

2TC..TE3#,51

*H,L=320,CALIFARNIA SPEC

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2TC..TE3#,51

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2TC..TE3#,51

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-25011

2TC..TE3#

 1
Common parts
91651-40614
91656-40616
Linked diagrams
2102
2301
2302
