TE38LV-HDFK (1977)

Toyota Corolla

Production Aug 1977 - Aug 1979
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7803-7908)2TC

Click highlighted areas on diagram

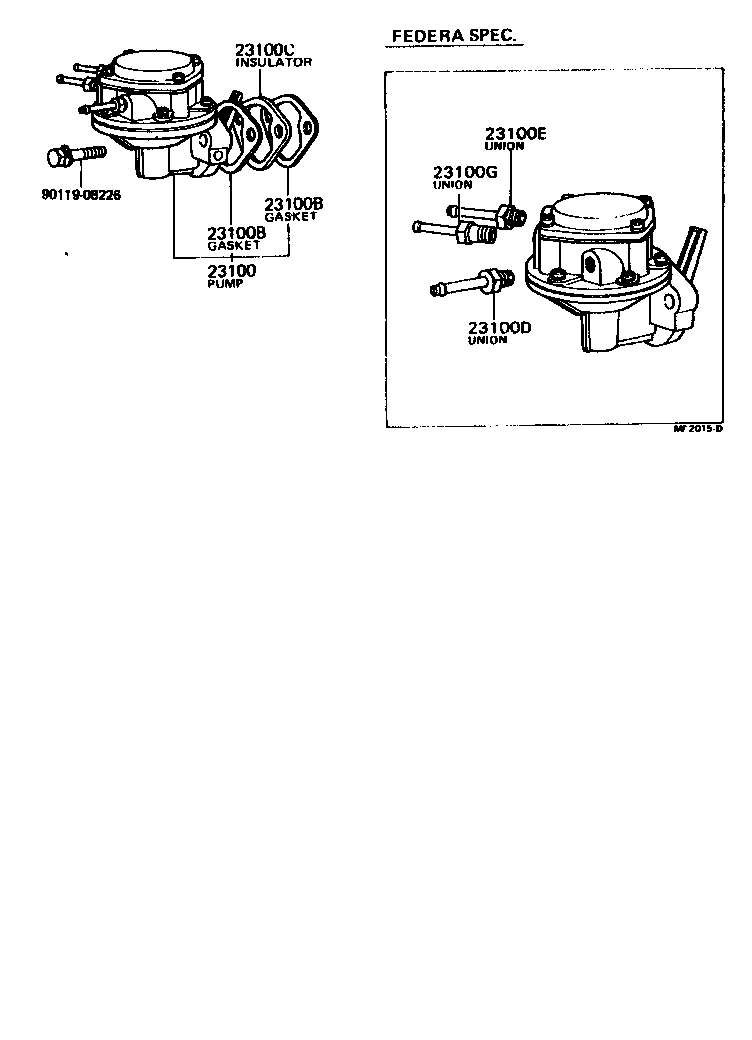

diagram 23100 23100B 23100B 23100C 23100D 23100E 23100G 9011908226
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-29145

2TC..TE3#,51

 1
23100-29165

2TC..TE38

CALIFORNIA SPEC.

 1
23100-29215

2TC..TE3#,51..CND

 1
23100B - GASKET, FUEL PUMP
90923-05005

2TC..TE3#,51

 2
23100B - GASKET, FUEL PUMP
90923-05005

2TC..TE3#,51

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

2TC..TE3#,51

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-51266

2TC..TE3#,51

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-34030

2TC..TE3#,51

 1
90404-51244

2TC..TE3#,51

 1
Common parts
90119-08226
