TE38LV-HDFA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1979
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7701-7908)

Click highlighted areas on diagram

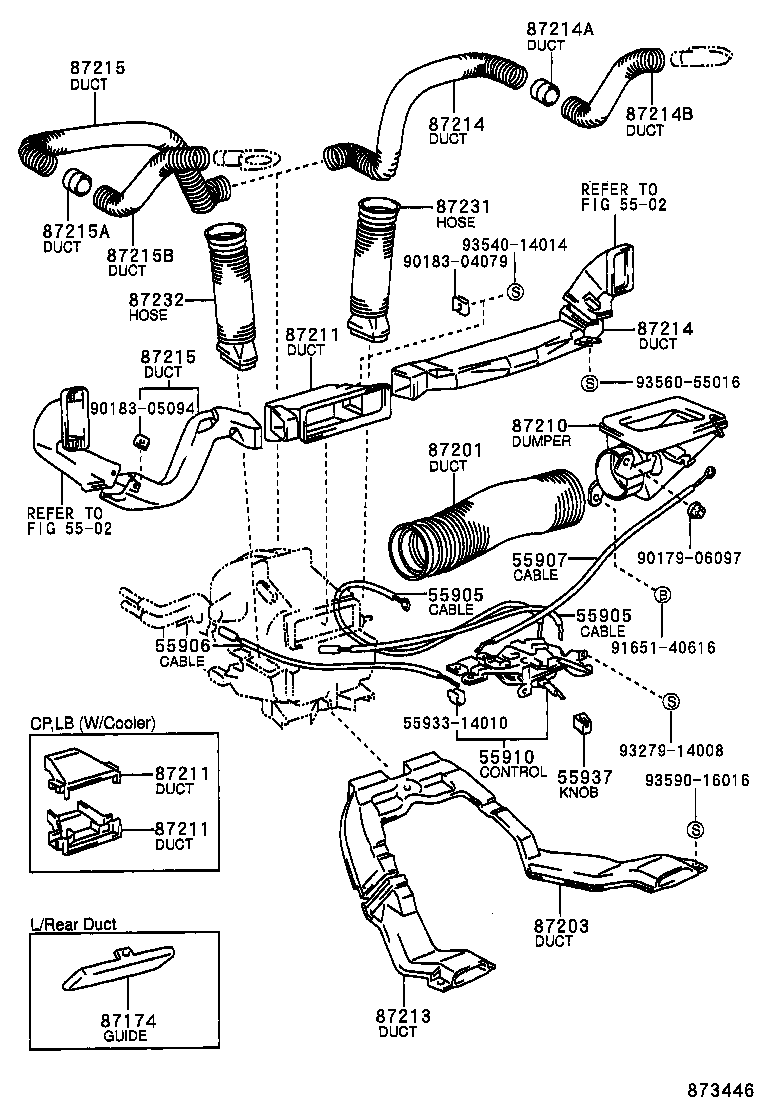

diagram 5502 5502 55905 55905 55906 55907 55910 5593314010 55937 87174 87201 87203 87210 87211 87211 87211 87213 87214 87214 87214A 87214B 87215 87215 87215A 87215B 87231 87232 9017906097 9018304079 9018305094 9165140616 9327914008 9354014014 9356055016 9359016016
Part # Description Qty Price
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55906-12040

KE3#,TE3#

FOR DEFROSTER DUMPER

 1
55906-12110

KE3#,TE3#

FOR DEFROSTER DUMPER

 1
55909-12040

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55909-12071

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55909-12070

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55906-12040

KE3#,TE3#

FOR DEFROSTER DUMPER

 1
55906-12110

KE3#,TE3#

FOR DEFROSTER DUMPER

 1
55909-12040

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55909-12071

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55909-12070

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55907-12040

KE3#,TE3#

 1
55907-12041

KE3#,TE3#

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55908-12070

KE3#,TE3#

 1
55908-12071

KE3#,TE3#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12915

KE3#,TE3#

 1
55910-12912

KE3#,TE3#

 1
55910-12924

KE3#,TE3#

 1
55910-12919

KE3#,TE3#

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-12040

KE3#,50,TE3#,51

 2
87174 - GUIDE, AIR DUCT
87174-12060

KE30,TE3#,51..DLX,SPL,SR5

 1
87174-12060

KE30,TE3#,51..USA

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-12020

KE3#,50,TE3#,51

 1
87203 - DUCT, HEATER AIR, REAR NO.1
87212-12020

KE3#,TE3#

 1
87212-1202006

KE3#,TE3#,51

BROWN,BROWN

 1
87212-1202001

KE3#,TE3#,51

BLACK,BLACK

 1
87212-1202011

KE3#,50,TE3#,51

BLACK,BLACK

 1
87212-1202016

KE3#,50,TE3#,51

BROWN,BROWN

 1
87210 - DAMPER ASSY, AIR
87210-12020

KE3#,50,TE3#,51

 1
87211 - DUCT, AIR, NO.1
55076-12040

KE3#,TE3#

 1
88575-12010

KE30,TE3#

FOR COOLER

 1
87211 - DUCT, AIR, NO.1
55076-12040

KE3#,TE3#

 1
88575-12010

KE30,TE3#

FOR COOLER

 1
87211 - DUCT, AIR, NO.1
55076-12040

KE3#,TE3#

 1
88575-12010

KE30,TE3#

FOR COOLER

 1
87213 - DUCT, AIR, REAR NO.2
87212-1203011

KE3#,50,TE3#,51

BLACK,BLACK

 1
87212-1203001

KE3#,TE3#,51

BLACK,BLACK

 1
87212-1203006

KE3#,TE3#,51

BROWN,BROWN

 1
87212-12030

KE3#,TE3#

 1
87212-1203016

KE3#,50,TE3#,51

BROWN,BROWN

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55972-12020

KE3#,TE3#

FOR RH.

 1
55845-12020

TE3#

FOR COOLER

 1
55972-12050

KE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
55845-12020

KE30,TE3#..USA

FOR COOLER

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55972-12020

KE3#,TE3#

FOR RH.

 1
55845-12020

TE3#

FOR COOLER

 1
55972-12050

KE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
55845-12020

KE30,TE3#..USA

FOR COOLER

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55973-12020

KE30..K40..2D..USA;KE3#,50,TE3#,51..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
87214B - DUCT, AIR, SIDE NO.3 RH
55971-12040

KE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55084-12020

KE30,TE3#..USA

FOR COOLER

 1
55972-12050

KE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
55971-12010

KE3#,TE3#

FOR LH.

 1
55972-12050

KE30..K40..2D..USA;KE3#,50,TE3#,51..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
55084-12020

TE3#

FOR COOLER

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55084-12020

KE30,TE3#..USA

FOR COOLER

 1
55972-12050

KE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
55971-12010

KE3#,TE3#

FOR LH.

 1
55972-12050

KE30..K40..2D..USA;KE3#,50,TE3#,51..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
55084-12020

TE3#

FOR COOLER

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55973-12020

KE30..K40..2D..USA;KE3#,50,TE3#,51..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
87215B - DUCT, AIR, SIDE NO.3 LH
55971-12040

KE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-12051

KE3#,50,TE3#,51

 1
87231-12050

KE3#,TE3#,51

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-12050

KE3#,TE3#,51

 1
87231-12051

KE3#,50,TE3#,51

 1
Common parts
55933-14010
90179-06097
90183-04079
90183-05094
91651-40616
93279-14008
93540-14014
93560-55016
93590-16016
Linked diagrams
5502

(7408-7701)

Click highlighted areas on diagram

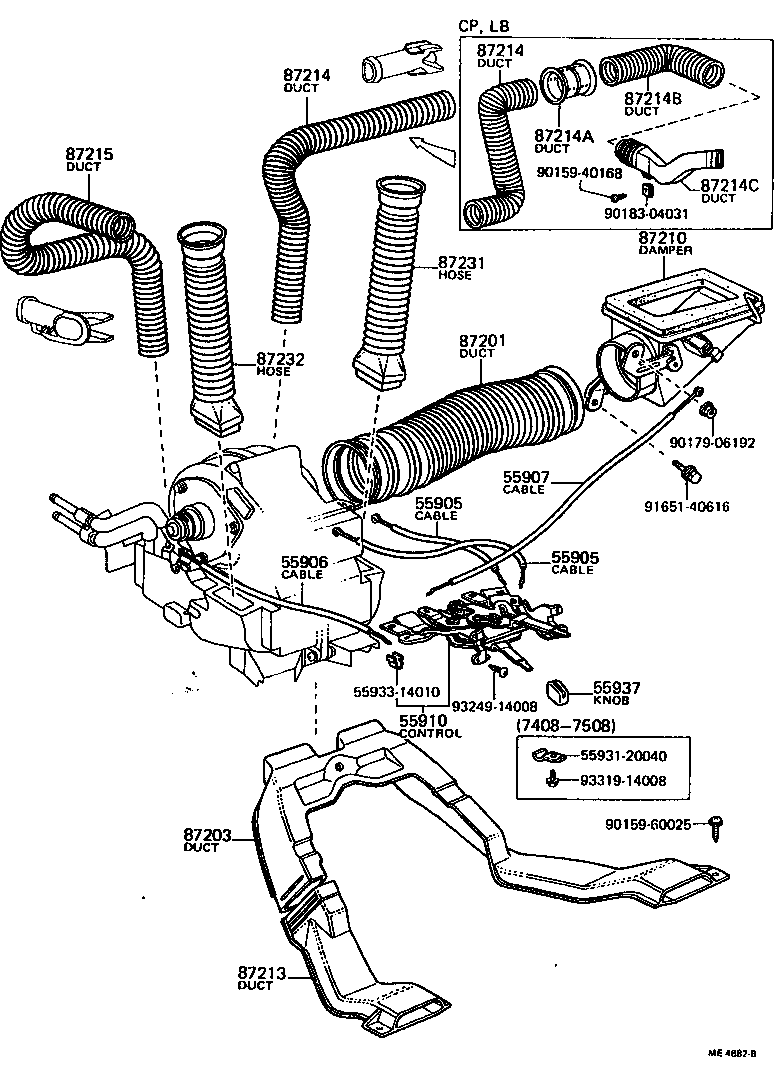

diagram 55905 55905 55906 55907 55910 5593120040 5593314010 55937 87201 87203 87210 87213 87214 87214 87214A 87214B 87214C 87215 87231 87232 9015940168 9015960025 9017906192 9018304031 9165140616 9324914008 9331914008
Part # Description Qty Price
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55906-12040

KE3#,TE3#

FOR DEFROSTER DUMPER

 1
55906-12110

KE3#,TE3#

FOR DEFROSTER DUMPER

 1
55909-12040

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55909-12071

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55909-12070

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55906-12040

KE3#,TE3#

FOR DEFROSTER DUMPER

 1
55906-12110

KE3#,TE3#

FOR DEFROSTER DUMPER

 1
55909-12040

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55909-12071

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55909-12070

KE3#,TE3#

FOR BOOST VENTILATOR DUMPER

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55907-12040

KE3#,TE3#

 1
55907-12041

KE3#,TE3#

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55908-12070

KE3#,TE3#

 1
55908-12071

KE3#,TE3#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12915

KE3#,TE3#

 1
55910-12912

KE3#,TE3#

 1
55910-12924

KE3#,TE3#

 1
55910-12919

KE3#,TE3#

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-12040

KE3#,50,TE3#,51

 2
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-12020

KE3#,50,TE3#,51

 1
87203 - DUCT, HEATER AIR, REAR NO.1
87212-12020

KE3#,TE3#

 1
87212-1202006

KE3#,TE3#,51

BROWN,BROWN

 1
87212-1202001

KE3#,TE3#,51

BLACK,BLACK

 1
87212-1202011

KE3#,50,TE3#,51

BLACK,BLACK

 1
87212-1202016

KE3#,50,TE3#,51

BROWN,BROWN

 1
87210 - DAMPER ASSY, AIR
87210-12020

KE3#,50,TE3#,51

 1
87213 - DUCT, AIR, REAR NO.2
87212-1203011

KE3#,50,TE3#,51

BLACK,BLACK

 1
87212-1203001

KE3#,TE3#,51

BLACK,BLACK

 1
87212-1203006

KE3#,TE3#,51

BROWN,BROWN

 1
87212-12030

KE3#,TE3#

 1
87212-1203016

KE3#,50,TE3#,51

BROWN,BROWN

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55972-12020

KE3#,TE3#

FOR RH.

 1
55845-12020

TE3#

FOR COOLER

 1
55972-12050

KE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
55845-12020

KE30,TE3#..USA

FOR COOLER

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55972-12020

KE3#,TE3#

FOR RH.

 1
55845-12020

TE3#

FOR COOLER

 1
55972-12050

KE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
55845-12020

KE30,TE3#..USA

FOR COOLER

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55973-12020

KE30..K40..2D..USA;KE3#,50,TE3#,51..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
87214B - DUCT, AIR, SIDE NO.3 RH
55971-12040

KE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55084-12020

KE30,TE3#..USA

FOR COOLER

 1
55972-12050

KE30..K40..2D..USA;KE3#,TE3#..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
55971-12010

KE3#,TE3#

FOR LH.

 1
55972-12050

KE30..K40..2D..USA;KE3#,50,TE3#,51..DLX,SR5,STD

FOR SIDE DEFROSTER

 1
55084-12020

TE3#

FOR COOLER

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-12051

KE3#,50,TE3#,51

 1
87231-12050

KE3#,TE3#,51

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-12050

KE3#,TE3#,51

 1
87231-12051

KE3#,50,TE3#,51

 1
Common parts
55931-20040
55933-14010
90159-40168
90159-60025
90179-06192
90183-04031
91651-40616
93249-14008
93319-14008
