TE38LV-HDFA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1979
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)4D

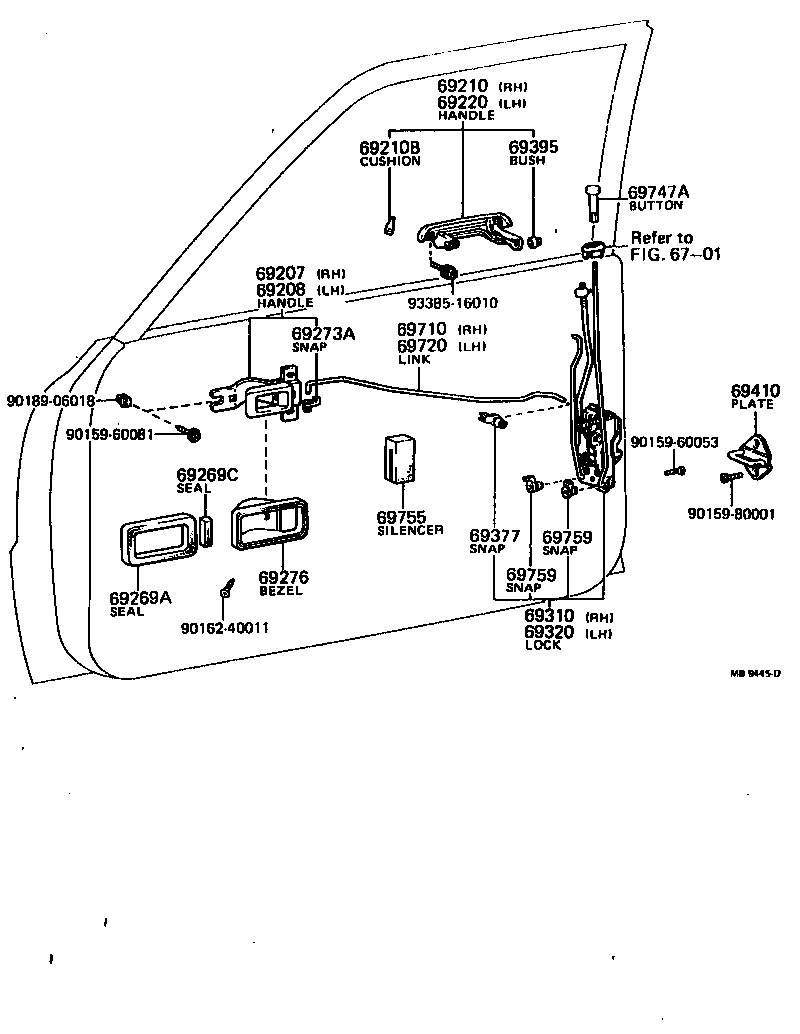

Click highlighted areas on diagram

diagram 6701 69207 69208 69210 69210B 69220 69269A 69269C 69273A 69276 69310 69320 69377 69395 69410 69710 69720 69747A 69755 69759 69759 9015960053 9015960081 9015980001 9016240011 9018906018 9338516010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69207-10010

KE30,TE31,38..4D

 1
69205-1204006

KE30,TE31,38..4D

BROWN,BROWN

 1
69205-1204004

KE30,TE31,38..4D

BLUE,BLUE

 1
69205-1204005

KE30,TE31,38..4D

BEIGE,BEIGE

 1
69205-1204004

TE31,38..4D..DLX

BLUE,BLUE

 1
69205-1204001

KE30,TE31,38..4D

BLACK,BLACK

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69208-10010

KE30,TE31,38..4D

 1
69206-1204001

KE30,TE31,38..4D

BLACK,BLACK

 1
69206-1204004

TE31,38..4D..DLX

BLUE,BLUE

 1
69206-1204006

KE30,TE31,38..4D

BROWN,BROWN

 1
69206-1204005

KE30,TE31,38..4D

BEIGE,BEIGE

 1
69206-1204004

KE30,TE31,38..4D

BLUE,BLUE

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-12030

KE3#,50,TE3#,51

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

KE3#,50,TE3#,51

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-12030

KE3#,50,TE3#,51

 1
69269A - SEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)
69269-12010

KE30,TE31,38..4D

FOR ARCTIC

 2
69269C - SEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69289-12010

KE3#,50,TE3#,51

FOR ARCTIC

 2
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69279-12010

KE30,TE31,38..4D

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-1001206

KE30,TE31,38..4D

BROWN,BROWN

 2
69276-10012

KE30,TE31,38..4D

 2
69276-1001201

KE30,TE31,38..4D

BLACK,BLACK

 2
69276-1001205

KE30,TE31,38..4D

BEIGE,BEIGE

 2
69276-1001204

KE30,TE31,38..4D

BLUE,BLUE

 2
69276-1001204

TE31,38..4D..DLX

BLUE,BLUE

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-12051

KE30,TE31,38..4D

 1
69310-12050

KE30,TE31,38..4D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-12051

KE30,TE31,38..4D

 1
69320-12050

KE30,TE31,38..4D

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

KE30,TE3#

 2
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69395-22010

KE3#,50,TE3#,51

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20050

KE3#,TE3#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-12020

KE30,TE31,38..4D

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-12020

KE30,TE31,38..4D

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69747-30012

KE30,TE31,38..4D

 2
69741-20020

KE30,TE31,38..4D

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-12011

KE3#,50,TE3#,51

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

KE30,TE3#

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

KE30,TE3#

 2
Common parts
90159-60053
90159-60081
90159-80001
90162-40011
90189-06018
93385-16010
Linked diagrams
6701
