TE38LV-HDA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1976
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)TE38

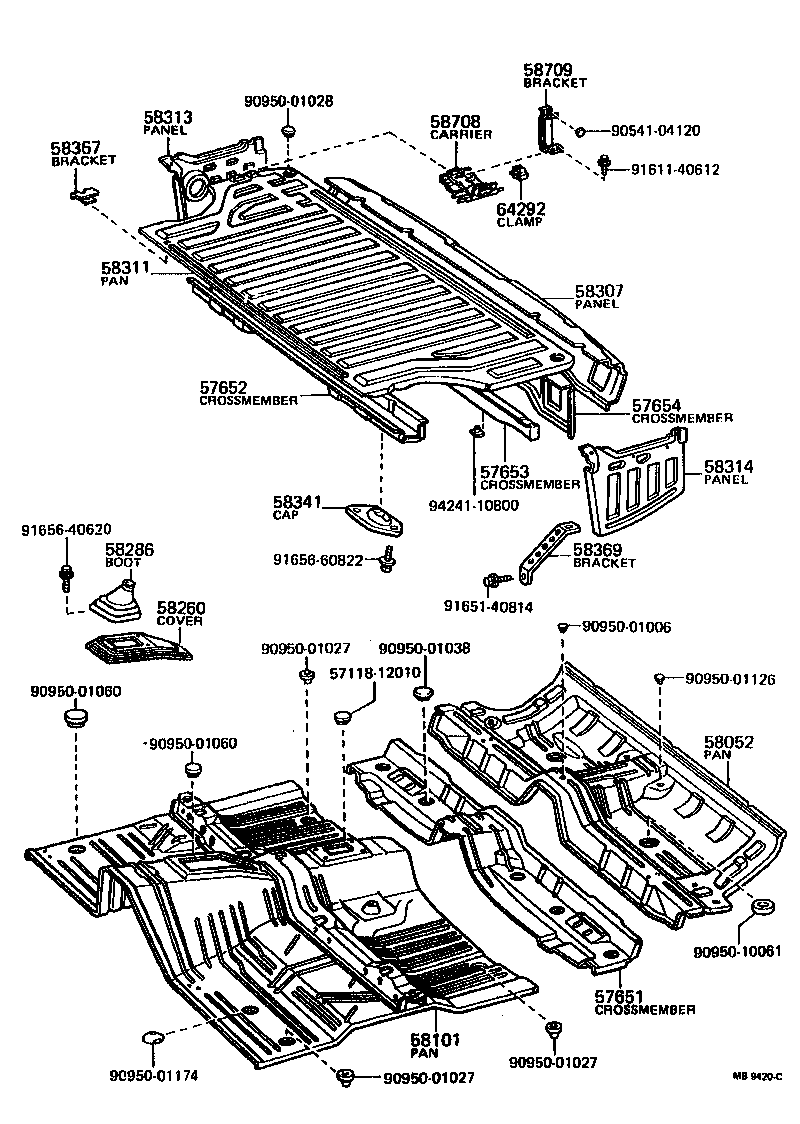

Click highlighted areas on diagram

diagram 5711812010 57651 57652 57653 57654 58052 58101 58260 58286 58307 58311 58313 58314 58341 58367 58369 58708 58709 64292 9054104120 9095001006 9095001027 9095001027 9095001027 9095001028 9095001038 9095001060 9095001060 9095001126 9095001174 9095010061 9161140612 9165140814 9165640620 9165660822 9424110800
Part # Description Qty Price
57651 - CROSSMEMBER, REAR FLOOR, FRONT
57407-13020

TE38

 1
57407-13030

TE38

 1
57652 - CROSSMEMBER, REAR FLOOR, NO.2
57606-13020

TE38

 1
57653 - MEMBER, REAR FLOOR CROSS, NO.3
57652-13030

TE38

 1
57654 - MEMBER, REAR FLOOR CROSS, NO.4
58308-13030

TE38

 1
58052 - PAN SUB-ASSY, CENTER FLOOR
58201-13040

TE38

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-12906

KE3#,TE3#

 1
58101-12915

KE3#,TE3#,51

 1
58260 - COVER ASSY, TRANSMISSION, FRONT
58121-12040

TE3#,51..A40

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-13060

TE38

 1
58311 - PAN, REAR FLOOR
58311-13060

TE38

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-13040

TE38

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-13040

TE38

 1
58341 - CAP, REAR SHOCK ABSORBER
58342-13010

TE38

LH.

 1
58341-13010

TE38

RH.

 1
58367 - BRACKET, FUEL TUBE CLAMP
58367-13010

TE38

 1
58369 - BRACKET, INSULATOR HEAT
58345-13020

TE38

 1
58708 - CARRIER SUB-ASSY, JACK
58709-13010

TE38

 1
58709 - BRACKET SUB-ASSY, JACK CLAMP
58793-13010

TE38

 1
64292 - CLAMP, JACK HANDLE
58789-13020

TE38

 2
Common parts
57118-12010
90541-04120
90950-01006
90950-01027
90950-01028
90950-01038
90950-01060
90950-01126
90950-01174
90950-10061
91611-40612
91651-40814
91656-40620
91656-60822
94241-10800
