TE38LV-HDA (1974)
Toyota Corolla

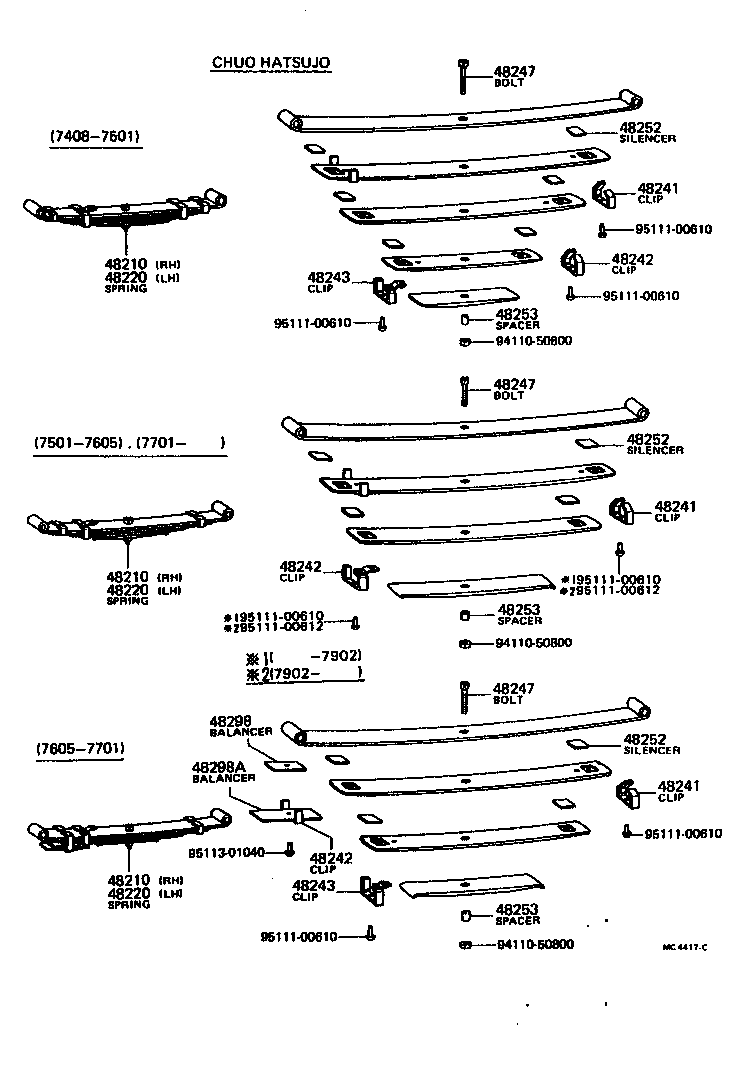

(7408-7908)TE38
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-13091 |
TE38 |
1 | ||
| 48210-13090 |
TE38 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-13091 |
TE38 |
1 | ||
| 48210-13090 |
TE38 |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-13091 |
TE38 |
1 | ||
| 48210-13090 |
TE38 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-13091 |
TE38 |
1 | ||
| 48210-13090 |
TE38 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-13091 |
TE38 |
1 | ||
| 48210-13090 |
TE38 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-13091 |
TE38 |
1 | ||
| 48210-13090 |
TE38 |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-10060 |
TE38 NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE3#,TE3#,51 CHUO HATSUJO |
4 | ||
| 48241-10060 |
TE3#..DLX,STD NIHON HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-10060 |
TE38 NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE3#,TE3#,51 CHUO HATSUJO |
4 | ||
| 48241-10060 |
TE3#..DLX,STD NIHON HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-10060 |
TE38 NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE3#,TE3#,51 CHUO HATSUJO |
4 | ||
| 48241-10060 |
TE3#..DLX,STD NIHON HATSUJO |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12120 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48241-10070 |
TE38 NIHON HATSUJO |
2 | ||
| 48242-22010 |
TE38 CHUO HATSUJO |
2 | ||
| 48242-12110 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-12120 |
TE3# NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12120 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48241-10070 |
TE38 NIHON HATSUJO |
2 | ||
| 48242-22010 |
TE38 CHUO HATSUJO |
2 | ||
| 48242-12110 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-12120 |
TE3# NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12120 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48241-10070 |
TE38 NIHON HATSUJO |
2 | ||
| 48242-22010 |
TE38 CHUO HATSUJO |
2 | ||
| 48242-12110 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-12120 |
TE3# NIHON HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-13090 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-13100 |
TE38 NIHON HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-13090 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-13100 |
TE38 NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-13100 |
TE38 NIHON HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE3#..DLX,STD CHUO HATSUJO |
2 | ||
| 48247-12050 |
TE38 NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-13100 |
TE38 NIHON HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE3#..DLX,STD CHUO HATSUJO |
2 | ||
| 48247-12050 |
TE38 NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-13100 |
TE38 NIHON HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE3#..DLX,STD CHUO HATSUJO |
2 | ||
| 48247-12050 |
TE38 NIHON HATSUJO |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
TE38 CHUO HATSUJO |
12 | ||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48253-23030 |
TE38 |
12 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
TE38 CHUO HATSUJO |
12 | ||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48253-23030 |
TE38 |
12 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
TE38 CHUO HATSUJO |
12 | ||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48253-23030 |
TE38 |
12 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
TE3# NIHON HATSUJO |
2 | ||
| 48254-10050 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,50,TE3#,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
TE3# NIHON HATSUJO |
2 | ||
| 48254-10050 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,50,TE3#,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
TE3# NIHON HATSUJO |
2 | ||
| 48254-10050 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,50,TE3#,51 CHUO HATSUJO |
2 | ||
| Common parts | ||||
| 94110-50800 | ||||
| 95111-00610 | ||||
| 95111-00612 | ||||
| 95113-01040 | ||||

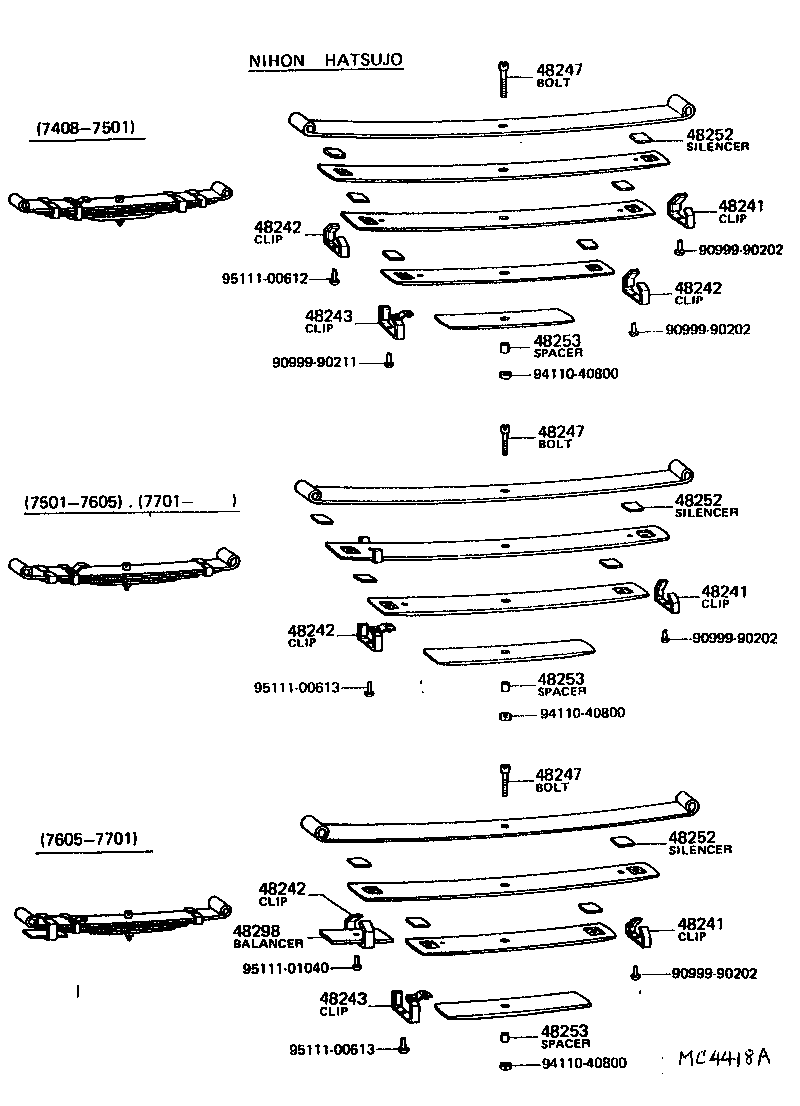

(7408-7908)TE38
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-10060 |
TE38 NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE3#,TE3#,51 CHUO HATSUJO |
4 | ||
| 48241-10060 |
TE3#..DLX,STD NIHON HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-10060 |
TE38 NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE3#,TE3#,51 CHUO HATSUJO |
4 | ||
| 48241-10060 |
TE3#..DLX,STD NIHON HATSUJO |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48242-10060 |
TE38 NIHON HATSUJO |
4 | ||
| 48241-22010 |
KE3#,TE3#,51 CHUO HATSUJO |
4 | ||
| 48241-10060 |
TE3#..DLX,STD NIHON HATSUJO |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12120 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48241-10070 |
TE38 NIHON HATSUJO |
2 | ||
| 48242-22010 |
TE38 CHUO HATSUJO |
2 | ||
| 48242-12110 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-12120 |
TE3# NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12120 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48241-10070 |
TE38 NIHON HATSUJO |
2 | ||
| 48242-22010 |
TE38 CHUO HATSUJO |
2 | ||
| 48242-12110 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-12120 |
TE3# NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12120 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48241-10070 |
TE38 NIHON HATSUJO |
2 | ||
| 48242-22010 |
TE38 CHUO HATSUJO |
2 | ||
| 48242-12110 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-12120 |
TE3# NIHON HATSUJO |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-12120 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48241-10070 |
TE38 NIHON HATSUJO |
2 | ||
| 48242-22010 |
TE38 CHUO HATSUJO |
2 | ||
| 48242-12110 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-12120 |
TE3# NIHON HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-13090 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-13100 |
TE38 NIHON HATSUJO |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-13090 |
TE38 CHUO HATSUJO |
2 | ||
| 48241-13100 |
TE38 NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-13100 |
TE38 NIHON HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE3#..DLX,STD CHUO HATSUJO |
2 | ||
| 48247-12050 |
TE38 NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-13100 |
TE38 NIHON HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE3#..DLX,STD CHUO HATSUJO |
2 | ||
| 48247-12050 |
TE38 NIHON HATSUJO |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-13100 |
TE38 NIHON HATSUJO |
2 | ||
| 48247-20130 |
KE3#,TE3#..DLX,STD CHUO HATSUJO |
2 | ||
| 48247-12050 |
TE38 NIHON HATSUJO |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
TE38 CHUO HATSUJO |
12 | ||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48253-23030 |
TE38 |
12 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
TE38 CHUO HATSUJO |
12 | ||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48253-23030 |
TE38 |
12 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-22020 |
TE38 CHUO HATSUJO |
12 | ||
| 48252-22020 |
KE3#,TE3#,51 CHUO HATSUJO |
12 | ||
| 48253-23030 |
TE38 |
12 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
TE3# NIHON HATSUJO |
2 | ||
| 48254-10050 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,50,TE3#,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
TE3# NIHON HATSUJO |
2 | ||
| 48254-10050 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,50,TE3#,51 CHUO HATSUJO |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48254-10050 |
TE3# NIHON HATSUJO |
2 | ||
| 48254-10050 |
TE3#..DLX,STD NIHON HATSUJO |
2 | ||
| 48253-20100 |
KE3#,50,TE3#,51 CHUO HATSUJO |
2 | ||
| Common parts | ||||
| 90999-90202 | ||||
| 90999-90211 | ||||
| 94110-40800 | ||||
| 95111-00612 | ||||
| 95111-00613 | ||||
| 95111-01040 | ||||

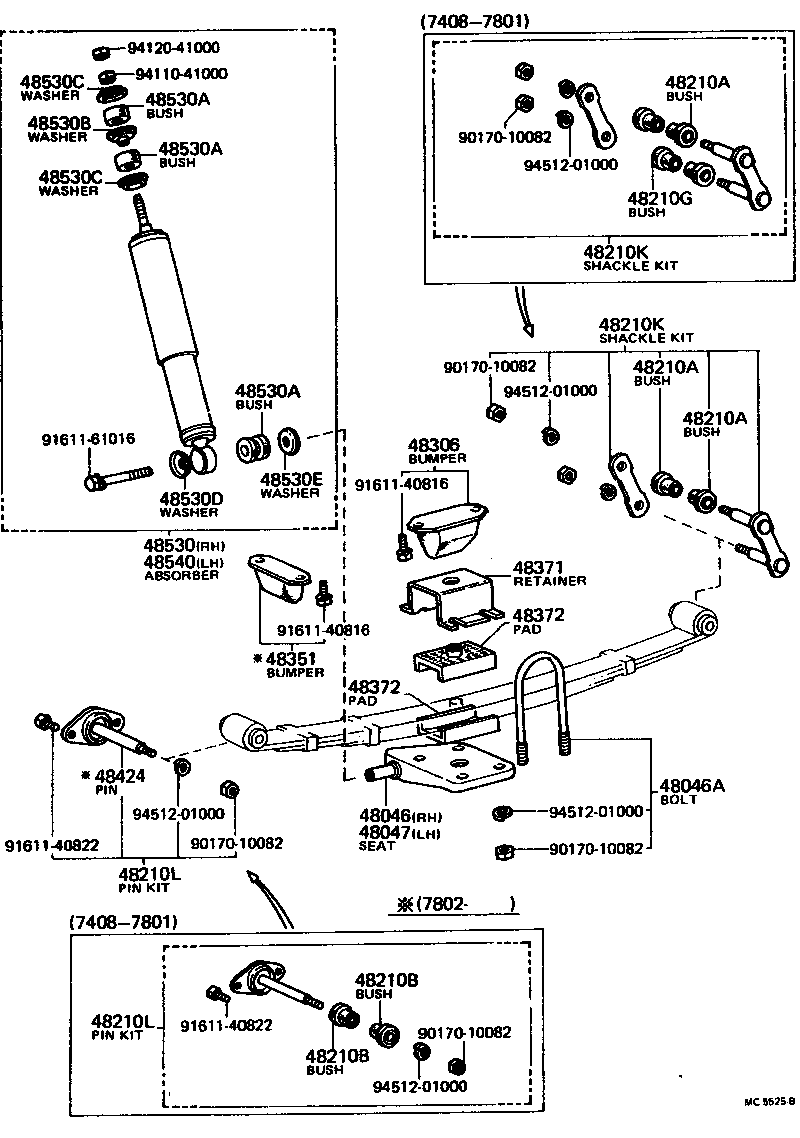

(7408-7501) ; (7501-7908)KE3#,TE31,37,51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-13040 |
TE38 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-10129 |
TE38 |
4 | ||
| 90118-10128 |
TE38 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-13040 |
TE38 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,51 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,51 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-13071 |
KE3#,50,TE3#,51 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-17069 |
TE38 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-17069 |
TE38 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-13071 |
KE3#,50,TE3#,51 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-12020 |
KE3#,50,TE3#,51 |
2 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-12020 |
KE3#,50,TE3#,51 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-13010 |
TE38 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-13010 |
TE38 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-19015 |
TE38 |
2 | ||
| 48351 - BUMPER, DIFFERENTIAL CARRIER | ||||
| 48351-19025 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-13060 |
TE38 |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,50,TE3#,51 |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-22010 |
KE3#,50,TE3#,51 |
4 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19325 |
TE38 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01002 |
TE38 UPPER,T=16,OD=25.4,ID=10 |
4 | ||
| 90385-16060 |
KE3#,50,TE3#,51 LOWER |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01002 |
TE38 UPPER,T=16,OD=25.4,ID=10 |
4 | ||
| 90385-16060 |
KE3#,50,TE3#,51 LOWER |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90948-01002 |
TE38 UPPER,T=16,OD=25.4,ID=10 |
4 | ||
| 90385-16060 |
KE3#,50,TE3#,51 LOWER |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-02005 |
TE38 T=5.5,OD=32,ID=13 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02004 |
TE38 T=4.5,OD=32,ID=10.5 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-02004 |
TE38 T=4.5,OD=32,ID=10.5 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03004 |
TE38 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03012 |
TE38 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19325 |
TE38 |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 91611-40816 | ||||
| 91611-40822 | ||||
| 91611-61016 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
