TE38LV-HDA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1976
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)A40

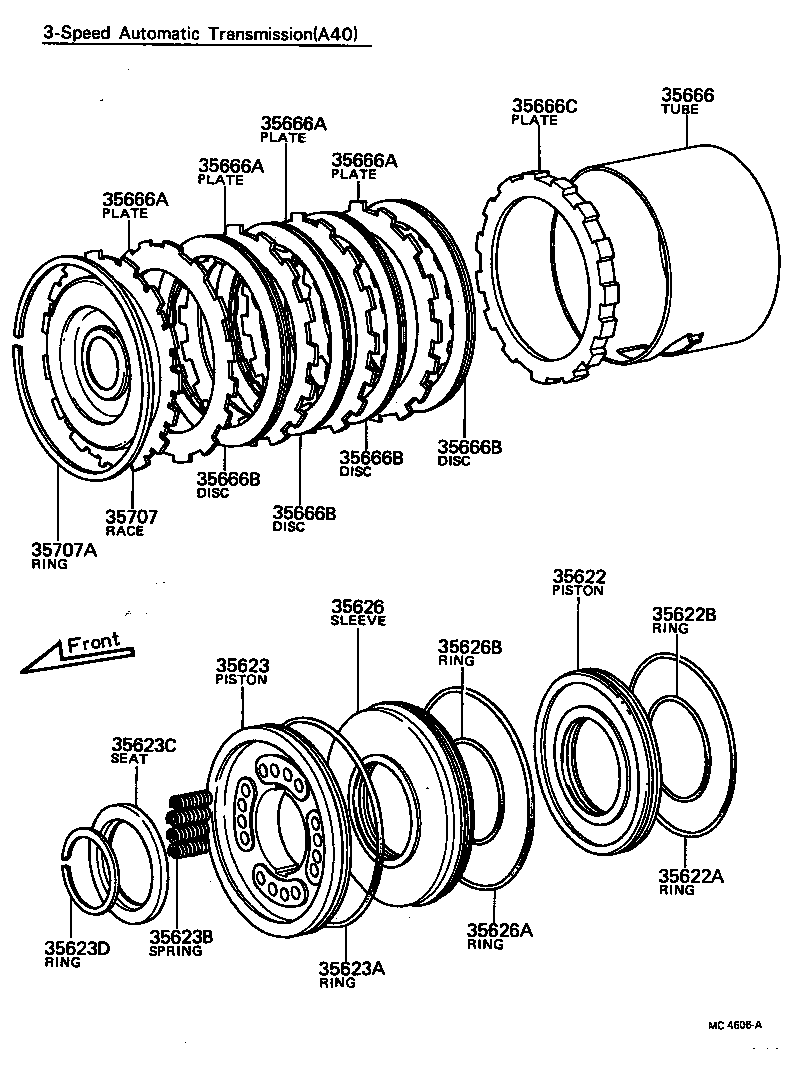

Click highlighted areas on diagram

diagram 35622 35622A 35622B 35623 35623A 35623B 35623C 35623D 35626 35626A 35626B 35666 35666A 35666A 35666A 35666A 35666B 35666B 35666B 35666B 35666C 35707 35707A
Part # Description Qty Price
35622 - PISTON, BRAKE, NO.2
35622-22010

TE3#,51..A40

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99193

TE3#,51..A40

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-57188

TE3#,51..A40

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

TE3#,51..A40

 1
35623A - RING, O (FOR BRAKE PISTON NO.3 )
90301-99192

TE3#,51..A40

 1
35623B - SPRING (FOR BRAKE PISTON RETURN)
90501-10671

TE3#,51..A40

 16
35623C - SEAT, BRAKE RETURN SPRING
35627-22010

TE3#,51..A40

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

TE3#,51..A40

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

TE3#,51..A40

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99200

TE3#,51..A40

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

TE3#,51..A40

 1
35666 - TUBE, BRAKE APPLY
35666-22010

TE3#,51..A40

 1
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22050

TE3#,51..A40

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22050

TE3#,51..A40

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22050

TE3#,51..A40

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35634-22050

TE3#,51..A40

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22030

TE3#,51..A40

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22030

TE3#,51..A40

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22030

TE3#,51..A40

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35633-22030

TE3#,51..A40

 4
35666C - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22010

TE3#,51..A40

 1
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-22010

TE3#,51..A40

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

TE3#,51..A40

 1
