TE37L-MQA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1979
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)TE3#,51 ; (7708-7908)KE30

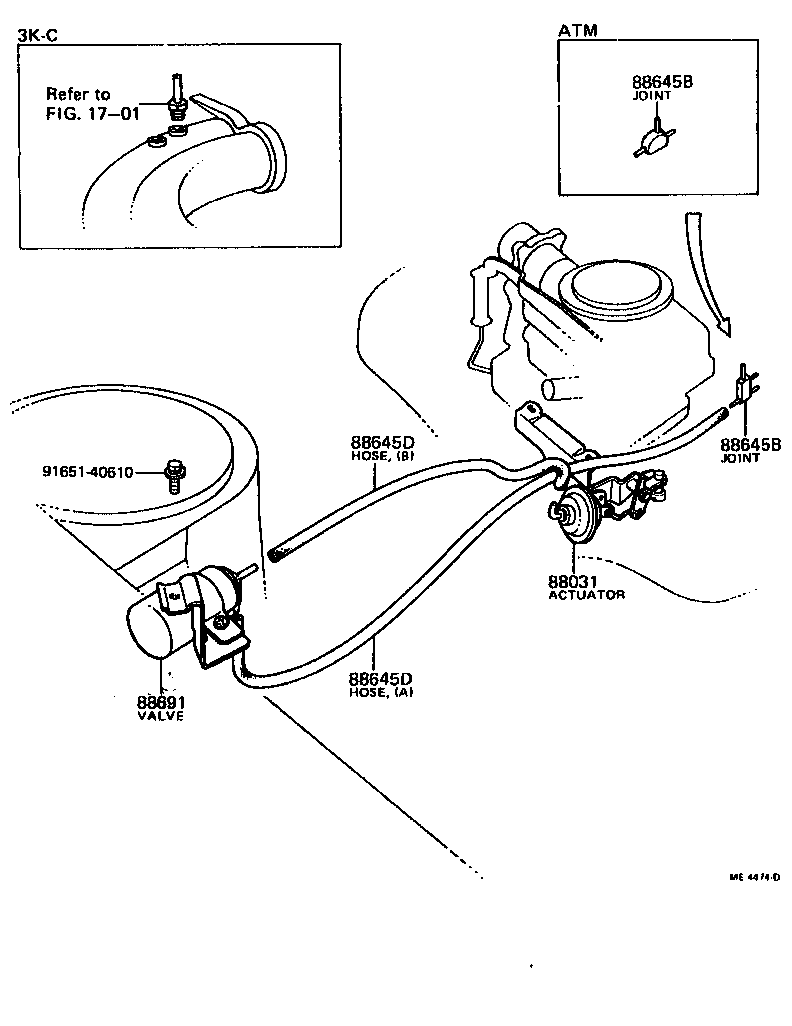

Click highlighted areas on diagram

diagram 1701 88031 88645B 88645B 88645D 88645D 88691 9165140610
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-12032

TE3#,51

 1
88031-12031

TE3#,51

 1
88031-12060

TE3#,51..USA

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90414-04002

TE3#,51..MTM

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90414-04002

TE3#,51..MTM

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19930

TE3#,51

*H,L=280,MARK=#*,(B)

 1
95411-10060

TE3#,51

*H,L=420,MARK=#0,(A)

 1
95411-19960

TE3#,51..DLX,SPL,SR5

*H,L=330,MARK=#*,(B)

 1
95411-19960

TE3#,51..USA

*H,L=330,MARK=#*,(B)

 1
95411-10060

TE3#,51..USA

*H,L=450,MARK=#0,(A)

 1
95411-10030

TE38,51..USA;TE31,37..MTM..USA;TE31..A40..DLX..USA

*H,L=240,MARK=#0,CALIFARNIA SPEC,(B)

 1
95411-10030

TE3#,51

L=300,MARK=#0

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-19930

TE3#,51

*H,L=280,MARK=#*,(B)

 1
95411-10060

TE3#,51

*H,L=420,MARK=#0,(A)

 1
95411-19960

TE3#,51..DLX,SPL,SR5

*H,L=330,MARK=#*,(B)

 1
95411-19960

TE3#,51..USA

*H,L=330,MARK=#*,(B)

 1
95411-10060

TE3#,51..USA

*H,L=450,MARK=#0,(A)

 1
95411-10030

TE38,51..USA;TE31,37..MTM..USA;TE31..A40..DLX..USA

*H,L=240,MARK=#0,CALIFARNIA SPEC,(B)

 1
95411-10030

TE3#,51

L=300,MARK=#0

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-12011

TE3#,51

 1
88690-12011

TE3#,51..USA

 1
Common parts
91651-40610
Linked diagrams
1701
