TE37L-KDA (1974)
Toyota Corolla
Production
Aug 1974
-
Aug 1977
Engine
2TC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)

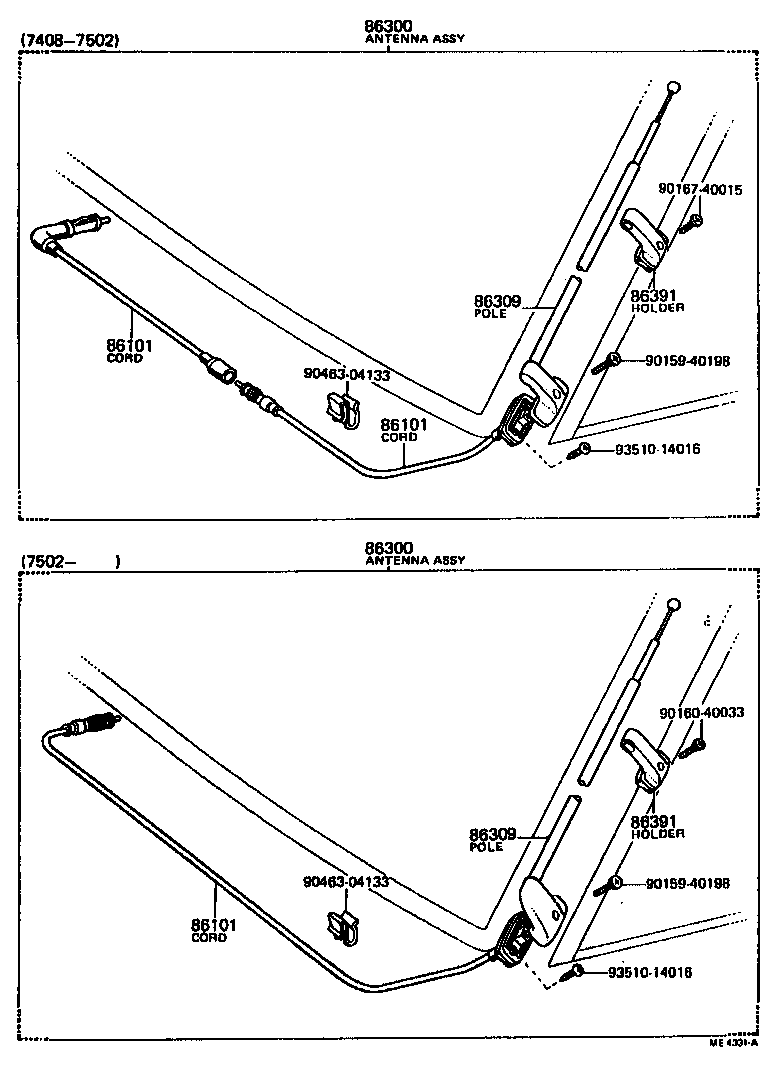

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-12041 |
KE35,TE37 |
1 | ||
| 86101-12040 |
KE35,TE37 ANTENNA SIDE |
1 | ||
| 86101-12080 |
KE35,TE37 TUNER SIDE |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-12041 |
KE35,TE37 |
1 | ||
| 86101-12040 |
KE35,TE37 ANTENNA SIDE |
1 | ||
| 86101-12080 |
KE35,TE37 TUNER SIDE |
1 | ||
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-12041 |
KE35,TE37 |
1 | ||
| 86101-12040 |
KE35,TE37 ANTENNA SIDE |
1 | ||
| 86101-12080 |
KE35,TE37 TUNER SIDE |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-12111 |
KE35,TE37 |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-12111 |
KE35,TE37 |
1 | ||
| 86309 - POLE SUB-ASSY, PILLAR ANTENNA | ||||
| 86309-12052 |
KE35,TE37 |
1 | ||
| 86309-12051 |
KE35,TE37 |
1 | ||
| 86309 - POLE SUB-ASSY, PILLAR ANTENNA | ||||
| 86309-12052 |
KE35,TE37 |
1 | ||
| 86309-12051 |
KE35,TE37 |
1 | ||
| 86391 - HOLDER, ANTENNA | ||||
| 86391-12051 |
KE35,TE37 |
1 | ||
| 86391-12050 |
KE35,TE37 |
1 | ||
| 86391 - HOLDER, ANTENNA | ||||
| 86391-12051 |
KE35,TE37 |
1 | ||
| 86391-12050 |
KE35,TE37 |
1 | ||
| Common parts | ||||
| 90159-40198 | ||||
| 90160-40033 | ||||
| 90167-40015 | ||||
| 90463-04133 | ||||
| 93510-14016 | ||||
