TE37L-KDA (1974)
Toyota Corolla
(7408-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

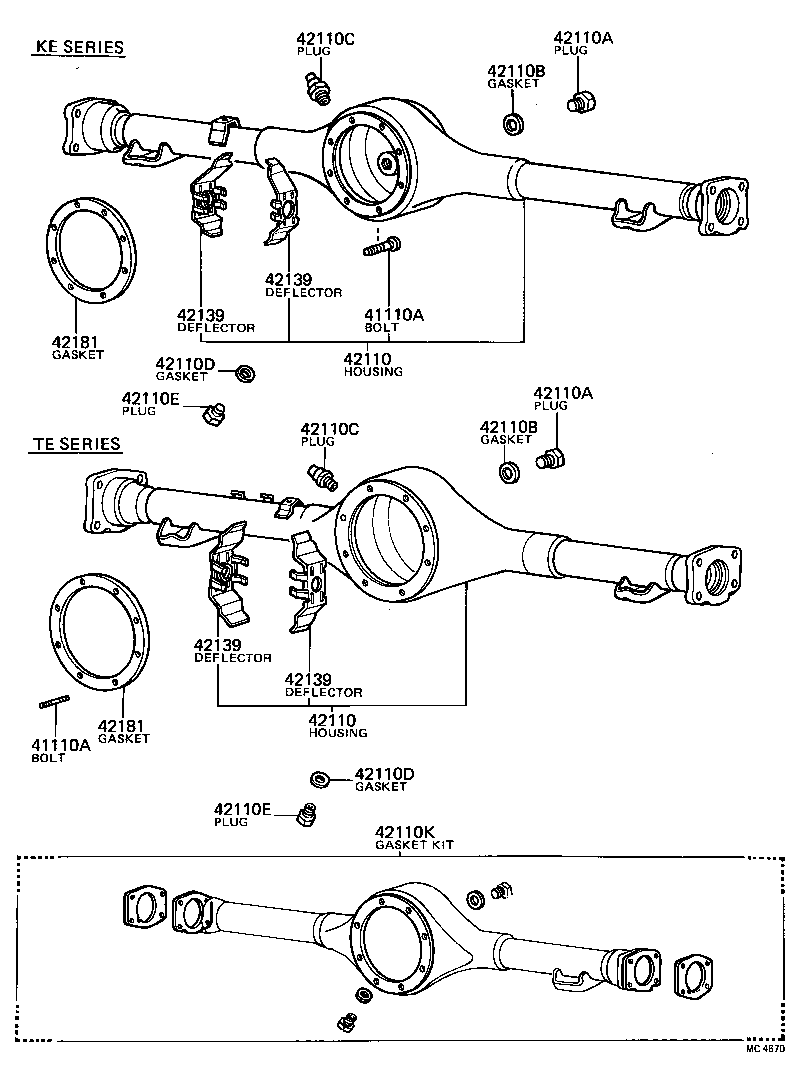

| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08236 |
TE3#,51..DLX,SPL,STD S=12 & 15,L=78,L=77,S=12&16 |
1 | ||
| 90116-08235 |
TE3#,51..DLX,SPL,STD S=12 & 15,L=34,L=33,S=12&16 |
7 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08236 |
TE3#,51..DLX,SPL,STD S=12 & 15,L=78,L=77,S=12&16 |
1 | ||
| 90116-08235 |
TE3#,51..DLX,SPL,STD S=12 & 15,L=34,L=33,S=12&16 |
7 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-12040 |
TE31,37,51..DLX,SPL,STD |
1 | ||
| 42110-12041 |
TE31,37,51..DLX,SPL,STD |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-12040 |
TE31,37,51..DLX,SPL,STD |
1 | ||
| 42110-12041 |
TE31,37,51..DLX,SPL,STD |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
KE3#,50,TE3#,51 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
KE3#,50,TE3#,51 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
KE3#,50,TE3#,51 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
KE3#,50,TE3#,51 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
KE3#,50,TE3#,51 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
KE3#,50,TE3#,51 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
KE3#,50,TE3#,51 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
KE3#,50,TE3#,51 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
KE3#,50,TE3#,51 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
KE3#,50,TE3#,51 |
1 | ||
| 42110K - GASKET KIT, DIFFERENTIAL CARRIER | ||||
| 04412-22010 |
TE31,37,51..DLX,SPL,STD |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-20010 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-20010 |
TE3#,51..DLX,SPL,STD |
1 | ||
(7408-7501)TE3#..DLX,STD ; (7408-7501)TE3#..DLX,STD ; (7501-7908)TE3#,51..MTM..DLX,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

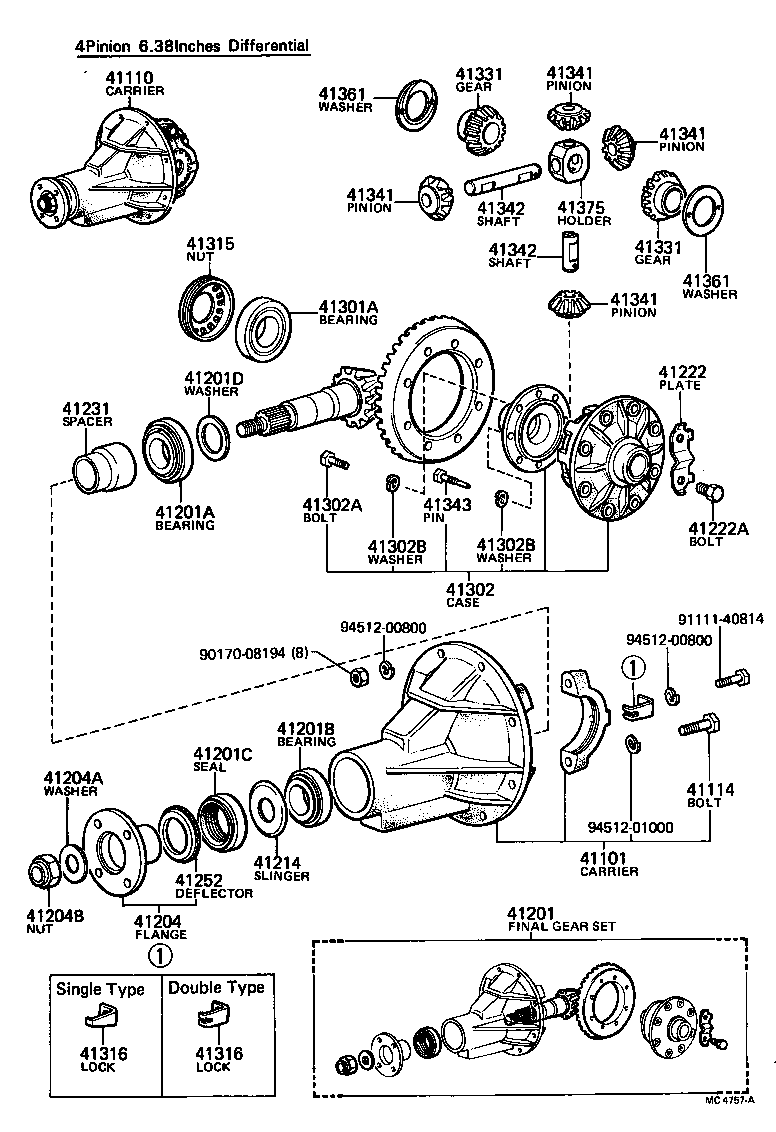

| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-20010 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-12110 |
TE3#,51..T40 R.=43:11,AX.C.=S314 |
1 | ||
| 41110-20121 |
TE3#..DLX,STD R.=41:10,AX.C.=S294 |
1 | ||
| 41110-20121 |
TE3#,51..MTM..(DLX,STD) R.=41:10,AX.C.=S294 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-10128 |
KE3#,50,TE3#,51..DLX,SPL,STD |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29038 |
TE3#,51..DLX,STD N=41:10 |
1 | ||
| 41201-19185 |
TE3#,51..T40 N=43:11 |
1 | ||
| 41201-19185 |
TE3#,51..MTM..(DLX,SPL,STD) N=43:11 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-33021 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30069 |
TE3#,51 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38124 |
TE3#,51 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90209-33039 |
TE3#,51..DLX,SPL,STD T=2.55,T=2.55 |
1 | ||
| 90209-33042 |
TE3#,51..DLX,SPL,STD T=2.64,T=2.64 |
1 | ||
| 90209-33044 |
TE3#,51..DLX,SPL,STD T=2.70,T=2.70 |
1 | ||
| 90209-33040 |
TE3#,51..DLX,SPL,STD T=2.58,T=2.58 |
1 | ||
| 90209-33045 |
TE3#,51..DLX,SPL,STD T=2.73,T=2.73 |
1 | ||
| 90209-33038 |
TE3#,51..DLX,SPL,STD T=2.52,T=2.52 |
1 | ||
| 90209-33041 |
TE3#,51..DLX,SPL,STD T=2.61,T=2.61 |
1 | ||
| 90209-33043 |
TE3#,51..DLX,SPL,STD T=2.67,T=2.67 |
1 | ||
| 90209-33046 |
TE3#,51..DLX,SPL,STD T=2.76,T=2.76 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20012 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
TE3#,51 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18060 |
TE3#,51 S=9 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-20020 |
TE3#,51 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-20020 |
TE3#,51..DLX,SPL,STD |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90109-10015 |
TE3#,51..DLX,SPL,STD |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-20020 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-20010 |
TE3#,51..DLX,SPL,STD |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-34020 |
KE3#,50,TE3#,51..DLX,SPL,STD |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-22020 |
TE3#..DLX,STD |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90101-08241 |
TE3#,51..MTM..(DLX,SPL,STD) |
5 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90204-08024 |
TE3#,51..DLX,SPL,STD |
8 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90204-08024 |
TE3#,51..DLX,SPL,STD |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-20010 |
TE3#,51..DLX,SPL,STD |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-20010 |
TE3#,51..DLX,SPL,STD SINGLE TYPE |
2 | ||
| 41316-20020 |
TE3#,51..DLX,SPL,STD DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-20010 |
TE3#,51..DLX,SPL,STD SINGLE TYPE |
2 | ||
| 41316-20020 |
TE3#,51..DLX,SPL,STD DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22011 |
TE3#,51..DLX,SPL,STD N=14 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22011 |
TE3#,51..DLX,SPL,STD N=14 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22010 |
TE3#,51..MTM..(DLX,SPL,STD) N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22010 |
TE3#,51..MTM..(DLX,SPL,STD) N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22010 |
TE3#,51..MTM..(DLX,SPL,STD) N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22010 |
TE3#,51..MTM..(DLX,SPL,STD) N=10 |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-20010 |
TE3#,51..DLX,SPL,STD L=94,OD=15 |
1 | ||
| 41342-20020 |
TE3#..DLX,STD L=24,OD=15 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-20010 |
TE3#,51..DLX,SPL,STD L=94,OD=15 |
1 | ||
| 41342-20020 |
TE3#..DLX,STD L=24,OD=15 |
2 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-22010 |
TE3#,51..MTM..(DLX,SPL,STD) |
3 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41362-22010 |
TE3#,51..DLX,SPL,STD T=1.55 |
2 | ||
| 41363-22010 |
TE3#,51..DLX,SPL,STD T=1.60 |
2 | ||
| 41361-22010 |
TE3#,51..DLX,SPL,STD T=1.50 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41362-22010 |
TE3#,51..DLX,SPL,STD T=1.55 |
2 | ||
| 41363-22010 |
TE3#,51..DLX,SPL,STD T=1.60 |
2 | ||
| 41361-22010 |
TE3#,51..DLX,SPL,STD T=1.50 |
2 | ||
| 41375 - HOLDER, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41375-20010 |
TE3#..DLX,STD |
1 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 91111-40814 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
