TE37L-HDA (1974)

Toyota Corolla

Production Aug 1974 - Aug 1977
Engine 2TC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

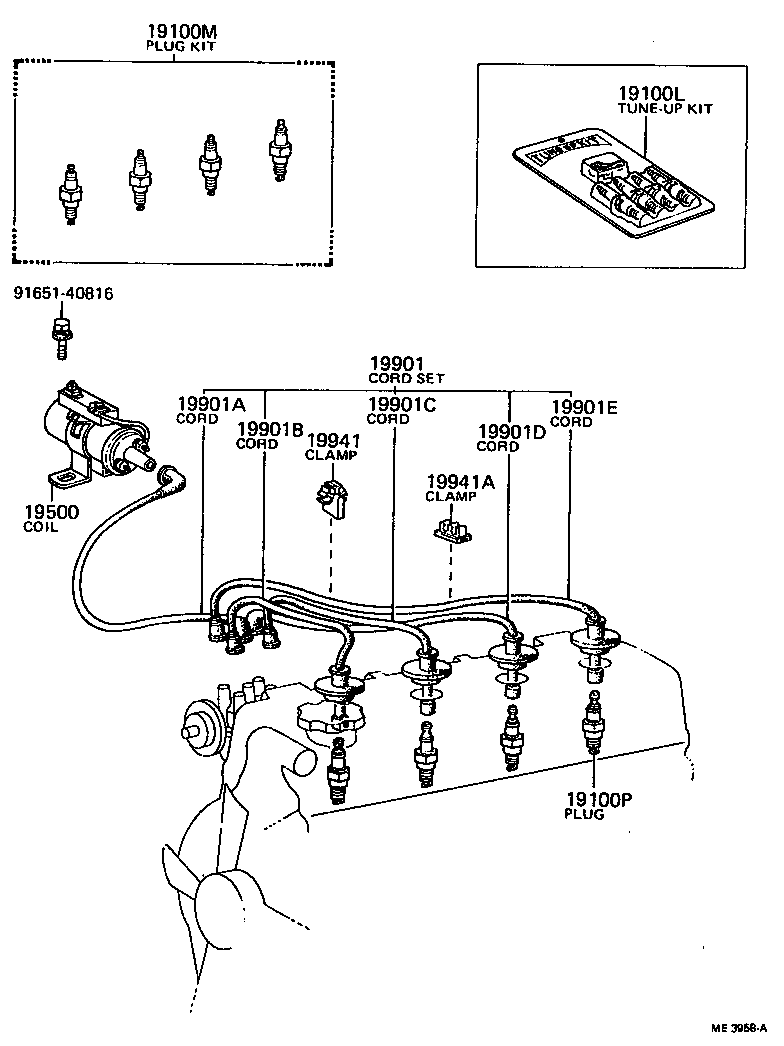

(7408-7508)2TC

Click highlighted areas on diagram

diagram 19100L 19100M 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 19941A 9165140816
Part # Description Qty Price
19100L - TUNE-UP KIT
04193-26021

2TC..TE3#,51

 1
04193-26021

2TC..TE3#,51

 1
04193-26020

2TC..TE3#

 1
19100M - PLUG KIT, SPARK
04195-34010

2TC..TE3#,51

W16EP

 1
19100P - PLUG, SPARK
90919-01027

2TC..TE3#,51

W16EP OR W16EX-U,W16EP

 4
90919-01027

2TC..TE3#,51

W16EP OR W16EX-U,W16EP

 4
90919-01051

2TC..TE3#,51

W16EPR OR W16EXR-U,W16EPR CANADA SPEC.

 4
19500 - COIL ASSY, IGNITION
90919-02078

2TC..TE3#,51

 1
90919-02056

2TC..TE3#

 1
90919-02083

2TC..TE3#,51

CANADA SPEC.

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21090

2TC..TE3#,51

 1
19901A - CORD, COIL RESISTIVE
90919-13031

2TC..TE3#,51

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12090

2TC..TE3#,51

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12091

2TC..TE3#,51

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12092

2TC..TE3#,51

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12093

2TC..TE3#,51

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00053

2TC..TE3#,51

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00001

2TC..TE3#,51

 1
Common parts
91651-40816

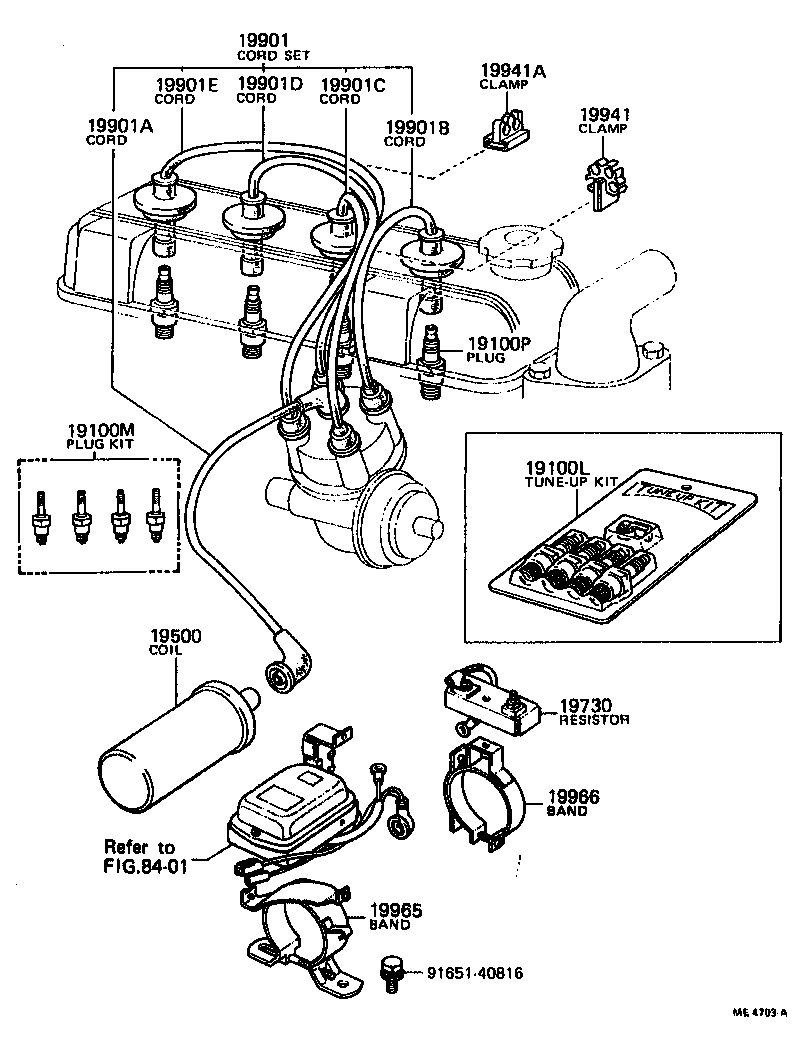

(7508-7605)2TC

Click highlighted areas on diagram

diagram 19100L 19100M 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19941 19941A 19965 19966 8401 9165140816
Part # Description Qty Price
19100L - TUNE-UP KIT
04193-26021

2TC..TE3#,51

 1
04193-26021

2TC..TE3#,51

 1
04193-26020

2TC..TE3#

 1
19100M - PLUG KIT, SPARK
04195-34010

2TC..TE3#,51

W16EP

 1
19100P - PLUG, SPARK
90919-01027

2TC..TE3#,51

W16EP OR W16EX-U,W16EP

 4
90919-01027

2TC..TE3#,51

W16EP OR W16EX-U,W16EP

 4
90919-01051

2TC..TE3#,51

W16EPR OR W16EXR-U,W16EPR CANADA SPEC.

 4
19500 - COIL ASSY, IGNITION
90919-02078

2TC..TE3#,51

 1
90919-02056

2TC..TE3#

 1
90919-02083

2TC..TE3#,51

CANADA SPEC.

 1
19730 - RESISTOR, IGNITION COIL
90919-04014

2TC..TE3#,51

 1
90919-04011

2TC..TE3#,51

DOUBLE ADVANCE DIS.

 1
90919-04018

2TC..TE3#,51

 1
90919-04008

2TC..TE3#,51

 1
90919-04020

2TC..TE3#,51

CAL.& H.A.;CANADA SPEC.

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21090

2TC..TE3#,51

 1
19901A - CORD, COIL RESISTIVE
90919-13031

2TC..TE3#,51

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12090

2TC..TE3#,51

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12091

2TC..TE3#,51

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12092

2TC..TE3#,51

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12093

2TC..TE3#,51

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00053

2TC..TE3#,51

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00001

2TC..TE3#,51

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03025

2TC..TE3#,51

 1
90919-03047

2TC..TE3#,51

CAL.& H.A.

 1
90919-03025

2TC..TE3#,51

DOUBLE ADVANCE DIS.

 1
90919-03027

2TC..TE3#,51

 1
90919-03037

2TC..TE3#,51

 1
90919-03051

2TC..TE3#,51

CANADA SPEC.

 1
19966 - BAND, IGNITION COIL, NO.2
90919-03018

2TC..TE3#,51

 1
Common parts
91651-40816
Linked diagrams
8401
