TE31L-MRA (1974)

Toyota Corolla

Production Nov 1974 - Aug 1976
Engine 2TC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7512)2TC

Click highlighted areas on diagram

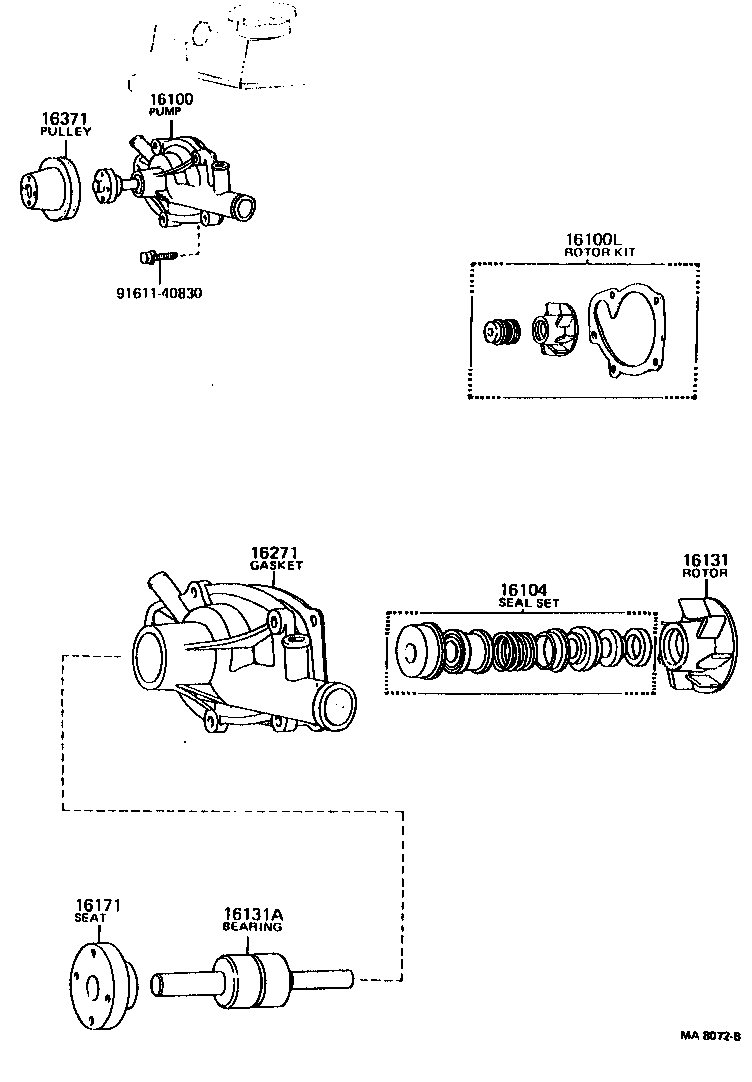

diagram 16100 16100L 16104 16131 16131A 16171 16271 16371 9161140830
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-25012

2TC..TE3#

 1
16100-26020

2TC..TE3#,51

 1
16100L - ROTOR KIT, WATER PUMP
04162-25011

2TC..TE3#

 1
16104 - SEAL SET, WATER PUMP
16104-22010

2TC..TE3#

 1
16104-22010

2TC..TE3#

 1
16131 - ROTOR, WATER PUMP
16131-25011

2TC..TE3#

 1
16131A - BEARING, WATER PUMP
90369-30035

2TC..TE3#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-31030

2TC..TE3#

 1
16171-38021

2TC..TE3#,51

 1
16271 - GASKET, WATER PUMP
16129-25010

2TC..TE3#,51

 1
16371 - PULLEY, FAN
16371-25020

2TC..TE3#

W/COOLER

 1
16173-26020

2TC..TE3#,51

 1
16371-25010

2TC..TE3#

 1
Common parts
91611-40830
