TE31L-MDFA (1974)
Toyota Corolla
(7408-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH | ||||
| 45020-12120 |
KE3#,50,TE3#,51 |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-12051 |
KE3#,50,TE3#,51 |
1 | ||
| 45210-12050 |
KE3#,TE3# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
KE3#,50,TE3#,51 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
KE3#,50,TE3#,51 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
KE3#,50,TE3#,51 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
KE3#,50,TE3#,51 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
KE3#,50,TE3#,51 T=1.35-1.45,T=1.4 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
KE3#,50,TE3#,51 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-12060 |
KE3#,50,TE3#,51 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-12010 |
KE3#,TE3# |
1 | ||
| 45230-14020 |
KE3#,50,TE3#,51 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-12010 |
KE3#,TE3# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
KE3#,50,TE3#,51 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
KE3#,50,TE3#,51 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-20010 |
KE3#,50,TE3#,51 |
1 | ||
| 45269-35010 |
KE30,50,TE3#,51 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-12050 |
KE3#,50,TE3#,51 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1292016 |
KE3#,50,TE3#,51 BROWN,BROWN |
1 | ||
| 45286-1211206 |
KE3#,TE3#,51 BROWN,FOR UPPER,BROWN |
1 | ||
| 45286-1211201 |
KE3#,TE3#,51 BLACK,FOR UPPER,BLACK |
1 | ||
| 45287-1207206 |
KE3#,TE3#,51 BROWN,FOR LOWER,BROWN |
1 | ||
| 45286-1292004 |
KE30,50,TE3#,51 BLUE,BLUE |
1 | ||
| 45287-12070 |
KE3#,TE3# LOWER |
1 | ||
| 45286-1292001 |
KE3#,50,TE3#,51 BLACK,BLACK |
1 | ||
| 45287-1207201 |
KE3#,TE3#,51 BLACK,FOR LOWER,BLACK |
1 | ||
| 45286-12110 |
KE3#,TE3# UPPER |
1 | ||
| 45286-1292004 |
KE35,50,TE3#,51..DLX,SR5 BLUE,BLUE |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1292016 |
KE3#,50,TE3#,51 BROWN,BROWN |
1 | ||
| 45286-1211206 |
KE3#,TE3#,51 BROWN,FOR UPPER,BROWN |
1 | ||
| 45286-1211201 |
KE3#,TE3#,51 BLACK,FOR UPPER,BLACK |
1 | ||
| 45287-1207206 |
KE3#,TE3#,51 BROWN,FOR LOWER,BROWN |
1 | ||
| 45286-1292004 |
KE30,50,TE3#,51 BLUE,BLUE |
1 | ||
| 45287-12070 |
KE3#,TE3# LOWER |
1 | ||
| 45286-1292001 |
KE3#,50,TE3#,51 BLACK,BLACK |
1 | ||
| 45287-1207201 |
KE3#,TE3#,51 BLACK,FOR LOWER,BLACK |
1 | ||
| 45286-12110 |
KE3#,TE3# UPPER |
1 | ||
| 45286-1292004 |
KE35,50,TE3#,51..DLX,SR5 BLUE,BLUE |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1292016 |
KE3#,50,TE3#,51 BROWN,BROWN |
1 | ||
| 45286-1211206 |
KE3#,TE3#,51 BROWN,FOR UPPER,BROWN |
1 | ||
| 45286-1211201 |
KE3#,TE3#,51 BLACK,FOR UPPER,BLACK |
1 | ||
| 45287-1207206 |
KE3#,TE3#,51 BROWN,FOR LOWER,BROWN |
1 | ||
| 45286-1292004 |
KE30,50,TE3#,51 BLUE,BLUE |
1 | ||
| 45287-12070 |
KE3#,TE3# LOWER |
1 | ||
| 45286-1292001 |
KE3#,50,TE3#,51 BLACK,BLACK |
1 | ||
| 45287-1207201 |
KE3#,TE3#,51 BLACK,FOR LOWER,BLACK |
1 | ||
| 45286-12110 |
KE3#,TE3# UPPER |
1 | ||
| 45286-1292004 |
KE35,50,TE3#,51..DLX,SR5 BLUE,BLUE |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-20030 |
KE3#,50,TE3#,51 |
1 | ||
| 45292-14030 |
KE30,50,TE3#,51 |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-12070 |
KE3#,50,TE3#,51 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
KE3#,50,TE3#,51 |
2 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91666-40622 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-13012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

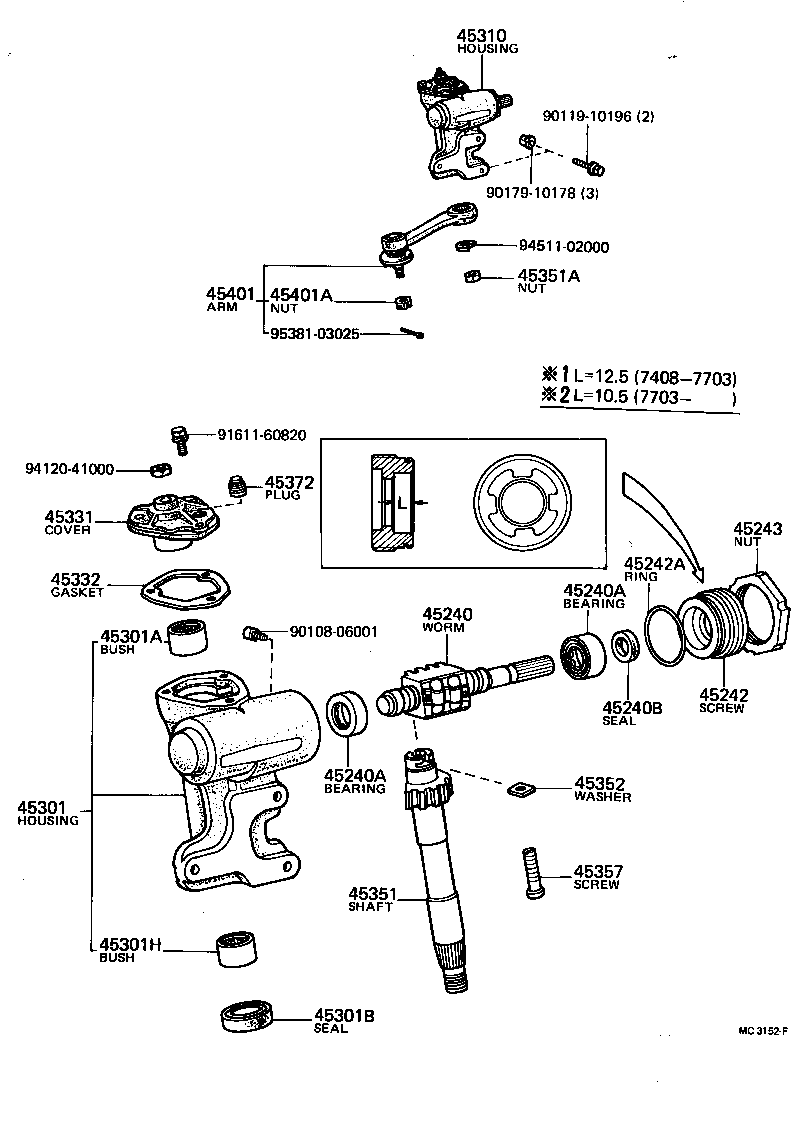

(7408-7708)KE3#,50..DLX,STD ; (7708-7908)KE30,50..CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-12030 |
TE51;KE3#,TE3#..DLX,STD |
1 | ||
| 45240-12030 |
KE3#,50..DLX,STD |
1 | ||
| 45240-14010 |
TE3#,51 FOR TOYOTA. L=166.5 |
1 | ||
| 45240-12030 |
TE3#,51 FOR NSK. L=164 |
1 | ||
| 45240-12130 |
TE3#,51 FOR TOYOTA.L=170.2 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
KE3#,50..DLX,STD |
2 | ||
| 90369-40059 |
TE3#,51 |
2 | ||
| 90369-40018 |
TE3#,51 KOYO |
2 | ||
| 90369-40037 |
TE3#,51 NSK |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
KE3#,50..DLX,STD |
2 | ||
| 90369-40059 |
TE3#,51 |
2 | ||
| 90369-40018 |
TE3#,51 KOYO |
2 | ||
| 90369-40037 |
TE3#,51 NSK |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17062 |
KE3#,50,TE3#,51 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-12040 |
KE3#,50..DLX,STD |
1 | ||
| 45242-12040 |
TE3#,51 FOR NSK. H=26.5,W/GROOVE |
1 | ||
| 45242-22020 |
TE3#,51 FOR TOYOTA. H=25,L/GROOVE |
1 | ||
| 45242-12041 |
TE3#,51 FOR NSK. H=26.5,W/GROOVE |
1 | ||
| 45242-12041 |
KE3#,50..DLX,STD |
1 | ||
| 45242A - RING, O(FOR WORM BEARING ADJUSTING SCREW) | ||||
| 90301-53181 |
TE31;KE3#,50,TE37,38,51..DLX,SR5,STD |
1 | ||
| 90301-53181 |
KE3#,TE3#,51 |
1 | ||
| 90301-53181 |
KE30..CND;KE50,TE3#,51 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22020 |
KE3#,50,TE3#,51 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-12180 |
TE3#,51 |
1 | ||
| 45301-12180 |
TE51;TE3#..DLX,STD |
1 | ||
| 45301-12181 |
TE3#,51 FOR NSK |
1 | ||
| 45301-12160 |
KE3#,50..DLX,STD |
1 | ||
| 45301-14060 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73008 |
KE3#,50..DLX,STD |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28014 |
KE3#,50,TE3#,51 |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73008 |
KE3#,50..DLX,STD |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-12160 |
TE51;TE3#..DLX,STD |
1 | ||
| 45310-12160 |
TE3#,51 |
1 | ||
| 45310-12140 |
KE3#,50..DLX,STD |
1 | ||
| 45310-14070 |
TE3#,51 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-22020 |
KE3#,50..DLX,STD |
1 | ||
| 45304-14020 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45304-12010 |
TE3#,51 FOR NSK |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-12030 |
KE3#,50..DLX,STD |
1 | ||
| 45332-22020 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45332-12030 |
TE3#,51 FOR NSK |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-12130 |
KE3#,50..DLX,STD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
KE3#,50,TE3#,51 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-12010 |
KE3#,50..DLX,STD T=2.00 |
1 | ||
| 45352-12060 |
KE3#,50..DLX,STD T=2.20 |
1 | ||
| 45352-12030 |
KE3#,50..DLX,STD T=2.08 |
1 | ||
| 45352-12040 |
KE3#,50..DLX,STD T=2.12 |
1 | ||
| 45352-12050 |
KE3#,50..DLX,STD T=2.16 |
1 | ||
| 45352-12020 |
KE3#,50..DLX,STD T=2.04 |
1 | ||
| 45352-12040 |
TE3#,51 T=2.12 |
1 | ||
| 45352-12030 |
TE3#,51 T=2.08 |
1 | ||
| 45352-12010 |
TE3#,51 T=2.00 |
1 | ||
| 45352-12060 |
TE3#,51 T=2.20 |
1 | ||
| 45352-12020 |
TE3#,51 T=2.04 |
1 | ||
| 45352-12050 |
TE3#,51 T=2.16 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
KE3#,50 |
1 | ||
| 45357-12010 |
TE3#,51 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
KE3#,50,TE3#,51 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19115 |
TE3#,51 FOR NSK |
1 | ||
| 45401-19095 |
TE3#,51 |
1 | ||
| 45401-19095 |
KE3#,50..DLX,STD |
1 | ||
| 45401-19105 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
KE3#,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90108-06001 | ||||
| 90119-10196 | ||||
| 90179-10178 | ||||
| 91611-60820 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 95381-03025 | ||||

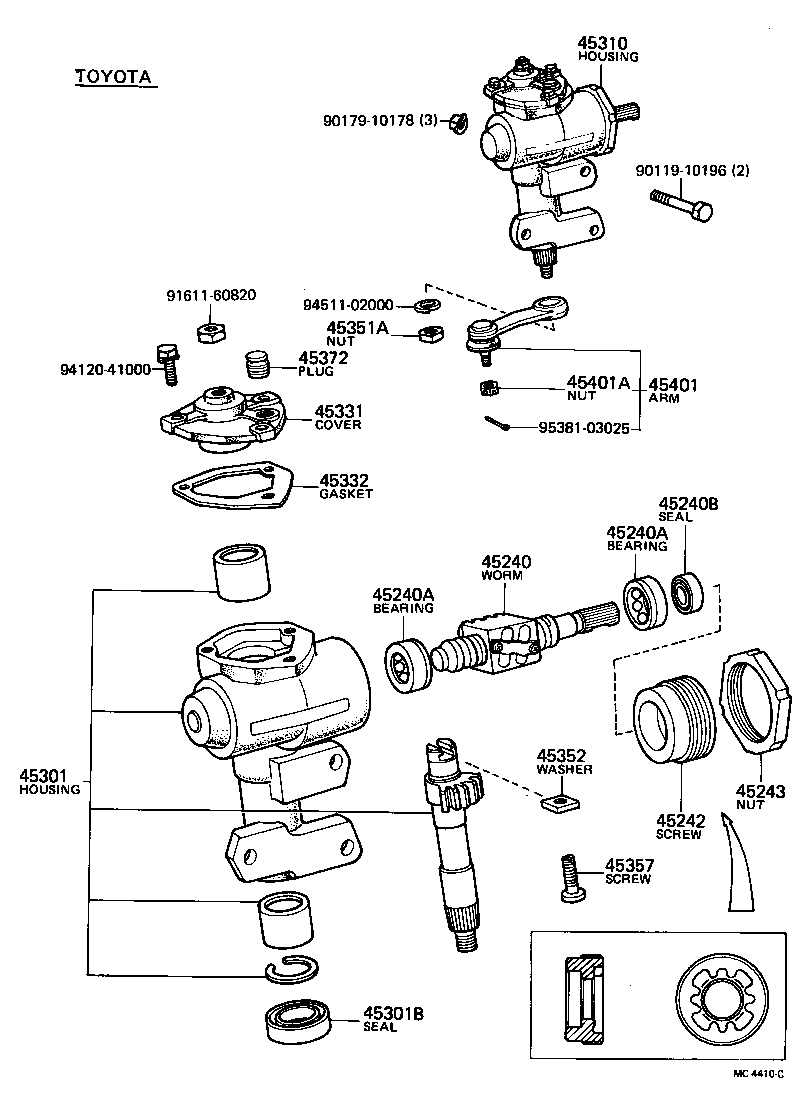

(7408-7908)TE3#,51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-12030 |
TE51;KE3#,TE3#..DLX,STD |
1 | ||
| 45240-12030 |
KE3#,50..DLX,STD |
1 | ||
| 45240-14010 |
TE3#,51 FOR TOYOTA. L=166.5 |
1 | ||
| 45240-12030 |
TE3#,51 FOR NSK. L=164 |
1 | ||
| 45240-12130 |
TE3#,51 FOR TOYOTA.L=170.2 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
KE3#,50..DLX,STD |
2 | ||
| 90369-40059 |
TE3#,51 |
2 | ||
| 90369-40018 |
TE3#,51 KOYO |
2 | ||
| 90369-40037 |
TE3#,51 NSK |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
KE3#,50..DLX,STD |
2 | ||
| 90369-40059 |
TE3#,51 |
2 | ||
| 90369-40018 |
TE3#,51 KOYO |
2 | ||
| 90369-40037 |
TE3#,51 NSK |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17062 |
KE3#,50,TE3#,51 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-12040 |
KE3#,50..DLX,STD |
1 | ||
| 45242-12040 |
TE3#,51 FOR NSK. H=26.5,W/GROOVE |
1 | ||
| 45242-22020 |
TE3#,51 FOR TOYOTA. H=25,L/GROOVE |
1 | ||
| 45242-12041 |
TE3#,51 FOR NSK. H=26.5,W/GROOVE |
1 | ||
| 45242-12041 |
KE3#,50..DLX,STD |
1 | ||
| 45242A - RING, O(FOR WORM BEARING ADJUSTING SCREW) | ||||
| 90301-53181 |
TE31;KE3#,50,TE37,38,51..DLX,SR5,STD |
1 | ||
| 90301-53181 |
KE3#,TE3#,51 |
1 | ||
| 90301-53181 |
KE30..CND;KE50,TE3#,51 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22020 |
KE3#,50,TE3#,51 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-12180 |
TE3#,51 |
1 | ||
| 45301-12180 |
TE51;TE3#..DLX,STD |
1 | ||
| 45301-12181 |
TE3#,51 FOR NSK |
1 | ||
| 45301-12160 |
KE3#,50..DLX,STD |
1 | ||
| 45301-14060 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28014 |
KE3#,50,TE3#,51 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-12160 |
TE51;TE3#..DLX,STD |
1 | ||
| 45310-12160 |
TE3#,51 |
1 | ||
| 45310-12140 |
KE3#,50..DLX,STD |
1 | ||
| 45310-14070 |
TE3#,51 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-12160 |
TE51;TE3#..DLX,STD |
1 | ||
| 45310-12160 |
TE3#,51 |
1 | ||
| 45310-12140 |
KE3#,50..DLX,STD |
1 | ||
| 45310-14070 |
TE3#,51 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-22020 |
KE3#,50..DLX,STD |
1 | ||
| 45304-14020 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45304-12010 |
TE3#,51 FOR NSK |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-12030 |
KE3#,50..DLX,STD |
1 | ||
| 45332-22020 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45332-12030 |
TE3#,51 FOR NSK |
1 | ||
| 45343 - INSULATOR, STEERING GEAR HOUSING | ||||
| 45343-12010 |
TE3#,51 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
KE3#,50,TE3#,51 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
KE3#,50,TE3#,51 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-12010 |
KE3#,50..DLX,STD T=2.00 |
1 | ||
| 45352-12060 |
KE3#,50..DLX,STD T=2.20 |
1 | ||
| 45352-12030 |
KE3#,50..DLX,STD T=2.08 |
1 | ||
| 45352-12040 |
KE3#,50..DLX,STD T=2.12 |
1 | ||
| 45352-12050 |
KE3#,50..DLX,STD T=2.16 |
1 | ||
| 45352-12020 |
KE3#,50..DLX,STD T=2.04 |
1 | ||
| 45352-12040 |
TE3#,51 T=2.12 |
1 | ||
| 45352-12030 |
TE3#,51 T=2.08 |
1 | ||
| 45352-12010 |
TE3#,51 T=2.00 |
1 | ||
| 45352-12060 |
TE3#,51 T=2.20 |
1 | ||
| 45352-12020 |
TE3#,51 T=2.04 |
1 | ||
| 45352-12050 |
TE3#,51 T=2.16 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
KE3#,50 |
1 | ||
| 45357-12010 |
TE3#,51 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
KE3#,50,TE3#,51 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19115 |
TE3#,51 FOR NSK |
1 | ||
| 45401-19095 |
TE3#,51 |
1 | ||
| 45401-19095 |
KE3#,50..DLX,STD |
1 | ||
| 45401-19105 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19115 |
TE3#,51 FOR NSK |
1 | ||
| 45401-19095 |
TE3#,51 |
1 | ||
| 45401-19095 |
KE3#,50..DLX,STD |
1 | ||
| 45401-19105 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
KE3#,50,TE3#,51 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
KE3#,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90108-06001 | ||||
| 90119-10196 | ||||
| 90179-10178 | ||||
| 91611-40610 | ||||
| 91611-60820 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-02000 | ||||
| 95381-03025 | ||||
(7608-7708)KE30..USA ; (7608-7908)TE3#,51 ; (7708-7908)KE30..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-12030 |
TE51;KE3#,TE3#..DLX,STD |
1 | ||
| 45240-12030 |
KE3#,50..DLX,STD |
1 | ||
| 45240-14010 |
TE3#,51 FOR TOYOTA. L=166.5 |
1 | ||
| 45240-12030 |
TE3#,51 FOR NSK. L=164 |
1 | ||
| 45240-12130 |
TE3#,51 FOR TOYOTA.L=170.2 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
KE3#,50..DLX,STD |
2 | ||
| 90369-40059 |
TE3#,51 |
2 | ||
| 90369-40018 |
TE3#,51 KOYO |
2 | ||
| 90369-40037 |
TE3#,51 NSK |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-40059 |
KE3#,50..DLX,STD |
2 | ||
| 90369-40059 |
TE3#,51 |
2 | ||
| 90369-40018 |
TE3#,51 KOYO |
2 | ||
| 90369-40037 |
TE3#,51 NSK |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-17062 |
KE3#,50,TE3#,51 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-12040 |
KE3#,50..DLX,STD |
1 | ||
| 45242-12040 |
TE3#,51 FOR NSK. H=26.5,W/GROOVE |
1 | ||
| 45242-22020 |
TE3#,51 FOR TOYOTA. H=25,L/GROOVE |
1 | ||
| 45242-12041 |
TE3#,51 FOR NSK. H=26.5,W/GROOVE |
1 | ||
| 45242-12041 |
KE3#,50..DLX,STD |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22020 |
KE3#,50,TE3#,51 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-12180 |
TE3#,51 |
1 | ||
| 45301-12180 |
TE51;TE3#..DLX,STD |
1 | ||
| 45301-12181 |
TE3#,51 FOR NSK |
1 | ||
| 45301-12160 |
KE3#,50..DLX,STD |
1 | ||
| 45301-14060 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28014 |
KE3#,50,TE3#,51 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-12160 |
TE51;TE3#..DLX,STD |
1 | ||
| 45310-12160 |
TE3#,51 |
1 | ||
| 45310-12140 |
KE3#,50..DLX,STD |
1 | ||
| 45310-14070 |
TE3#,51 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-22020 |
KE3#,50..DLX,STD |
1 | ||
| 45304-14020 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45304-12010 |
TE3#,51 FOR NSK |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-12030 |
KE3#,50..DLX,STD |
1 | ||
| 45332-22020 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45332-12030 |
TE3#,51 FOR NSK |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
KE3#,50,TE3#,51 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-12010 |
KE3#,50..DLX,STD T=2.00 |
1 | ||
| 45352-12060 |
KE3#,50..DLX,STD T=2.20 |
1 | ||
| 45352-12030 |
KE3#,50..DLX,STD T=2.08 |
1 | ||
| 45352-12040 |
KE3#,50..DLX,STD T=2.12 |
1 | ||
| 45352-12050 |
KE3#,50..DLX,STD T=2.16 |
1 | ||
| 45352-12020 |
KE3#,50..DLX,STD T=2.04 |
1 | ||
| 45352-12040 |
TE3#,51 T=2.12 |
1 | ||
| 45352-12030 |
TE3#,51 T=2.08 |
1 | ||
| 45352-12010 |
TE3#,51 T=2.00 |
1 | ||
| 45352-12060 |
TE3#,51 T=2.20 |
1 | ||
| 45352-12020 |
TE3#,51 T=2.04 |
1 | ||
| 45352-12050 |
TE3#,51 T=2.16 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
KE3#,50 |
1 | ||
| 45357-12010 |
TE3#,51 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
KE3#,50,TE3#,51 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19115 |
TE3#,51 FOR NSK |
1 | ||
| 45401-19095 |
TE3#,51 |
1 | ||
| 45401-19095 |
KE3#,50..DLX,STD |
1 | ||
| 45401-19105 |
TE3#,51 FOR TOYOTA |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
KE3#,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90119-10196 | ||||
| 90179-10178 | ||||
| 91611-60820 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 95381-03025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
