TE31L-MDA (1974)
Toyota Corolla

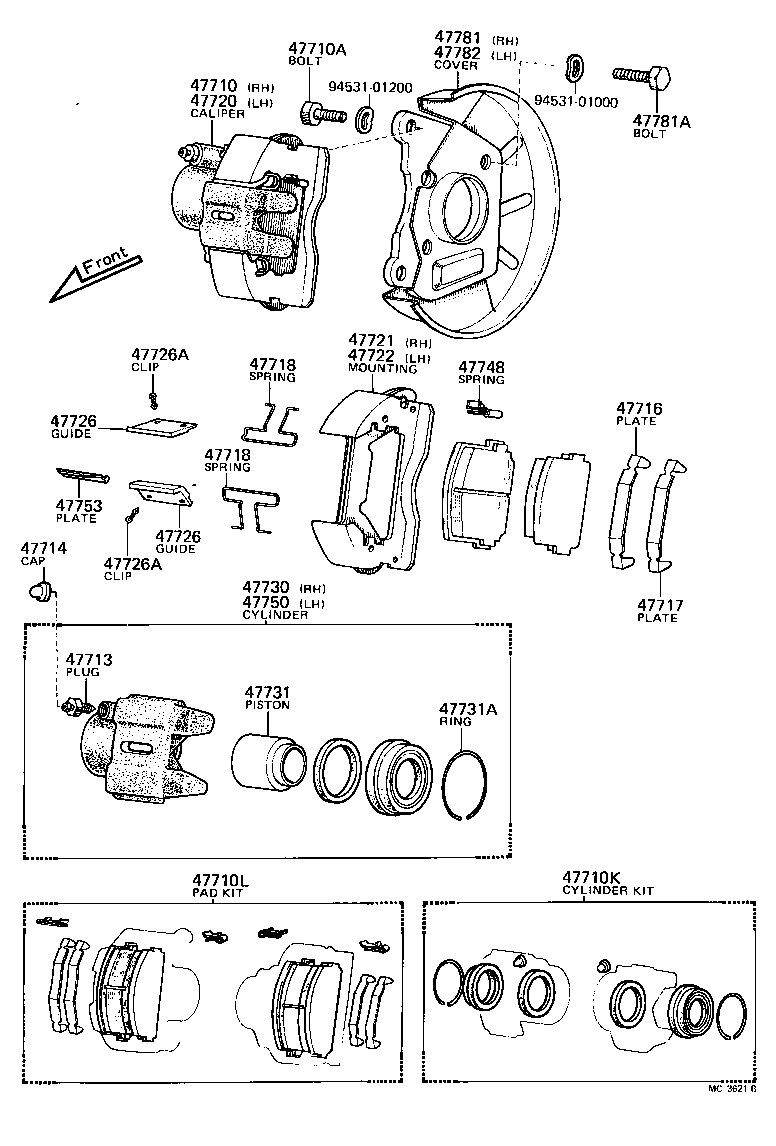

ILLUST NO. 1 OF 2(7408-7508)TE3# ; (7508-7611)TE51 ; (7508-7611)TE3#..DLX,SPL,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710 - CALIPER ASSY, DISC BRAKE, FRONT, RH | ||||
| 47710-12054 |
TE51;TE3#..DLX,SPL,STD |
1 | ||
| 47710-12054 |
TE3# |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-10020 |
KE3#,50 10-1.25PX16.4-11.4 |
4 | ||
| 90101-12332 |
TE3#,51 *12-1.25PX15.7-10,12-1.25PX15.5-11 |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14010 |
TE3#,51 |
1 | ||
| 04479-12040 |
KE3#,50 SUMITOMO |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-12090 |
TE51;TE3#..DLX,SPL,STD |
1 | ||
| 04491-12090 |
TE3# |
1 | ||
| 04491-12090 |
TE3#,51 |
1 | ||
| 04491-12091 |
TE3#,51 |
1 | ||
| 04491-12081 |
KE3#,50 |
1 | ||
| 04491-12093 |
TE3#,51 |
1 | ||
| 04491-12080 |
KE3#,50 |
1 | ||
| 04491-12092 |
TE3#,51 |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12020 |
TE3#,51 |
2 | ||
| 47547-12030 |
KE3#,50 SUMITOMO |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KE3#,50,TE3#,51 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-14020 |
TE3#,51 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-14020 |
TE3#,51 |
2 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-12030 |
TE3#,51 |
4 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-12030 |
TE3#,51 |
4 | ||
| 47720 - CALIPER ASSY, DISC BRAKE, FRONT, LH | ||||
| 47720-12054 |
TE3# |
1 | ||
| 47720-12054 |
TE51;TE3#..DLX,SPL,STD |
1 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-12030 |
TE3#,51 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-12030 |
TE3#,51 |
1 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-14020 |
TE3#,51 |
4 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-14020 |
TE3#,51 |
4 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12134 |
TE3#,51 |
8 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12134 |
TE3#,51 |
8 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-12060 |
TE3#,51 |
1 | ||
| 47730-14030 |
TE3#,51 |
1 | ||
| 47730-12070 |
KE3#,50 SUMITOMO |
1 | ||
| 47730-12080 |
KE3#,50 TOYOTA |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20030 |
TE3#,51 |
2 | ||
| 47731-12030 |
KE3#,50 SUMITOMO |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-53018 |
KE3#,50 SUMITOMO |
2 | ||
| 90522-54038 |
TE3#,51 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-12020 |
KE3#,50 FOR INNER,SUMITOMO |
2 | ||
| 47748-12010 |
KE3#,50 FOR OUTER,SUMITOMO |
2 | ||
| 47748-14010 |
TE3#,51 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-14030 |
TE3#,51 |
1 | ||
| 47750-12080 |
KE3#,50 TOYOTA |
1 | ||
| 47750-12060 |
TE3#,51 |
1 | ||
| 47750-12070 |
KE3#,50 SUMITOMO |
1 | ||
| 47753 - PLATE, CYLINDER GUIDE | ||||
| 47753-14010 |
TE3#,51 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-12050 |
TE3#,51 |
1 | ||
| 47703-12041 |
KE3#,50 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-10082 |
KE3#,50 |
8 | ||
| 90101-10020 |
TE3#,51 |
8 | ||
| 90101-10366 |
TE3#,51 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-12041 |
KE3#,50 |
1 | ||
| 47704-12050 |
TE3#,51 |
1 | ||
| Common parts | ||||
| 94531-01000 | ||||
| 94531-01200 | ||||

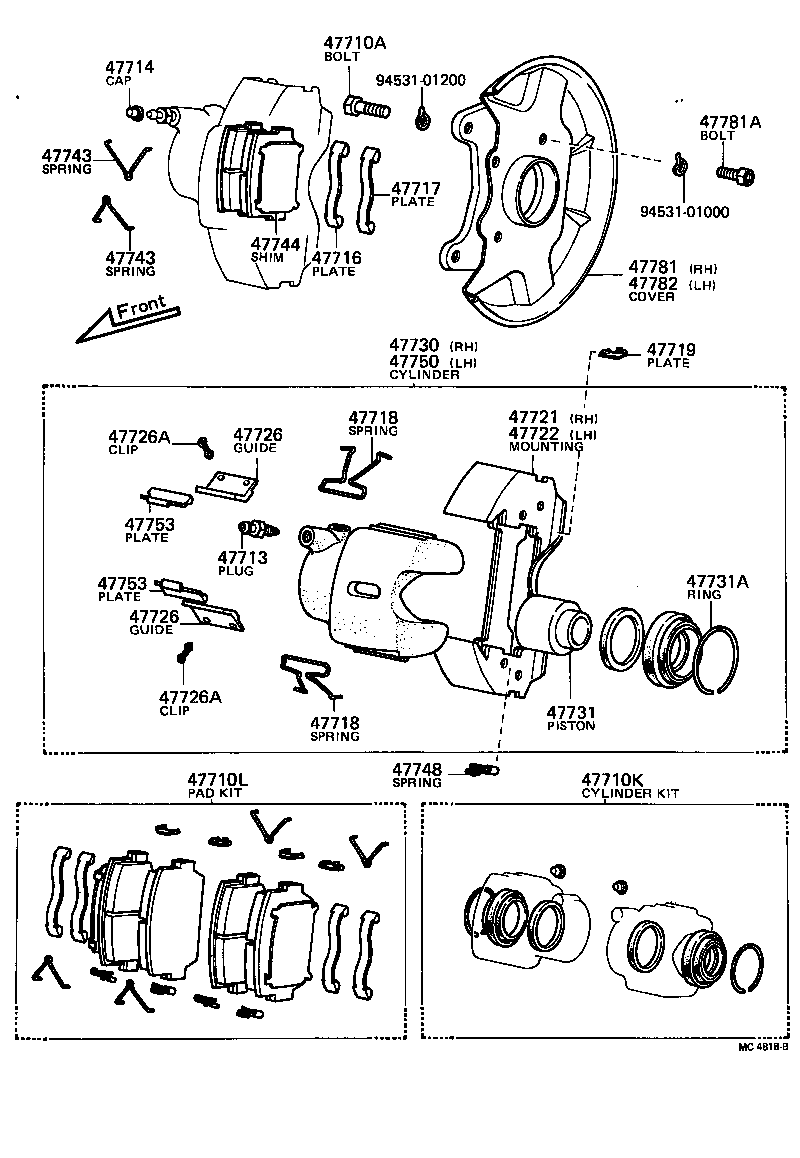

ILLUST NO. 1 OF 2(7611-7701)TE51 ; (7611-7701)TE3#..DLX,SPL,STD ;(7701-7908)TE3#,51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-10020 |
KE3#,50 10-1.25PX16.4-11.4 |
4 | ||
| 90101-12332 |
TE3#,51 *12-1.25PX15.7-10,12-1.25PX15.5-11 |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14010 |
TE3#,51 |
1 | ||
| 04479-12040 |
KE3#,50 SUMITOMO |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-12090 |
TE51;TE3#..DLX,SPL,STD |
1 | ||
| 04491-12090 |
TE3# |
1 | ||
| 04491-12090 |
TE3#,51 |
1 | ||
| 04491-12091 |
TE3#,51 |
1 | ||
| 04491-12081 |
KE3#,50 |
1 | ||
| 04491-12093 |
TE3#,51 |
1 | ||
| 04491-12080 |
KE3#,50 |
1 | ||
| 04491-12092 |
TE3#,51 |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12020 |
TE3#,51 |
2 | ||
| 47547-12030 |
KE3#,50 SUMITOMO |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KE3#,50,TE3#,51 |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-14020 |
TE3#,51 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-14020 |
TE3#,51 |
2 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-12030 |
TE3#,51 |
4 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-12030 |
TE3#,51 |
4 | ||
| 47719 - PLATE, FRONT DISC BRAKE PAD GUIDE | ||||
| 47719-12010 |
TE3#,51 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-12030 |
TE3#,51 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-12030 |
TE3#,51 |
1 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-14020 |
TE3#,51 |
4 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-14020 |
TE3#,51 |
4 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12134 |
TE3#,51 |
8 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12134 |
TE3#,51 |
8 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-12060 |
TE3#,51 |
1 | ||
| 47730-14030 |
TE3#,51 |
1 | ||
| 47730-12070 |
KE3#,50 SUMITOMO |
1 | ||
| 47730-12080 |
KE3#,50 TOYOTA |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20030 |
TE3#,51 |
2 | ||
| 47731-12030 |
KE3#,50 SUMITOMO |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-53018 |
KE3#,50 SUMITOMO |
2 | ||
| 90522-54038 |
TE3#,51 |
2 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-14010 |
TE3#,51 |
4 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-14010 |
TE3#,51 |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-14010 |
TE3#,51 |
2 | ||
| 47744-14011 |
TE3#,51 |
2 | ||
| 47744-12010 |
KE3#,50 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-12020 |
KE3#,50 FOR INNER,SUMITOMO |
2 | ||
| 47748-12010 |
KE3#,50 FOR OUTER,SUMITOMO |
2 | ||
| 47748-14010 |
TE3#,51 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-14030 |
TE3#,51 |
1 | ||
| 47750-12080 |
KE3#,50 TOYOTA |
1 | ||
| 47750-12060 |
TE3#,51 |
1 | ||
| 47750-12070 |
KE3#,50 SUMITOMO |
1 | ||
| 47753 - PLATE, CYLINDER GUIDE | ||||
| 47753-14010 |
TE3#,51 |
4 | ||
| 47753 - PLATE, CYLINDER GUIDE | ||||
| 47753-14010 |
TE3#,51 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-12050 |
TE3#,51 |
1 | ||
| 47703-12041 |
KE3#,50 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-10082 |
KE3#,50 |
8 | ||
| 90101-10020 |
TE3#,51 |
8 | ||
| 90101-10366 |
TE3#,51 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-12041 |
KE3#,50 |
1 | ||
| 47704-12050 |
TE3#,51 |
1 | ||
| Common parts | ||||
| 94531-01000 | ||||
| 94531-01200 | ||||
ILLUST NO. 1 OF 2(7611-7908)KE3#,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-10020 |
KE3#,50 10-1.25PX16.4-11.4 |
4 | ||
| 90101-12332 |
TE3#,51 *12-1.25PX15.7-10,12-1.25PX15.5-11 |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14010 |
TE3#,51 |
1 | ||
| 04479-12040 |
KE3#,50 SUMITOMO |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-12090 |
TE51;TE3#..DLX,SPL,STD |
1 | ||
| 04491-12090 |
TE3# |
1 | ||
| 04491-12090 |
TE3#,51 |
1 | ||
| 04491-12091 |
TE3#,51 |
1 | ||
| 04491-12081 |
KE3#,50 |
1 | ||
| 04491-12093 |
TE3#,51 |
1 | ||
| 04491-12080 |
KE3#,50 |
1 | ||
| 04491-12092 |
TE3#,51 |
1 | ||
| 47710N - SEAL KIT, DISC BRAKE, FRONT | ||||
| 04498-12010 |
KE3#,50 SUMITOMO |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12020 |
TE3#,51 |
2 | ||
| 47547-12030 |
KE3#,50 SUMITOMO |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KE3#,50,TE3#,51 |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-12060 |
TE3#,51 |
1 | ||
| 47730-14030 |
TE3#,51 |
1 | ||
| 47730-12070 |
KE3#,50 SUMITOMO |
1 | ||
| 47730-12080 |
KE3#,50 TOYOTA |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20030 |
TE3#,51 |
2 | ||
| 47731-12030 |
KE3#,50 SUMITOMO |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-53018 |
KE3#,50 SUMITOMO |
2 | ||
| 90522-54038 |
TE3#,51 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-14010 |
TE3#,51 |
2 | ||
| 47744-14011 |
TE3#,51 |
2 | ||
| 47744-12010 |
KE3#,50 |
2 | ||
| 47746A - PIN, W/HOLE(FOR DISC BRAKE PAD, FRONT) | ||||
| 90240-06133 |
KE3#,50 SUMITOMO |
4 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-12020 |
KE3#,50 FOR INNER,SUMITOMO |
2 | ||
| 47748-12010 |
KE3#,50 FOR OUTER,SUMITOMO |
2 | ||
| 47748-14010 |
TE3#,51 |
4 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-12020 |
KE3#,50 FOR INNER,SUMITOMO |
2 | ||
| 47748-12010 |
KE3#,50 FOR OUTER,SUMITOMO |
2 | ||
| 47748-14010 |
TE3#,51 |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-14030 |
TE3#,51 |
1 | ||
| 47750-12080 |
KE3#,50 TOYOTA |
1 | ||
| 47750-12060 |
TE3#,51 |
1 | ||
| 47750-12070 |
KE3#,50 SUMITOMO |
1 | ||
| 47766 - CAP, TORQUE PLATE PIN, FRONT(MAIN PIN) | ||||
| 47766-12010 |
KE3#,50 SUMITOMO |
2 | ||
| 47766A - PLUG, HOLE(FOR TORQUE PLATE FRONT PIN CAP) | ||||
| 90950-01121 |
KE3#,50 SUMITOMO |
2 | ||
| 47767 - PROTECTOR, DISC BRAKE PAD | ||||
| 47767-12010 |
KE3#,50 SUMITOMO |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-12050 |
TE3#,51 |
1 | ||
| 47703-12041 |
KE3#,50 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-10082 |
KE3#,50 |
8 | ||
| 90101-10020 |
TE3#,51 |
8 | ||
| 90101-10366 |
TE3#,51 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-12041 |
KE3#,50 |
1 | ||
| 47704-12050 |
TE3#,51 |
1 | ||
| Common parts | ||||
| 90101-12392 | ||||
| 90101-12489 | ||||
| 94531-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
