TE31L-MBFA (1976)
Toyota Corolla
(7408-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-30030 |
KE3#,TE3# |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12020 |
KE3#,TE3#,51 |
1 | ||
| 84118-14010 |
KE3#,50,TE3#,51 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12030 |
KE3#,TE3# |
1 | ||
| 84119-12032 |
KE3#,50,TE3#,51 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01011 |
KE3#,50,TE3#,51 |
1 | ||
| 90984-01006 |
KE3#,TE3#,51 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12221 |
KE3#,50,TE3#,51 |
1 | ||
| 84310-12220 |
KE3#,TE3#,51 |
1 | ||
| 84310-12181 |
KE3#,TE3#,51 |
1 | ||
| 84310K - SWITCH KIT, LIGHT CONTROL | ||||
| 04841-30130 |
KE3#,TE3#,51 TOKAIRIKA |
1 | ||
| 04841-30131 |
KE3#,TE3#,51 TOKAIRIKA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
KE3#,50,TE3#,51 MATSUSHITA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12050 |
KE3#,TE3# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19075 |
KE3#,50,TE3#,51 MATSUSHITA |
1 | ||
| 84652-19036 |
KE30,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84652-19035 |
KE3#,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84652-19115 |
KE30,50,TE3#,51 MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19075 |
KE3#,50,TE3#,51 MATSUSHITA |
1 | ||
| 84652-19036 |
KE30,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84652-19035 |
KE3#,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84652-19115 |
KE30,50,TE3#,51 MATSUSHITA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
KE3#,50,TE3#,51 |
1 | ||
| 84732-12033 |
TE3#,51 W/COOLER |
1 | ||
| 84732-12031 |
TE3# W/COOLER |
1 | ||
| 84732-12050 |
KE30,TE3#,51..USA W/COOLER |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
KE3#,50,TE3#,51 T=3 |
1 | ||
| 90170-11207 |
KE3#,TE3#,51 T=12.5 |
1 | ||
| 90170-11001 |
KE3#,50,TE3#,51 T=12.5 |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
KE3#,50,TE3#,51 T=3 |
1 | ||
| 90170-11207 |
KE3#,TE3#,51 T=12.5 |
1 | ||
| 90170-11001 |
KE3#,50,TE3#,51 T=12.5 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
TE3# W/COOLER,TEMP.CONTROL |
1 | ||
| 84731-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 84731-12021 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12020 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12032 |
TE3#,51 W/COOLER,TEMP.CONTROL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
TE3# W/COOLER,TEMP.CONTROL |
1 | ||
| 84731-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 84731-12021 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12020 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12032 |
TE3#,51 W/COOLER,TEMP.CONTROL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
TE3# W/COOLER,TEMP.CONTROL |
1 | ||
| 84731-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 84731-12021 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12020 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12032 |
TE3#,51 W/COOLER,TEMP.CONTROL |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,TE3#,51 |
1 | ||
| 84790-12051 |
KE30,TE3# |
1 | ||
| 84790-12020 |
KE3#,TE3# |
1 | ||
| 84790A - BOLT OR NUT, REAR WINDOW DEFOGGER SWITCH SET | ||||
| 90179-14191 |
KE3#,TE3#,51 |
1 | ||
| 84791 - KNOB, REAR WINDOW DEFOGGER SWITCH | ||||
| 84791-12020 |
KE3#,TE3#,51 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30160 |
KE3#,TE3# |
1 | ||
| 85500-12031 |
KE3#,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90480-13055 | ||||
| 93219-13010 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| 93385-16020 | ||||
| 94511-00300 | ||||
(7408-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-38050 |
2TC..TE3#,51 |
1 | ||
| 27700-38060 |
2TC..TE3#,51 |
1 | ||
| 27700-26030 |
2TC..TE3#,51..USA |
1 | ||
| 27700-26030 |
2TC..TE3#,51 |
1 | ||
| 27700-38100 |
3KC,2TC..KE30,50,TE3#,51 W/HEAVY DUTY REAR DEFOGGER |
1 | ||
| 27700-38010 |
2TC..TE3#,51 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14010 |
TE3#,51..USA FEDERAL SPEC. |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-12050 |
TE3#,51..USA CAL.& H.A. |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
KE30,50,TE31,38,51..DLX,SPL,STD |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
KE30,50,TE31,38,51..DLX,SPL,STD |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
KE30,50,TE31,38,51..DLX,SPL,STD |
1 | ||
| 83540 - SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER) | ||||
| 84390-30011 |
KE3#,TE3# |
2 | ||
| 84221 - SWITCH ASSY, DIFFERENTIAL VALVE | ||||
| 84220-12030 |
TE31;KE30,TE37,38,51..DLX,SPL,SR5 USA SPEC. |
1 | ||
| 84220-12040 |
TE3#,51;KE30..USA |
1 | ||
| 84759 - SWITCH ASSY, INTER LOCK CANCELING | ||||
| 84759-12021 |
TE3# USA SPEC. |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-12020 |
TE3#,51..USA |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-12011 |
KE3#,TE3#,51 |
1 | ||
| 90987-01001 |
KE3#,50,TE3#,51 |
1 | ||
| 85919-12010 |
KE3#,TE3#,51 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-22010 |
KE3#,TE3# |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89428-12020 |
TE3# MARK=35 |
1 | ||
| 89428-12030 |
TE3# MARK=60,CALIFORNIA SPEC. |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89428-12020 |
TE3# MARK=35 |
1 | ||
| 89428-12030 |
TE3# MARK=60,CALIFORNIA SPEC. |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89427-12010 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX MARK=13-105,CAL.& H.A. |
1 | ||
| 89428-30030 |
KE30,50 MARK=95 |
1 | ||
| 89427-12010 |
TE3#,51..USA MARK=13-105,CAL.& H.A. |
1 | ||
| 89427-12010 |
TE3#,51 MARK=13-105,CALIFORNIA SPEC. |
1 | ||
| 89427-12011 |
TE3#,51..USA MARK=13-105,CAL.& H.A. |
1 | ||
| 89428-12080 |
KE3#,50 MARK=95 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12010 |
TE3# |
1 | ||
| 89620-12100 |
TE3#,51 CANADA SPEC. |
1 | ||
| 89620-12023 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX ARCTIC,CAL.& H.A. |
1 | ||
| 89620-12022 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX ARCTIC,CAL.& H.A. |
1 | ||
| 89620-12104 |
TE3#,51 |
1 | ||
| 89620-12103 |
TE3#,51 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-12010 |
TE3# |
1 | ||
| 89620-12100 |
TE3#,51 CANADA SPEC. |
1 | ||
| 89620-12023 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX ARCTIC,CAL.& H.A. |
1 | ||
| 89620-12022 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX ARCTIC,CAL.& H.A. |
1 | ||
| 89620-12104 |
TE3#,51 |
1 | ||
| 89620-12103 |
TE3#,51 |
1 | ||
| 89620A - DIODE, IGNITION COIL | ||||
| 90919-14007 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX CAL.& H.A. |
1 | ||
| 90919-14005 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX CAL.& H.A. |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90179-05095 | ||||
| 90179-08123 | ||||
| 90461-05013 | ||||
| 91651-40612 | ||||
| 91651-40812 | ||||
| 91651-40822 | ||||
| 91656-40616 | ||||
| 91656-40618 | ||||
| 91656-40818 | ||||
| 93381-15012 | ||||
| 94120-41000 | ||||
(7408-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19215 |
TE31,37,51..CP,HT,SED CALIFORNIA SPEC. |
1 | ||
| 83320-19205 |
KE3#,TE31,37 |
1 | ||
| 83320-19215 |
TE31,37,51..CP,HT,SED CAL.& H.A. |
1 | ||
| 83320-19205 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19215 |
TE31,37,51..CP,HT,SED CALIFORNIA SPEC. |
1 | ||
| 83320-19205 |
KE3#,TE31,37 |
1 | ||
| 83320-19215 |
TE31,37,51..CP,HT,SED CAL.& H.A. |
1 | ||
| 83320-19205 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10051 |
TE3#,51..MTM |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20020 |
KE3#,TE3# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-20020 |
KE30,TE31,38..4D |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-12011 |
KE3#,TE3# |
1 | ||
| 84340-22060 |
TE3#,51;KE30..USA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84550-14010 |
KE3#,TE3#..MTM |
1 | ||
| 84380-12030 |
TE3#,51;KE30..USA |
1 | ||
| 84750 - SWITCH ASSY, SEAT BELT WARNING | ||||
| 84750-12040 |
KE3#,TE3# |
2 | ||
| 84750 - SWITCH ASSY, SEAT BELT WARNING | ||||
| 84750-12040 |
KE3#,TE3# |
2 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19065 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX CAL.& H.A. |
1 | ||
| 89425-19125 |
TE3#,51..USA CAL.& H.A. |
1 | ||
| 89425-19015 |
TE3# CALIFORNIA SPEC. |
1 | ||
| 89425-19065 |
TE3#,51..USA CAL.& H.A. |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-12020 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX CAL.& H.A. |
1 | ||
| 89437-12010 |
TE3# CALIFORNIA SPEC. |
1 | ||
| 89437-12020 |
TE3#,51..USA CAL.& H.A. |
1 | ||
| Common parts | ||||
| 90201-08456 | ||||
| 90430-08252 | ||||
| 90461-06040 | ||||
| 90461-08022 | ||||
| 90461-08187 | ||||
| 90463-15067 | ||||
| 90464-00057 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93280-16016 | ||||
| 93319-14010 | ||||
| 94531-00600 | ||||
| Linked diagrams | ||||
| 7701 | ||||

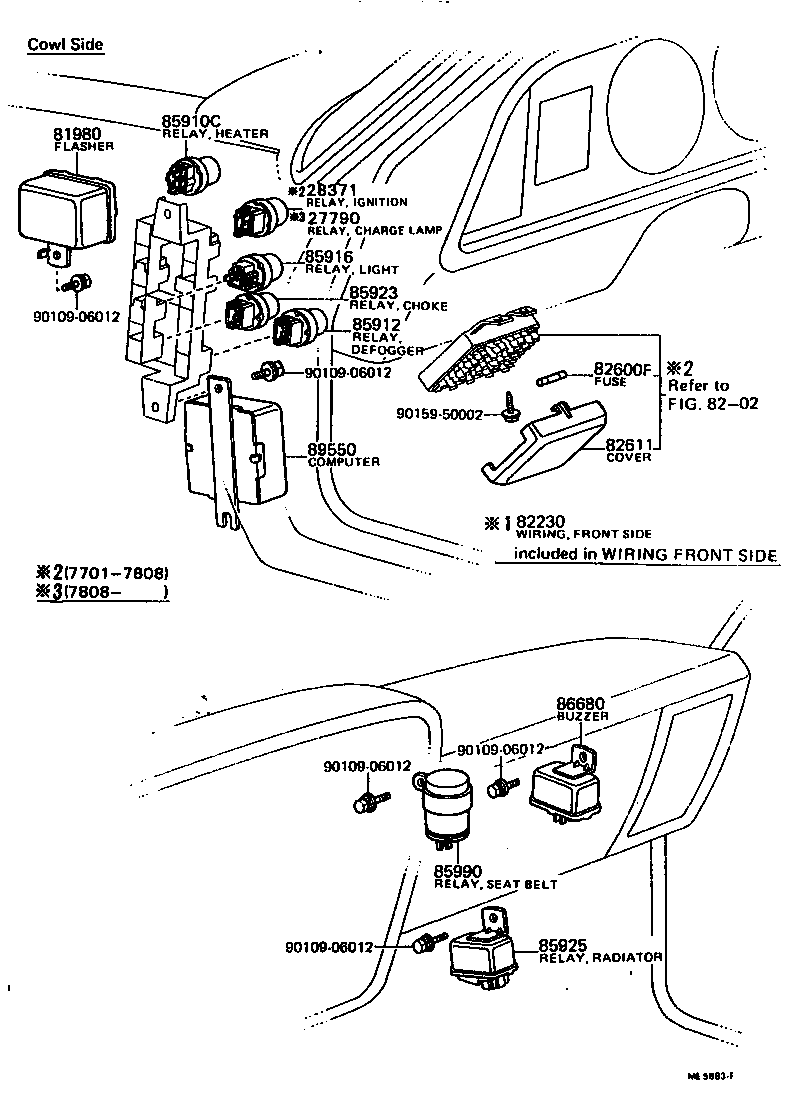

(7408-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-26020 |
2TC..TE3# |
1 | ||
| 28300-26030 |
2TC..TE3# CALIFORNIA SPEC. |
1 | ||
| 28301 - RELAY ASSY, FUEL PUMP | ||||
| 28300-12030 |
2TC..TE3# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02001 |
2TC..TE3#,51 USA SPEC. |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12030 |
KE3#,TE3#,51 |
1 | ||
| 81980-12050 |
KE3#,50,TE3#,51 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
KE3#,50,TE3#,51 5A |
1 | ||
| 99118-62005 |
KE30,50,TE3#,51 5A |
1 | ||
| 99118-62915 |
KE3#,50,TE3#,51 15A,15A |
10 | ||
| 99118-62920 |
KE30,50 20A,20A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12040 |
KE3#,TE3#,51..CP,HT,SED,WG |
1 | ||
| 82611-12070 |
KE30,50 |
1 | ||
| 82611-12050 |
KE3#,50,TE3#,51 |
1 | ||
| 82611-12050 |
TE3#,51 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02001 |
TE31..MTM..4D..SPL;KE3#,50,TE3#,51..DLX,SR5,STD W/HEAVY DEFOGGER |
1 | ||
| 85912-12010 |
TE31..4D..SPL;KE3#,TE3#,51..DLX,SR5,STD W/HEAVY DEFOGGER |
1 | ||
| 90987-02001 |
KE30,50,TE3#,51 |
1 | ||
| 85923 - RELAY, CHOKE CONTROL | ||||
| 85925-12010 |
TE3#,51 W/HEAVY DEFOGGER |
1 | ||
| 85923-12021 |
TE3# |
1 | ||
| 90987-02001 |
TE3#,51 |
1 | ||
| 90987-02001 |
TE3#,51..USA |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 85924-12020 |
TE3# DISTRIBUTOR,TWO DIAPHRAM |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 85925-12010 |
KE3#,50 |
1 | ||
| 85929 - BRACKET, IGNITION CONTROL RELAY | ||||
| 85999-12030 |
TE3#,51 |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85990-12030 |
TE3# |
1 | ||
| 85990-12050 |
KE3#,TE3# CANADA SPEC. |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85990-12030 |
TE3# |
1 | ||
| 85990-12050 |
KE3#,TE3# CANADA SPEC. |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85990-12030 |
TE3# |
1 | ||
| 85990-12050 |
KE3#,TE3# CANADA SPEC. |
1 | ||
| 86680 - BUZZER ASSY, UN-LOCK WARNING OR SEAT BELT WARNING | ||||
| 86650-22021 |
KE3#,50,TE3#,51 |
1 | ||
| 89441 - SENSOR, DECELERATION | ||||
| 89440-12010 |
KE3#,TE3# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12071 |
TE3#..MTM CALIFORNIA SPEC. |
1 | ||
| 89550-12060 |
TE3# |
1 | ||
| 89550-12240 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX CAL.& H.A. |
1 | ||
| 89550-12160 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX CAL.& H.A. |
1 | ||
| 89550-12300 |
TE3#,51..USA CAL.& H.A. |
1 | ||
| 89550-12380 |
TE3#,51..USA CAL.& H.A. |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91621-40612 | ||||
| 93383-16016 | ||||
| 93385-16020 | ||||
| 93386-16016 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
(7701-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-30030 |
KE3#,TE3# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19025 |
KE3#,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84112-19026 |
KE30,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84112-19045 |
KE3#,50,TE3#,51 MATSUSHITA |
1 | ||
| 84112-19065 |
KE30,50,TE3#,51 MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12020 |
KE3#,TE3#,51 |
1 | ||
| 84118-14010 |
KE3#,50,TE3#,51 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12030 |
KE3#,TE3# |
1 | ||
| 84119-12032 |
KE3#,50,TE3#,51 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01011 |
KE3#,50,TE3#,51 |
1 | ||
| 90984-01006 |
KE3#,TE3#,51 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12221 |
KE3#,50,TE3#,51 |
1 | ||
| 84310-12220 |
KE3#,TE3#,51 |
1 | ||
| 84310-12181 |
KE3#,TE3#,51 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
KE3#,50,TE3#,51 MATSUSHITA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12050 |
KE3#,TE3# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19075 |
KE3#,50,TE3#,51 MATSUSHITA |
1 | ||
| 84652-19036 |
KE30,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84652-19035 |
KE3#,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84652-19115 |
KE30,50,TE3#,51 MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19075 |
KE3#,50,TE3#,51 MATSUSHITA |
1 | ||
| 84652-19036 |
KE30,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84652-19035 |
KE3#,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84652-19115 |
KE30,50,TE3#,51 MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19075 |
KE3#,50,TE3#,51 MATSUSHITA |
1 | ||
| 84652-19036 |
KE30,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84652-19035 |
KE3#,50,TE3#,51 TOKAIRIKA |
1 | ||
| 84652-19115 |
KE30,50,TE3#,51 MATSUSHITA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12020 |
KE3#,50,TE3#,51 |
1 | ||
| 84732-12033 |
TE3#,51 W/COOLER |
1 | ||
| 84732-12031 |
TE3# W/COOLER |
1 | ||
| 84732-12050 |
KE30,TE3#,51..USA W/COOLER |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
KE3#,50,TE3#,51 T=3 |
1 | ||
| 90170-11207 |
KE3#,TE3#,51 T=12.5 |
1 | ||
| 90170-11001 |
KE3#,50,TE3#,51 T=12.5 |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
KE3#,50,TE3#,51 T=3 |
1 | ||
| 90170-11207 |
KE3#,TE3#,51 T=12.5 |
1 | ||
| 90170-11001 |
KE3#,50,TE3#,51 T=12.5 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
TE3# W/COOLER,TEMP.CONTROL |
1 | ||
| 84731-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 84731-12021 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12020 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12032 |
TE3#,51 W/COOLER,TEMP.CONTROL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
TE3# W/COOLER,TEMP.CONTROL |
1 | ||
| 84731-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 84731-12021 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12020 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12032 |
TE3#,51 W/COOLER,TEMP.CONTROL |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12030 |
TE3# W/COOLER,TEMP.CONTROL |
1 | ||
| 84731-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 84731-12021 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12020 |
TE3#,51 W/COOLER,BLOWER CONTROL |
1 | ||
| 84731-12032 |
TE3#,51 W/COOLER,TEMP.CONTROL |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,TE3#,51 |
1 | ||
| 84790-12051 |
KE30,TE3# |
1 | ||
| 84790-12020 |
KE3#,TE3# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84792-12010 |
KE3#,TE3#,51 |
1 | ||
| 84790-12051 |
KE30,TE3# |
1 | ||
| 84790-12020 |
KE3#,TE3# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11018 |
KE3#,50,TE3#,51 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 90981-11009 |
KE3#,TE3#,51 12V 1.5W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11018 |
KE3#,50,TE3#,51 12V 1.2W W/O SOCKET,12V 1.4W |
1 | ||
| 90981-11009 |
KE3#,TE3#,51 12V 1.5W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30160 |
KE3#,TE3# |
1 | ||
| 85500-12031 |
KE3#,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90201-11141 | ||||
| 93219-13010 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| 94511-00300 | ||||
(7701-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02001 |
2TC..TE3#,51 USA SPEC. |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12030 |
KE3#,TE3#,51 |
1 | ||
| 81980-12050 |
KE3#,50,TE3#,51 |
1 | ||
| 82230 - WIRING ASSY, FRONT SIDE | ||||
| 82230-12030 |
TE3# CALIFORNIA SPEC. |
1 | ||
| 82230-12010 |
TE3# |
1 | ||
| 82230-12130 |
TE3#,51..DLX,SPL,STD CAL.& H.A. |
1 | ||
| 82230-12300 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX CAL.& H.A. |
1 | ||
| 82230-12410 |
TE38,51..USA;TE31,37..MTM..USA;TE31..A40..DLX..USA CAL.& H.A. |
1 | ||
| 82230-12401 |
TE3#,51 |
1 | ||
| 82230-12411 |
TE38,51..USA;TE31,37..MTM..USA;TE31..A40..DLX..USA CALIFORNIA SPEC. |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
KE3#,50,TE3#,51 5A |
1 | ||
| 99118-62005 |
KE30,50,TE3#,51 5A |
1 | ||
| 99118-62915 |
KE3#,50,TE3#,51 15A,15A |
10 | ||
| 99118-62920 |
KE30,50 20A,20A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12040 |
KE3#,TE3#,51..CP,HT,SED,WG |
1 | ||
| 82611-12070 |
KE30,50 |
1 | ||
| 82611-12050 |
KE3#,50,TE3#,51 |
1 | ||
| 82611-12050 |
TE3#,51 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02001 |
TE3#,51 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02001 |
TE31..MTM..4D..SPL;KE3#,50,TE3#,51..DLX,SR5,STD W/HEAVY DEFOGGER |
1 | ||
| 85912-12010 |
TE31..4D..SPL;KE3#,TE3#,51..DLX,SR5,STD W/HEAVY DEFOGGER |
1 | ||
| 90987-02001 |
KE30,50,TE3#,51 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-12011 |
KE3#,TE3#,51 |
1 | ||
| 90987-01001 |
KE3#,50,TE3#,51 |
1 | ||
| 85919-12010 |
KE3#,TE3#,51 |
1 | ||
| 85923 - RELAY, CHOKE CONTROL | ||||
| 85925-12010 |
TE3#,51 W/HEAVY DEFOGGER |
1 | ||
| 85923-12021 |
TE3# |
1 | ||
| 90987-02001 |
TE3#,51 |
1 | ||
| 90987-02001 |
TE3#,51..USA |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 85925-12010 |
KE3#,50 |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85990-12030 |
TE3# |
1 | ||
| 85990-12050 |
KE3#,TE3# CANADA SPEC. |
1 | ||
| 86680 - BUZZER ASSY, UN-LOCK WARNING OR SEAT BELT WARNING | ||||
| 86650-22021 |
KE3#,50,TE3#,51 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12071 |
TE3#..MTM CALIFORNIA SPEC. |
1 | ||
| 89550-12060 |
TE3# |
1 | ||
| 89550-12240 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX CAL.& H.A. |
1 | ||
| 89550-12160 |
TE37,38,51;TE31..MTM..USA;TE31..A40..DLX CAL.& H.A. |
1 | ||
| 89550-12300 |
TE3#,51..USA CAL.& H.A. |
1 | ||
| 89550-12380 |
TE3#,51..USA CAL.& H.A. |
1 | ||
| Common parts | ||||
| 90109-06012 | ||||
| 90159-50002 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
