TE31L-MBFA (1976)
Toyota Corolla

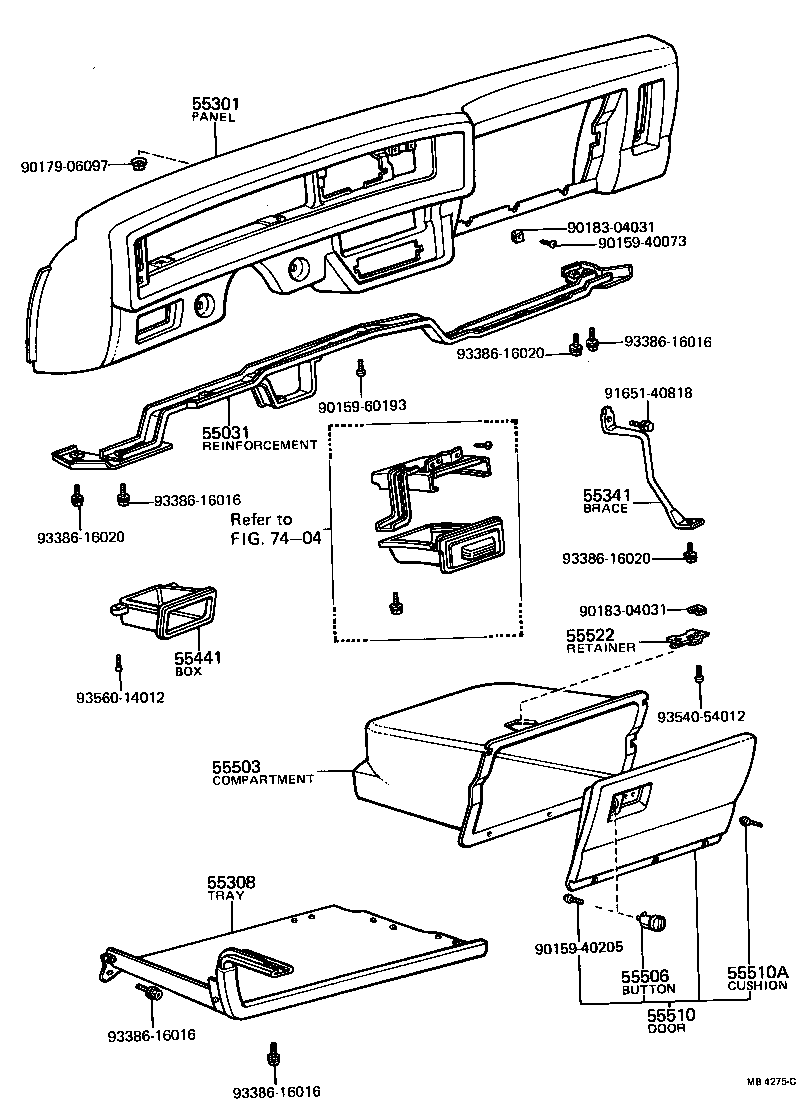

(7408-7701)KE3#,TE3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-12060 |
KE3#,TE3# |
1 | ||
| 55305-12020 |
KE3#,TE3# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1206006 |
KE3#,TE3# BROWN,BROWN |
1 | ||
| 55311-1213001 |
KE30,TE31..SPL,STD BLACK,BLACK |
1 | ||
| 55301-1206006 |
TE3#..DLX,SPL,SR5 BROWN,USA SPEC.,BROWN |
1 | ||
| 55301-1206001 |
KE3#,TE3# BLACK,BLACK |
1 | ||
| 55311-1210001 |
KE30,TE3# BLACK,BLACK |
1 | ||
| 55311-1213006 |
KE30,TE31..SPL,STD L.BROWN,BROWN |
1 | ||
| 55301-1206001 |
TE3#..DLX,SPL,SR5 BLACK,USA SPEC.,BLACK |
1 | ||
| 55311-1210006 |
KE30,TE3# L.BROWN,BROWN |
1 | ||
| 55311-1210004 |
KE30,TE3# BLUE,BLUE |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12060 |
KE3#,TE3# |
1 | ||
| 55341-12090 |
KE3#,TE3# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-1206004 |
KE30,TE3# BLUE,BLUE |
1 | ||
| 55441-12040 |
KE3#,TE3# |
1 | ||
| 55441-1206001 |
KE3#,TE3# BLACK,BLACK |
1 | ||
| 55441-1206006 |
KE3#,TE3# L.BROWN,BROWN |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-12080 |
KE3#,TE3# |
1 | ||
| 55581-12050 |
KE3#,TE3# |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12020 |
KE3#,50,TE3#,51 |
1 | ||
| 55560-12010 |
KE3#,TE3#,51 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1209001 |
KE3#,TE3# BLACK,BLACK |
1 | ||
| 55550-1212006 |
KE3#,TE3# L.BROWN,BROWN |
1 | ||
| 55550-1212004 |
KE30,TE3# BLUE,BLUE |
1 | ||
| 55550-1209006 |
KE3#,TE3# BROWN,BROWN |
1 | ||
| 55550-1212001 |
KE3#,TE3# BLACK,BLACK |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
KE3#,50,TE3#,51 |
2 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 55521-14010 |
KE3#,TE3#,51 |
1 | ||
| Common parts | ||||
| 90159-40073 | ||||
| 90159-40205 | ||||
| 90159-60193 | ||||
| 90179-06097 | ||||
| 90183-04031 | ||||
| 91651-40818 | ||||
| 93386-16016 | ||||
| 93386-16020 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 7404 | ||||

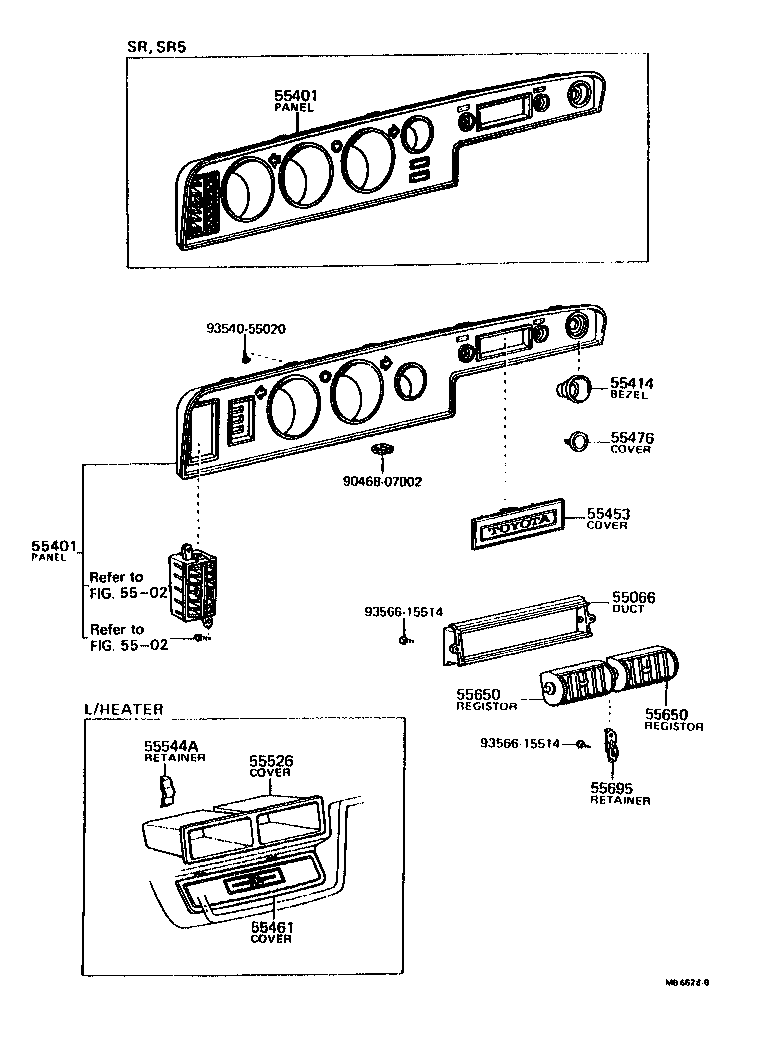

(7701-7908)KE3#,TE3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55066 - DUCT SUB-ASSY, AIR OUTLET, CENTER | ||||
| 55835-12010 |
KE3#,TE3# |
1 | ||
| 55837-12040 |
KE3#,TE3# |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12370 |
TE31..MTM..SPL |
1 | ||
| 55410-12220 |
KE30,TE31..SPL,STD |
1 | ||
| 55410-12230 |
KE30,TE31,38 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12370 |
TE31..MTM..SPL |
1 | ||
| 55410-12220 |
KE30,TE31..SPL,STD |
1 | ||
| 55410-12230 |
KE30,TE31,38 |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12030 |
KE3#,50,TE3#,51 |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12010 |
KE3#,TE3# |
1 | ||
| 55522-12040 |
KE3#,TE3# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10010 |
KE30,TE31..SPL,STD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55670-12010 |
KE3#,50,TE3#,51 |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55670-12010 |
KE3#,50,TE3#,51 |
2 | ||
| 55695 - RETAINER, AIR GUIDE BLADE CASE, CENTER NO.2 | ||||
| 58914-12010 |
KE3#,TE3# |
1 | ||
| Common parts | ||||
| 90468-07002 | ||||
| 93540-55020 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 5502 | ||||

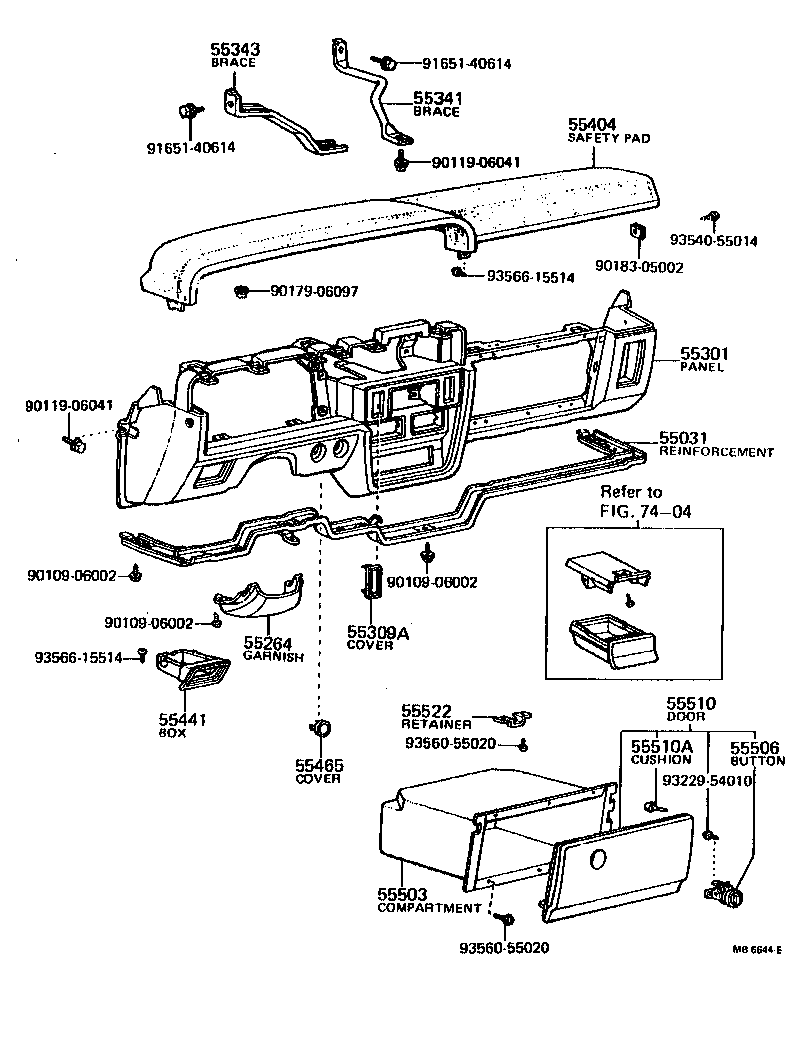

(7701-7908)KE3#,TE3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031 - REINFORCEMENT, INSTRUMENT PANEL, NO.1 | ||||
| 55330-12060 |
KE3#,TE3# |
1 | ||
| 55305-12020 |
KE3#,TE3# |
1 | ||
| 55264 - GARNISH, STEERING COLUMN | ||||
| 55432-1203001 |
KE3#,TE3# BLACK,BLACK |
1 | ||
| 55432-1203004 |
KE30,TE3# BLUE,BLUE |
1 | ||
| 55432-1203006 |
KE3#,TE3# L.BROWN,BROWN |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1206006 |
KE3#,TE3# BROWN,BROWN |
1 | ||
| 55311-1213001 |
KE30,TE31..SPL,STD BLACK,BLACK |
1 | ||
| 55301-1206006 |
TE3#..DLX,SPL,SR5 BROWN,USA SPEC.,BROWN |
1 | ||
| 55301-1206001 |
KE3#,TE3# BLACK,BLACK |
1 | ||
| 55311-1210001 |
KE30,TE3# BLACK,BLACK |
1 | ||
| 55311-1213006 |
KE30,TE31..SPL,STD L.BROWN,BROWN |
1 | ||
| 55301-1206001 |
TE3#..DLX,SPL,SR5 BLACK,USA SPEC.,BLACK |
1 | ||
| 55311-1210006 |
KE30,TE3# L.BROWN,BROWN |
1 | ||
| 55311-1210004 |
KE30,TE3# BLUE,BLUE |
1 | ||
| 55309A - COVER, BASE SWITCH HOLE, NO.1 | ||||
| 55385-20011 |
KE3#,TE3# |
2 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55341-12060 |
KE3#,TE3# |
1 | ||
| 55341-12090 |
KE3#,TE3# |
1 | ||
| 55343 - BRACE, INSTRUMENT PANEL, NO.3 | ||||
| 55343-12010 |
KE3#,TE3# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-1202006 |
KE30,TE3#..DLX,SPL,SR5 L.BROWN,BROWN |
1 | ||
| 55401-1202001 |
KE30,TE3#..DLX,SPL,SR5 BLACK,BLACK |
1 | ||
| 55401-1202004 |
KE30,TE3#..USA BLUE,BLUE |
1 | ||
| 55401-1202001 |
KE30,TE3#..USA BLACK,BLACK |
1 | ||
| 55401-1202006 |
KE30,TE3#..USA L.BROWN,BROWN |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-1206004 |
KE30,TE3# BLUE,BLUE |
1 | ||
| 55441-12040 |
KE3#,TE3# |
1 | ||
| 55441-1206001 |
KE3#,TE3# BLACK,BLACK |
1 | ||
| 55441-1206006 |
KE3#,TE3# L.BROWN,BROWN |
1 | ||
| 55465 - COVER, INSTRUMENT HOLE | ||||
| 55464-1401006 |
KE50,TE3#,51 L.BROWN,BROWN |
1 | ||
| 55464-1401001 |
KE50,TE3#,51 BLACK,BLACK |
1 | ||
| 55464-1401004 |
KE50,TE3#,51 BLUE,BLUE |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-12080 |
KE3#,TE3# |
1 | ||
| 55581-12050 |
KE3#,TE3# |
1 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12020 |
KE3#,50,TE3#,51 |
1 | ||
| 55560-12010 |
KE3#,TE3#,51 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1209001 |
KE3#,TE3# BLACK,BLACK |
1 | ||
| 55550-1212006 |
KE3#,TE3# L.BROWN,BROWN |
1 | ||
| 55550-1212004 |
KE30,TE3# BLUE,BLUE |
1 | ||
| 55550-1209006 |
KE3#,TE3# BROWN,BROWN |
1 | ||
| 55550-1212001 |
KE3#,TE3# BLACK,BLACK |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
KE3#,50,TE3#,51 |
2 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-12010 |
KE3#,50,TE3#,51 |
1 | ||
| 55521-14010 |
KE3#,TE3#,51 |
1 | ||
| Common parts | ||||
| 90109-06002 | ||||
| 90119-06041 | ||||
| 90179-06097 | ||||
| 90183-05002 | ||||
| 91651-40614 | ||||
| 93229-54010 | ||||
| 93540-55014 | ||||
| 93560-55020 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 7404 | ||||

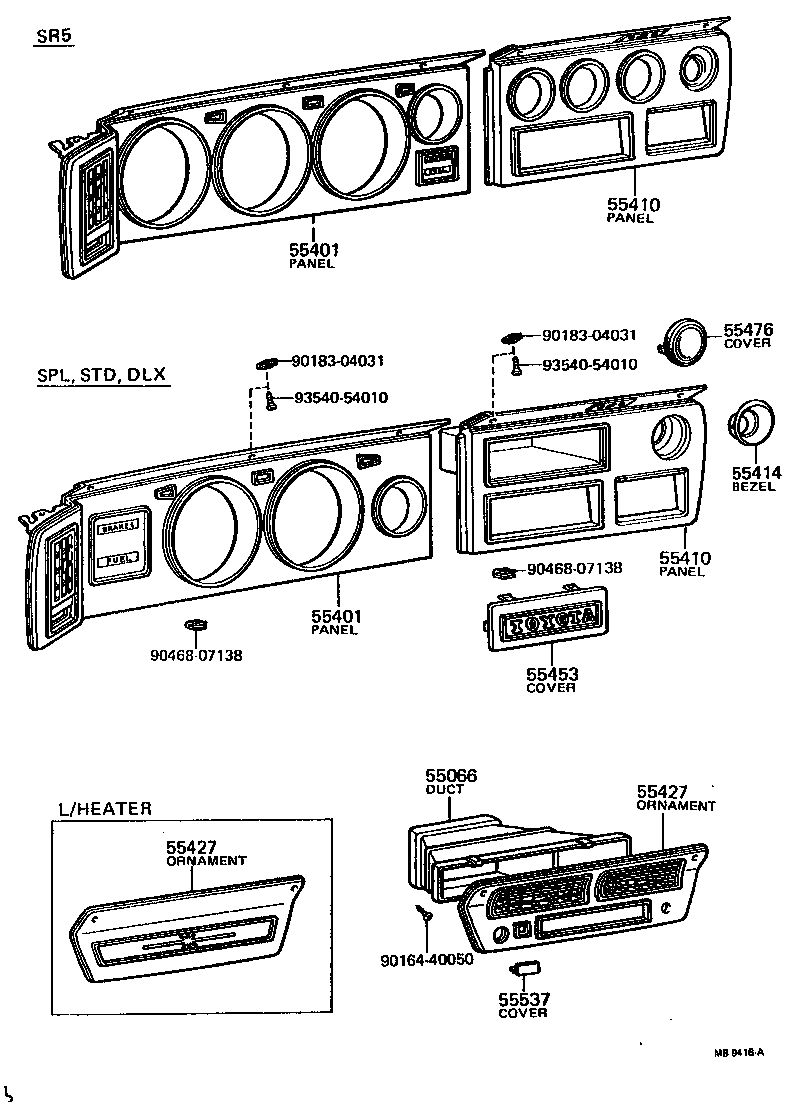

(7408-7701)KE3#,TE3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55066 - DUCT SUB-ASSY, AIR OUTLET, CENTER | ||||
| 55835-12010 |
KE3#,TE3# |
1 | ||
| 55837-12040 |
KE3#,TE3# |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12370 |
TE31..MTM..SPL |
1 | ||
| 55410-12220 |
KE30,TE31..SPL,STD |
1 | ||
| 55410-12230 |
KE30,TE31,38 |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-12370 |
TE31..MTM..SPL |
1 | ||
| 55410-12220 |
KE30,TE31..SPL,STD |
1 | ||
| 55410-12230 |
KE30,TE31,38 |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-12030 |
KE3#,50,TE3#,51 |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55406-12030 |
TE3#..DLX,SPL W/HEATER |
1 | ||
| 55406-12150 |
TE3#..DLX,SPL,STD W/COOLER & RR.WINDOW DEFOGGER |
1 | ||
| 55406-12130 |
KE3#,TE31,37..DLX,SPL,STD W/HEATER & RR.WINDOW DEFOGGER |
1 | ||
| 55406-12120 |
TE3#..DLX,SPL W/COOLER |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55406-12030 |
TE3#..DLX,SPL W/HEATER |
1 | ||
| 55406-12150 |
TE3#..DLX,SPL,STD W/COOLER & RR.WINDOW DEFOGGER |
1 | ||
| 55406-12130 |
KE3#,TE31,37..DLX,SPL,STD W/HEATER & RR.WINDOW DEFOGGER |
1 | ||
| 55406-12120 |
TE3#..DLX,SPL W/COOLER |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-12010 |
KE3#,TE3# |
1 | ||
| 55522-12040 |
KE3#,TE3# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-10010 |
KE30,TE31..SPL,STD |
1 | ||
| 55537 - COVER, REAR WINDOW DEFOGGER SWITCH HOLE | ||||
| 55537-12010 |
TE3#,51 |
1 | ||
| 55537-12010 |
KE30,TE3#,51..DLX,SPL,SR5 |
1 | ||
| Common parts | ||||
| 90164-40050 | ||||
| 90183-04031 | ||||
| 90468-07138 | ||||
| 93540-54010 | ||||
